1. USE WITH FERRULE ASSEMBLY KIT P/N 1588908-1 OR P/N 1588700-1.
QUANTITY OF 4 REQUIRED.
2
3
PROTECTIVE LABEL APPLIED AFTER FINAL CLEAN ROOM TEST TO PREVENT
OPTICAL CAVITY CONTAMINATION. REMOVE ONLY WHEN READY TO ASSEMBLE.
MULTIMODE IDENTIFIER.
2
F1
G1
G
F
ECR-09-007414
ECR-16-015298
ECR-17-014341
ECR-17-017934
02JUN2009
07NOV2016
25OCT2017
12DEC2017
KG
KG
KG
KG
DW
DW
DW
DW
D
3
C
C
( n13.34 )
( n14.1 )
B
( 18.1 )
B
4 CHANNEL, 850/1300nm MM
DESCRIPTION
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
1515747-1
PART NO.
E. HOPKINS
D. WERTMAN
08OCT2002
08OCT2002
08OCT2002
NAME
TE Connectivity
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
A
MATERIAL
0
1
2
3
4
ANGLES
PLC
PLC
PLC
PLC
PLC
-
-
-
-
-
PRODUCT SPEC
D. WERTMAN
APPLICATION SPEC
-
1470-19 (3/13)
-
STAINLESS
ALLOYS
-
& NBR
FINISH
-
N/A
-
WEIGHT
-
-
CUSTOMER DRAWING
A3
00779
SIZE

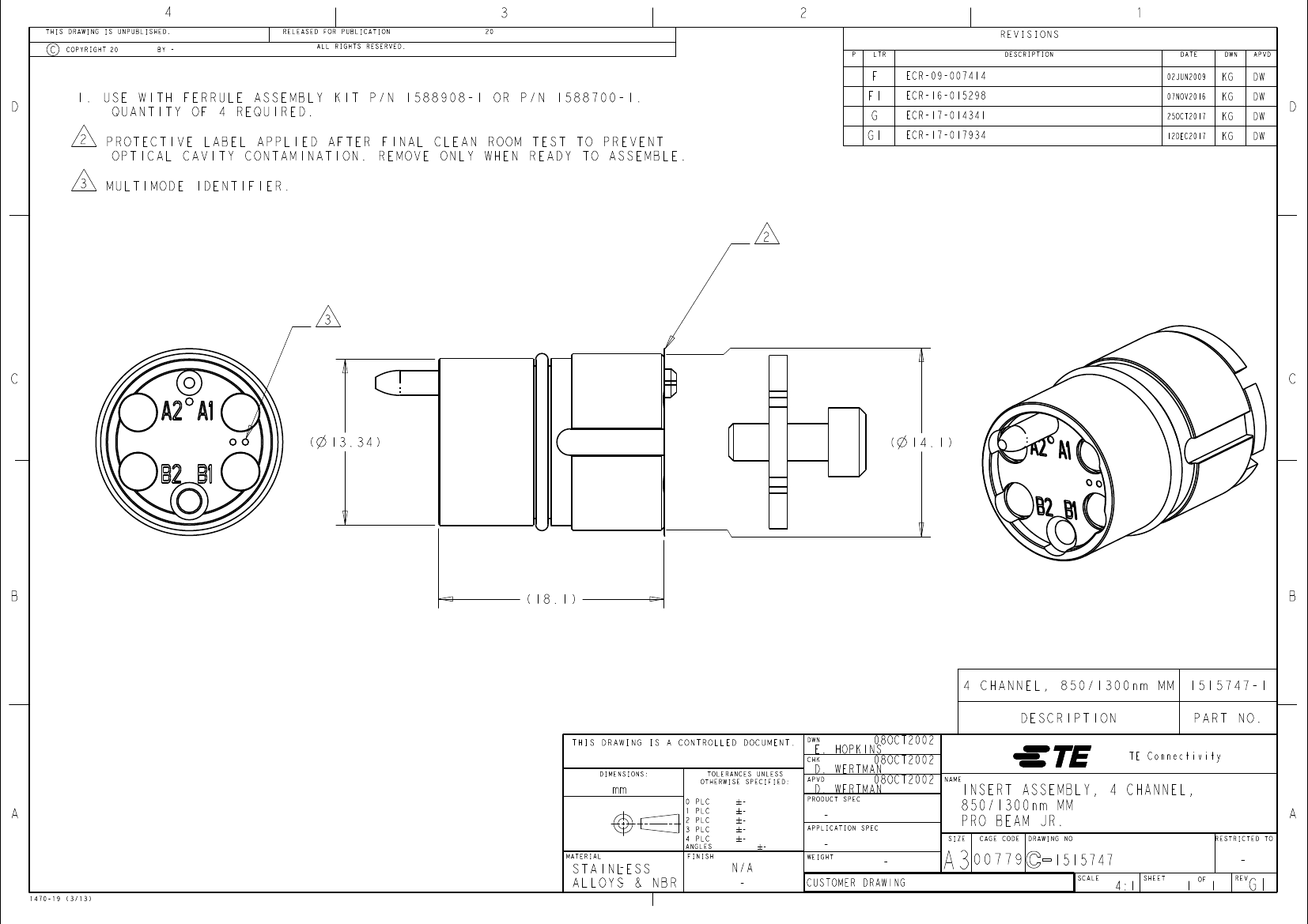

INSERT ASSEMBLY, 4 CHANNEL,
850/1300nm MM
PRO BEAM JR.
CAGE CODE
DRAWING NO
A
RESTRICTED TO
1515747
SCALE
4:1
SHEET
1
OF
1
REV
-
G1
