1586515-3 datasheet, PDF - EEWORLD Datasheet

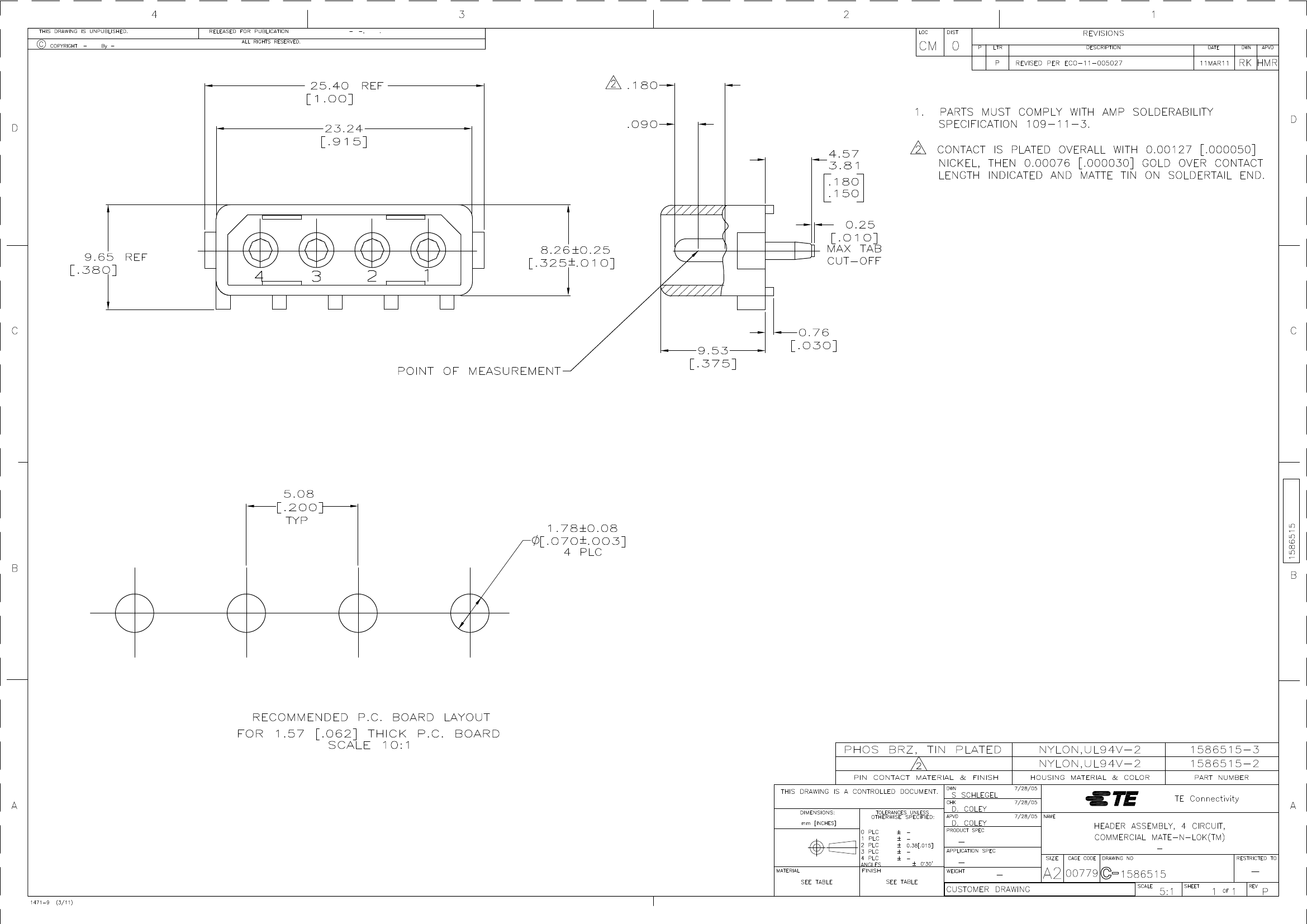

1586515-3: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,4 CONTACTS,PIN,0.2 PITCH,PC TAIL TERMINAL,LOCKING,NATURAL; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1586515-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1586515-3	-	-	View	Buy Now

HEADER CONNECTOR,PCB MNT,RECEPT,4 CONTACTS,PIN,0.2 PITCH,PC TAIL TERMINAL,LOCKING,NATURAL

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Is Samacsys	N
body width	0.325 inch
subject depth	0.375 inch
body length	1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	50 Cycles
maximum insertion force	17.792 N
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	NYLON
Manufacturer's serial number	1586515
Plug contact pitch	0.2 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	13 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.19 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	4
Evacuation force-minimum value	3.1136 N
Base Number Matches	1
