170M4669 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 170M4669

170M4669: DescriptionElectric Fuse, 900A, 700VAC, 550VDC, 200000A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size203KB，4 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric View All

170M4669 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	170M4669	-	-	View	Buy Now

170M4669 Overview

Electric Fuse, 900A, 700VAC, 550VDC, 200000A (IR), Inline/holder,

170M4669 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cooper Industries
Reach Compliance Code	compliant
Is Samacsys	N
Other features	RATED BREAKING CAPACITY AT 550 VDC: 200000 A
body width	50 mm
body height	53 mm
Body length or diameter	53 mm
Built-in features	INDICATOR
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	155000 J
Manufacturer's serial number	170M
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	53mm x 50mm x 53mm
Rated breaking capacity	200000 A
Rated current	900 A
Rated voltage (AC)	700 V
Rated voltage (DC)	550 V
Guideline	CE; IEC; UL
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

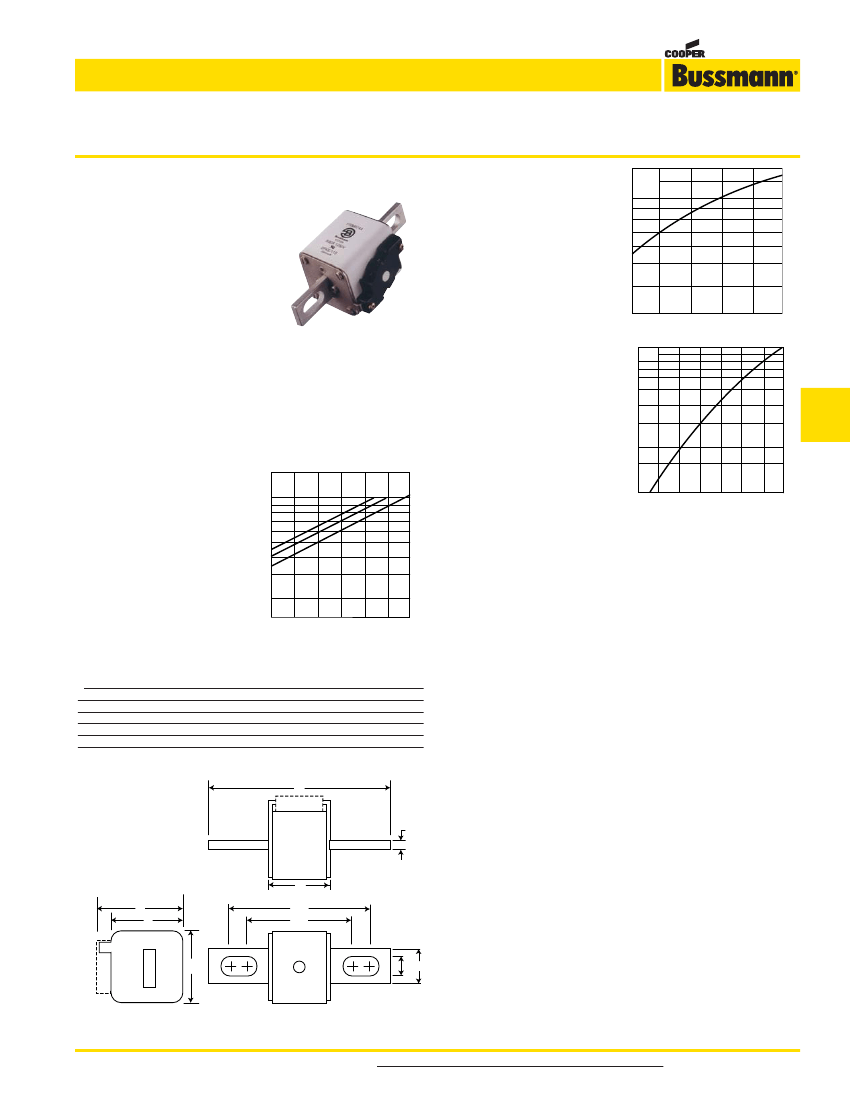

High Speed Fuses

Square Body US Style — 690V/700V (IEC):

40-2000A

690V/700V (IEC) 40-2000A

Specifications

Description:

Square body US

style high speed fuses.

Dimensions:

See dimensions

illustration.

Ratings:

Volts: —

—

Amps: —

IR: —

690Vac (IEC)

700Vac (UL)

40-200A

200kA RMS Sym.

Arc Voltage

This curve gives the peak

arc voltage, UL, which may

appear across the fuse

during its operation as a

function of the applied

working voltage, Eg, (rms)

at a power factor of 15%.

Power Losses

Watts loss at rated current

is given in the electrical

characteristics. The curve

allows the calculation of

the power losses at load

currents lower than the

rated current. The correc-

tion factor, Kp, is given as

a function of the RMS load

current, Ib, in % of the

rated current.

1.4

1.2

200

300

400

500

600 690

Agency Information:

CE, Designed and tested to IEC

60269: Part 4, UL Recognized. Consult Cooper Bussmann

for UL Recognition/ CSA Component Acceptance status.

Electrical Characteristics

Total Clearing I

The total clearing I

t at rated

voltage and at power factor

of 15% are given in the elec-

trical characteristics. For

other voltages, the clearing

t is found by multiplying by

correction factor, K, given as

a function of applied working

voltage, Eg, (rms).

1.5

1.0

2) 1)

1.0

0.8

0.6

0.5

0.4

0.3

0.2

High Speed

Fuses

0.1

30 40 50

80 90 100%

0.5

0.4

0.3

0.2

100 200 300 400 500 600 690

1) Rated voltage 600V.

2) Rated voltage 550V

Features and Benefits

• Excellent dc performance

• Low arc voltage and low energy let-through (I

• Low watts loss

• Superior cycling capability

Typical Applications

• DC common bus

• DC drives

• Power converters/rectifiers

• Reduced voltage starters

Dimensions (mm)

Type -FU/-, -FKE/-, FU/115-, -FKE/115

Size

110

136

135

B**

148

157

159

155

104

105

106

C1**

123

126

125

C2**

110

100

**Valid for fuses type -FU/115 & -FKE/115.

1mm = 0.0394” / 1” = 25.4mm

For product data sheets, visit www.cooperbussmann.com/products/datasheet.asp

167
