NOTES
1. MATERIALS
HOUSING
COLOR
TERMINAL
AND FINISH:
: HIGH TEMPERATURE POLYAMIDE, UL 94V-0 RATED,
: BLACK.
: COPPER ALLOY, TIN PLATED.
L
12.00
1.00 0.02
TYP
8.65
2. MECHANICAL
MAX. INSERTION FORCE PER HOLE : 3N
MIN. WITHDRAWAL FORCE PER HOLE: 1.5N
MIN. PCB HOLE DIA : 1.4mm
MAX. PCB THICKNESS : 2.4mm
3. ELECTRICAL
WIRE RANGE
: 24 - 16 AWG
MAX. VOLTAGE
: 300 V
MAX CURRENT
: 15 A
CONTACT RESISTANCE
: <15 m Ohm
INSULATION RESISTANCE : >1000 M Ohm (500V DC)
4. OPERATING TEMPERATURE RANGE: -40°C TO +110°C
5. RECOGNIZED UNDER THE COMPONENT PROGRAM OF
UNDERWRITERS LABORATORIES INC.FILE N $ E60677.
6
7
8
4.15
3.5 0.5
TYP
8.05 0.15
C
C
TOLERANCE NOT CUMULATIVE.
TAPE AND REELED PACKAGED
PRELIMINARY PART - NOT RELEASED FOR PRODUCTION.
7
42.52 # 0.15
22.20 # 0.10
62.84 # 0.20
57.76 # 0.20
52.68 # 0.20
47.60 # 0.15
42.52 # 0.15
37.44 # 0.15
32.36 # 0.15
27.28 # 0.10
22.20 # 0.10
17.12 # 0.10
12.04 # 0.10
DIM L
8
4
12
11
10
9
8
7
6
5
4
3
2
NO OF
POSN
2-1776147-8
2-1776147-4
1-1776147-2
1-1776147-1
1-1776147-0
1776147-9
1776147-8
1776147-7
1776147-6
1776147
-5
1776147-4
1776147
-3
1776147-2
PART
NUMBER
TE Connectivity
B
5.08 0.05
TYP
6
8
7
8
8
B
1.00 0.02
TYP
3.48 0.15
2 PLCS
8
8
1.4
+0.
0
1
A
5.08
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
S.WELDON
C.RICHARD
07JUN2005
07JUN2005
07JUN2005
NAME
RECOMMENDED PC BOARD LAYOUT
-3 AS SHOWN
1471-9 (3/13)
MATERIAL
mm
APVD
A
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.5
0.25
-
-
PRODUCT SPEC
C.RICHARD
APPLICATION SPEC
-
-
SEE NOTES
-
SEE NOTES
-
WEIGHT
-
-
CUSTOMER DRAWING
A2
00779
SIZE

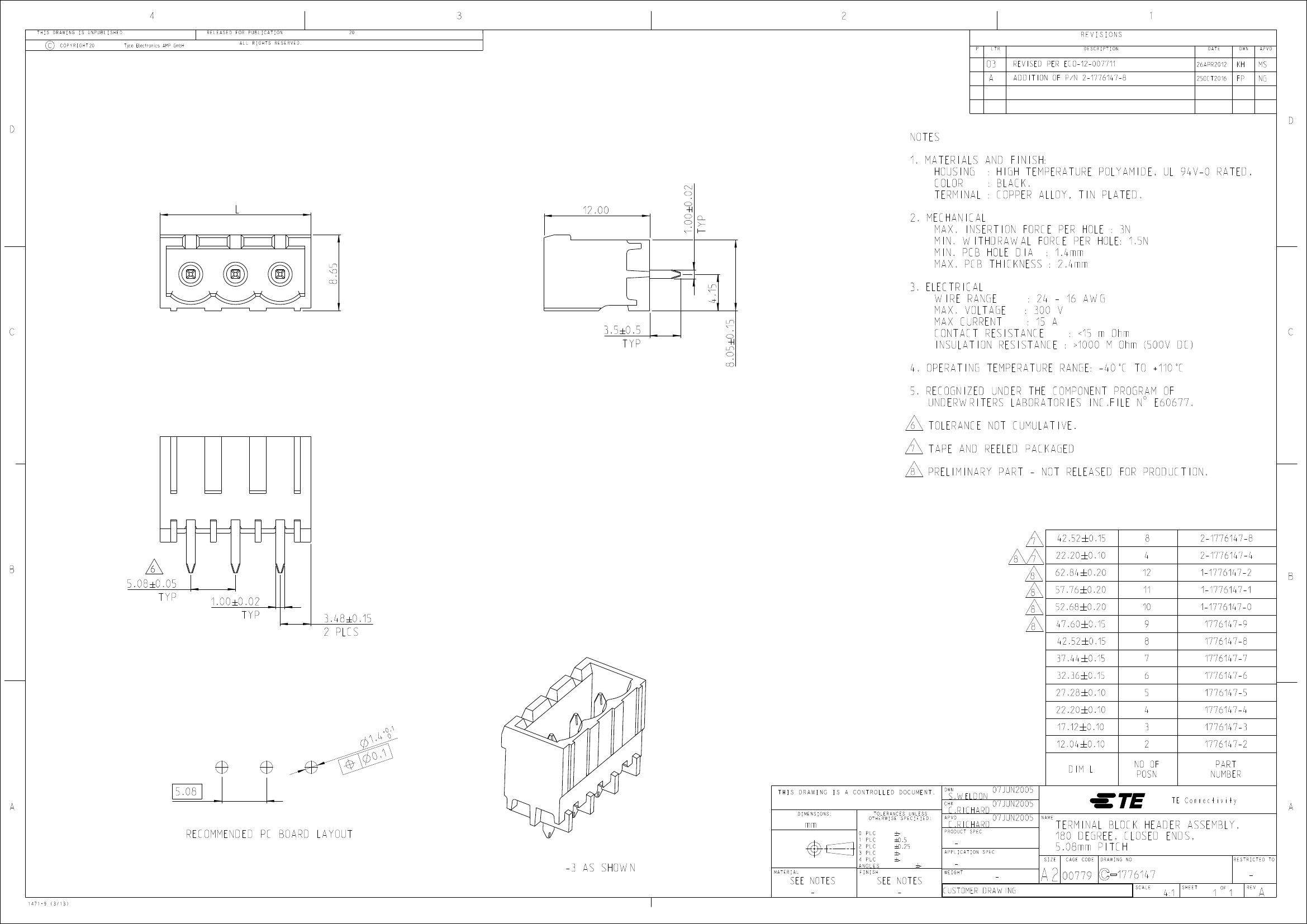

TERMINAL BLOCK HEADER ASSEMBLY,
180 DEGREE, CLOSED ENDS,
5.08mm PITCH
CAGE CODE DRAWING NO
RESTRICTED TO
1776147
SCALE
4:1
SHEET
1
