1N1126R

Description
Rectifier Diode, 1 Phase, 1 Element, 12A, 400V V(RRM), Silicon, DO-203AA, GLASS METAL, DO203AA(DO4), 1 PIN
CategoryDiscrete semiconductor    diode
File Size99KB,2 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric View All

1N1126R Online Shopping

Suppliers Part Number Price MOQ In stock
1N1126R - - View Buy Now

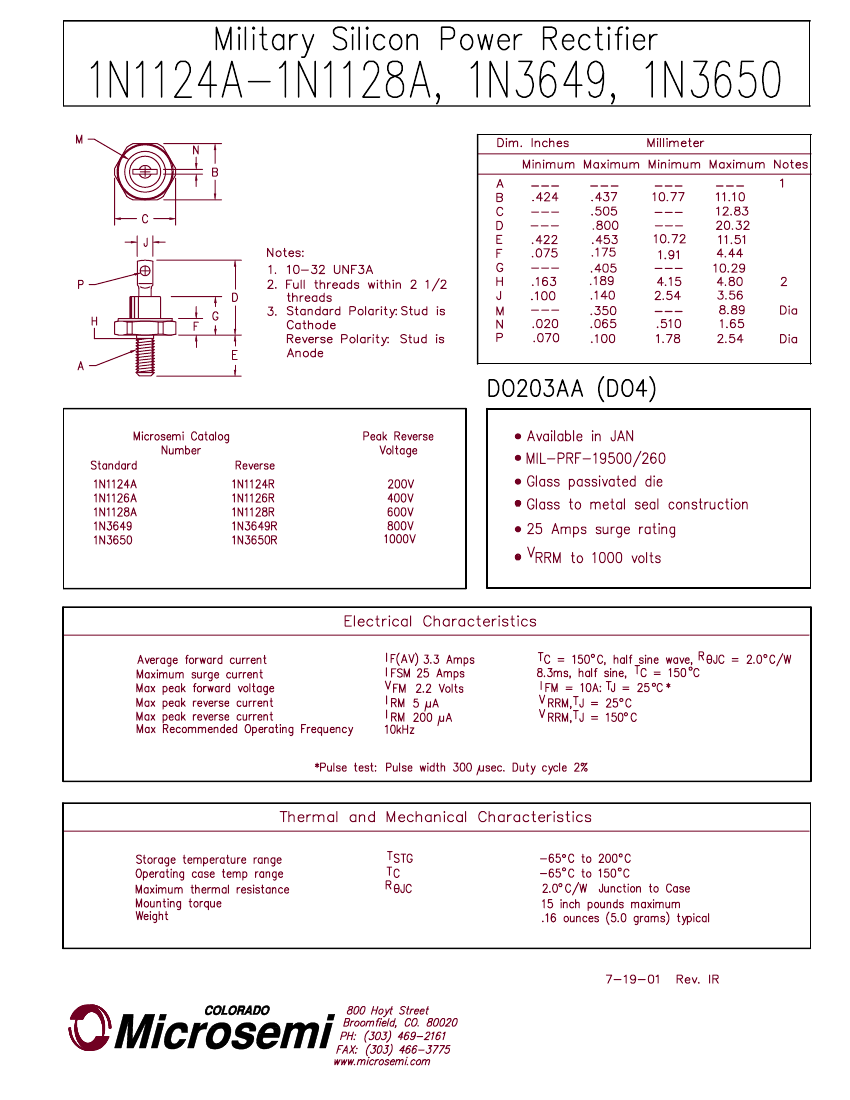

1N1126R Overview

Rectifier Diode, 1 Phase, 1 Element, 12A, 400V V(RRM), Silicon, DO-203AA, GLASS METAL, DO203AA(DO4), 1 PIN

1N1126R Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMicrosemi
Parts packaging codeDO-4
package instructionO-MUPM-D1
Contacts1
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
applicationPOWER
Shell connectionANODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE

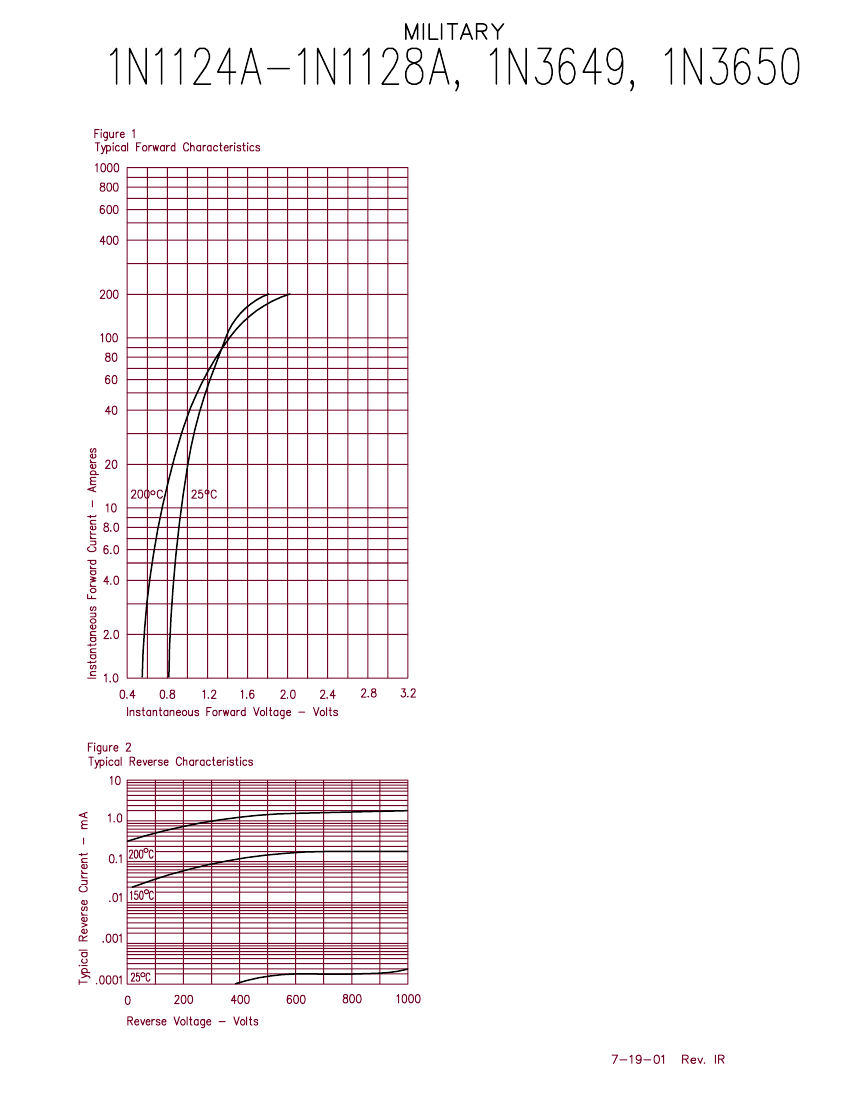

Maximum forward voltage (VF)1.3 V
JEDEC-95 codeDO-203AA
JESD-30 codeO-MUPM-D1
JESD-609 codee0
Maximum non-repetitive peak forward current250 A
Number of components1
Phase1
Number of terminals1
Maximum operating temperature200 °C
Minimum operating temperature-65 °C
Maximum output current12 A
Package body materialMETAL
Package shapeROUND
Package formPOST/STUD MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage400 V
surface mountNO
Terminal surfaceTIN LEAD
Terminal formSOLDER LUG
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
