dna.
20 STERN AVE.
SPRINGFIELD, NEW JERSEY 07081
U.S.A.
TELEPHONE: (973) 376-2922
(212) 227-6005
FAX: (973) 376-8960

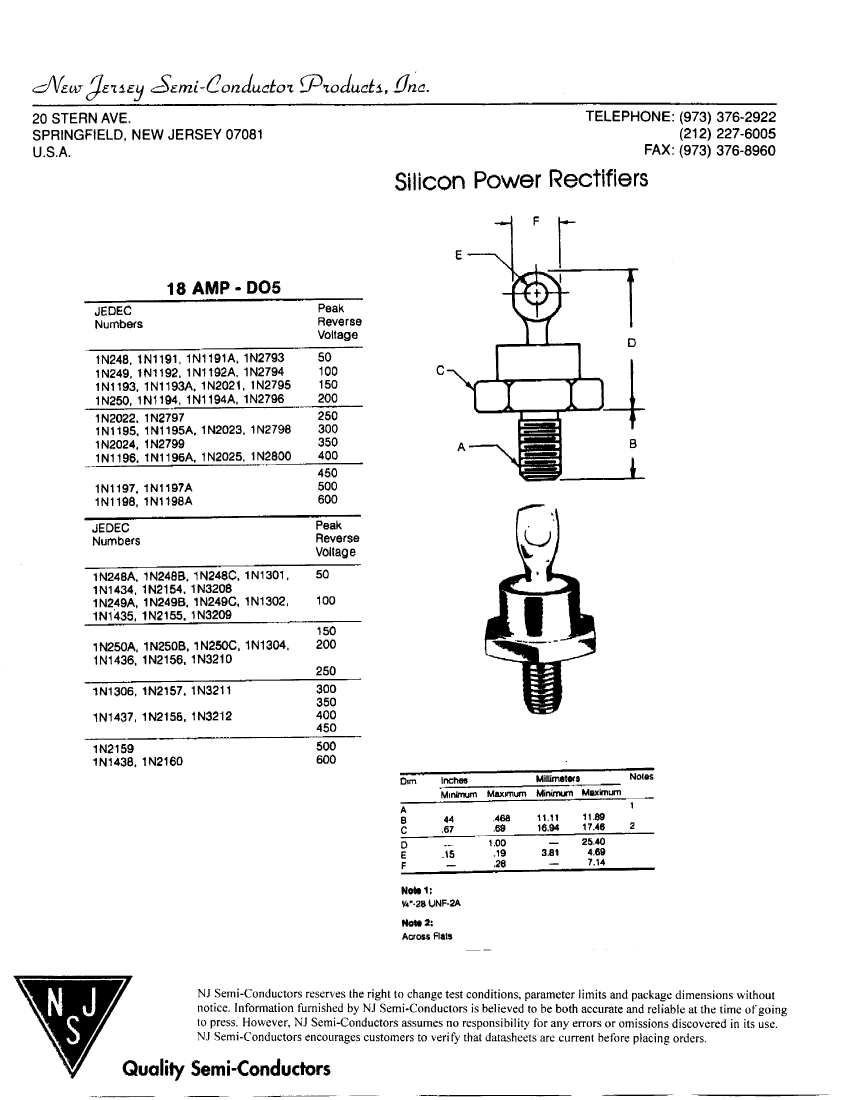

Silicon Power Rectifiers
18 AMP-DOS
JEDEC
Numbers
1N248. 1N1191, 1N1191A, 1N2793
1N249, 1N1192. 1N1192A, 1N2794
1N1193. 1N1193A, 1N2021, 1N2795
1N250, 1N1194, 1N1194A, 1N2796
1N2022. 1N2797
1N1195. 1N1195A. 1N2023. 1N2798
1N2024. 1N2799
1N1196. 1N1196A, 1N2025. 1N2800
1N1197. 1N1197A
1N1198, 1N1198A
JEDEC
Numbers
1N248A, 1N248B, 1N248C. 1N1301,
1N1434. 1N2154, 1N3208
1N249A, 1N249B. 1N249C, 1N1302,
1N1435, 1N2155. 1N32Q9
1N250A, 1N250B. 1N250C, 1N1304.
1N1436. 1N2156, 1N3210
Peak
Reverse
Voltage
50
100
150
200
250
300
350
400
450
500
600
Peak
Reverse
Voltage
50
100
150
200
250
1N1306, 1N2157. 1N3211
1N1437, 1N2156. 1N3212
1N2159
1N1438. 1N2160
300
350
400
450
500
600
Dim
A
B
C
D
E
F
Inches
Minimum
Millimeters
Maximum
.468
Notes
Minimum Maximum
1
44
.67
.15
.69
1.00
11.11
16,94
3.81
11.89
17.46
25.40
4.69
7.14
2
.19
.26
Not*1:
V4--28 UNF-2A
Not* Si
Across Hsls
NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without
notice. Information famished by NJ Semi-conductors is believed to be both accurate and reliable at the time of going
to press. However, NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use
NJ Semi-Conductors encourages customers to verify that datasheets are current before placing orders
Quality Semi-Conductors
