1N3209RPBF datasheet, PDF - EEWORLD Datasheet

1N3209RPBF: DescriptionRectifier Diode, 1 Phase, 1 Element, 15A, 100V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN; CategoryDiscrete semiconductor diode; File Size93KB，4 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric View All

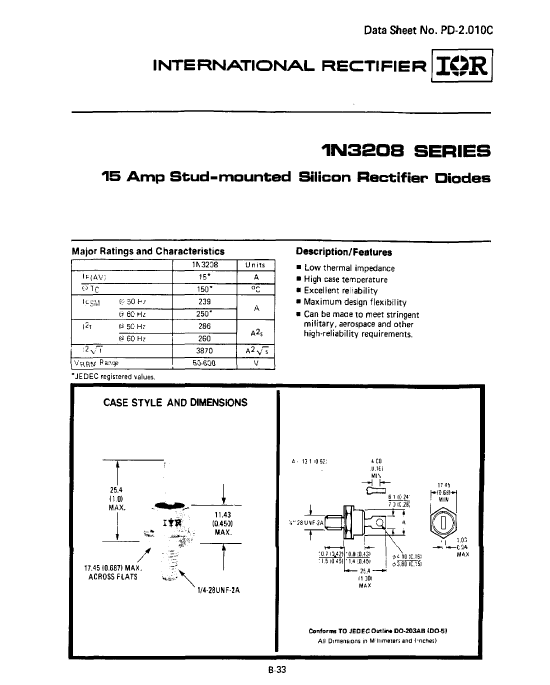

1N3209RPBF Overview

Rectifier Diode, 1 Phase, 1 Element, 15A, 100V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN

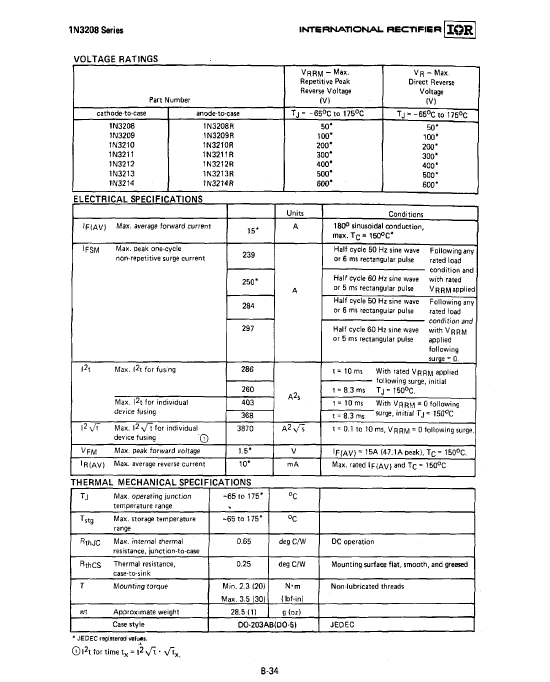

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
Parts packaging code	DO-5
package instruction	DO-5, 1 PIN
Contacts	1
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
application	GENERAL PURPOSE
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-203AB
JESD-30 code	O-MUPM-D1
JESD-609 code	e2

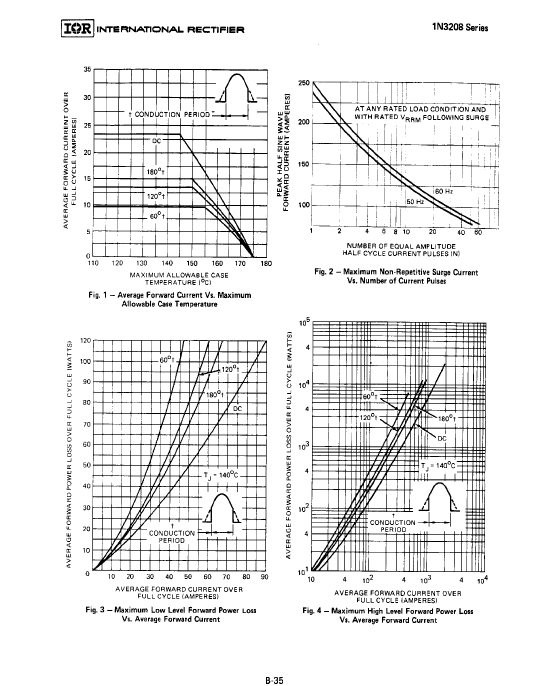

Maximum non-repetitive peak forward current	250 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	15 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
Terminal surface	TIN COPPER
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	40
Base Number Matches	1
