52340-0801

Description
Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug
CategoryThe connector    The connector
File Size201KB，3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

52340-0801 Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug

52340-0801 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresSTAGGERED CONFIGURATION, POLARIZED
body width0.307 inch
subject depth0.157 inch
body length2.435 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleLEAF
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
maximum insertion force.834 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Manufacturer's serial number52340
Plug contact pitch0.05 inch
Match contact row spacing0.075 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number4
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
Plating thicknessFLASH inch
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.134 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts80
UL Flammability Code94V-0
Evacuation force-minimum value.139 N
Base Number Matches1

Preview

Download Datasheet

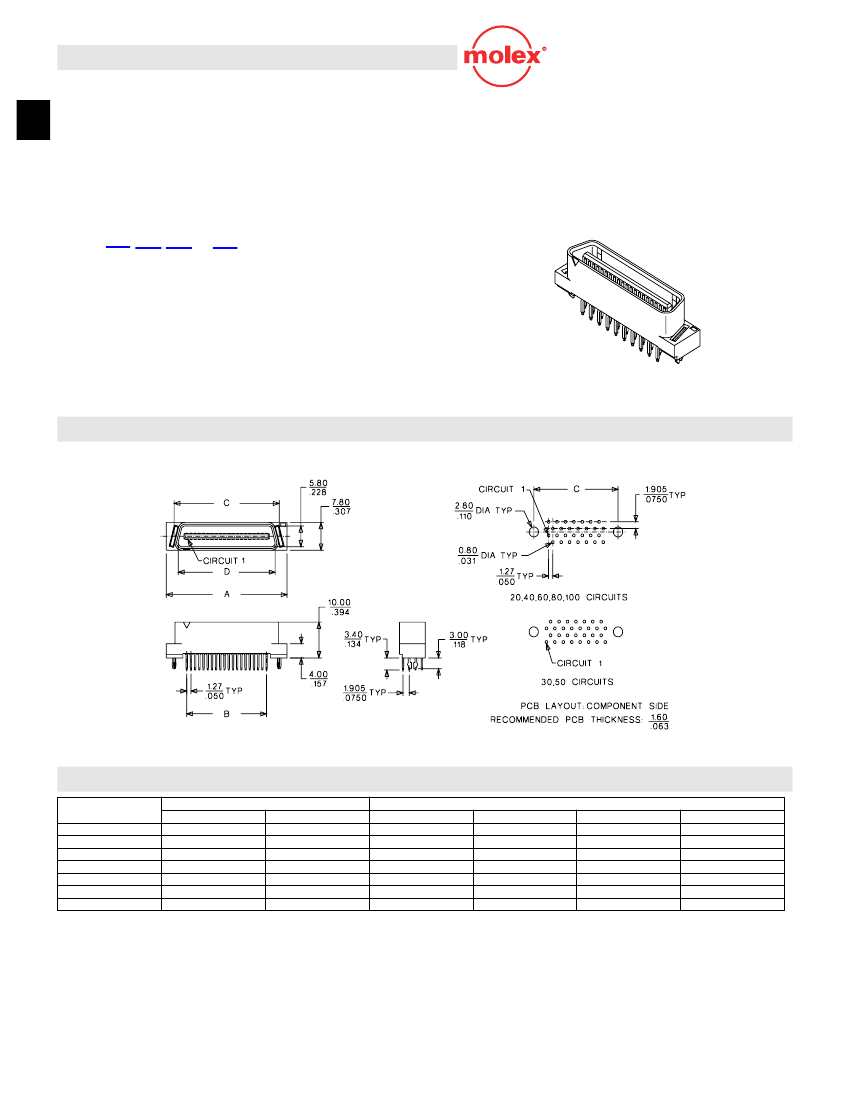

FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 20 to 100 circuits
s
Leaf-style design protects terminals from damage
A
0.40 to 1.60mm (.016 to .063") Pitch
during mating
s
D-style shroud provides visual orientation and physical
polarization
s
Optional metal peg provides secure retention during
wave soldering
Reference Information
Packaging: Tray
Mates With:
52326, 52368, 52409
and
52410
(does not mate with EBBI 50-D)
Designed In: Millimeters
Electrical
Voltage: 125V
Current: 0.5A
Contact Resistance: 20m
Ω
max.
Dielectric Withstanding Voltage: 500V AC/1 min.
Insulation Resistance: 1000 M
Ω
min.
Physical
Housing: Glass-filled polyester, UL 94V-0
Contact: Brass
Plating: Selective Gold flash over Nickel
Metal Peg: Phosphor Bronze
Operating Temperature: -55 to +85
˚
C
1.27mm (.050") Pitch
D-50L
Header
52411/52340
Dual Row
Vertical

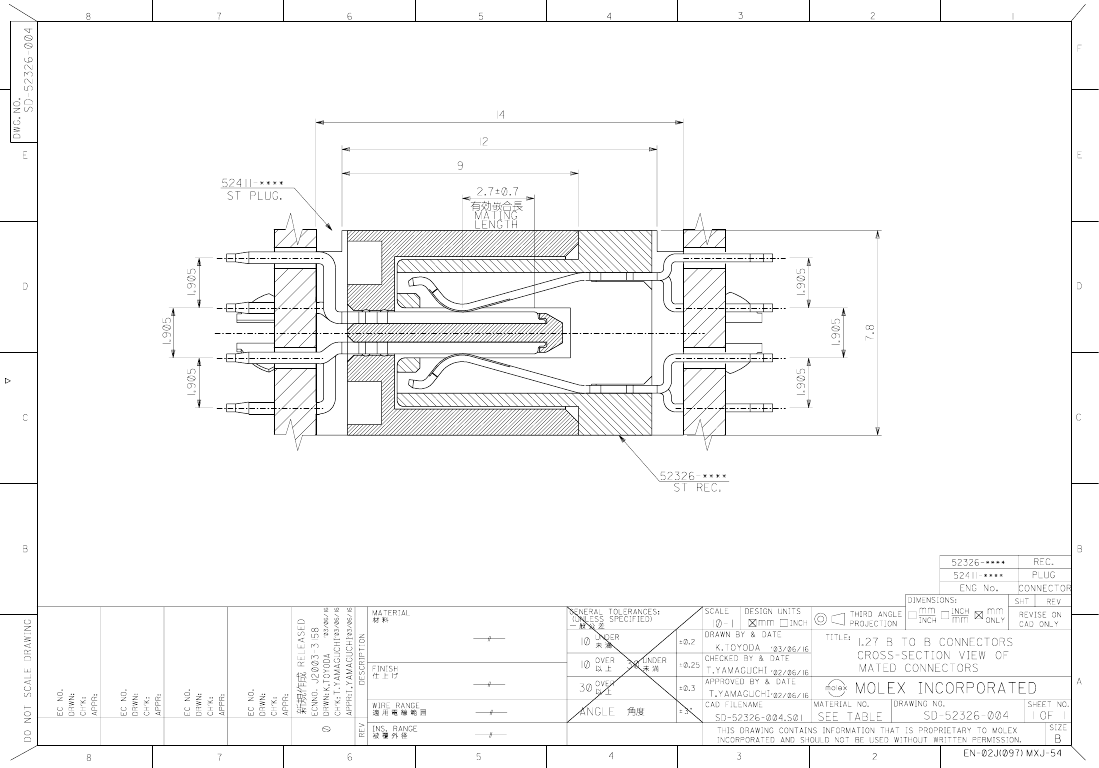

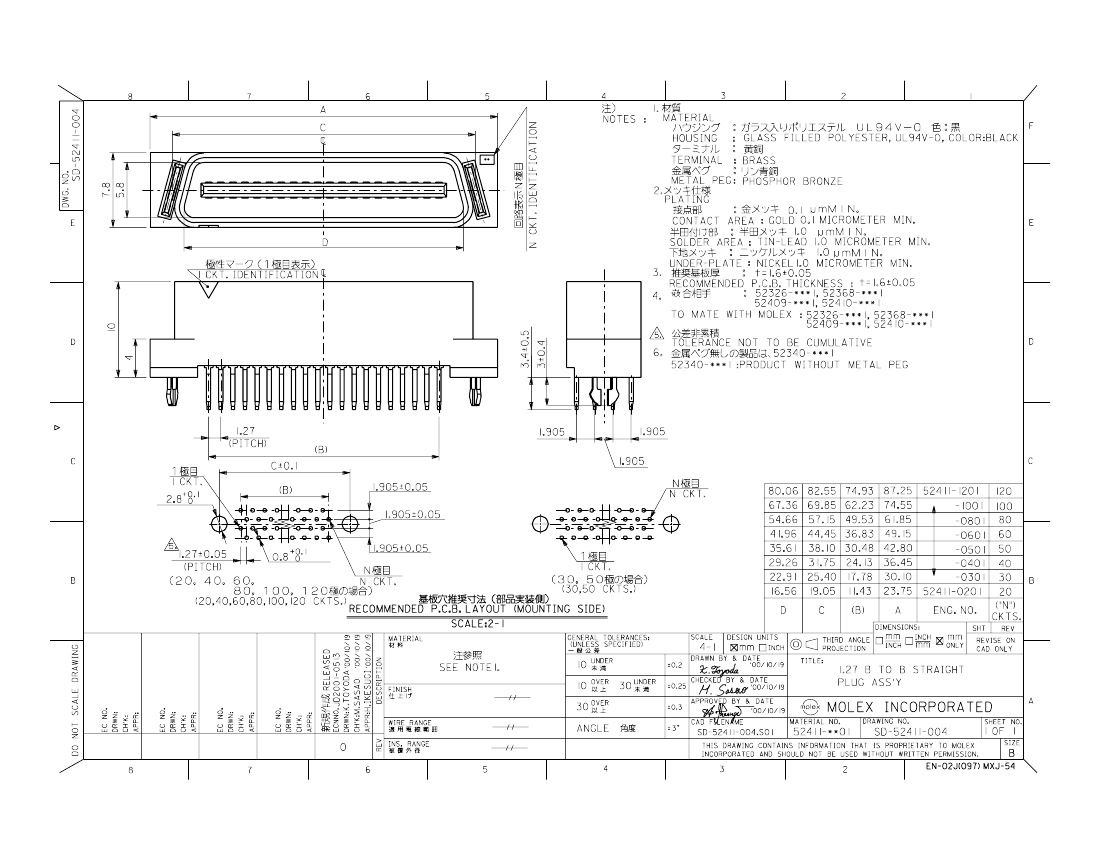

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
Circuits
20
30
40
50
60
80
100
Order No.
Metal Peg
52411-0201
52411-0301
52411-0401
52411-0501
52411-0601
52411-0801
52411-1001
Without Metal Peg
52340-0201
52340-0301
52340-0401
52340-0501
52340-0601
52340-0801
52340-1001
23.75
30.10
36.45
42.80
49.15
61.85
74.55
A
(.935)
(1.185)
(1.435)
(1.685)
(1.935)
(2.435)
(2.935)
11.43
17.78
24.13
30.48
36.83
49.53
62.23
B
(.450)
(.700)
(.950)
(1.200)
(1.450)
(1.950)
(2.450)
Dimension
19.05
25.40
31.75
38.10
44.45
57.15
69.85
C
(.750)
(1.000)
(1.250)
(1.500)
(1.750)
(2.250)
(2.750)
16.56
22.91
29.26
35.61
41.96
54.66
67.36
D
(.652)
(.902)
(1.152)
(1.402)
(1.652)
(2.152)
(2.652)
A-84
