2-102692-1 datasheet, PDF - EEWORLD Datasheet

2-102692-1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,140 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size107KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

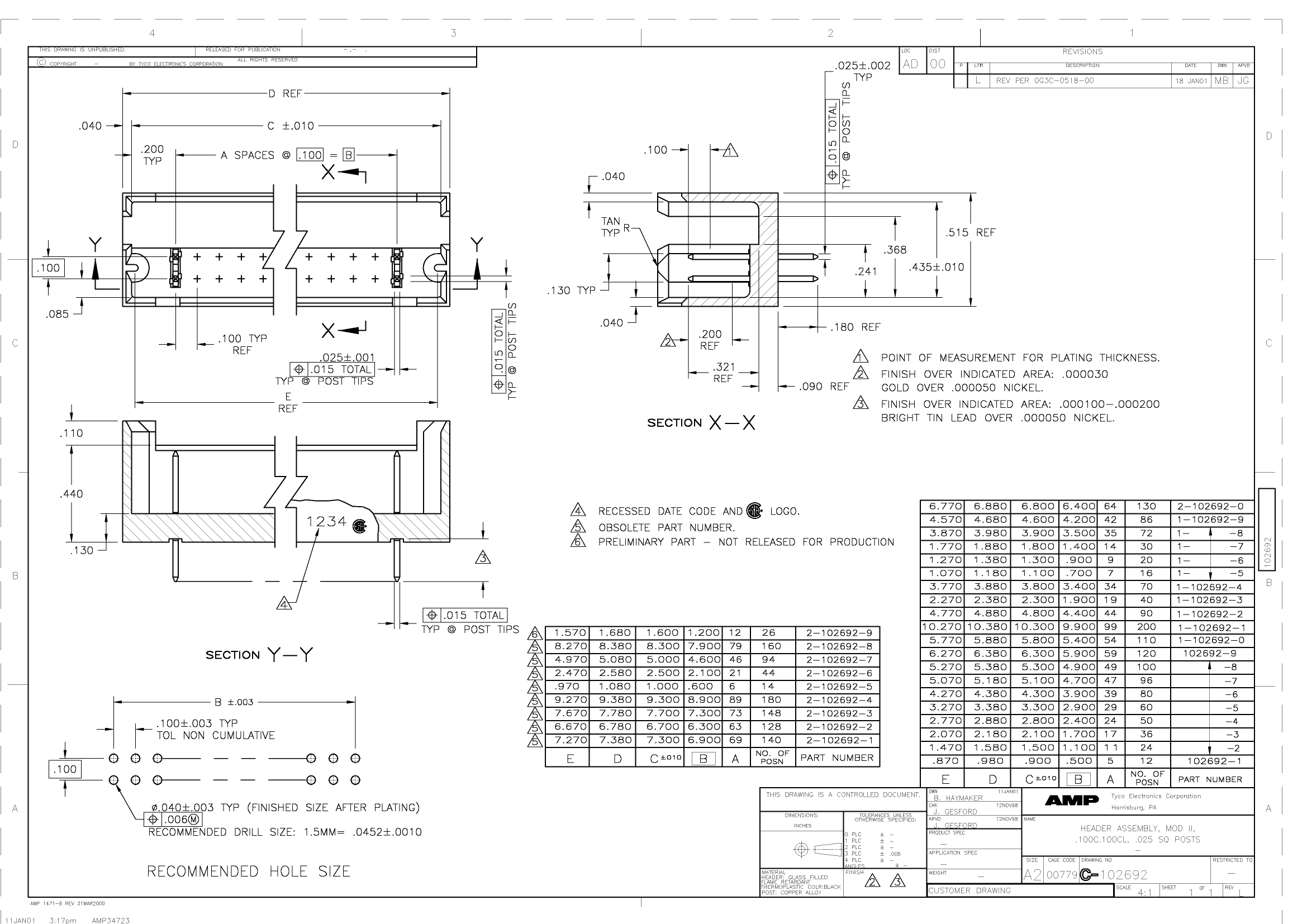

2-102692-1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,140 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.515 inch
subject depth	0.55 inch
body length	7.38 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Durability	200 Cycles
maximum insertion force	1.112 N
Insulation resistance	103000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	102692
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	HOUSING SIDE
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.18 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	140
Evacuation force-minimum value	.2085 N
Base Number Matches	1
