2-103741-8 datasheet, PDF - EEWORLD Datasheet

2-103741-8: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,28 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

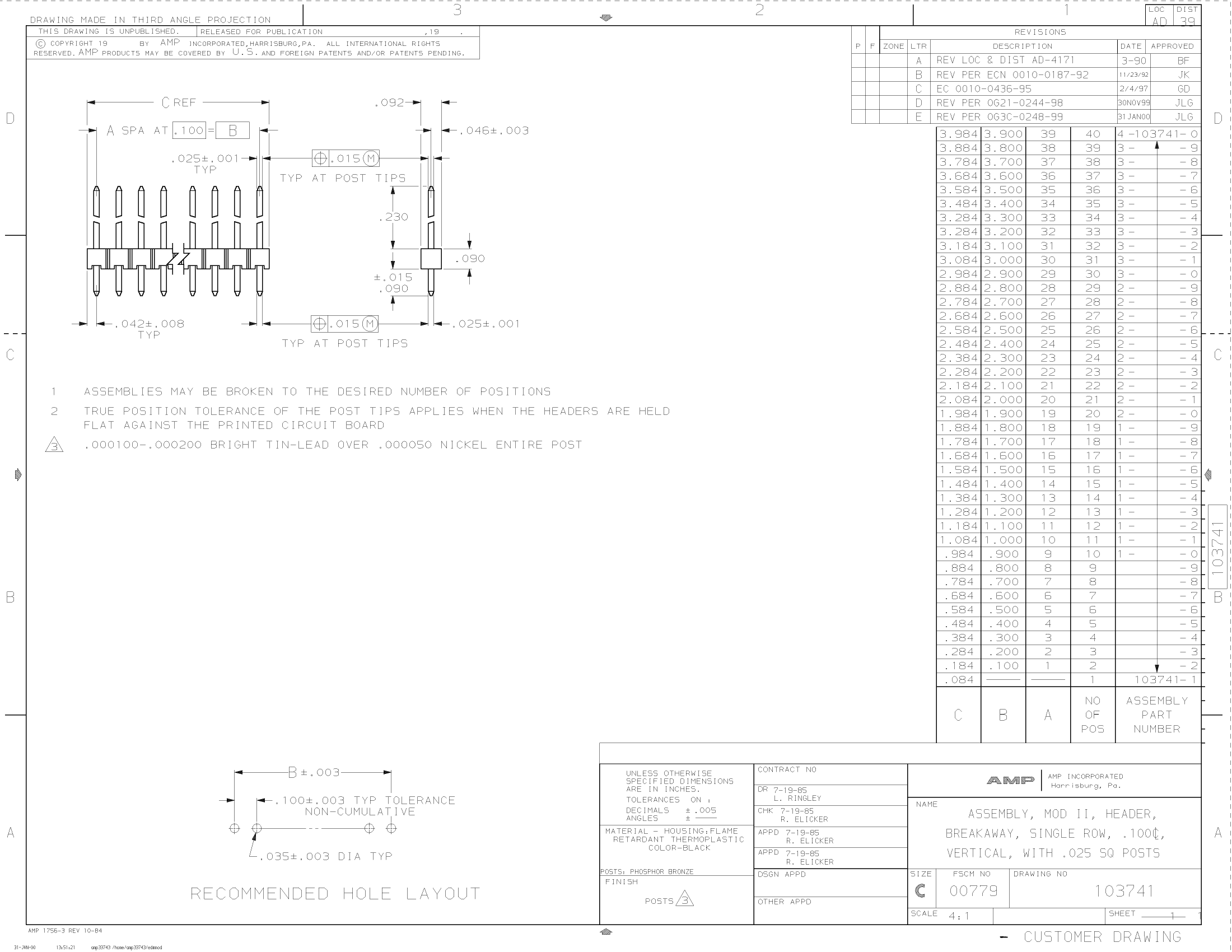

Download Datasheet Parametric View All

2-103741-8 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,28 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
Is Samacsys	N
Other features	BREAKAWAY HEADER
body width	0.092 inch
subject depth	0.09 inch
body length	2.784 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	103741
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
Base Number Matches	1
