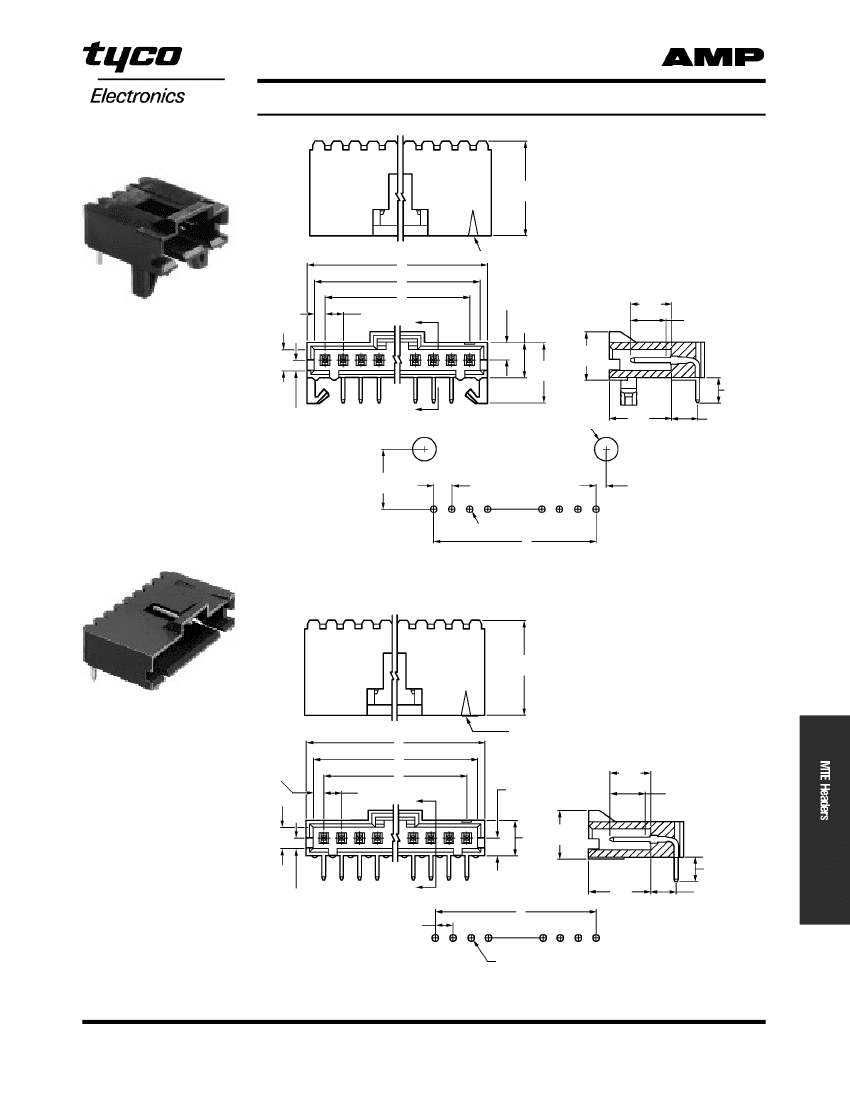

AMPMODU Interconnection System
MTE Headers, Shrouded Latching, Single-Row .100 [2.54] Centerline
.025 [0.64] Square
Right-Angle Post
With Holddown
.535
[13.59]
Position No. 1 Indicator
A
B
.060
[1.52]
C
.100
Typ.
[2.54]
X
.100
[2.54]
.200
[5.08]
.275
[6.99]
.130
[3.30]
X
.134±.003
Dia.
[3.40±0.08]
(2 Plc.)
.350
[8.89]
.145
[3.68]
.230
[5.84]
Material and Finish:
Housing—Black
thermoplastic,
94V-0 rated
Posts—Copper
alloy, plated as follows:
Plating A—Duplex
plated .000030
[0.00076] gold on contact area, .000100
[0.00254] min. tin-lead on solder area,
with entire post underplated .000050
[0.00127] nickel
Plating B—Duplex
plated .000015
[0.00038] gold on contact area, .000100
[0.00254] min. tin-lead on solder area,
with entire post underplated .000050
[0.00127] nickel
Plating C—.000100
[0.00254] tin-lead
over .000050 [0.00127] nickel on entire
post
.200
Ref.
[5.08]
(Contact Area)
.365
[9.27]
.120
[3.05]
.060
[1.52]
Section X-X
.340±.003
Typ.
[8.64±0.08]
.100*
Typ.
[2.54]
.055±.003
Typ.
[1.40±0.08]
.035±.003
Dia. Typ.
[0.89±0.08]
C
Recommended PC Board Hole Layout
(PC board thickness (for Holddown Feature) is .062±.008 [1.57±0.20])
*±.003 [±0.08]; tolerance not to accumulate within one connector pattern.
Without Holddown
.535
[13.59]
Related Product Data:
Mateable AMPMODU MTE
Products:
Receptacle Assemblies
(Latching)—pages
247, 248
Receptacle Assemblies with Guide
Ribs (installed in Single-Row
Coupling Shroud)—
pages 249, 250, 252, 257
Other Mateable Connectors:
Flexible Film Connectors—
Catalog 82007
A
.060
[1.52]
B
C
.100
Typ.
[2.54]
X
Position No. 1 Indicator
.100
[2.54]
.230
[5.84]
.200
Ref.
[5.08]
(Contact Area)
.200 .275
[5.08] [6.99]
.120
[3.05]
.060
[1.52]
X
C
.100*
Typ.
[2.54]
.035±.003
Dia. Typ.
[0.89±0.08]
.350
[8.89]
.130
[3.30]
.145
[3.68]
Technical Documents
(
pages
295, 296):
Product Specification
108-25034
Application Specification
114-25026
Section X-X
5
263
Recommended PC Board Hole Layout
*±.003 [±0.08]; tolerance not to accumulate within one connector pattern.
Catalog 1307819
Revised 6-04
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
AMPMODU Interconnection System
MTE Headers, Shrouded Latching, Single-Row .100 [2.54] Centerline
(Continued)
Dimensions
Latching Header With Hold Down
No. of
Pos.
A
B
C
Plating A
Plating B
Plating C
2
.300
[7.62]
.220
[5.59]
.100
[2.54]
103904-1
103673-1
103672-1
3
.400
[10.16]
.320
[8.13]
.200
[5.08]
103904-2
103673-2
103672-2
4
.500
[12.70]
.420
[10.67]
.300
[7.62]
103904-3
103673-3
103672-3
5
.600
[15.24]
.520
[13.21]
.400
[10.16]
103904-4
103673-4
103672-4
6
.700
[17.78]
.620
[15.75]
.500
[12.70]
103904-5
103673-5
103672-5
7
.800
[20.32]
.720
[18.29]
.600
[15.24]
103904-6
103673-6
103672-6
8
.900
[22.86]
.820
[20.83]
.700
[17.78]
103904-7
103673-7
103672-7
9
1.000
[25.40]
.920
[23.37]
.800
[20.32]
103904-8
103673-8
103672-8
10
1.100
[27.94]
1.020
[25.91]
.900
[22.86]
103904-9
103673-9
103672-9
11
1.200
[30.48]
1.120
[28.45]
1.000
[25.40]
1-103904-0
1-103673-0
1-103672-0
12
1.300
[33.02]
1.220
[30.99]
1.100
[27.94]
1-103904-1
1-103673-1
1-103672-1
13
1.400
[35.56]
1.320
[33.53]
1.200
[30.48]
1-103904-2
1-103673-2
1-103672-2
14
1.500
[38.10]
1.420
[36.07]
1.300
[33.02]
1-103904-3
1-103673-3
1-103672-3
15
1.600
[40.64]
1.520
[38.61]
1.400
[35.56]
1-103904-4
1-103673-4
1-103672-4
16
1.700
[43.18]
1.620
[41.15]
1.500
[38.10]
1-103904-5
1-103673-5
1-103672-5
17
1.800
[45.72]
1.720
[43.69]
1.600
[40.64]
1-103904-6
1-103673-6
1-103672-6
18
1.900
[48.26]
1.820
[46.23]
1.700
[43.18]
1-103904-7
1-103673-7
1-103672-7
19
2.000
[50.80]
1.920
[48.77]
1.800
[45.72]
1-103904-8
1-103673-8
1-103672-8
20
2.100
[53.34]
2.020
[51.31]
1.900
[48.26]
1-103904-9
1-103673-9
1-103672-9
21
2.200
[55.88]
2.120
[53.85]
2.000
[50.80]
2-103904-0
2-103673-0
2-103672-0
22
2.300
[58.42]
2.220
[56.39]
2.100
[53.34]
2-103904-1
2-103673-1
2-103672-1
23
2.400
[60.96]
2.320
[58.93]
2.200
[55.88]
2-103904-2
2-103673-2
2-103672-2
24
2.500
[63.50]
2.420
[61.47]
2.300
[58.42]
2-103904-3
2-103673-3
2-103672-3
25
2.600
[66.04]
2.520
[64.01]
2.400
[60.96]
2-103904-4
2-103673-4
2-103672-4
Notes:
1.Selectively loaded headers are available, consult Tyco Electronics.
2. Use
Keying Tool No. 91417-1
to remove post for keying.
Latching Header Without Hold Down
Plating A
Plating B
Plating C
103906-1
103635-1
103634-1
103906-2
103635-2
103634-2
103906-3
103635-3
103634-3
103906-4
103635-4
103634-4
103906-5
103635-5
103634-5
103906-6
103635-6
103634-6
103906-7
103635-7
103634-7
103906-8
103635-8
103634-8
103906-9
103635-9
103634-9
1-103906-0
1-103635-0
1-103634-0
1-103906-1
1-103635-1
1-103634-1
1-103906-2
1-103635-2
1-103634-2
1-103906-3
1-103635-3
1-103634-3
1-103906-4
1-103635-4
1-103634-4
1-103906-5
1-103635-5
1-103634-5
1-103906-6
1-103635-6
1-103634-6
1-103906-7
1-103635-7
1-103634-7
1-103906-8
1-103635-8
1-103634-8
1-103906-9
1-103635-9
1-103634-9
2-103906-0
2-103635-0
2-103634-0
2-103906-1
2-103635-1
2-103634-1
2-103906-2
2-103635-2
2-103634-2
2-103906-3
2-103635-3
2-103634-3
2-103906-4
2-103635-4
2-103634-4
5
264
Catalog 1307819
Revised 6-04
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
