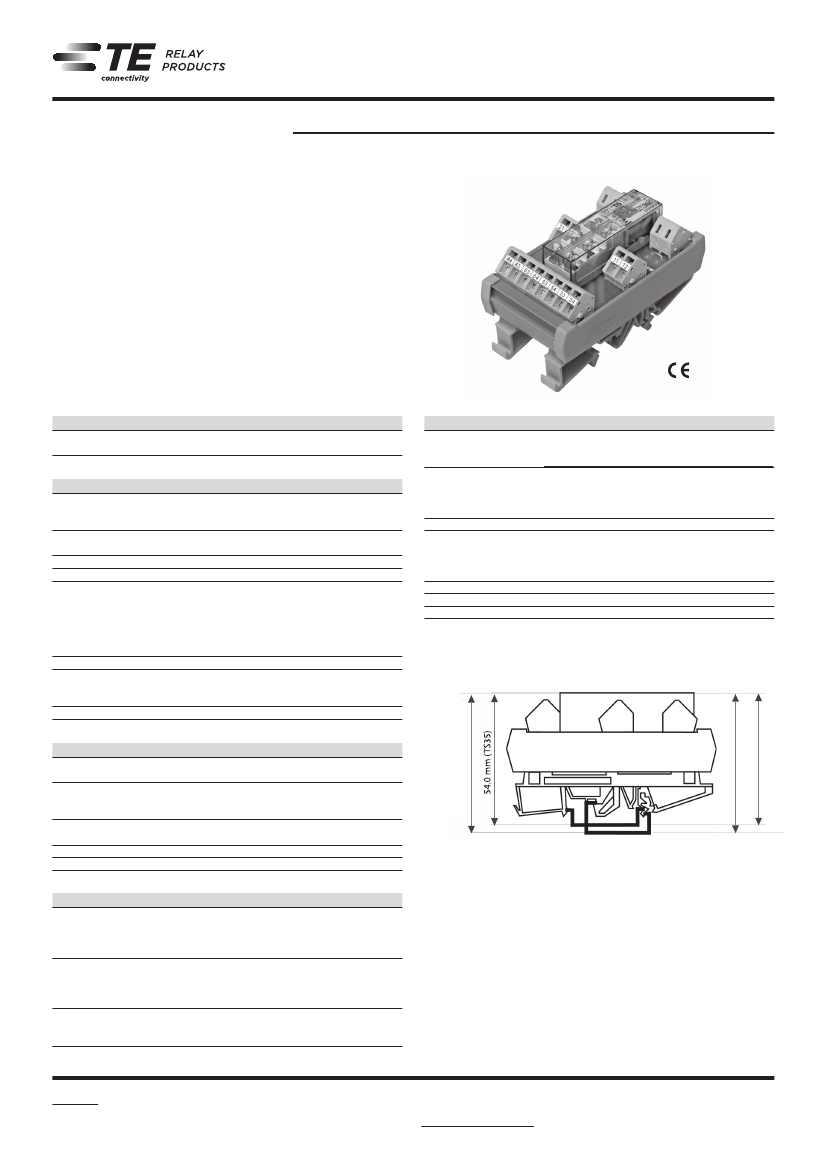

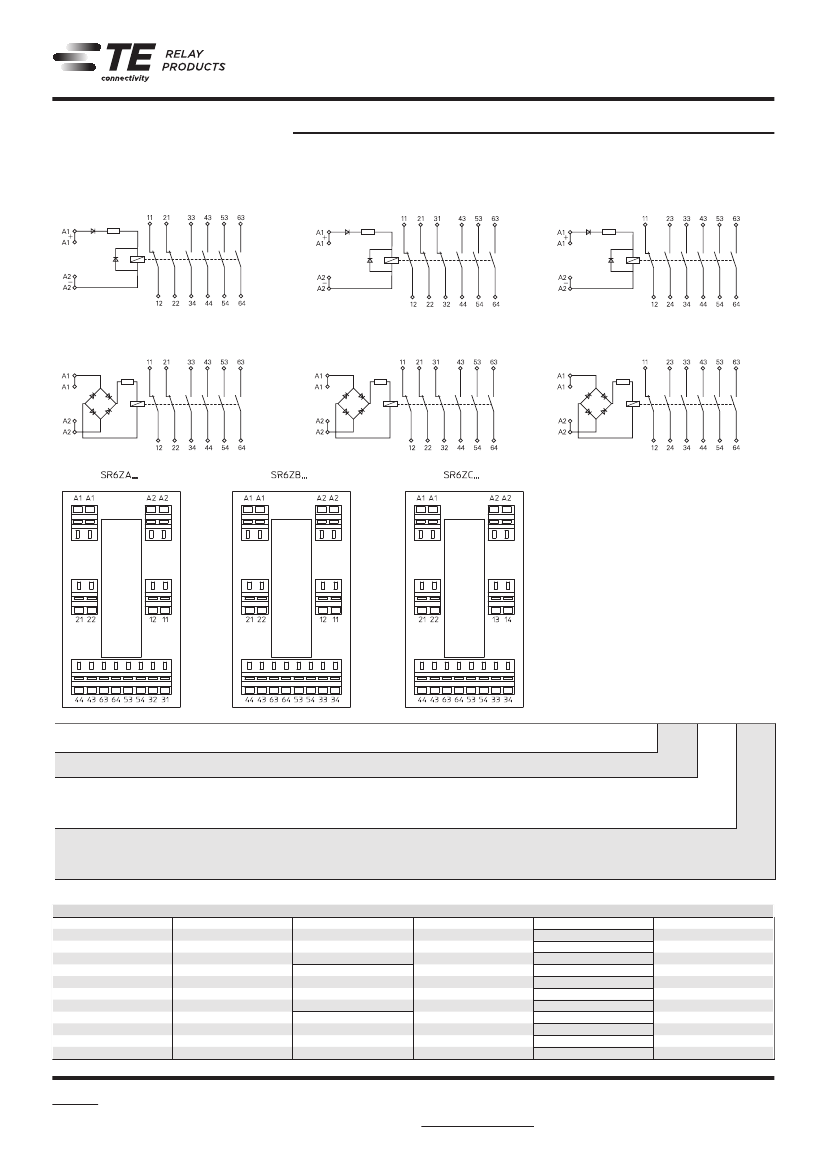

General Purpose Relays
Force Guided Relays
Force Guided Relay on DIN-rail SR6 Z
n
n
n
SCHRACK
6 pole relay with force guided contacts according to EN50205
DIN rail mounting
AC / DC input
Typical applications
contact monitoring in railway, elevator and machine controls
F0238-C
Approvals
relay SR6: VDE, UL, TUV, CQC
module SR6Z: CE
Technical data of approved types on request
Contact Data
Contact arrangement
Rated voltage
Max. switching voltage
Rated current
Contact material
Contact style
3 form A (NO) and 3 form B (NC),
4 form A (NO) and 2 form B (NC),
5 form A (NO) and 1 form B (NC)
250VAC
250VAC
8A
6 to 115 VAC/VDC,
230VAC
DC energizing voltage U
rtd
6, 12, 18, 21, 24, 36, 40, 48, 60, 115VDC
AC/DC energizing voltage U
rtd
24, 115VAC/VDC
AC energizing voltage U
rtd
230VAC
Operative range
90 to 110% of U
rtd
Release voltage (+23°C)
10% of U
rtd
Max. coil power DC versions
1200mW
Max. system power AC/DC versions
2400mVA
Coil Data
Coil voltage range
S0423-A
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
between adjacent contacts
Clearance/creepage
between open contacts
between contact and coil
between adjacent contacts
Insulation to EN 50178, type of insulation
between contact and coil
between adjacent contacts
1000V
rms
3000V
rms
2000V
rms
microdisconnection
≥5.5/5.5mm
≥2,8 /2.8mm
reinforced
basic
Module width 46 mm
Module length 87 mm
54.0 mm (TS35)
Fit onto mounting rails according to
DIN EN 60175
66.5 mm (TS32) at SR6Z.730
62.5 mm (TS35) at SR6Z.730
AgSnO
2,
single contact, force guided
type A according to EN 50205
Min. recommended contact load
5V, 10mA
Initial contact resistance
≤100mΩ at 1A, 24VDC
≤20Ω at 10mA, 5VDC
Frequency of operation, with/without load
6/150min
-1
Contact ratings, IEC60947-5-1,
on 1 form A (NO) contact
AC15-5A
DC13-6A
Mechanical endurance
10x10
6
operations
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
for mounting/handling
0 to 40°C
in operation
-25 to 50°C
SR6ZC 730 only
-25 to 40°C
Terminal type
screwless clamp connectors
Wire cross section
solid wire
2.5mm
2
stranded wire
2.5mm
2
stranded wire with bootlace crimp
1.5mm
2
Mounting position
any
Weight
90g
Packaging unit
2
Dimensions
Other Data
58.0 mm (TS32)
10-2012, Rev. 1012
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
Force Guided Relays
Force Guided Relay on DIN-rail SR6 Z
(Continued)
Terminal assignment
DC module, 4 NO+2 NC version
DC module, 3 NO+3 NC version
SCHRACK
DC module, 5 NO+1 NC version
AC/DC module, 4 NO+2 NC version
AC/DC module, 3 NO+3 NC version
AC/DC module, 5 NO+1 NC version
S0422-BD
S0422-BE
S0422-BF
S6Z8004
Product code structure
Type
SR6Z
Relay with force guided contacts on DIN-rail SR6 Z
Contact configuration
A
3 form A (NO) + 3 form B (NC) contacts
B
4 form A (NO) + 2 form B (NC) contacts
C
5 form A (NO) + 1 form B (NC) contacts
Coil
DC Coil code = rated coil voltage (e.g. 024=24 VDC)
AC/DC coil code: 524=24 VAC/VDC, 615=115 VAC/VDC
AC coil code: 730=230 VAC
Other types on request
Typical product code
SR6Z
B
024
SR6ZA024
SR6ZA524
SR6ZA615
SR6ZA730
SR6ZB024
SR6ZB524
SR6ZB615
SR6ZB730
SR6ZC024
SR6ZC524
SR6ZC615
SR6ZC730
Product code
6-pole
force guided
relay module
Type
Contact configuration Contact material
3 form A + 3 form B
3 NO + 3 NC
contacts
AgSnO
2
4 form A + 2 form B
4 NO + 2 NC
contacts
5 form A + 1 form B
5 NO + 1 NC
contacts
24VDC
24VAC/VDC
115VAC/VDC
230VAC
24VDC
24VAC/VDC
115VAC/VDC
230VAC
24VDC
24VAC/VDC
115VAC/VDC
230VAC
Coil
Part number
7-1415033-1
9-1415059-1
1415060-1
1-1415060-1
5-1415033-1
2-1415060-1
6-1415046-1
3-1415060-1
3-1415042-1
4-1415060-1
5-1415060-1
6-1415060-1
2
10-2012, Rev. 1012
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
