334-40-103-00-020000: DescriptionIC Socket, SIP3, 3 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size391KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

334-40-103-00-020000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	334-40-103-00-020000	-	-	View	Buy Now

334-40-103-00-020000 Overview

IC Socket, SIP3, 3 Contact(s), ROHS COMPLIANT

334-40-103-00-020000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	SOCKET HEADER
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP3
Shell material	PLASTIC
JESD-609 code	e3
Number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

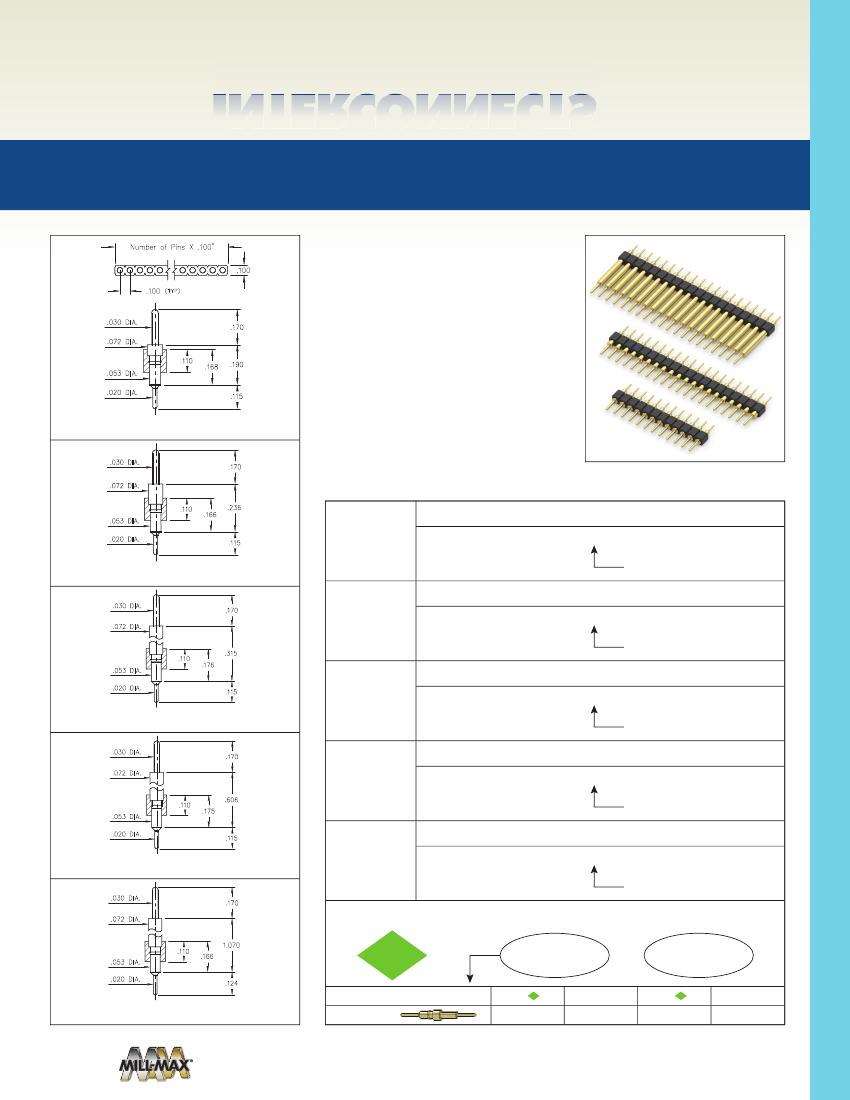

INTERCONNECTS

SERIES 334 • .100” GRID INTERCONNECT HEADERS •

SINGLE ROW STRIPS

•

Series 334 interconnect header strips are

available in 5 lengths:

334...020 uses pin #3402

334...010 uses pin #3401

334...050 uses pin #3405

334...000 uses pin #3400

334...100 uses pin #3410

See page 215 for details

( L = .190” )

( L = .236” )

( L = .315” )

( L = .606” )

( L = 1.070” )

.030 DIA.

.072 DIA.

.110

.053 DIA.

.020 DIA.

.170

.168

.190

.115

•

Strips come with .020” pluggable soldertails

at one end and .030” tails at the other

FIG. 1

.030 DIA.

.072 DIA.

.110

.053 DIA.

.020 DIA.

.236

.170

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

ORDERING INFORMATION

Series 334...020

.020” / .030” Dia. Solder Tails

334 XX 1_ _ 00 020000

Specify number of pins

01-64

.166

.115

FIG. 1

Series 334...010

FIG. 2

.030 DIA.

.072 DIA.

.170

.020” / .030” Dia. Solder Tails

334 XX 1_ _ 00 010000

FIG. 2

Series 334...050

.110

.053 DIA.

.020 DIA.

.315

.176

Specify number of pins

01-64

.020” / .030” Dia. Solder Tails

334 XX 1_ _ 00 050000

.115

FIG. 3

.030 DIA.

.072 DIA.

.170

FIG. 3

Series 334...000

Specify number of pins

01-64

.020” / .030” Dia. Solder Tails

334 XX 1_ _ 00 000000

FIG. 4

.110

.606

.175

.115

.053 DIA.

.020 DIA.

Specify number of pins

01-64

Series 334...100

.020” / .030” Dia. Solder Tails

PAGE 81 | INTERCONNECTS

334 XX 1_ _ 00 100000

FIG. 4

.030 DIA.

.072 DIA.

.170

FIG. 5

Specify number of pins

01-64

.110

.053 DIA.

.020 DIA.

1.070

.166

2011/65/EU

.124

RoHS - 2

XX=Plating Code

See Below

10

µ”

Au

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 5

SPECIFY PLATING CODE XX=

Pin Plating

90

200

µ”

Sn/Pb

40

200

µ”

Sn

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
