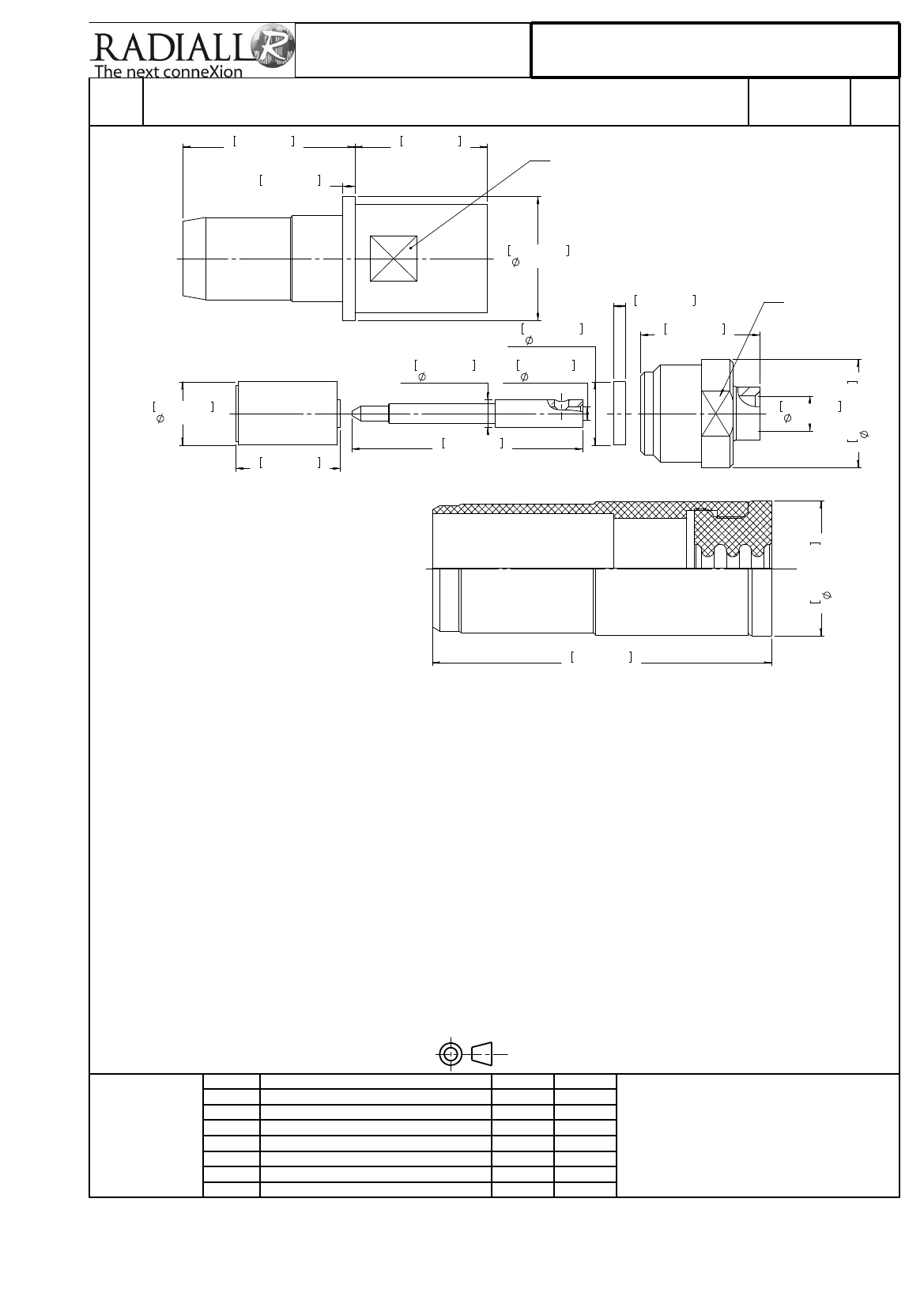

TECHNICAL DATA SHEET
Series
617 171 031
Issue:
March 24, 2010
EPXB
ENVIRONMENTAL SIZE 8 PIN BMA QUADRAX CONTACT
FOR SHF2.4M ; UT.085 ; Harbour SS405 ; times Tflex405 ; KS1 & RG405 CABLE
1/1
Page
0.441 max.
11.20 max.
0.034 max.
0.86 max.
0.341 max.
8.65 max.
[0.252]
( 2 flats 6.40 )
For information
0,316 max.
8.01 max.
0,032 max.
0.80 max.
OUTER CONTACT
0.073 max.
1.85 max.
0,162 max.
4.10 max.
0.594 max.
15.10 max.
CENTER CONTACT
INSULATOR
FERRULE
0,162 max.
4.10 max.
0.021 min.
0.54 min.
0.088 max.
2.24 max.
0.313 max.
7.95 max.
[0.252]
( 2 flats 6.40 )
For information
This information is given as an indication.In the continual goal to improve our products,we reserve the right to make any modifications judged necessary.
0.268 max.
6.80 max.
INSULATOR
0.906 max.
23 max.
Confidential information not to be disclosed to third parties without Radiall approval
MATERIALS & FINISHES :
- OUTER CONTACT : Stainless steel, passivated
- CENTER CONTACT : Brass, Gold over nickel
- INSULATOR : PTFE or equivalent
- FERRULE : Brass, gold over Nickel
- SEALING BOOT : Thermoplastic & Fluorosilicone elastomer
ELECTRICAL CHARACTERISTICS :
- IMPEDANCE : 50
- FREQUENCY : 0-18 Ghz
- VSWR = 1.07 + 0.0100 x F(Ghz) Maxi
- INSERTION LOSS = 0.03 F (Ghz) dB Maxi
- VOLTAGE RATING : 350 Veff Maxi
- DIELECTRIC WITHSTANDING VOLTAGE : 1000 Veff Mini
- INSULATION RESISTANCE : 5000 M mini
SEALING BOOT
NOTES :
- EXTRACTION TOOL : M81869/28-03 (RADIALL : 282 549 001) or M81869/14-06
- Contacts for SHF cables can't be sold alone but with a complete cable assembly
- MOUNTING INSTRUCTION : MICT0500000
DIMENSIONS : mm (inch are given for information only)
CREATION
PEN:
1007992
4112_9311
NOM:
PAILOT N.
DATE:
March 24, 2010
APPR.:
LE GLOAHEC
/
Issue
/
Revisions
/
Name
/
Approved
617171031EN
RADIALL PROPRIETARY INFORMATION
0.343 max.
8.70 max.
0.278 max.
7.05 max.
