802-10-016-10-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 802-10-016-10-001000

802-10-016-10-001000: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size556KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

802-10-016-10-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	802-10-016-10-001000	-	-	View	Buy Now

802-10-016-10-001000 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

802-10-016-10-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	802
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

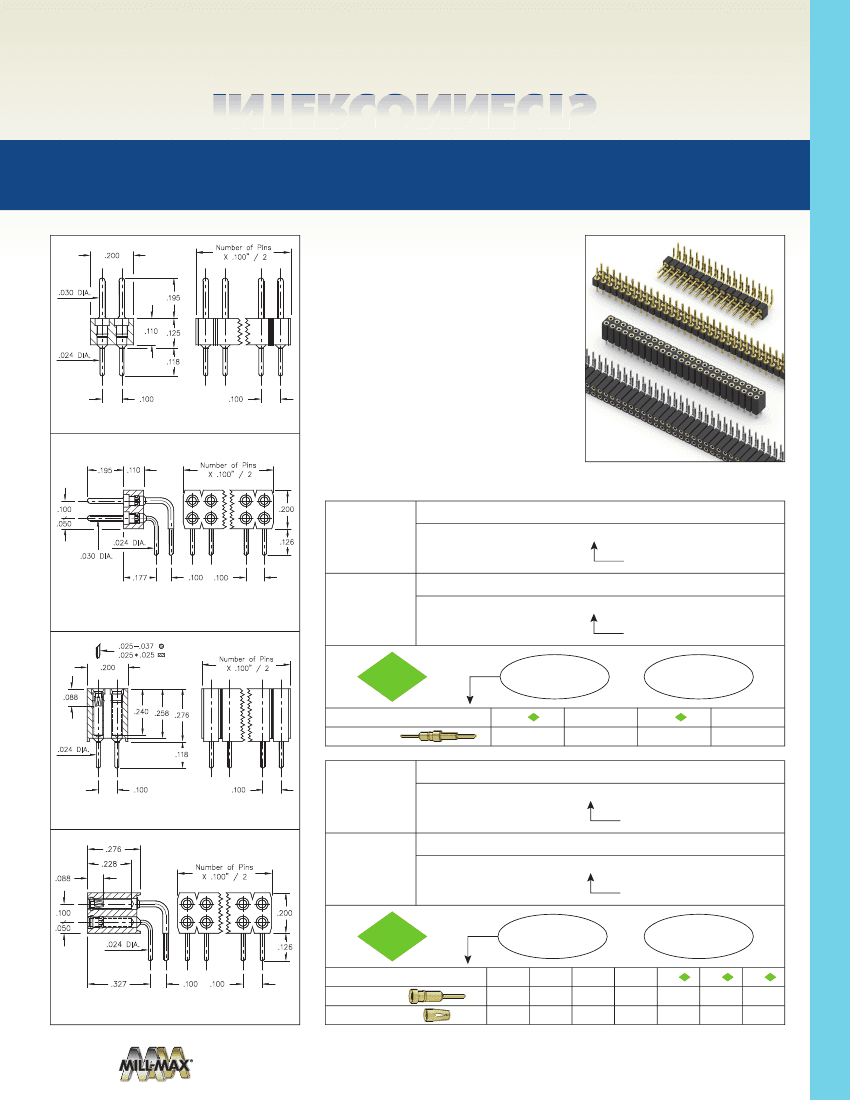

SERIES 802 & 803 • .100” GRID (.030” DIA. PINS), STRAIGHT &

RIGHT ANGLE HEADERS AND SOCKETS • DOUBLE ROW STRIPS

•

Pin interconnects available with straight MM

#7007 or right angle MM #5005/5107 solder

tails. See page 215 for details

.200

Number of Pins

X .100" / 2

.030 DIA.

.195

•

Sockets are available with straight MM #1304

or right angle MM #1305/1306 soldertails. See

pages 177 and 179 for details

.110

.024 DIA.

.125

.118

•

MM #1304, #1305 and #1306 receptacles use

.100

FIG. 1

.195

.110

Number of Pins

X .100" / 2

Hi-Rel, 6- nger BeCu #47 contact rated at 4.5

amps. Receptacles accept .030” diameter and

.025” square pins. See page 256 for details

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

ORDERING INFORMATION

.200

.100

.050

.024 DIA.

.030 DIA.

.177

.100

Series 802...10-001

Straight Pin Header

04-64

.126

FIG. 1

802 XX 0_ _ 10 001000

Specify number of pins

Series 802...20-001

Right Angle Pin Header

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

.025-.037

.025

.200

Number of Pins

X .100" / 2

FIG. 2

RoHS - 2

802 XX 0_ _ 20 001000

Specify number of pins

XX=Plating Code

See Below

µ”

2011/65/EU

.088

.240 .258

.276

SPECIFY PLATING CODE XX=

Pin Plating

200

µ”

Sn/Pb

200

µ”

.024 DIA.

.118

Series 803...10-001

.100

Straight Socket

004-100

FIG. 3

.276

.228

.088

Number of Pins

X .100" / 2

FIG. 3

803 XX _ _ _ 10 001000

Specify number of pins

Series 803...20-001

Right Angle Socket

002-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Specify number of pins

.100

.050

.024 DIA.

.126

.200

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

µ”

.327

.100

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200

µ”

200

µ”

Au Flash

200

µ”

Sn/Pb 200

µ”

Sn/Pb 200

µ”

Sn/Pb

200

µ”

FIG. 4

µ”

100

µ”

Sn/Pb

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 55 | INTERCONNECTS

FIG. 4

803 XX _ _ _ 20 001000
