8020-3373: DescriptionD Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

8020-3373 Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug

8020-3373 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.496 inch
subject depth	0.441 inch
body length	2.736 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact style	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8020
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .138-.163
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	METAL
Termination type	IDC
Total number of contacts	37
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

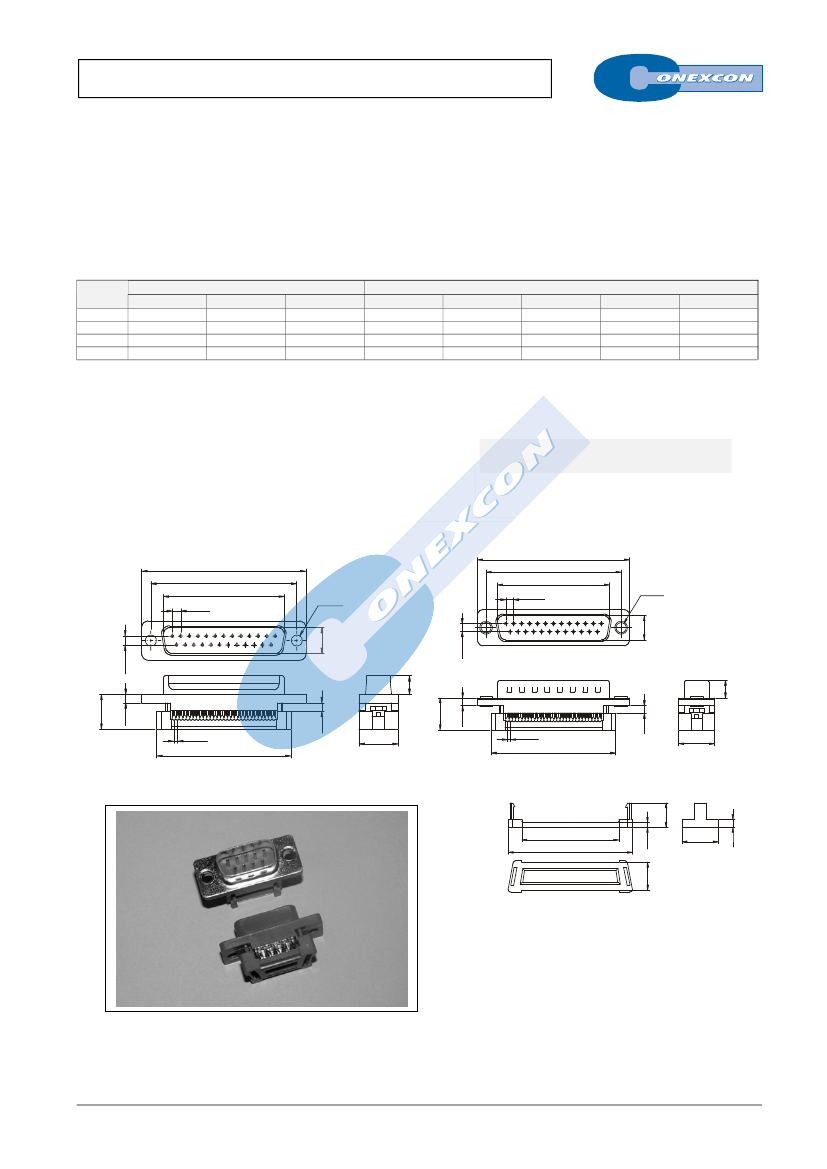

INSULATION DISPLACEMENT D-SUB PLUG

8020 SERIES.

Insulation Displacement Contact D-Sub Plug

Features



Available in 9, 15, 25 and 37 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Brass

Optional flush insert



Applicable wire: AWG 26 to 28

Shell available in plastic or nickel plated metal

For other options consult the Sales Office

Dimensional Information

Part Number

Plastic Type

8020-

T091

8020-

T151

8020-

T251

8020-

T371

Metal Shell + Nut

8020-

T092

8020-

T152

8020-

T252

8020-

T372

Metal Shell

8020-

T093

8020-

T153

8020-

T253

8020-

T373

A

16.92 (0.666)

25.25 (0.994)

38.96 (1.534)

55.60 (2.189)

Ordering and Dimensional Information

Dimensions

B

24.99 (0.984)

33.32 (1.312)

47.04 (1.852)

63.50 (2.500

C

30.90 (1.217)

39.20 (1.543)

53.10 (2.091)

69.50 (2.736)

D

21.80 (0.858)

29.60 (1.165)

43.30 (1.705)

59.90 (2.358)

E

12.08 (0.476)

19.70 (0.776)

32.40 (1.276)

47.72 (1.879)

Circuit Size

09

15

25

37

(NOTE).

For other Circuit Size consult the Sales Office

T = Contact Plating



Plastic Type

C

B

A

2.77

.109

ø3.50

.138

8.36

.329

T =

2.

Tin plated

T =

3.

Gold flash over 50µ" nickel

Recommended Finish

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

Metal Type

C

B

A

2.77

.109

3.50

.138

8.36

.329

2.84

.112

6.0

.236

2.84

.112

11.2

.441

2.75

.108

11.2

.441

2.70

.106

2.75

.108

1.27

.050

D

12.60

.496

1.27

.050

2.70

.106

D

12.60

.496

Strain relief

8.52

.335

2.00

.079

D

12.60

.496

FULL LINE CATALOGUE

11.20

.441

3.10

.122

E

6.0

.236

H-XX
