8100-2841: DescriptionIC Socket, PLCC84, 84 Contact(s), Solder; CategoryThe connector socket; File Size73KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

8100-2841 Overview

IC Socket, PLCC84, 84 Contact(s), Solder

8100-2841 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
Is Samacsys	N
body width	1.443 inch
subject depth	0.323 inch
body length	1.443 inch
Contact structure	21X21
Contact completed and terminated	TIN OVER NICKEL
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC84
Dielectric withstand voltage	500VAC V
Shell material	POLYPHENYLENE SULPHIDE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	8100
Installation method	STRAIGHT
Number of contacts	84
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

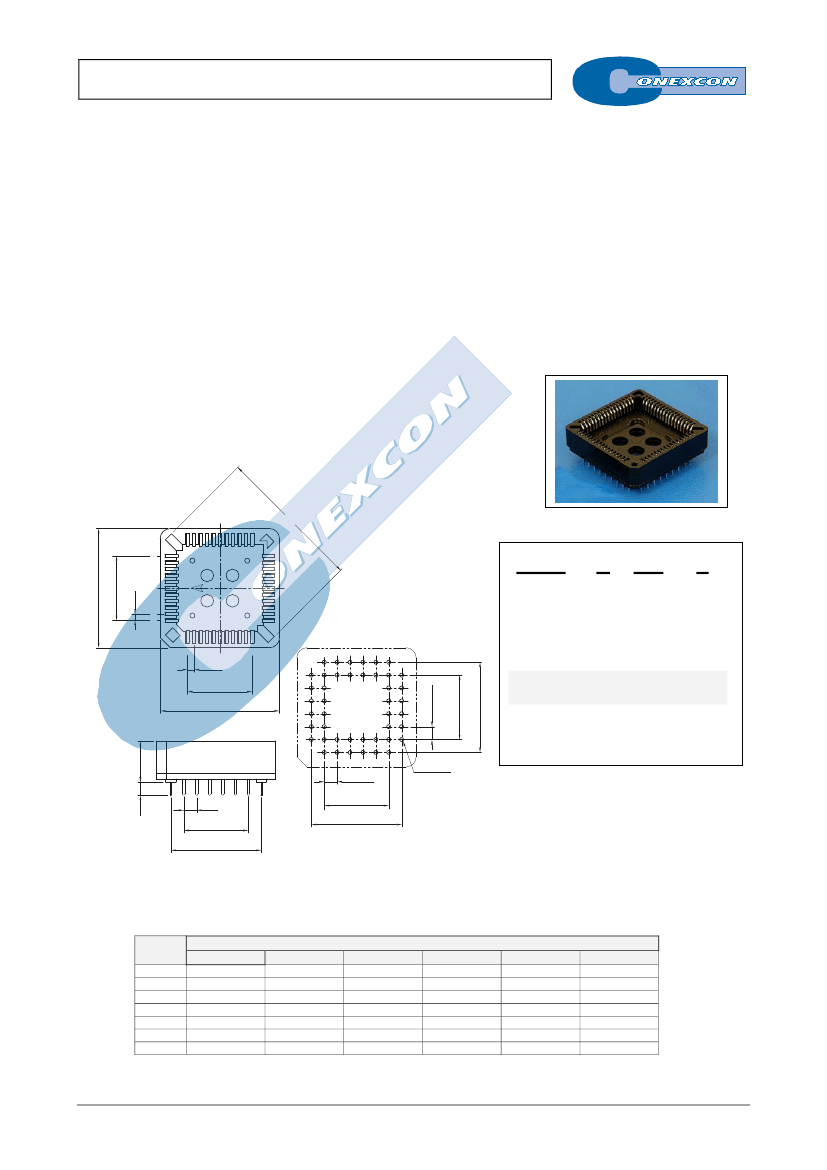

PLCC SOCKET

8100 SERIES.

PLCC Socket.

General Features

Electrical Features



Available in 20, 28, 32, 44, 52, 68 and 84 circuits

Contact area: flex contact tin plating over 50 µ nickel

Solder area: tin plating over 50 µ nickel

Prevents damage from IC device through a fully

shrouded carrier



Voltage rating: < 250 V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ



Low profile

Materials

Mechanical Features



Insulator: PPS UL 94 V-0

Contact: Phosphor Bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant



Pin retention force to insulator: 0.40 Kgf



Durability: 25 cycles

Dimensional Information

8100 - T- XX-

1. Series

2. Plating Options

37 35

33 31

34 32

30 28

41 38

1.27

.05 0

1.27

.050

2.54± 0.05

.10 0±.00 2



T =

Tin plated

C± 0.1

E± 0.1

25 24

Recommended Finish

3. Number of circuits

21 20

14 16 19

13 15



Available in 20 through 84 circuits

ø0.9±0.10

.035±0.04

8.2

.32 3

2.54±0.05

.100±.002

3.3

.130

2.54

.100

A±0.1

E±0.1

RECOMMENDED HOLE PATTERN

CIRCUITS

DIMENSIONS

5.08 (.200)

7.62 (.300)

10.16 (.400)

12.70 (.500)

15.24 (.600)

20.32 (.800)

25.40 (1.000)

15.50 (.610)

18.00 (.709)

20.60 (.811)

23.50 (.926)

25.90 (1.020)

31.66 (1.246)

36.66 (1.443)

5.08 (.200)

7.62 (.300)

10.16 (.400)

12.70 (.500)

15.24 (.600)

20.32 (.800)

25.40 (1.000)

15.50 (.610)

18.00 (.709)

20.60 (.811)

23.50 (.926)

25.90 (1.020)

31.66 (1.246)

36.66 (1.443)

10.16 (.400)

21.00 (.828)

22.80 (.898)

28.70 (1.130)

32.00 (1.260)

40.00 (1.575)

46.40 (1.827)

18.40 (.724)

21.00 (.828)

22.80 (.898)

28.70 (1.130)

32.00 (1.260)

40.00 (1.575)

46.40 (1.827)

E-XX
