8172-5101

Description
D Type Connector, 100 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Latch
CategoryThe connector    The connector
File Size121KB,1 Pages
ManufacturerConexcon Group
Download Datasheet Parametric View All

8172-5101 Overview

D Type Connector, 100 Contact(s), Female, 0.05 inch Pitch, Solder Terminal, Latch

8172-5101 Parametric

Parameter NameAttribute value
MakerConexcon Group
Reach Compliance Codeunknown
Is SamacsysN
body width0.366 inch
subject depth0.413 inch
body length3.314 inch
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Manufacturer's serial number8172
Plug contact pitch0.05 inch
Installation option 1LATCH
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number4
Number of rows loaded2
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
Plating thickness15u inch
reliabilityCOMMERCIAL
Shell surfaceNICKEL OVER COPPER
Shell materialSTEEL
Terminal length0.106 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts100
Base Number Matches1

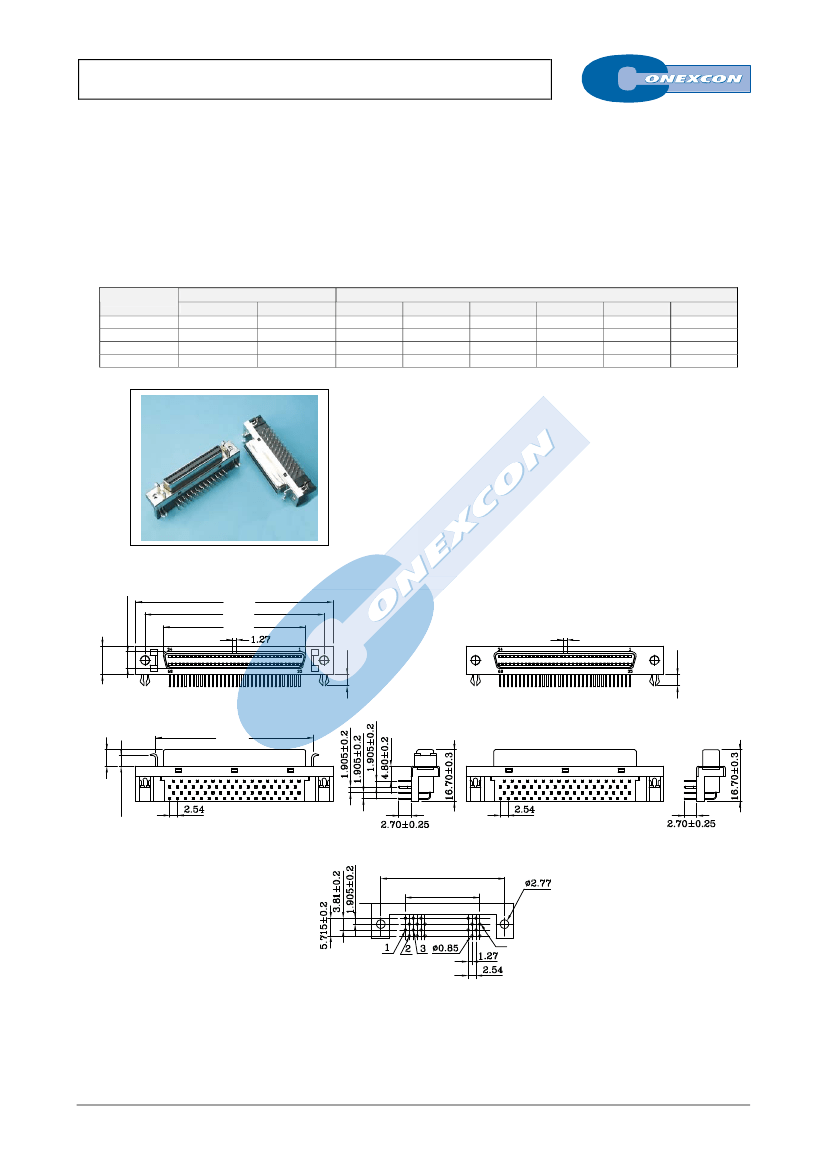

RIGHT ANGLE MICRO PIN CONNECTOR
8172 SERIES.
1.27 mm. (0.050”). For PCB Solder
Features
Available in 26, 50, 68 and 100 circuits
Connector Imput/Ouput hight density for panel mount
Contact: Phospor Bronze gold selective plated
Front Shell: Steel nickel plated over copper
Four rows in PCB solder area separated at 1.90 mm
(0.075”) and pitch 2.54mm.
Positive Locking
Other Options consult with the Sales Office
Ordering and Dimensional Information
Dimensional Information
Circuit Size
26
50
68
100
Part Number
With Latch Block
8172 –
T261
8172 –
T501
8172 –
T681
8172 –
T101
Screw Block
8172 –
T26C
8172 –
T50C
8172 –
T68C
8172 –
T10C
A
37.19
52.43
63.86
84.18
B
31.26
46.49
57.92
78.23
C
19.45
34.70
46.13
66.45
Dimensions
D
24.65
39.90
51.32
-
E
34.20
46.40
57.90
78.10
F
21.59
30.48
41.91
62.23
T = Contact Plating
A
±0.2
B
±0.2
C
±0.2
T =
2.
Tin plated
T =
3.
Gold flash over 50µ” nickel.
T =
5.
15µ” gold over 50µ” nickel
T =
6.
30µ” gold over 50µ” nickel
C = Hardware Options
T =
2.
UNC #2-56 (Standard)
T =
3.
UNC #4-40
T =
4.
M2.6
5.45±0.15
9.30±0.3
1.27
3.80
3.80
Version With Screw Block
RECOMMENDED HOLE PATTERN
Version With Latch Block
5.30±0.15
D
±0.2
3.40±0.2
E
±0.2
F
±0.2
PCB
Last Pin
