8637-0-15-01-21-27-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8637-0-15-01-21-27-10-0

8637-0-15-01-21-27-10-0: DescriptionPCB Terminal,; CategoryThe connector terminals; File Size87KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

8637-0-15-01-21-27-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8637-0-15-01-21-27-10-0	-	-	View	Buy Now

8637-0-15-01-21-27-10-0 Overview

PCB Terminal,

8637-0-15-01-21-27-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

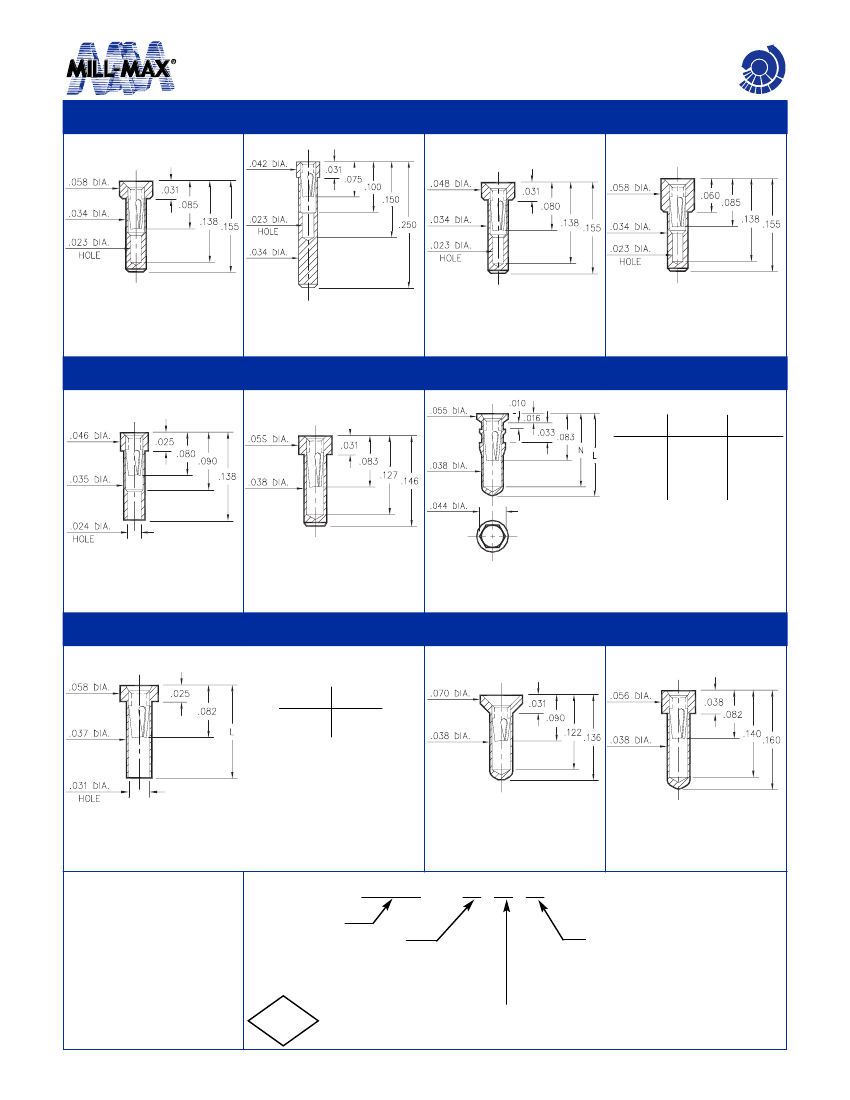

PIN RECEPTACLES

for .015” - .020” diameter pins (#11 contact)

and .015” - .022” diameter pins (#21 contact)

(see specific contact range on page 217)

CHI

PINS

0548

8975

3016

9548

0548-0-15-XX-21-XX-10-0

Solder mount in .036 min.

mounting hole

8975-0-15-XX-21-XX-10-0

Solder mount in .036 min.

mounting hole

3016-0-15-XX-21-XX-10-0

Solder mount in .036 min.

mounting hole

9548-0-15-XX-21-XX-10-0

Solder mount in .036 min.

mounting hole

8637

1407

0553/8553

Basic Part

Number

Length

Depth

0553-1

0553-2

0553-3

8553-0

.140

.170

.282

.245

.124

.154

.266

.229

8637-0-15-XX-21-XX-10-0

Solder mount in .037 min.

mounting hole

1407-0-15-XX-11-XX-10-0

Solder mount in .040 min.

mounting hole

X553-X-15-XX-X1-XX-10-0

Hex press-fit in .041 plated

thru hole

0566

Basic Part

Number

Length

0442

0554

0566-1

0566-2

.083

.138

0566-X-15-XX-21-XX-10-0

Solder mount in .039 min.

mounting hole

0442-0-15-XX-11-XX-10-0

Solder mount in .040 min.

mounting hole

0554-0-15-XX-21-XX-10-0

Solder mount in .040 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 15 - XX - XX - XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

10μ” GOLD OVER NICKEL

RoHS

SPECIFY CONTACT FINISH:

100μ” TIN/LEAD OVER NICKEL

100μ” TIN OVER NICKEL

30μ” GOLD OVER NICKEL

2002/95/EC

SELECT CONTACT

#11 or #21

CONTACT (DATA ON PAGE 217)

w w w. m i l l - m a x . c o m

128

516-922-6000
