AISM-1812-220M-T datasheet, PDF

Datasheet> All Categories > Passive components> inductor> AISM-1812-220M-T

AISM-1812-220M-T: DescriptionGeneral Purpose Inductor, 22uH, 20%, 1 Element, SMD, 1812, ROHS COMPLIANT; CategoryPassive components inductor; File Size791KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AISM-1812-220M-T Overview

General Purpose Inductor, 22uH, 20%, 1 Element, SMD, 1812, ROHS COMPLIANT

AISM-1812-220M-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	1812
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	1812
structure	Molded Chip
DC Resistance	3.2 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	AISM-1812
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	3.2 mm
Package length	4.5 mm
Package form	SMT
Package width	3.2 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.18 A
self resonant frequency	13 MHz
series	AISM-1812(M TOL)
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	2.52 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

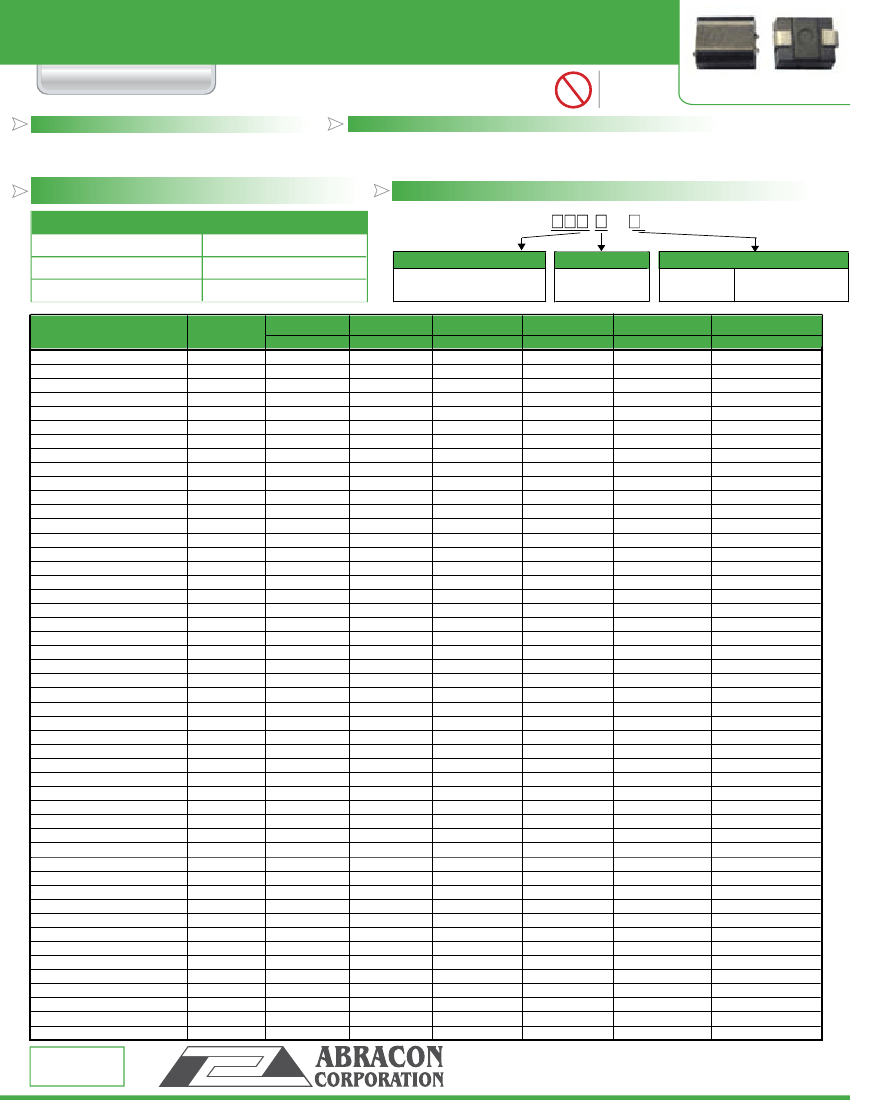

SMD MOLDED WOUND CHIP INDUCTOR

AISM-1812

FEATURES:

• Low DCR

• Best suited for power supply lines

RoHS

Compliant

APPLICATIONS:

• VCRs & Video Cameras

• Automobile Audio Systems

• Computer products & Peripherals

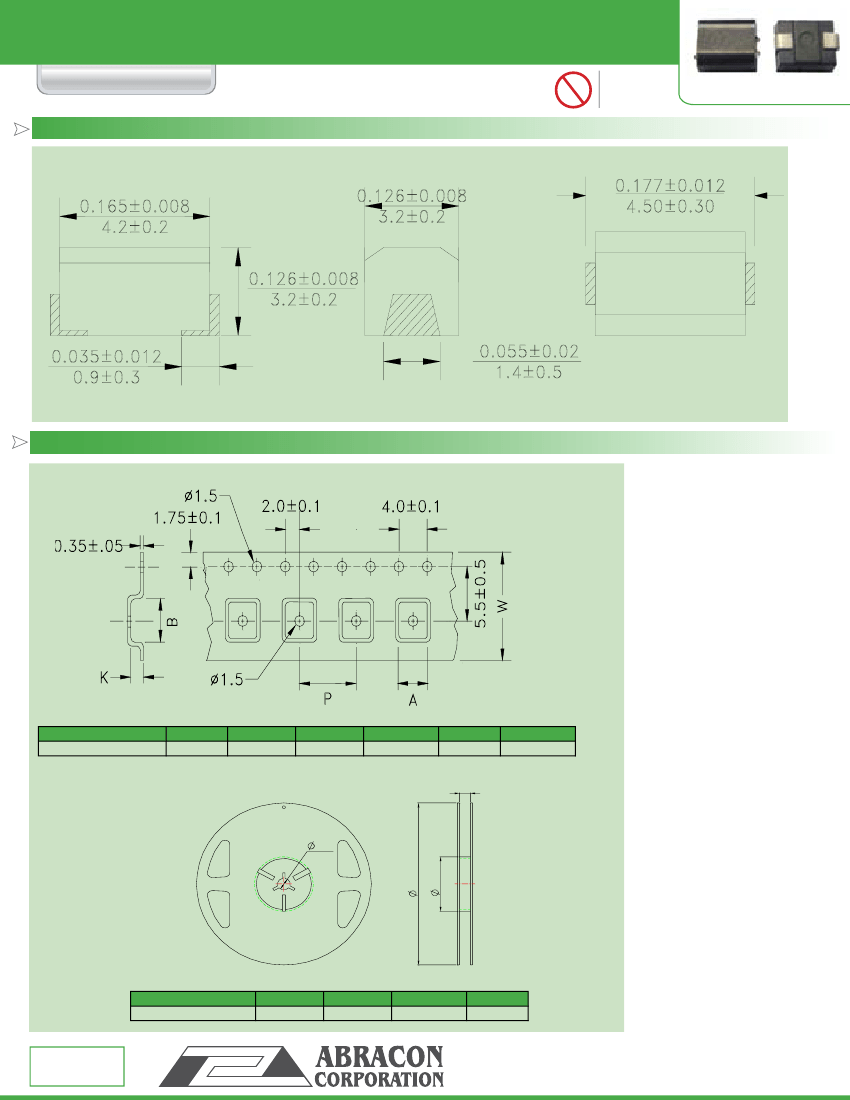

4.2 x 3.2 x 3.2mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

AISM-1812-xxx Series

Operating temperature: - 40°C to + 85°C

Storage temperature:

- 55°C to + 125°C

Part No.

AISM-1812-R10

AISM-1812-R12

AISM-1812-R15

AISM-1812-R18

AISM-1812-R22

AISM-1812-R27

AISM-1812-R33

AISM-1812-R39

AISM-1812-R47

AISM-1812-R56

AISM-1812-R68

AISM-1812-R82

AISM-1812-1R0

AISM-1812-1R2

AISM-1812-1R5

AISM-1812-1R8

AISM-1812-2R2

AISM-1812-2R7

AISM-1812-3R3

AISM-1812-3R9

AISM-1812-4R7

AISM-1812-5R6

AISM-1812-6R8

AISM-1812-8R2

AISM-1812-100

AISM-1812-120

AISM-1812-150

AISM-1812-180

AISM-1812-220

AISM-1812-270

AISM-1812-330

AISM-1812-390

AISM-1812-470

AISM-1812-560

AISM-1812-680

AISM-1812-820

AISM-1812-101

AISM-1812-121

AISM-1812-151

AISM-1812-181

AISM-1812-221

AISM-1812-271

AISM-1812-331

AISM-1812-391

AISM-1812-471

AISM-1812-561

AISM-1812-681

AISM-1812-821

AISM-1812-102

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

OPTIONS AND PART IDENTIFICATIO0NS:

AISM - 1812 -

Inductance

Please refer to the tables

(min)

Tolerance

K=±10%

M=±20%

DCR(Ω)

(max)

ging

Tape and Reel

Idc(mA)

(max)

L(μH)

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

1000

Tolerance

(%)

Test Freq.

(MHz)

SRF(MHz)

(min)

K/M

25.2

7.96

2.52

0.796

0.252

Revised:

02.08.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

300

280

250

220

200

180

165

150

145

140

135

130

100

9.0

8.0

6.0

5.0

4.0

3.5

3.0

2.5

0.18

0.20

0.22

0.24

0.25

0.26

0.28

0.30

0.32

0.36

0.40

0.45

0.50

0.55

0.60

0.65

0.70

0.80

0.90

1.0

1.1

1.2

1.4

1.6

2.0

2.5

2.8

3.2

3.6

4.0

4.5

5.0

5.5

6.0

7.0

8.0

9.0

9.5

800

770

730

700

665

635

605

575

545

520

500

475

450

430

410

390

380

370

355

330

315

300

285

270

250

225

200

190

180

170

160

150

140

135

130

120

110

105

102

100
