AM81EC176-35JCB datasheet, PDF

AM81EC176-35JCB: DescriptionPalette DAC, 1024 X 768 Pixels, CMOS, PQCC32, PLASTIC, LCC-32; CategoryThe embedded processor and controller Microcontrollers and processors; File Size69KB，4 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

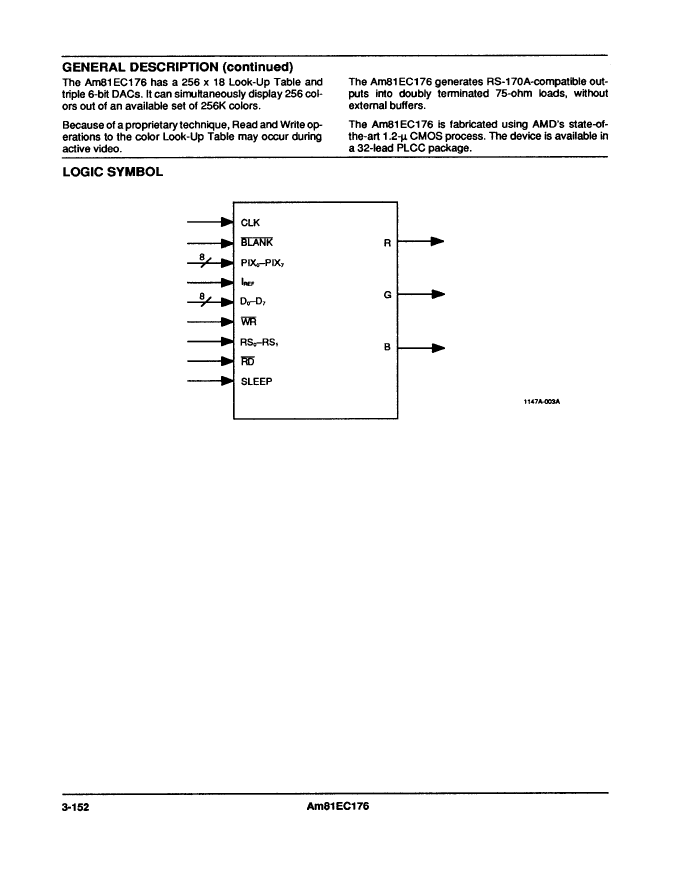

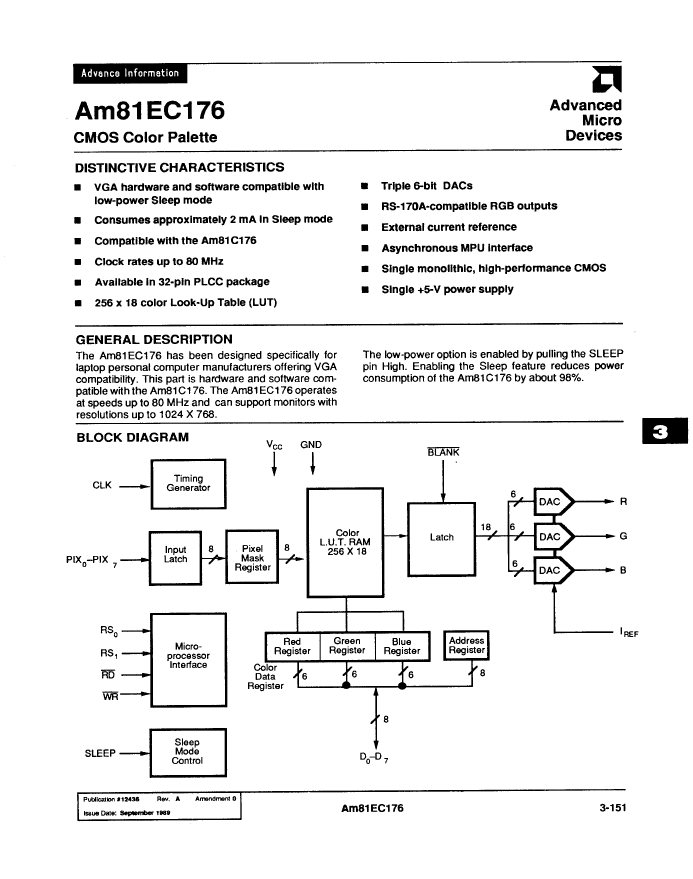

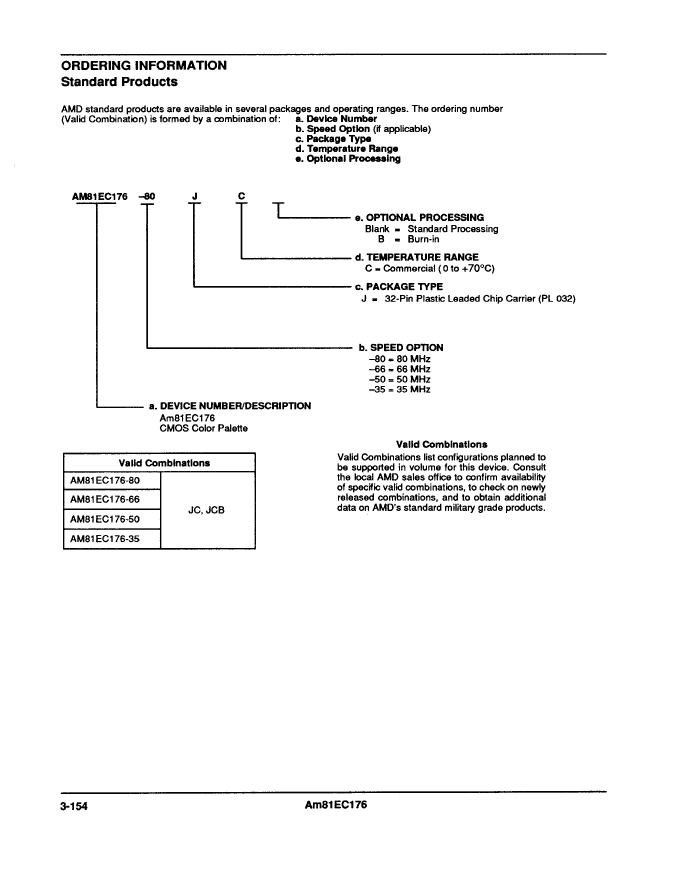

AM81EC176-35JCB Overview

Palette DAC, 1024 X 768 Pixels, CMOS, PQCC32, PLASTIC, LCC-32

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	QFJ
package instruction	QCCJ,
Contacts	32
Reach Compliance Code	unknown
Address bus width	2
maximum clock frequency	35 MHz
show configuration	1024 X 768 PIXELS
External data bus width	8
JESD-30 code	R-PQCC-J32
JESD-609 code	e0
length	13.97 mm
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	3.556 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.43 mm
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC

This Material Copyrighted By Its Respective Manufacturer
