ASMT- Mx2x / ASMT- MxEx
Moonstone
TM
3W Power LED Light Source
Data Sheet
Description

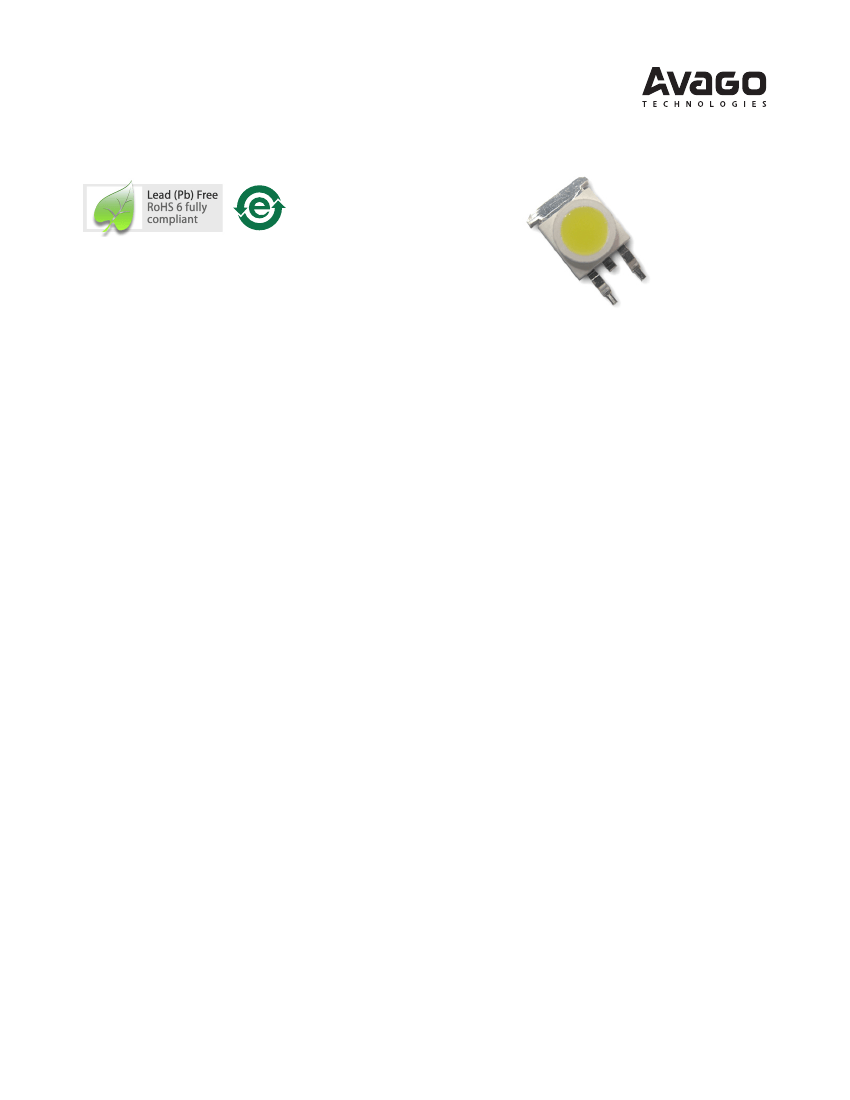

The Moonstone™ 3W Power LED Light Source is a high
performance energy efficient device which can handle
high thermal and high driving current. The exposed pad
design has excellent heat transfer from the package to the
motherboard.
The Cool White Power LED is available in various color
temperature ranging from 4000K to 10000K and Warm
White Power LED ranging from 2600K to 4000K.
The low profile package design is suitable for a wide variety
of applications especially where height is a constraint.
The package is compatible with reflow soldering. This
will give more freedom and flexibility to the light source
designer.
Features
•
Available in Cool White & Warm White color
•
Energy efficient
•
Exposed pad for excellent heat transfer
•
Suitable for reflow soldering process
•
High current operation
•
Long operation life
•
Wide viewing angle
•
Silicone encapsulation
•
Non-ESD sensitive (threshold > 16KV)
•
MSL 4 products
•
Available in both electrically isolated and non-isolated
metal heat slug
Applications
•
Sign backlight
•
Safety, exit and emergency sign lightings
•
Specialty lighting such as task lighting and reading
lights
•
Retail display
•
Commercial lighting
•
Accent or marker lightings, strip or step lightings
•
Portable lightings, bicycle head lamp, torch lights.
•
Decorative lighting
•
Architectural lighting
•
Pathway lighting
•
Street lighting
•
Pedestrian street lighting
•
Tunnel lighting
Specifications
•
InGaN Technology
•
4.3 V (max) at 700 mA
•
120° viewing angle
Package Dimensions
10.00
1
Anode
2 Cathode
3
Heat Sink
3.30
8.50
Metal Slug
3
Ø 5.26
8.50
Ø 8.00
1.27
10.60
LED
+
−
ZENER
2.00
1.30
1
5.08
2
0.81
5.25
Notes:
1. All dimensions are in millimeters.
2. Unless otherwise stated, the tolerance for dimension is ±0.1mm.
3. Metal slug is connected to anode for electrically non-isolated option.
Device Selection Guide (T
J
= 25°C)
Luminous Flux,
Φ
v[1,2]
(lm)
Color
Cool White
Warm White
Cool White
Diffused
Warm White
Diffused
Part Number
ASMT-MW20
ASMT-MW22
ASMT-MY20
ASMT-MY22
ASMT-MWE0
ASMT-MWE2
ASMT-MYE0
ASMT-MYE2
Min.
124
95
95
95
Typ.
145
125
125
110
Max.
161
161
161
161
Test Current
(mA)
700
700
700
700
Die
Technology
InGaN
InGaN
InGaN
InGaN
Electrically
Isolated Metal Slug
No
Yes
No
Yes
No
Yes
No
Yes
Notes:
1.
Φ
V
is the total luminous flux output as measured with an integrating sphere at 25ms mono pulse condition.
2. Flux tolerance is ±10%.
2
Part Numbering System
ASMT-M x x x – N x
1
x
2
x
3
x
4
Packaging Option
Color Bin Selection
Max Flux Bin Selection
Min Flux Bin Selection
Heat Sink
0 – Electrically Non-isolated
2 – Electrically Isolated
Silicone Type
2 – Non-diffused
E – Diffused
Color
W – Cool White
Y – Warm White
Note:
1. Please refer to Page 7 for selection details.
Absolute Maximum Ratings
Parameter
DC Forward Current
[1]
Peak Pulsing Current
[2]
Power Dissipation
Reverse Voltage
LED Junction Temperature
Operating Metal Slug Temperature Range at 700mA
Storage Temperature Range
Soldering Temperature
Note:
1. Derate linearly based on Figure 8.
2. Pulse condition: duty factor = 10%, Frequency = 1 kHz.
ASMT-Mx2x / ASMT-MxEx
700
1000
3010
5
125
-40 to +95
-40 to +120
Refer to Figure 10
Units
mA
mA
mW
V
°C
°C
°C
3
Optical Characteristics at 700 mA (T
J
= 25°C)
Correlated Color Temperature,
CCT (Kelvin)
Part Number
ASMT-MW20
ASMT-MW22
ASMT-MY20
ASMT-MY22
ASMT-MWE0
ASMT-MWE2
ASMT-MYE0
ASMT-MYE2
Viewing Angle
2θ
½ [1]
(°)
Typ.
120
120
120
120
Luminous Efficiency
(lm/W)
Typ.
52
45
45
41
Color
Cool White
Warm White
Cool White Diffused
Warm White Diffused
Min.
4000
2600
4000
2600
Max.
10000
4000
10000
4000
Notes:
1.
θ
½
is the off-axis angle where the luminous intensity is ½ the peak intensity.
Electrical Characteristic at 700 mA (T
J
= 25°C)
Forward Voltage,
V
F
(Volts) at I
F
= 700 mA
Dice Type
InGaN
Thermal Resistance,
Rθ
j-ms
(°C/W)
[1]
Max.
4.3
Temperature Coefficient
of Forward Voltage (mV/°C),
∆V
F
/∆T
J
Typ.
-1.5 to -3.5
Min.
3.6
Typ.
4.0
Typ.
10
Note:
1. Rθ
j-ms
is the Thermal Resistance from LED junction to metal slug.
Typical Characteristic at 350 mA (T
J
= 25°C)
Luminous Flux,
Φ
V
(lm)
Part Number
ASMT-MW20
ASMT-MW22
ASMT-MY20
ASMT-MY22
ASMT-MWE0
ASMT-MWE2
ASMT-MYE0
ASMT-MYE2
Forward Voltage,
V
F
(Volts)
Typ.
3.6
3.6
3.6
3.6
Color
Cool White
Warm White
Cool White Diffused
Warm White Diffused
Typ.
80
70
70
65
4
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
380
430
480
530 580 630
WAVELENGTH - nm
680
730
780
RELATIVE LUMINOUS FLUX
(NORMALIZED AT 700 mA)
RELATIVE INTENSITY
WARM WHITE
COOL WHITE
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
100
200
300
400
500
DC FORWARD CURRENT - mA
600
700

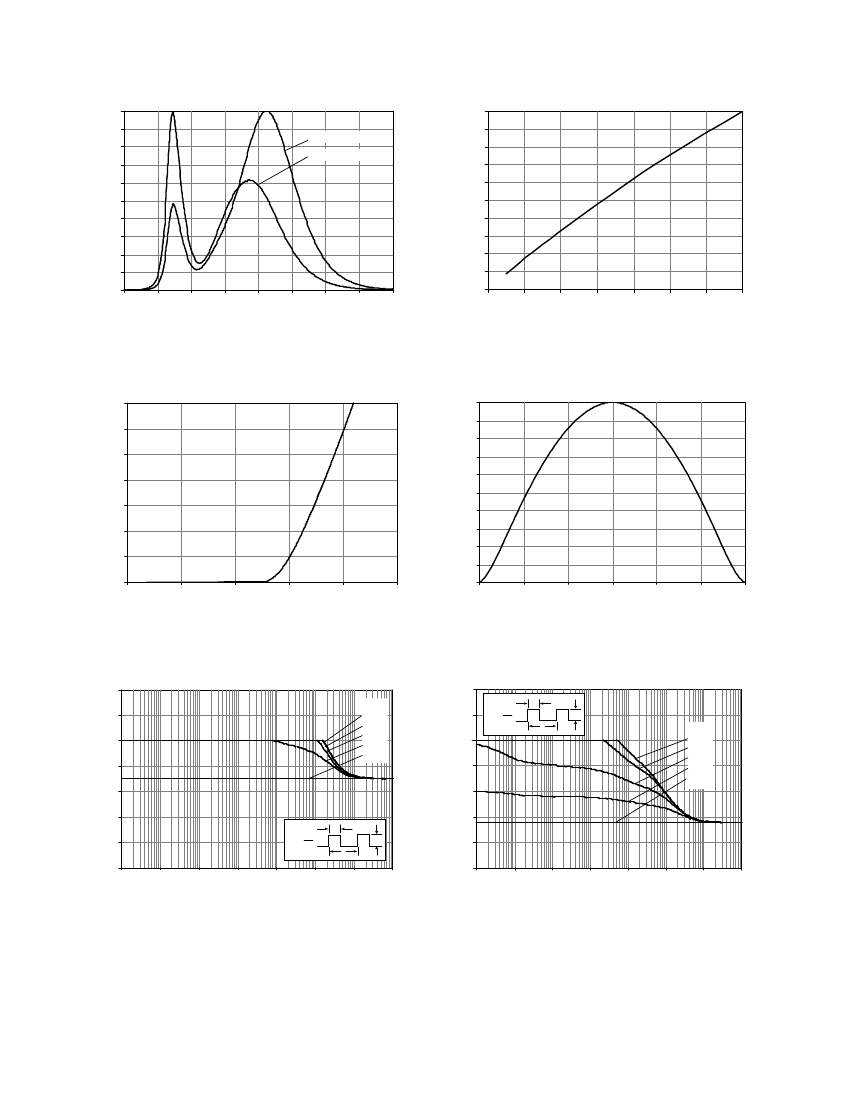

Figure 1. Relative Intensity vs. Wavelength.
Figure 2. Relative Luminous Flux vs. Forward Current.
700
600
FORWARD CURRENT - mA
500
400
300
200
100
0
0
1
2
3
FORWARD VOLTAGE - V
4
5
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
NORMALIZED INTENSITY
-90
-60
-30
0
30
60
ANGULAR DISPLACEMENT - DEGREES
90
Figure 3. Forward Current vs. Forward Voltage.
Figure 4. Radiation Pattern.
1.4
1.2
PULSE CURRENT, I
P
- A
1.0
0.8
0.6
0.4
0.2
D=
t
p
T
t
p
T
10
D=
0.05
0.10
0.25
0.50
1.00
1.4
1.2
PULSE CURRENT, I
P
- A
1.0
0.8
0.6
0.4
0.2
100
t
D=
p
T
t
p
T
I
F
D=
0.05
0.10
0.25
0.50
1.00
I
F
0.0
0.00001 0.0001 0.001 0.01
0.1
1
PULSE DURATION, t
p
- sec
Figure 5. Maximum pulse current vs. ambient temperature.
Derated based on T
A
= 25°C, Rθ
J-A
= 30°C/W.
0.0
0.00001 0.0001 0.001 0.01
0.1
1
PULSE DURATION, t
p
- sec
Figure 6. Maximum pulse current vs. ambient temperature.
Derated based on T
A
= 85°C, Rθ
J-A
= 30°C/W.
10
100
5
