CD74AC109M datasheet, PDF - EEWORLD Datasheet

CD74AC109M: DescriptionJ-Kbar Flip-Flop, AC Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, CMOS, PDSO16; Categorylogic logic; File Size802KB，10 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

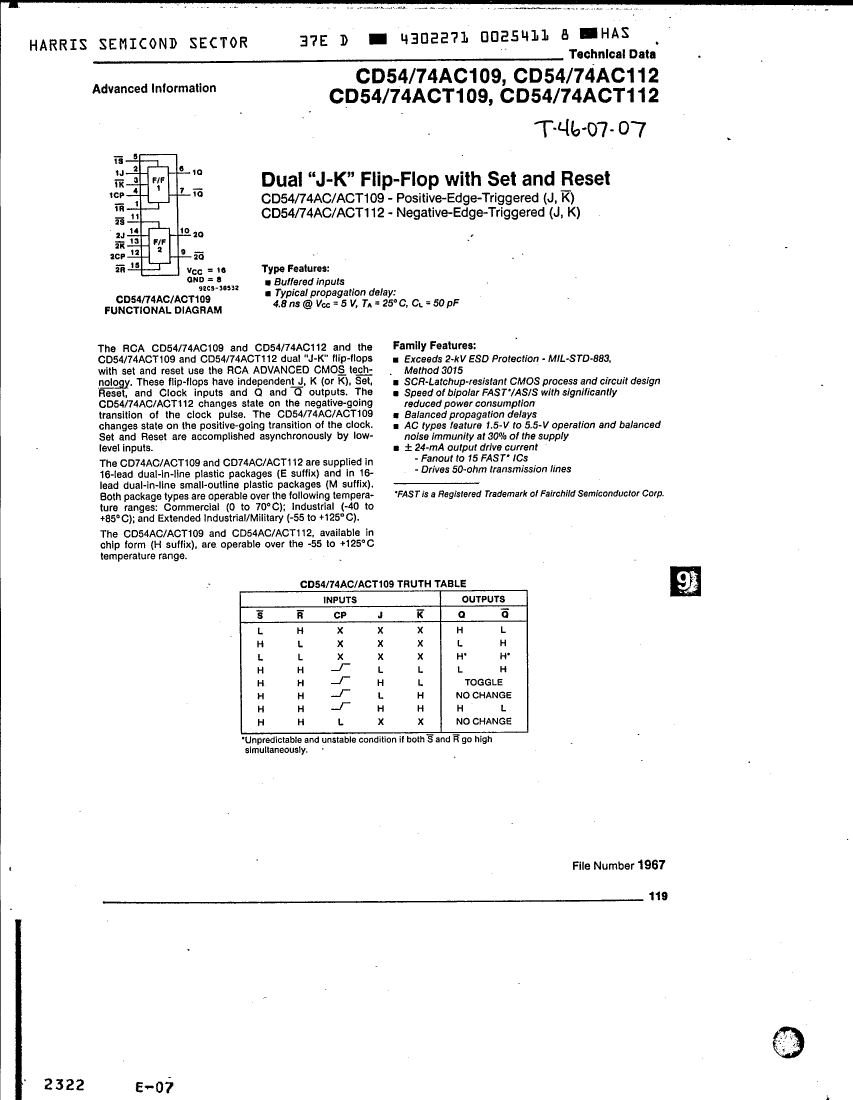

CD74AC109M Overview

J-Kbar Flip-Flop, AC Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, CMOS, PDSO16

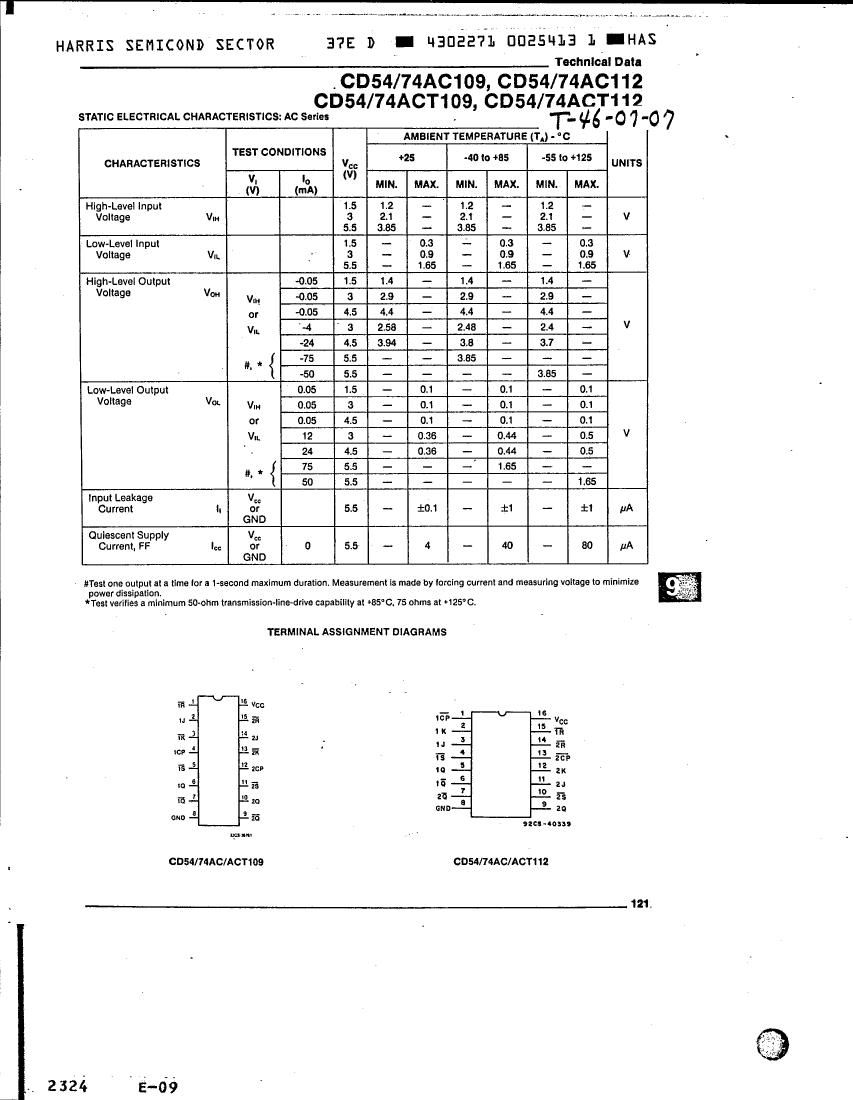

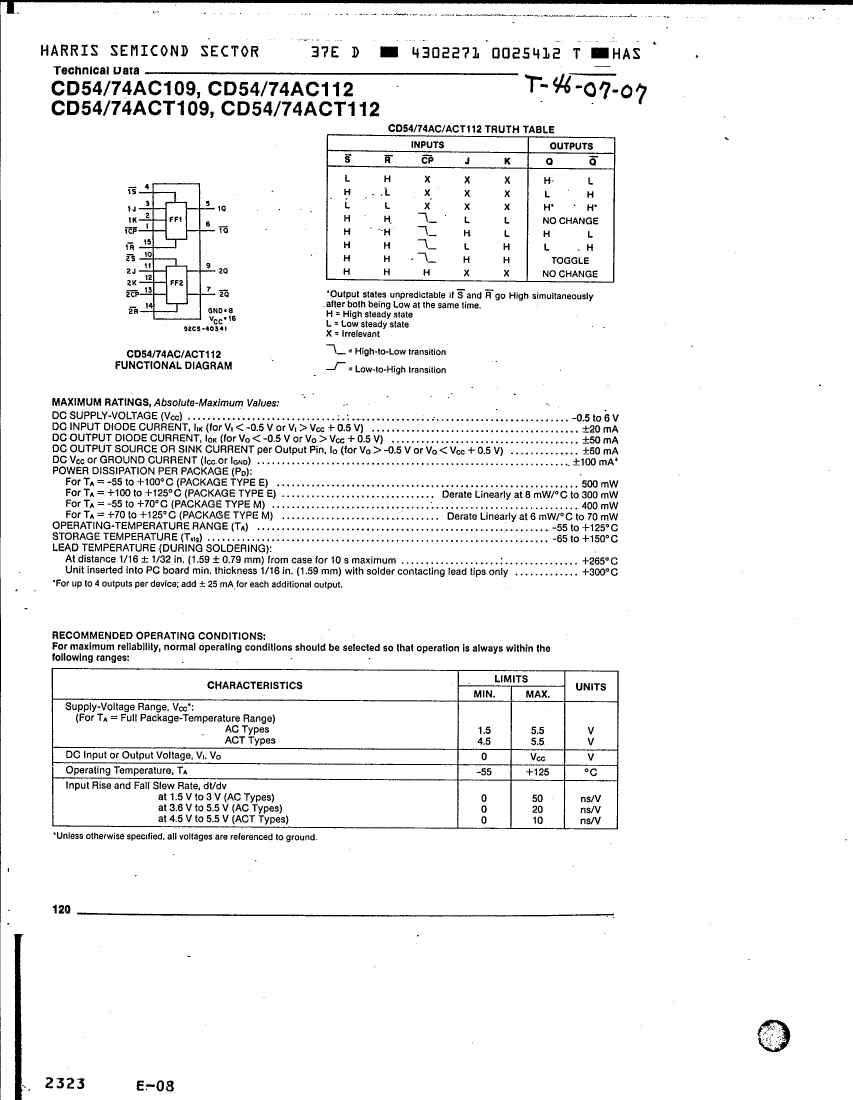

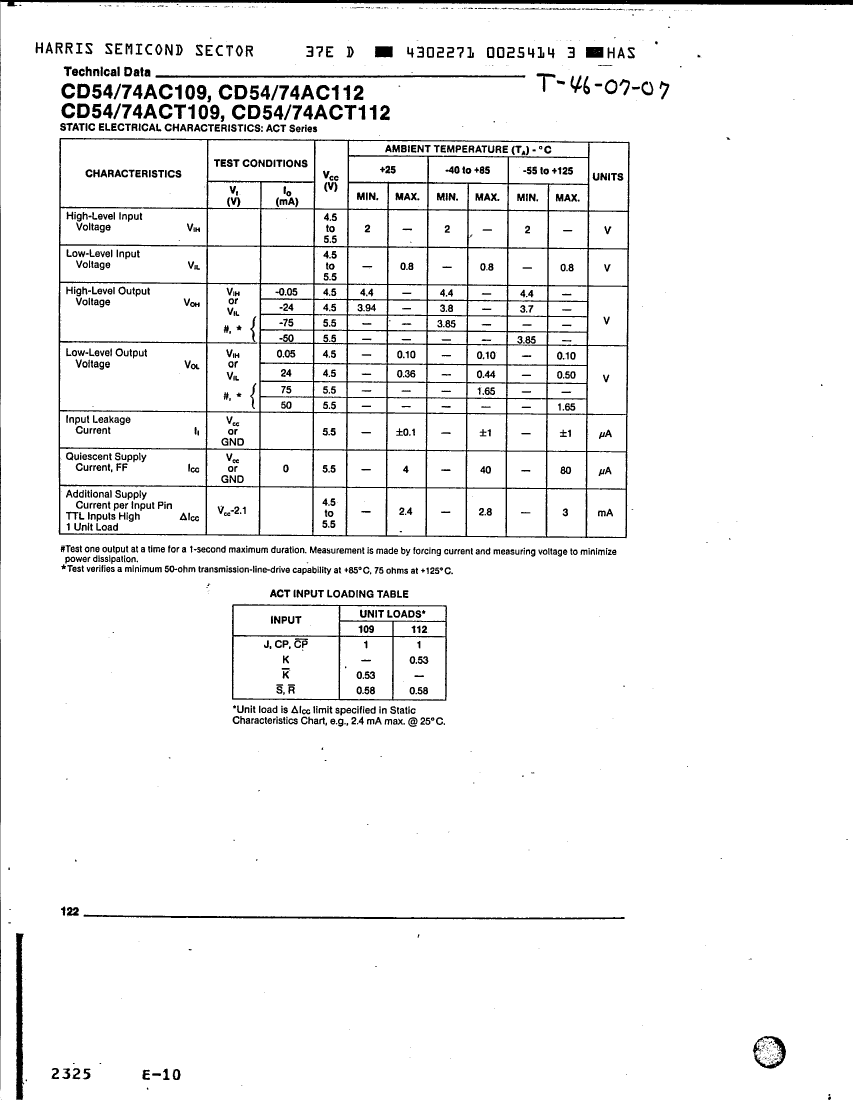

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	J-KBAR FLIP-FLOP
Maximum Frequency@Nom-Sup	71000000 Hz
MaximumI(ol)	0.012 A
Number of digits	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V

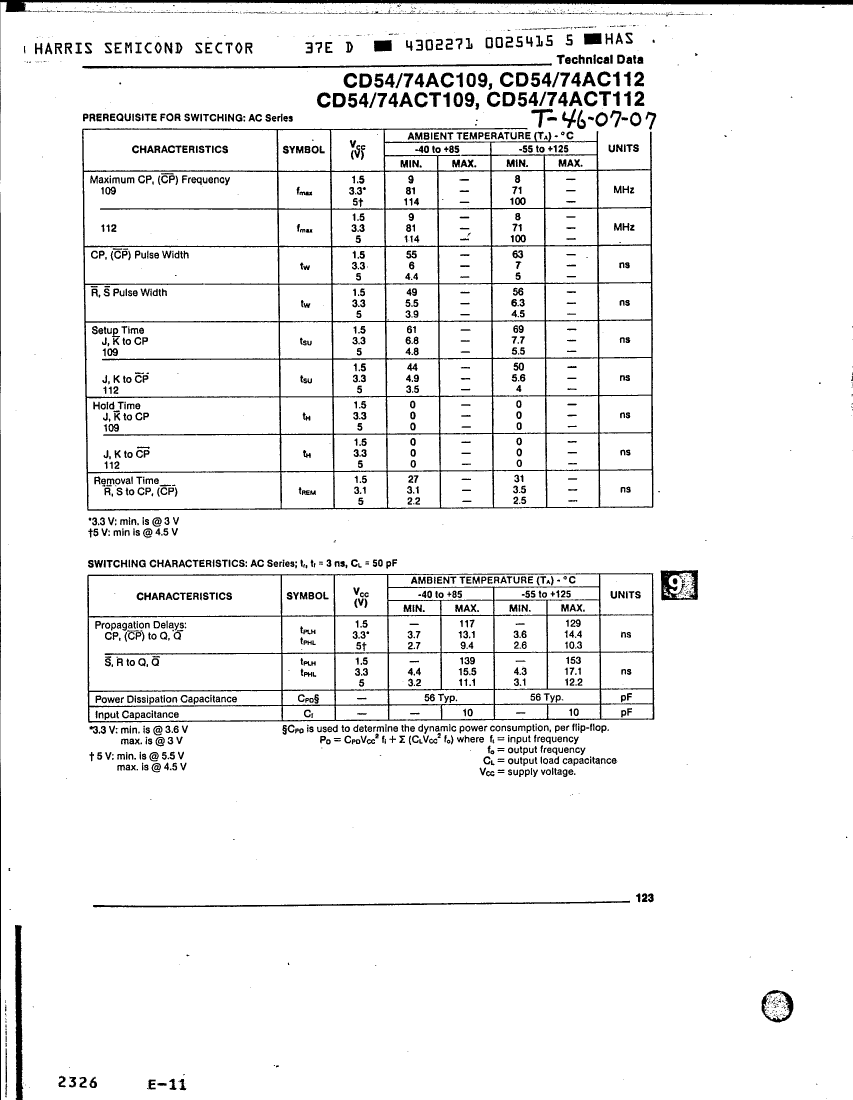

propagation delay (tpd)	10.3 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
minfmax	100 MHz
