FTSH-139-04-S-DV datasheet, PDF

Datasheet> All Categories > The connector> The connector> FTSH-139-04-S-DV

FTSH-139-04-S-DV: DescriptionBoard Connector, 78 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size351KB，5 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FTSH-139-04-S-DV Overview

Board Connector, 78 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

FTSH-139-04-S-DV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	78 Position, High Reliability Header Strips, 0.050" pitch
Other features	CONTACT FINISH MATING: GOLD CONTACT, FINISH TERMINATION: MATTE TIN
body width	0.135 inch
subject depth	0.155 inch
body length	1.95 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS ARE AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	3.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	78
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

REVISION EK

DO NOT

SCALE FROM

THIS PRINT

NOTES:

No OF POSITIONS

REPRESENTS A CRITICAL DIMENSION.

-02 THRU -50

2. PARTS MAY BE CUT TO POSITION.

3. MAXIMUM CUT FLASH: .010 [0.25]

(PER ROW)

4. MINIMUM PUSHOUT FORCE: 1.0 LB.

LEAD STYLE

5. MEASURED AT BEND RADIUS, NOT AT END OF PIN.

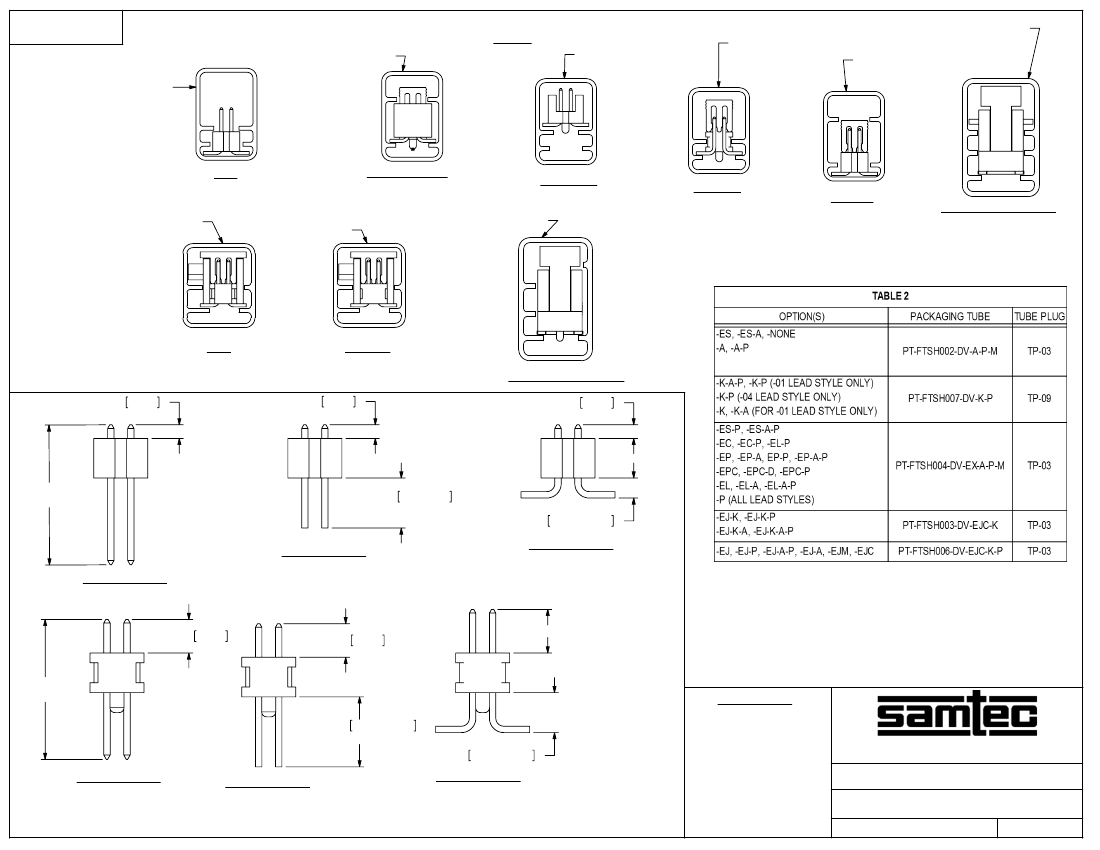

6. TUBE ONLY -04 THROUGH -50 POSITIONS (SEE TABLE 2).

-01: .120 [3.05]

7. SHEAR TAILS TO DIMENSION SHOWN.

-02: .075 [1.91]

8. MAXIMUM BURR ALLOWANCE: .003 [0.08]

-03: .065 [1.65]

9. GOLD PLATING TO BE ON POST, TIN PLATING TO BE ON TAIL.

-04: .150 [3.81]

10. FILL WITH ALIGNMENT PIN HOLES TO TAIL SIDE.

-05 .170 [4.32]

11. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, LOCKING CLIPS

-14: .150 [3.81]

ARE NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS

(NOT AVAILABLE WITH

MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH LOCKING CLIPS.

-SM, FM, LM PLATING OPTIONS)

12. VOIDS MAY OR MAY NOT BE PRESENT ON POSITIONS 5 THRU 8 AND CAN

BE MIXED WITHIN AN ORDER.

PLATING SPECIFICATION

13. ON LEAD STYLES -01 THROUGH -04 THE T-1S15-03 CAN

BE SUBSTITUTED FOR T-1S15-14.

-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,

+.005 +0.13

MATTE TIN ON TAIL

No OF POS x .0500

-.010

[

-0.25

]

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

(No OF POS x .0500[1.27]) - .050[1.27]

-H: 30µ" GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,

.135 3.43

MATTE TIN ON TAIL

REF

-LTL: 10µ" SELECTIVE GOLD IN CONTACT AREA,

TIN/LEAD (90/10+/-5%) TAIL

-G: 10µ" GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

FTSH-1XX-XX-XXX-DV-XXX

FTSHC-50-D

TAIL OPTION

-DV: DOUBLE VERTICAL

2 MAX SWAY

(USE **FTSHC-1XX-XX-XXX-DV FOR ALL OPTIONS

(EITHER DIRECTION)

EXCEPT -ES, -EJ, -EJM, -EJC, -EC, -EP, -EL, -EPC, -A,

THEN USE FTSH-50-D AND BUILD PER PRINT)

** = SEE FTSHC-1XX-XX-XXX-DX-XX PRINT FOR DETAILS

2 MAX SWAY

(EITHER DIRECTION)

SEE TABLE 1

"A" C

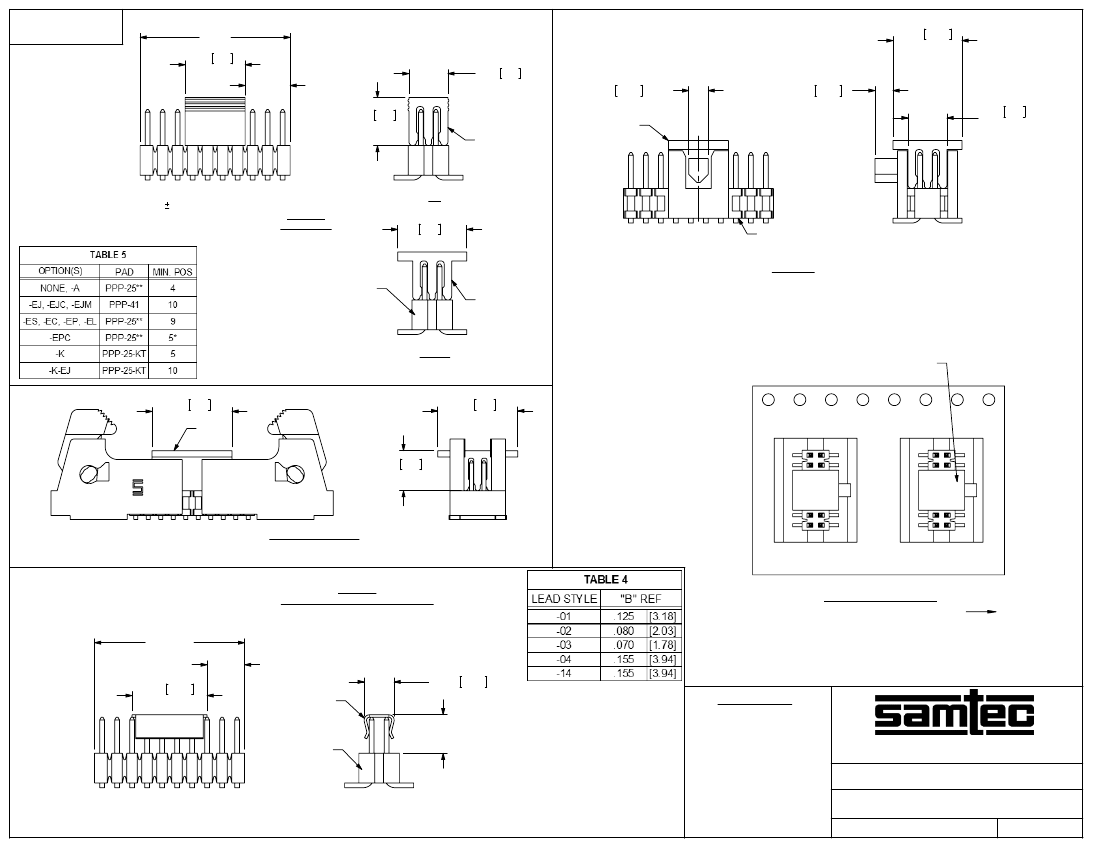

-P: PICK & PLACE PAD (4 POS MIN)

(SEE FIG 11, SHT 4 & TABLE 5)

-TR: TAPE & REEL PACKAGING

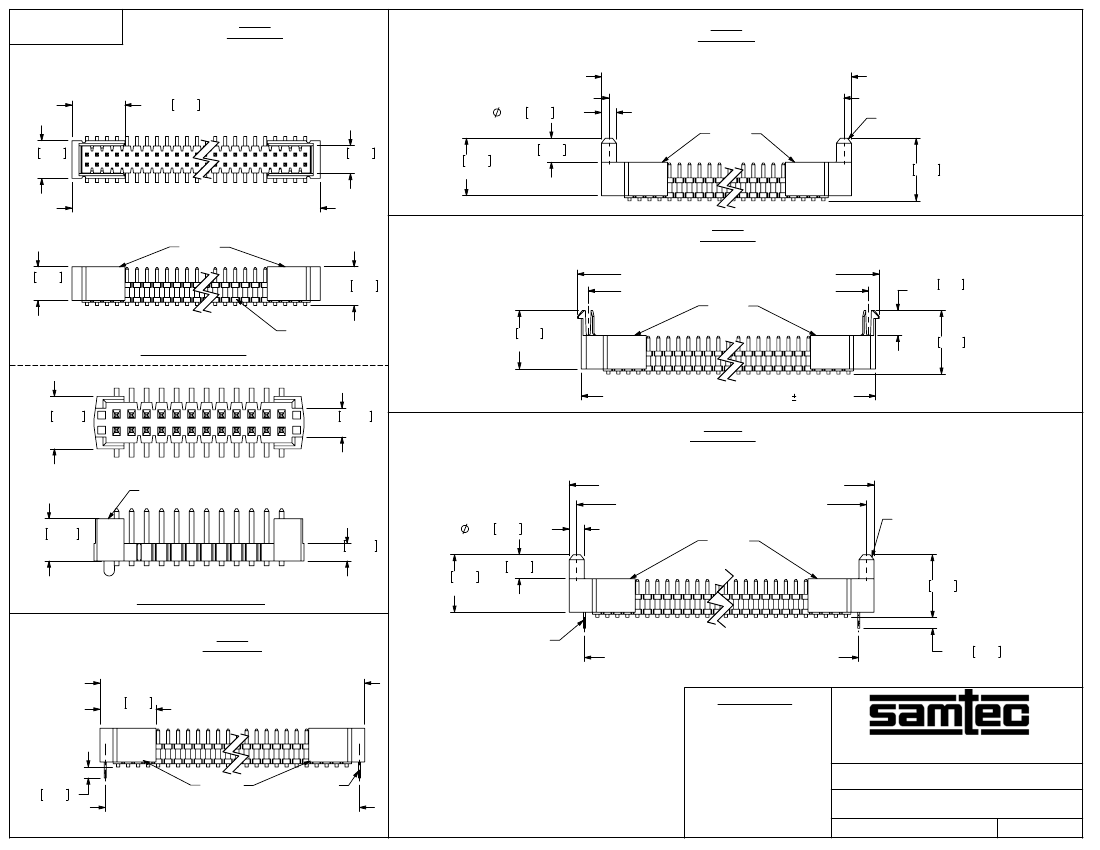

-ES: END SHROUDS (SEE FIG 6, SHT 3)

(MOLDED IN 5 POS MIN; -02 & -03 LEAD STYLE ONLY)

(SNAP SHROUDS 9 POS MIN; -02 & -03 LEAD STYLE ONLY)

(MUST USE FTSH-50-D)

-EJ: EJECTOR SHROUDS: SEE FIG 4, SHT 2)

(10 POS MIN; -01 LEAD STYLE ONLY)(MUST USE FTSH-50-D)

-EJM: EJECTOR SHROUDS WITH MOLDED ALIGNMENT PIN

(SEE FIG 5, SHT 2; 10 POS MIN; -01 LEAD STYLE ONLY)

(NOT VALID WITH -A OPTION)(MUST USE FTSH-50-D)

-EJC: EJECTOR SHROUDS WITH LOCKING CLIP

(SEE FIG 5, SHT 2 & NOTE 11)

(10 POS MIN; -01 LEAD STYLE ONLY; NOT VALID WITH -A

OPTION)

(MUST USE FTSH-50-D)

-EC: LOCKING CLIP (SEE FIG 7, SHT 3 & NOTE 11)

(9 POS MIN; -02 & -03 LEAD STYLE ONLY)(MUST USE FTSH-50-D)

-EP: GUIDE POST (SEE FIG 8, SHT 3; 9 POS MIN; -02 & -03 LEAD STYLE

ONLY)

(USE ONLY WHEN MATING WITH CLP)(MUST USE FTSH-50-D)

-EL: BOARD LOCK (SEE FIG 9, SHT 3)

(9 POS MIN; -02 & -03 LEAD STYLE ONLY)

(USE ONLY WHEN MATING WITH CLP)(MUST USE FTSH-50-D)

-EPC: GUIDE POST & LOCKING CLIP

(SEE FIG 10, SHT 3 & NOTE 11; USE ONLY WHEN MATING WITH CLP)

(9 POS MIN; -02 & -03 LEAD STYLE ONLY; NOT VALID

WITH -A OPTION)(MUST USE FTSH-50-D)

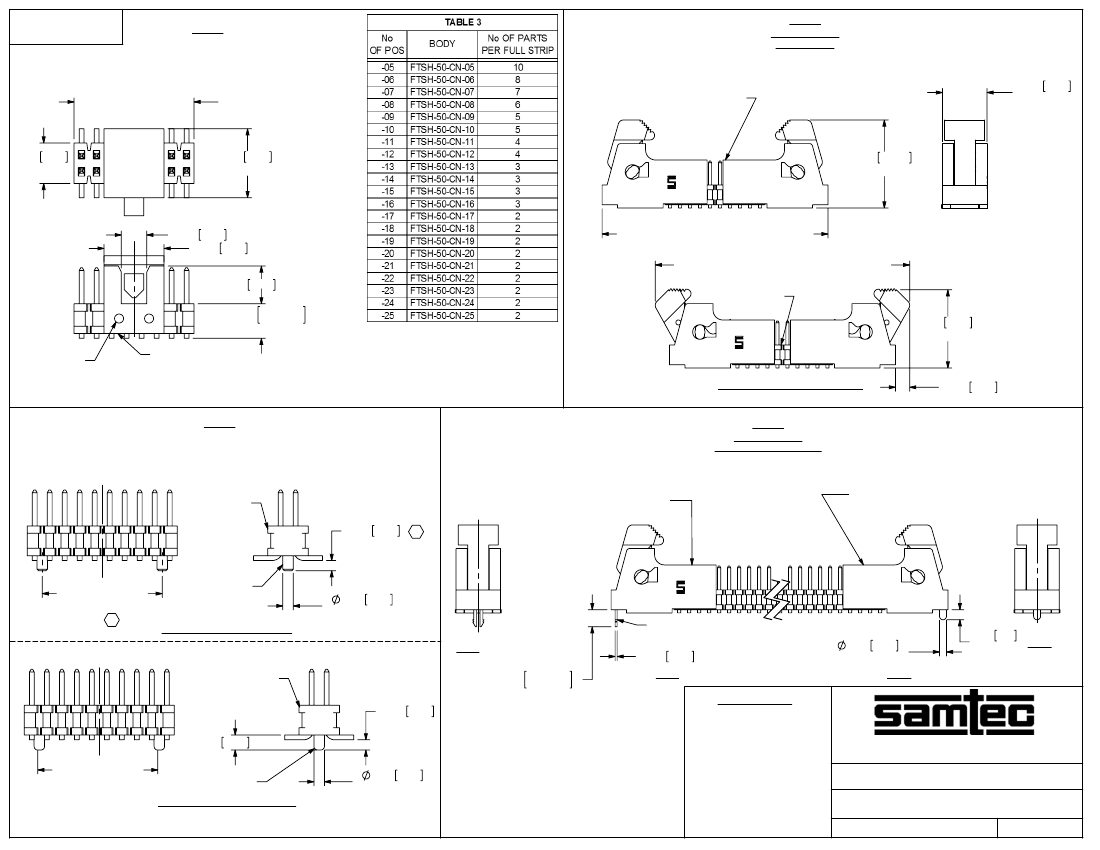

-A: ALIGNMENT PIN (MOLDED OR STAKED; SEE FIG 3, SHT 2)

(MOLDED: 3 POS MIN; STAKED: 6 POS MIN)

(SAMTEC DISCRETION ON WHICH -A PIN USED)

(MUST USE FTSH-50-D)

-K: KEYING OPTION FOR MATING WITH FFSD

(SEE TABLE 3, SHT 2; 05 THRU 25 AVAILABLE AS STANDARD)

(POSITION 13, 17, 20 & 25 AVAILABLE WITH -EJ OPTION)

(LEAD STYLE -01 ONLY, SEE FIG 2, SHT 2 & NOTE 12)

(ALIGNMENT PIN AVAILABLE WITH -K OPTION BUT MUST BE MOLDED)

(MUST USE FTSH-XX-CN-XX)

-M: METAL PICK & PLACE PAD (5 POS MIN; USE MPP-22-5)

(SEE FIG 12, SHT 4; NOT AVAILABLE WITH -K OPTION)

OPTIONS

.016 0.41 SQ

REF (TYP)

"B"

CONTACT AREA

(SEE NOTE 9 & TABLE 1)

.050±.004 1.27±0.10

* = NOT ENGINEERING APPROVED

2 MAX SWAY

(EITHER DIRECTION)

90°±3°

SEE NOTE 3

(2 PLCS)

.099 2.51

REF

.004[.10]

.115 2.92

(SEE NOTE 5)

SEE NOTE 8

PATENT NUMBERS

5713755 / 5961339

FTSH-1XX-XX-XXX-DV SHOWN

(SEE FTSHC-1XX-XX-XXX-DX-XX PRINT FOR DETAILS)

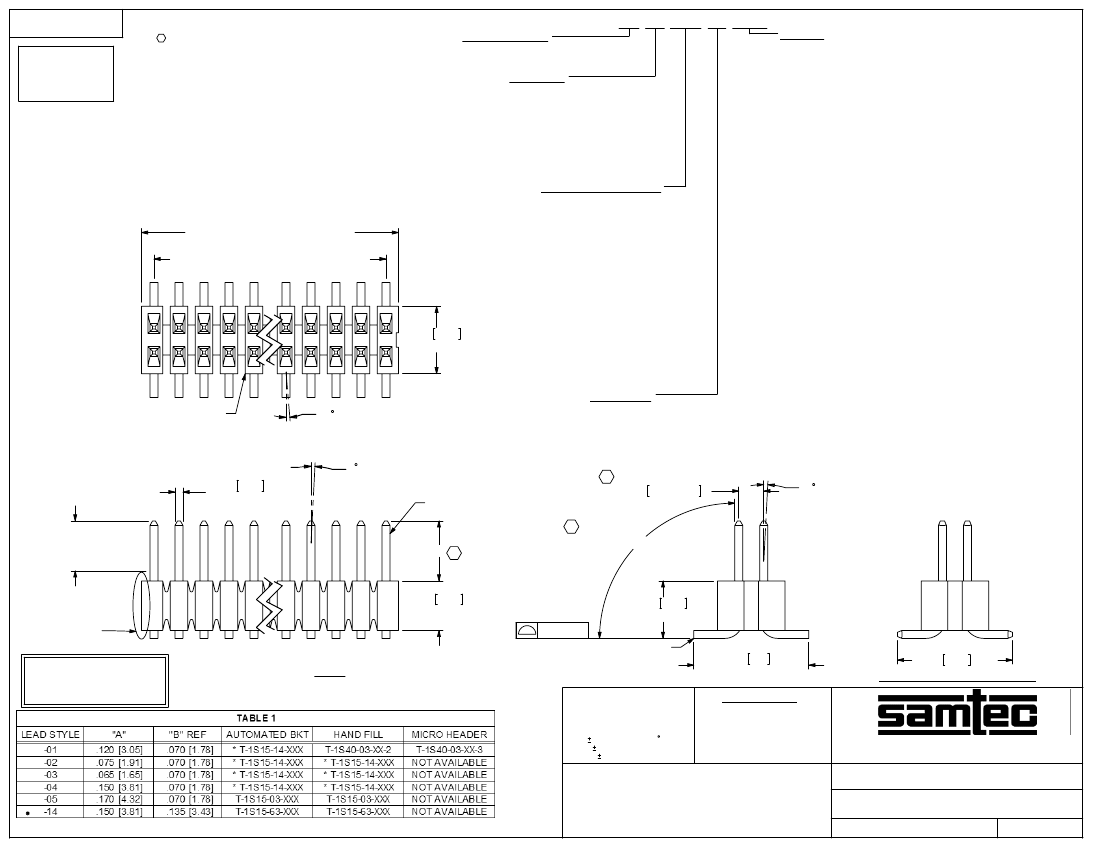

FIG 1

.23 5.8

(SEE NOTE 7)

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

HAND FILL USING T-1S40

.230 5.84 REF

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0010 [.025]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 5:1

INSULATOR: LCP UL 94 VO

TERMINAL: PHOSPHOR BRONZE

.050 x .050 CL DOUBLE VERTICAL SMT TERMINAL STRIP

* = SEE NOTE 13

F:\dwg\misc\mktg\FTSH-1XX-XX-XXX-DV-XXX-MKT.SLDDRW

BY:

PURVIS

FTSH-1XX-XX-XXX-DV-XXX

10/12/1995

SHEET
