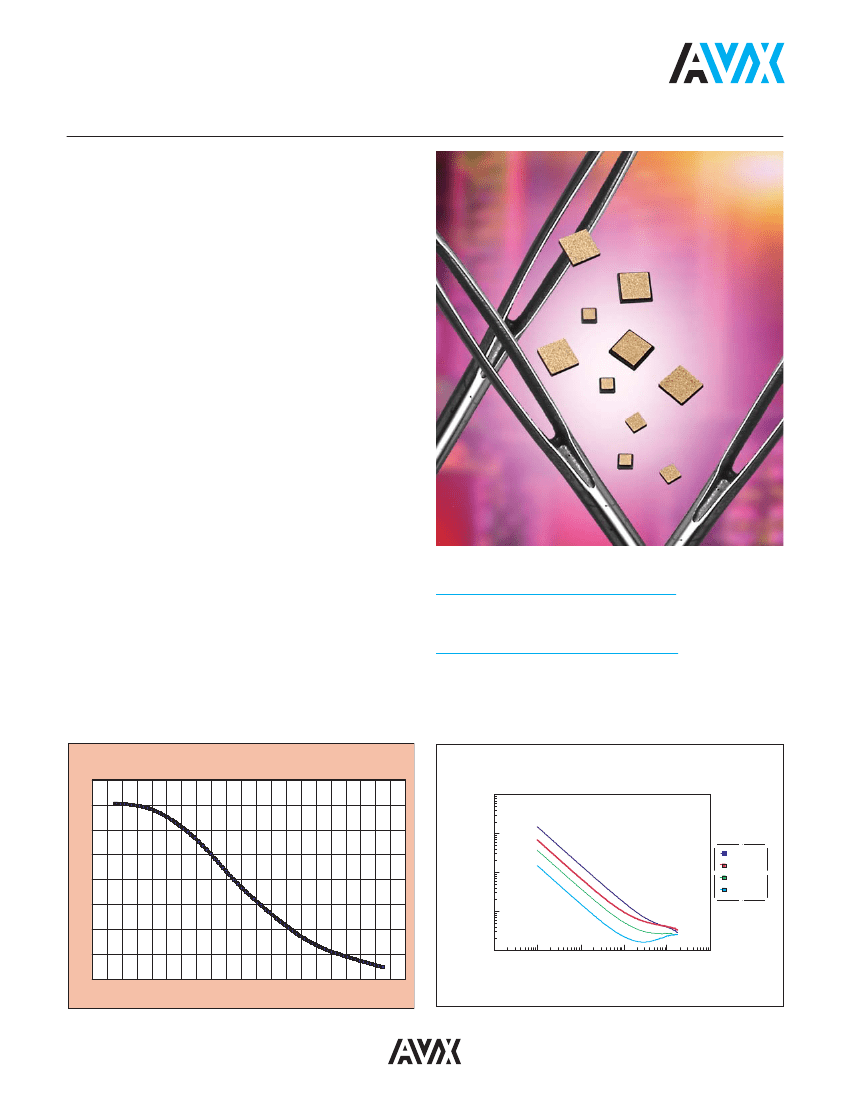

Microwave SLCs
Maxi & Maxi+ Series:
Single Layer Ceramics With & Without Borders
GENERAL INFORMATION
Maxi and Maxi+ are both AVX proprietary intergranular
barrier layer dielectric formulations. Both use SrTiO
3
as
their major constituent and have dielectric constants
exceeding 20,000 and 30,000 respectively. Grain bound-
ary barrier layer (GBBL) capacitors have been well dis-
cussed in various literature sources and, while simple in
principle, their resulting electrical properties are depen-
dent on a complex combination of materials and process
technology.
AVX’s Maxi & Maxi+ dielectrics have the distinctive
properties that are ideal for extremely broadband
by-pass capacitors. This built-in feature gives these prod-
ucts a unique disspersive effect that is illustrated in the
accompanying curves. AVX’s ability to control the
prerequisite relationships between materials and
process has resulted in dielectrics that make these
Single Layer Ceramics especially well suited for applica-
tions requiring high frequency performance well into the
millimeter band.
These GBBL dielectrics are also available in low loss
versions that are comparable to conventional barium
titanate based dielectrics. Performance is likewise similar
in that these materials exhibit a very pronounced dip at
their resonant frequency. These designs are excellent
choices for applications requiring the combined attribut-
es of very small size and precise cut-off frequencies.
Additional information on these high Q products may be
obtained by contacting the factory or your local AVX
representative.
All Maxi & Maxi+ dielectrics exhibit X7R temperature
performance of ±15% from –55°C to +125°C. Electrical
characteristics, as outlined in MIL-C-49464, will meet
those specified for Class II dielectrics, rather than the
less stringent Class IV, which typically describes GBBL
dielectrics.
Capacitance Change with Temperature
Sample kits are available
MAXI KIT Catalog # KITSLCK20KSAMPL
includes 10 each:
GH0158101MA6N, GH0258221MA6N, GH0258471MA6N,
GH0358102MA6N, GH0458182MA6N
MAXI+ KIT Catalog # KITSLCK30KSAMPL
includes 10 each:
GH0159331MA6N, GH0259751MA6N, GH0359152MA6N,
GH0459302MA6N, GH0559602MA6N
Impedance vs. Frequency
8
1 E+4
6
4
Impedance
1 E+3
Typical Delta Cap (%)
2
Typical
1 E+2
0
1 0 0 pF
2 2 0 pF
4 7 0 pF
1 0 0 0 pF
-2
1 E+1
Q50
1 E+6
1 E+7
1 E+8
1 E+9
1 E+1 0
-4
-6
1 E+0
1 E+5
-8
-70
-60
-50
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100 110
120
130
140
Frequency (Hz.)
Temperature ( °C)
4
