IT215 datasheet, PDF - EEWORLD Datasheet

IT215: Description4 Quadrant Logic Level TRIAC, 200V V(DRM), 15A I(T)RMS, TO-220AB, HERMETIC SEALED, TO-220, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size180KB，4 Pages; ManufacturerHutson Industries

Download Datasheet Parametric View All

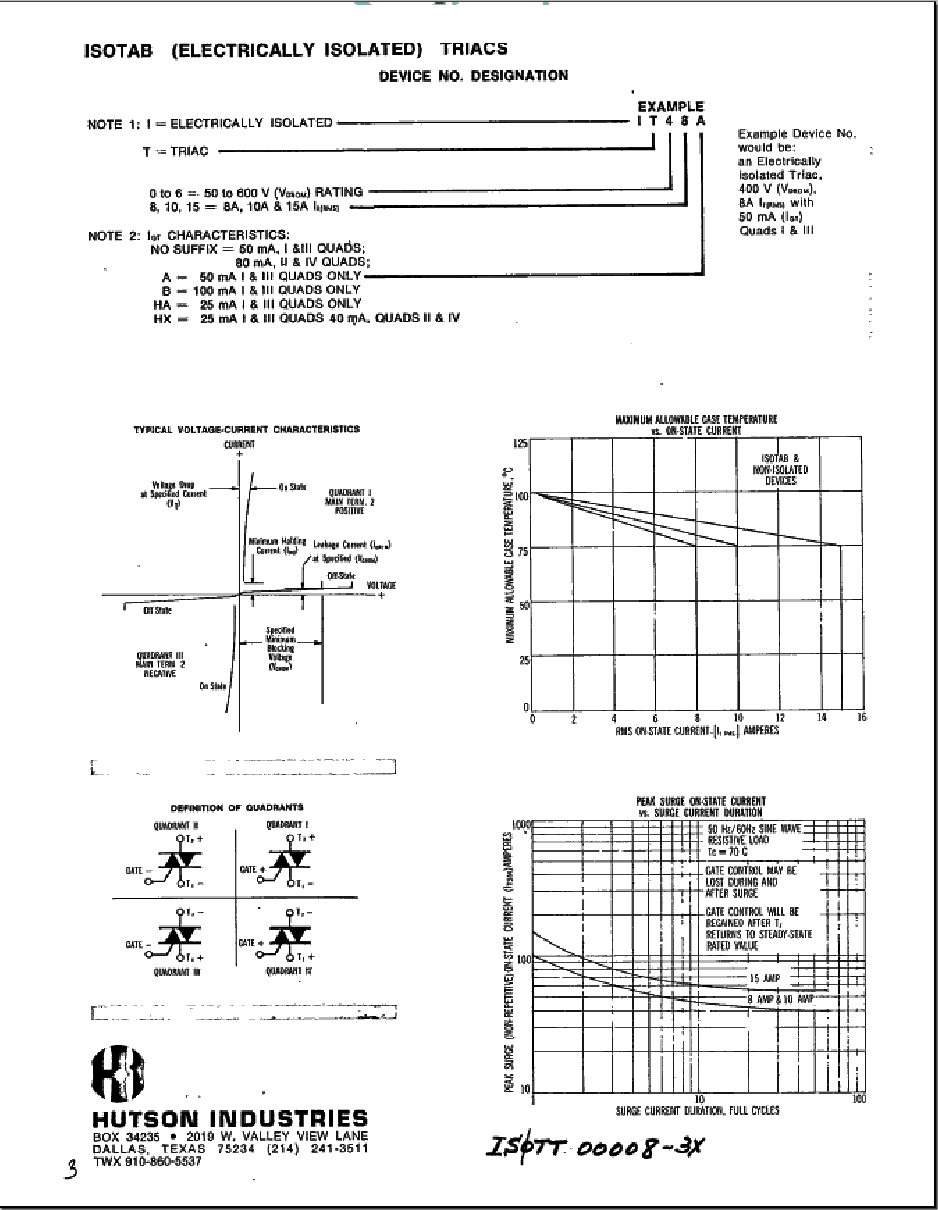

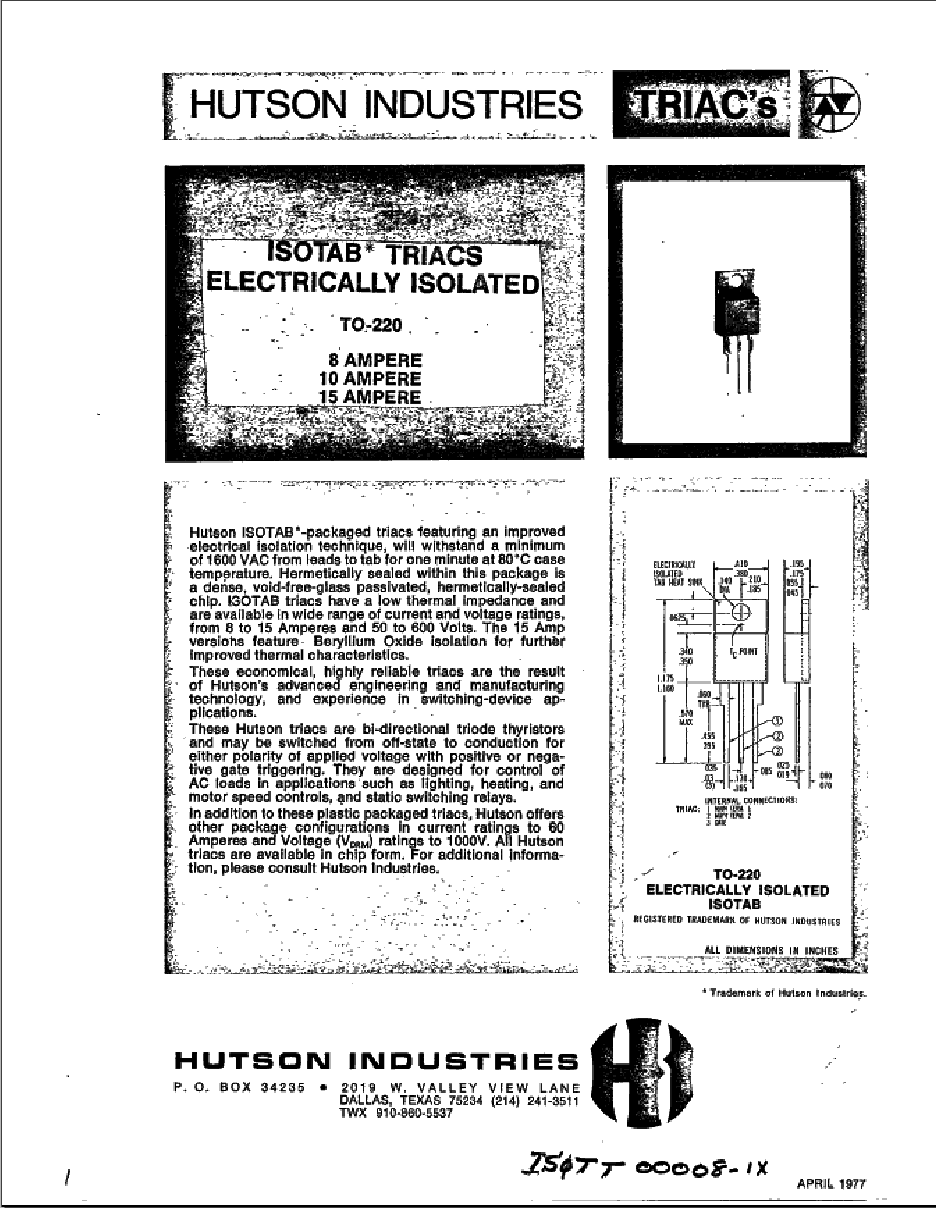

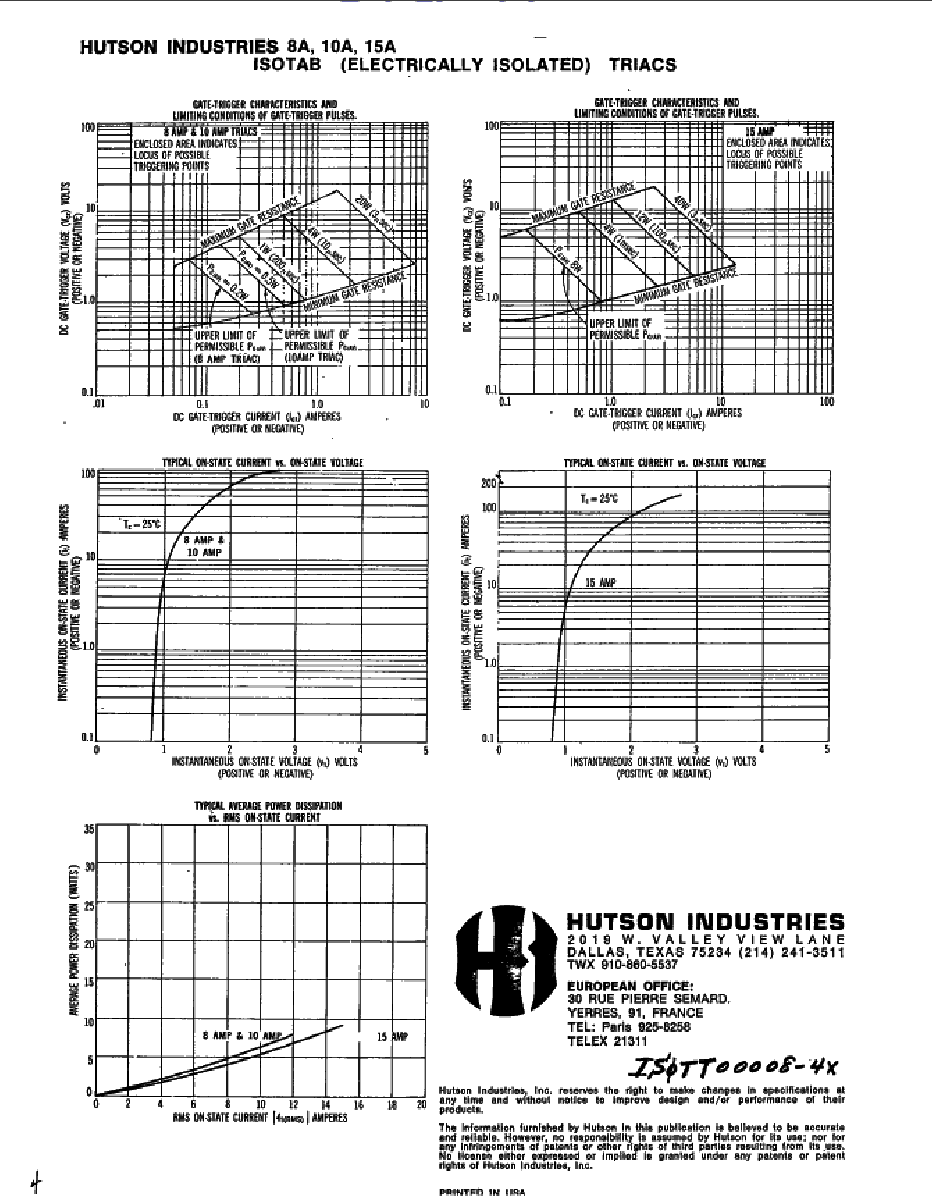

IT215 Overview

4 Quadrant Logic Level TRIAC, 200V V(DRM), 15A I(T)RMS, TO-220AB, HERMETIC SEALED, TO-220, 3 PIN

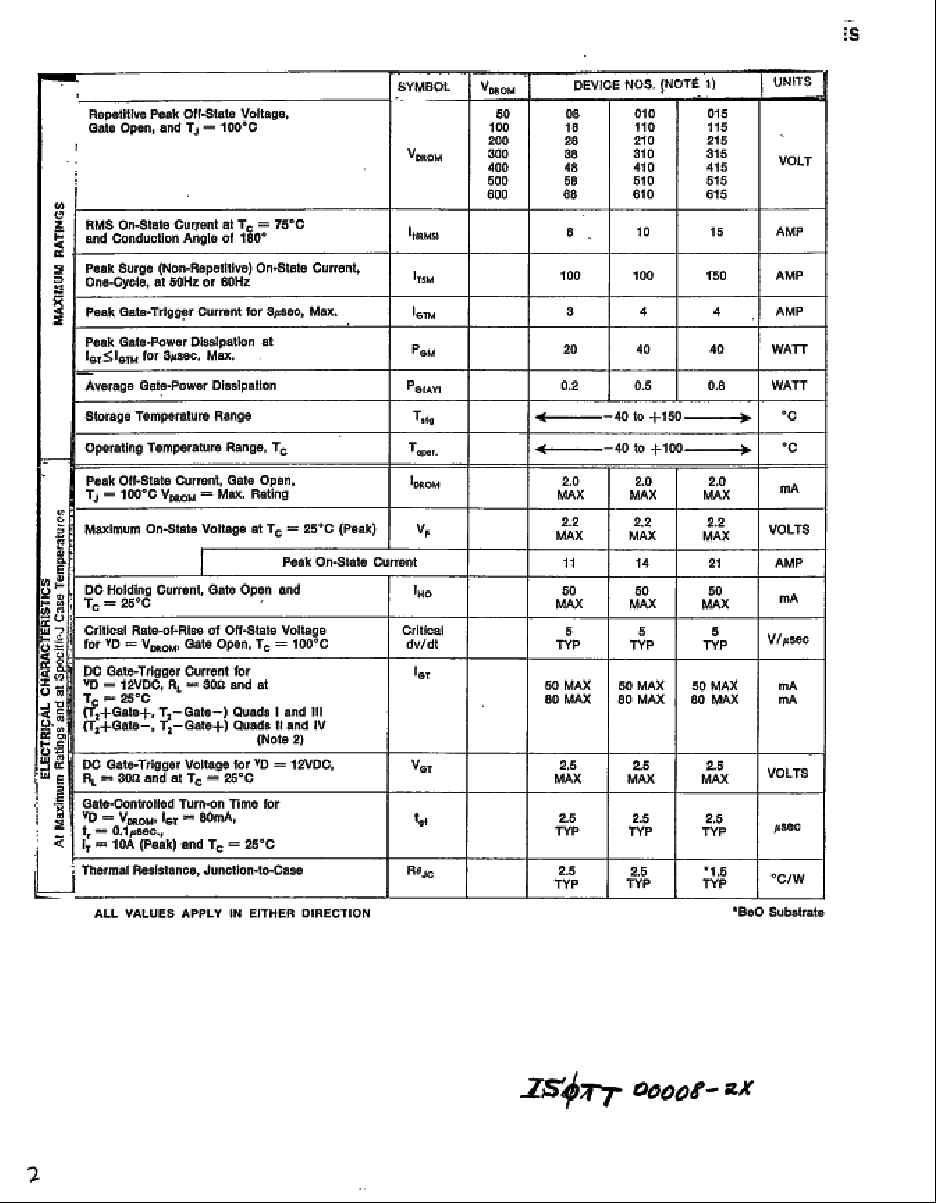

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hutson Industries
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	150 V/us
Maximum DC gate trigger current	80 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	50 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum leakage current	0.5 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	15 A
Off-state repetitive peak voltage	200 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC
