JANTXV1N3913AR datasheet, PDF - EEWORLD Datasheet

JANTXV1N3913AR: DescriptionRectifier Diode, 1 Phase, 1 Element, 50A, 400V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN; CategoryDiscrete semiconductor diode; File Size119KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

JANTXV1N3913AR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JANTXV1N3913AR	-	-	View	Buy Now

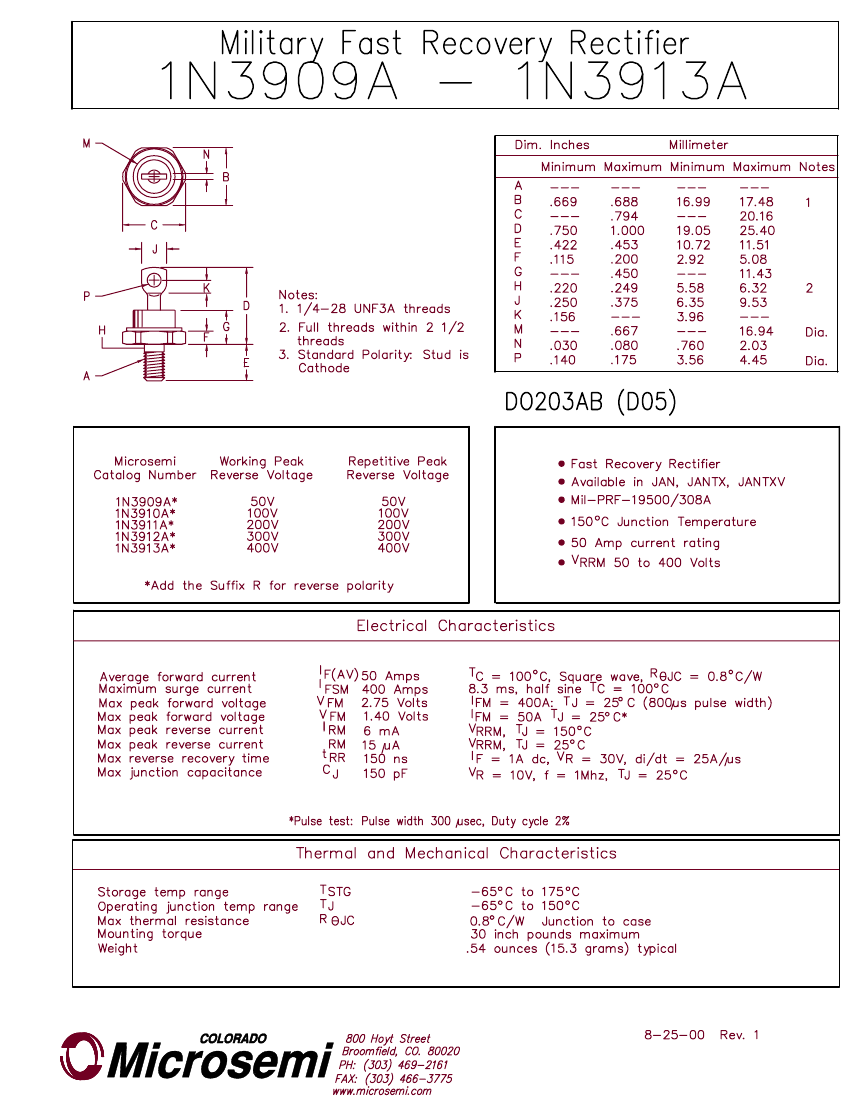

Rectifier Diode, 1 Phase, 1 Element, 50A, 400V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	DO-5
package instruction	O-MUPM-D1
Contacts	1
Reach Compliance Code	compliant
Is Samacsys	N
application	FAST RECOVERY
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

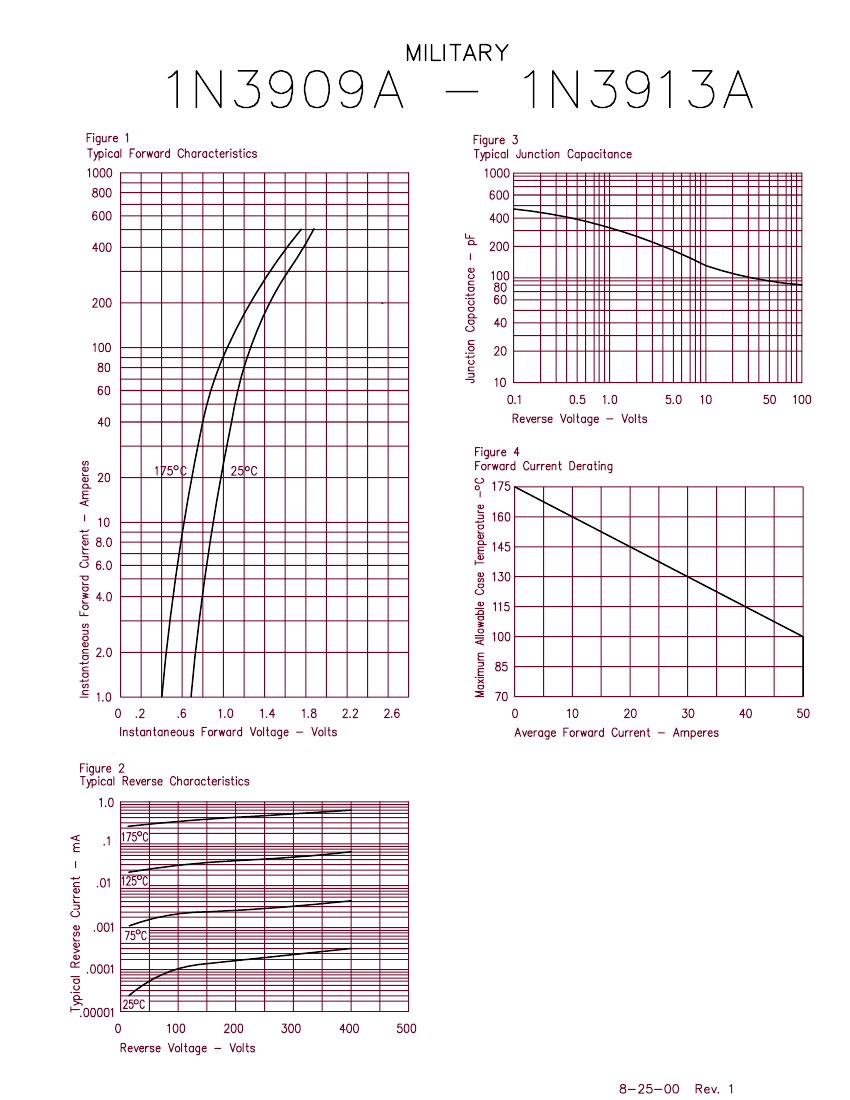

Maximum forward voltage (VF)	2.75 V
JEDEC-95 code	DO-203AB
JESD-30 code	O-MUPM-D1
JESD-609 code	e0
Maximum non-repetitive peak forward current	400 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	50 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Qualified
Guideline	MIL-19500/308A
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	15 µA
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1
