JANTXV1N5631A datasheet, PDF - EEWORLD Datasheet

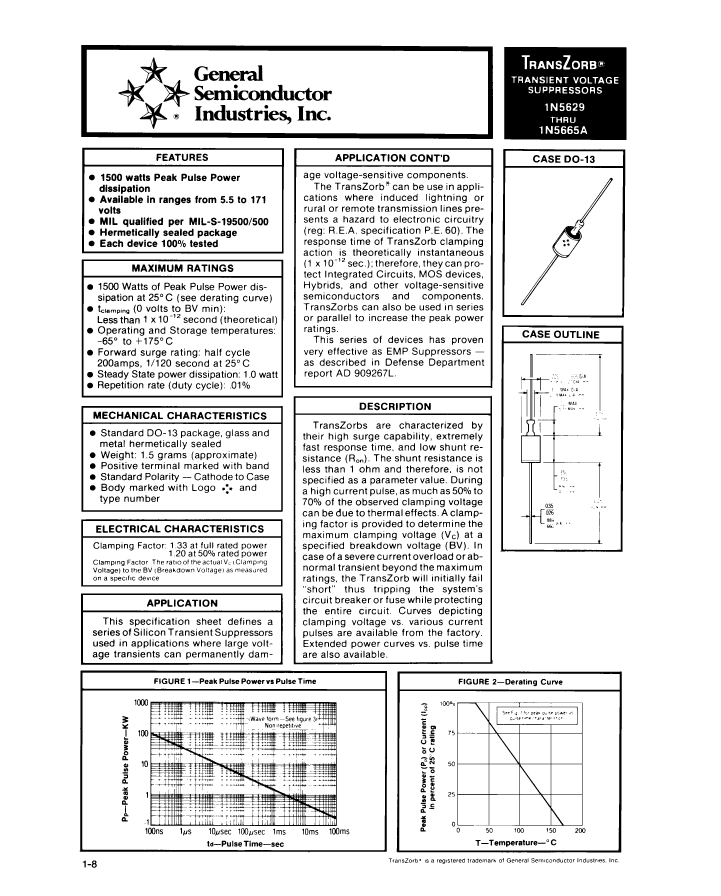

JANTXV1N5631A: DescriptionTrans Voltage Suppressor Diode, 1500W, 7.02V V(RWM), Unidirectional, 1 Element, Silicon, HERMETIC SEALED, METAL GLASS, DO-13, 2 PIN; CategoryDiscrete semiconductor diode; File Size154KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

JANTXV1N5631A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JANTXV1N5631A	-	-	View	Buy Now

Trans Voltage Suppressor Diode, 1500W, 7.02V V(RWM), Unidirectional, 1 Element, Silicon, HERMETIC SEALED, METAL GLASS, DO-13, 2 PIN

Parameter Name	Attribute value
Maker	Vishay
Parts packaging code	DO-13
package instruction	O-MALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N

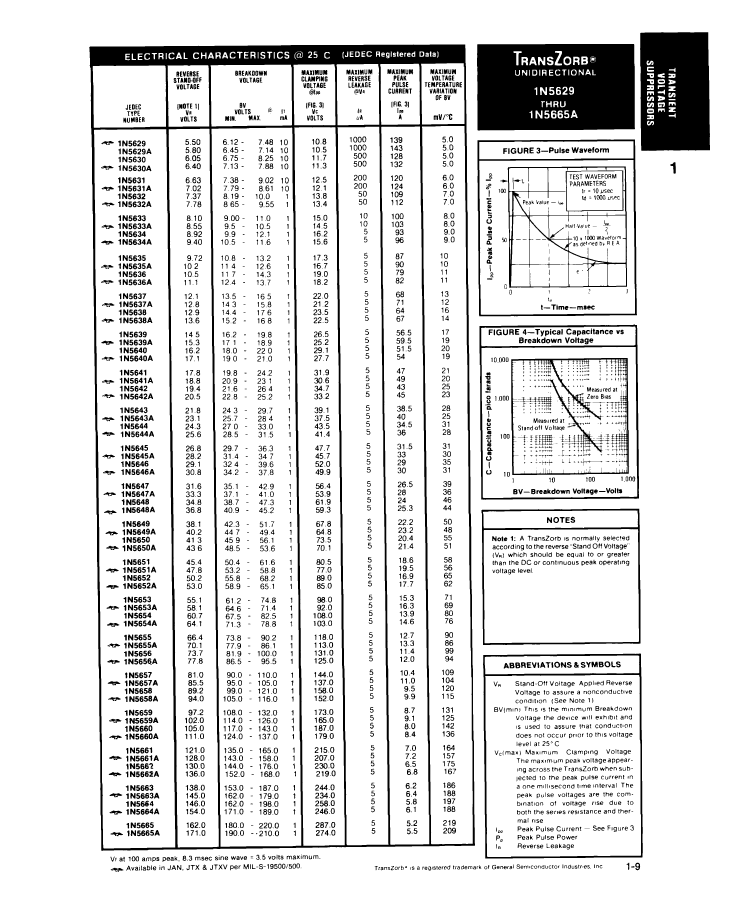

Maximum breakdown voltage	8.61 V
Minimum breakdown voltage	7.79 V
Shell connection	CATHODE
Maximum clamping voltage	12.1 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-MALF-W2
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Guideline	MIL-19500/500
Maximum repetitive peak reverse voltage	7.02 V
Maximum reverse current	200 µA
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1
