DS2502-E48
48-Bit Node Address Chip
www.maxim-ic.com
FEATURES
§
Factory programmed 48-bit node address
chip with 768 bits user-programmable OTP-
EPROM communicates with the economy of
one signal plus ground
Provides valid MAC-48/EUI-48
ETHERNET address
Unique, factory lasered and tested 64-bit
registration number assures absolute
traceability because no two parts are alike
Built-in multidrop controller ensures
compatibility with other 1-Wire
®
products
Device is an “add-only” memory where
additional data can be programmed into
EPROM without disturbing existing data
Reduces control, address, data, power and
programming signals to a single pin
Directly connects to a single port pin of a
microprocessor and communicates at up to
16.3kbps
Presence detector acknowledges when reader
first applies voltage
Low cost TO-92 or TSOC surface mount
packages
Reads over a wide voltage range of 2.8V to
6.0V from -40°C to +85°C; programs at
11.5V to 12.0V from -40°C to + 50°C

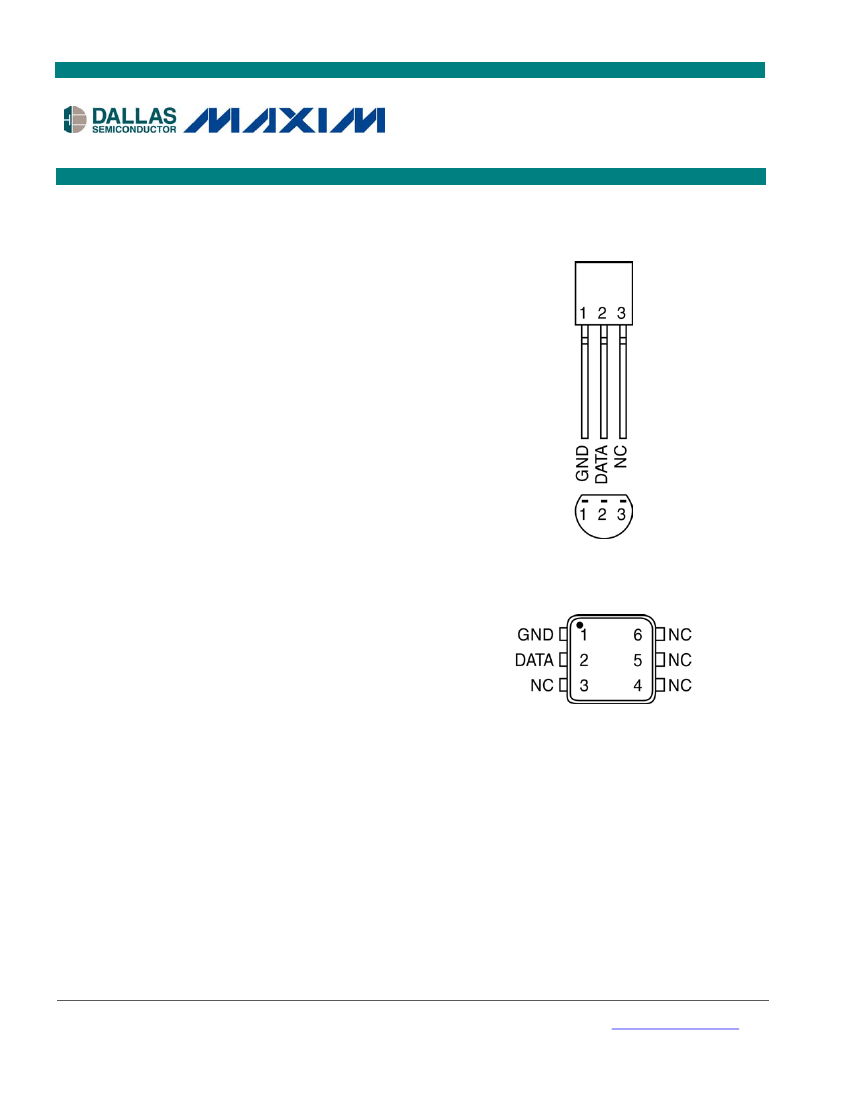

PIN CONFIGURATION
TO-92
§
§
§
§
§
§
§
§
§
BOTTOM VIEW
TSOC PACKAGE
TOP VIEW
ORDERING INFORMATION
DS2502-E48
TO-92 package
DS2502P-E48
TSOC package
DS2502P-E48/T&R Tape-and-Reel version of
DS2502P-E48
GLOBAL IDENTIFIER DESCRIPTION
The DS2502-E48 is a variant of the DS2502 1024-bit add-only memory. It differs from the standard
DS2502 in its custom ROM family code 89H, and the UniqueWare Identifier 5E7H in place of the upper
12 bits of the standard ROM serialization field. Otherwise, the electrical and logical behavior is identical
to that of the DS2502. For technical details please refer to the DS2502 data sheet.
1-Wire is a registered trademark of Dallas Semiconductor.
Note:
Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device
may be simultaneously available through various sales channels. For information about device errata, click here:
www.maxim-ic.com/errata.
1 of 2
021103
DS2502-E48
The first 32 bytes of the DS2502-E48’s EPROM memory contain a globally unique 48-bit node address
and are write-protected. The data structure follows the conventions of UniqueWare devices using Default
Data Structure (Figure 1).
Figure 1. NODE ADDRESS CHIP DATA STRUCTURE
CRC16
(unused)
19 bytes
FFH
high address
MSB
2 bytes
LSB
Company ID Value
MSB
LSB
3 bytes constant
006035H
Extension ID
Value
MSB
LSB
3 bytes serialization
Project ID
MSB
LSB
4 bytes constant
00001129H
Length
1 byte 0AH
low address
The data record starts with a length byte (0AH) and the 4-byte UniqueWare Project ID 00001129H. The
next 6 bytes contain the 48-bit node address which consists of an incrementing 24-bit extension identifier
and the IEEE-assigned 24-bit company ID value 006035H. A 16-bit CRC ends the data record. The
remaining bytes of the 32-byte memory page remain unprogrammed. Neither the 24-bit extension
identifier nor the 24-bit company ID are related to the 64-bit ROM registration number. The ROM
registration number is used to provide a unique address to access the DS2502-E48 when multidropped on
a 1-Wire bus.
The company ID value 006035H has been assigned by the IEEE to Dallas Semiconductor. If a different
company ID value is required, See App Note 99:
UniqueWare Project Setup Manual.
http://dbserv.maxim-ic.com/appnotes.cfm/appnote_number/518/ln/en
EXAMPLE
Assume that a manufacturer’s company ID value is 006035H and the 24-bit extension identifier is
67ABCDH. The 48-bit node address value generated from these two numbers is 00603567ABCDH,
whose byte and bit representations are illustrated in Figure 2.
Figure 2. SAMPLE NODE ADDRESS VALUE
MOST SIGNIFICANT BYTE
00
60
0000 0000
0110 0000
MOST SIGNIFICANT BIT
35
0011 0101
67
0110 0111
LEAST SIGNIFICANT BYTE
AB
CD
1010 1011
1100 1101
LEAST SIGNIFICANT BIT
HEX
BINARY
This information is stored in the DS2502-E48 as 48-bit number with the least significant byte at the lower
address. Including the length byte and the CRC, the complete set of data is shown in Figure 3.
Figure 3. PHYSICAL ADDRESS AND DATA MAPPING INSIDE THE DEVICE
ADDRESS
DATA
0C
XX
0B
XX
0A
00
09
60
08
35
07
67
06
AB
05
CD
04
00
03
00
02
11
01
29
00
0A
XX XX = CRC16, value depends on actual data
The four bytes at memory addresses 01 to 04 contain the UniqueWare Project ID 00001129H. The two
bytes at addresses 0BH and 0CH are the 16-bit CRC over the length byte, Project ID and node address
value. The least significant byte of the CRC is stored at address 0B. This CRC is generated according to
the standardized CRC16 polynomial function X
16
+ X
15
+ X
2
+ 1. For more details on generating CRC
values including examples in both hardware and software, see Application Note 27.
The contents of the memory address range 0DH to 1FH is FFH. These cells cannot be altered since the
whole memory page is write-protected. The memory range from 20H to 7FH, however, is user-
programmable. It can be write-protected by programming the corresponding write-protect bit in the status
memory of the DS2502-E48.
2 of 2
