R113181000: DescriptionRF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric View All

R113181000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	R113181000	-	-	View	Buy Now

R113181000 Overview

RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug,

R113181000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Radiall
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Other features	APPILICABLE CABLES: RG 178; RG 196, CAPTIVATED CENTER CONTACT
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.1
Base Number Matches	1

Preview

Download Datasheet

View All

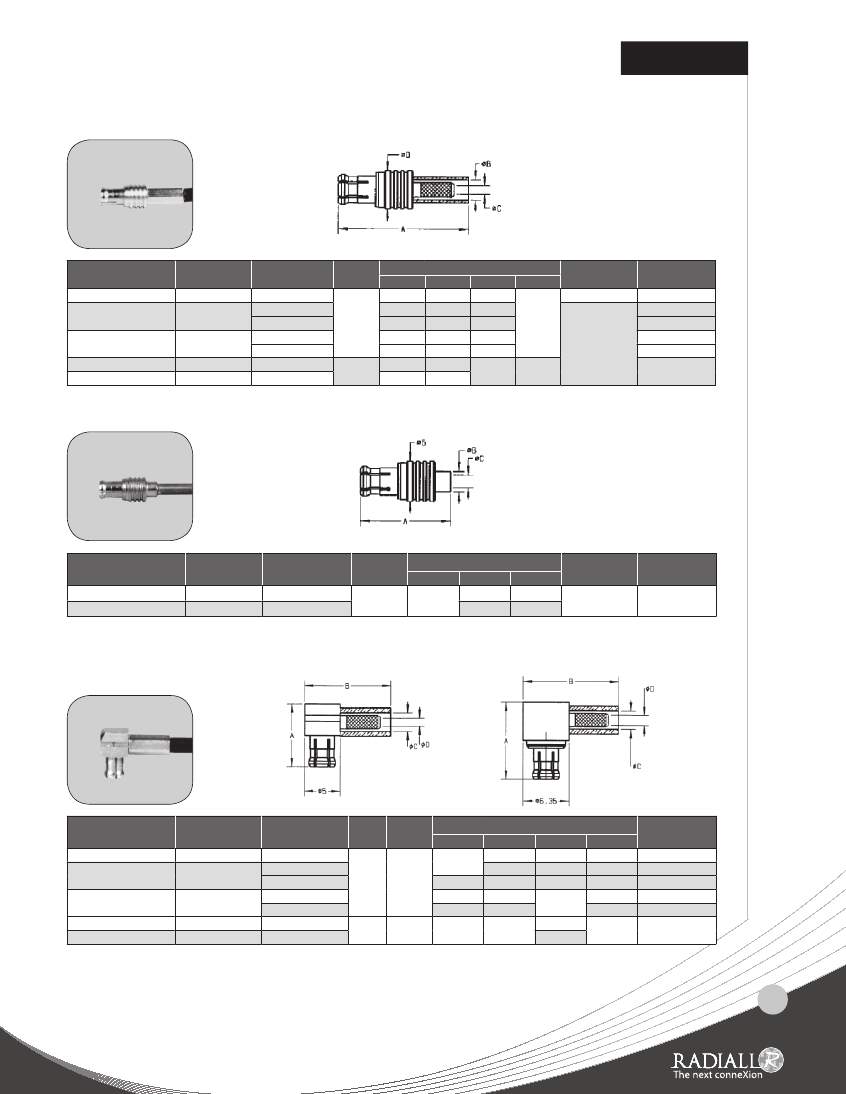

PLUGS

STRAIGHT PLUGS, FULL CRIMP TYPE, FOR FLEXIBLE CABLES

Cable group

RG178/RG196

RG174/RG316

RD316

RG179

RD179

Cable group

dia.

2/50/S

2.6/50/S

2.6/50/D

2.6/75/S

2.6/75/D

Part number

R113 081 000

R113 082 000

R113A 082 000

R113 083 000

R113A 083 000

R213 082 007

R213 083 007

Imp. (Ω)

50

75

A

16.1

18.7

16.2

18.7

18.2

18.3

Dimensions (mm)

B

C

2.55

1.1

2.95

1.65

-

1.55

3.25

1.65

-

1.55

2.95

1.7

3.25

D

5

Captive center

contact

no

Finish

Gold

Gold ECO version

Gold

Gold ECO version

BBR

yes

5.8

STRAIGHT PLUGS, SOLDER TYPE, FOR SEMI-RIGID CABLES

Cable group

.047" semi-rigid

RG405

Cable group

dia.

.047"

.085"

Part number

R113 051 000

R113 053 000

Imp. (Ω)

50

Dimensions (mm)

A

B

C

2

1.3

11.3

3

2.25

Captive center

contact

no

Finish

Gold

RIGHT ANGLE PLUGS, CRIMP TYPE, FOR FLEXIBLE CABLES

(captive center contact)

Fig. 1

Cable group

RG178/RG196

RG174/RG316

RD316

RG179

RD179

Cable group

dia.

2/50/S

2.6/50/S

2.6/50/D

2.6/75/S

2.6/75/D

Part number

R113 181 000

R113 182 000

R113A 182 000

R113 183 000

R113A 183 000

R213 182 007

R213 183 007

Fig.

Imp. (Ω)

Dimensions (mm)

B

C

11.9

2.55

11.9

2.95

14.1

11.9

3.25

14.1

2.95

13.3

3.25

Fig. 2

A

8.6

8.9

8.6

8.9

10.6

1

50

D

1.1

1.65

1.55

1.65

1.55

1.7

Finish

Gold

Gold ECO version

Gold

Gold ECO version

BBR

2

75

To download data sheets and assembly instructions, visit

www.radiall.com

& enter the part number in the Search box.

Bold

part numbers represent products typically in stock & available for immediate shipment.

See page 8 and 9 for packaging information.
