R125055000

Description
RF SMA Connector, Male, Cable Mount, Solder Terminal, Plug
CategoryThe connector    The connector
File Size20KB,2 Pages
ManufacturerRadiall
Websitehttps://www.radiall.com/
Environmental Compliance
Download Datasheet Parametric View All

R125055000 Online Shopping

Suppliers Part Number Price MOQ In stock
R125055000 - - View Buy Now

R125055000 Overview

RF SMA Connector, Male, Cable Mount, Solder Terminal, Plug

R125055000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRadiall
Reach Compliance Codenot_compliant
Factory Lead Time4 weeks 2 days
Is SamacsysN
Other featuresAPPLICABLE CABLES: RG 402
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialNOT SPECIFIED
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.15 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Plug informationNO
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency26.5 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
voltage standing wave ratio1.26
Base Number Matches1

R125055000 Preview

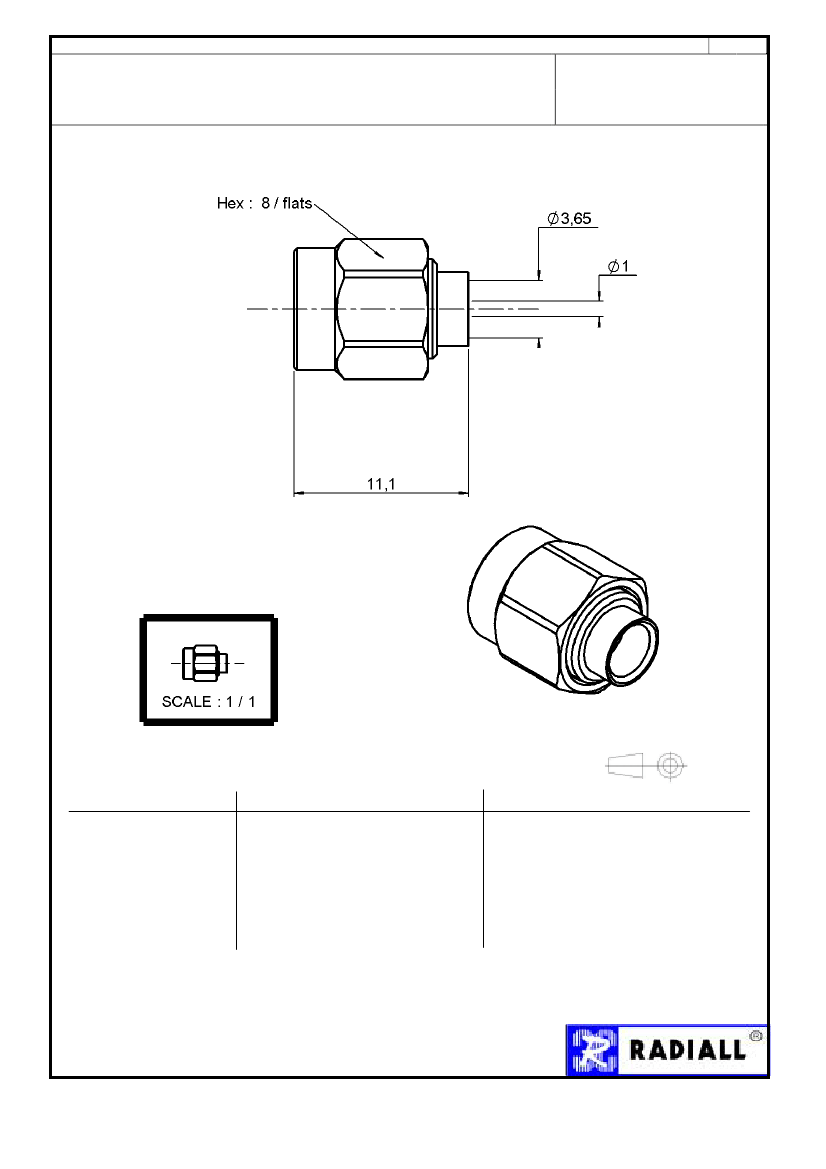

TECHNICAL DATA SHEET
1/2
STRAIGHT PLUG SOLDER TYPE
CABLE .141
R125.055.000
Series :
SMA
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
STAINLESS STEEL
BRASS
-
PTFE
SILICONE RUBBER
STAINLESS STEEL
-
-
PLATINGS
(µm)
GOLD 0.5 OVER NICKEL 2
GOLD 1.3 OVER NICKEL 2
-
GOLD 0.5 OVER NICKEL 2
-
-
Issue : 0701 M
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
2/2
STRAIGHT PLUG SOLDER TYPE
CABLE .141
R125.055.000
Series :
SMA
PACKAGING
SPECIFICATION
Standard
100
Unit
‘W’ option
Other
Contact us
Stripping
CABLE ASSEMBLY
a
3,17
ELECTRICAL CHARACTERISTICS
Impedance
50
Frequency
0-26.5
GHz
VSWR
1.05 + 0,0080
x F(GHz) Maxi
Insertion loss
0.03
√F(GHz)
dB Maxi
RF leakage
-(
90
- F(GHz)) dB Maxi
Voltage rating
500
Veff Maxi
Dielectric withstanding voltage
1000
Veff mini
Insulation resistance
5000
MΩ mini
b
0,00
c
0,00
d
0,00
e
0,00
f
0,00
mm
Assembly instruction
:
Recommended cable(s)
RG 402
KS 2
Solder 01
Characteristics indicated on this data sheet are those that can be
achieved with the highest performance cable. Intrinsic limitations of
the cable may diminish the performance of the assembly
Cable retention
- pull off
- torque
270
N mini
NA
N.cm
TOOLING
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
NA
N mini
NA
N mini
NA
N.cm mini
Part Number
.
R282.053.000
R282.067.000
. And - (et)
R282.120.010
. Or spare tools
R282.730.040
R282.740.000
Description
.
STRIPPING TOOL
POINTER GAUGE
SMA TOOLBOX
-
INSULATOR
MOUNTING TOOL
SOLDERING
MOUNTING
SOLDERING
POSITIONER
(BODY)
SOLDERING
POSITIONER
(CENTER
CONTACT)
CONTROL GAUGE
DIELECTRIC
RECESS TOOL
CONTROLE GAUGE
Hexagon
.
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
100
NA
NA
0,0000
N.cm
N.cm
N.cm
mm
R282.744.061
R282.744.220
500
Cycles mini
2,2280
g
R282.862.060
R282.915.010
R282.914.000
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-65/+105
° C
NA
Atm.cm3/s
NA
OTHERS CHARACTERISTICS
Pb-free process compatible
Issue : 0701 M
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
