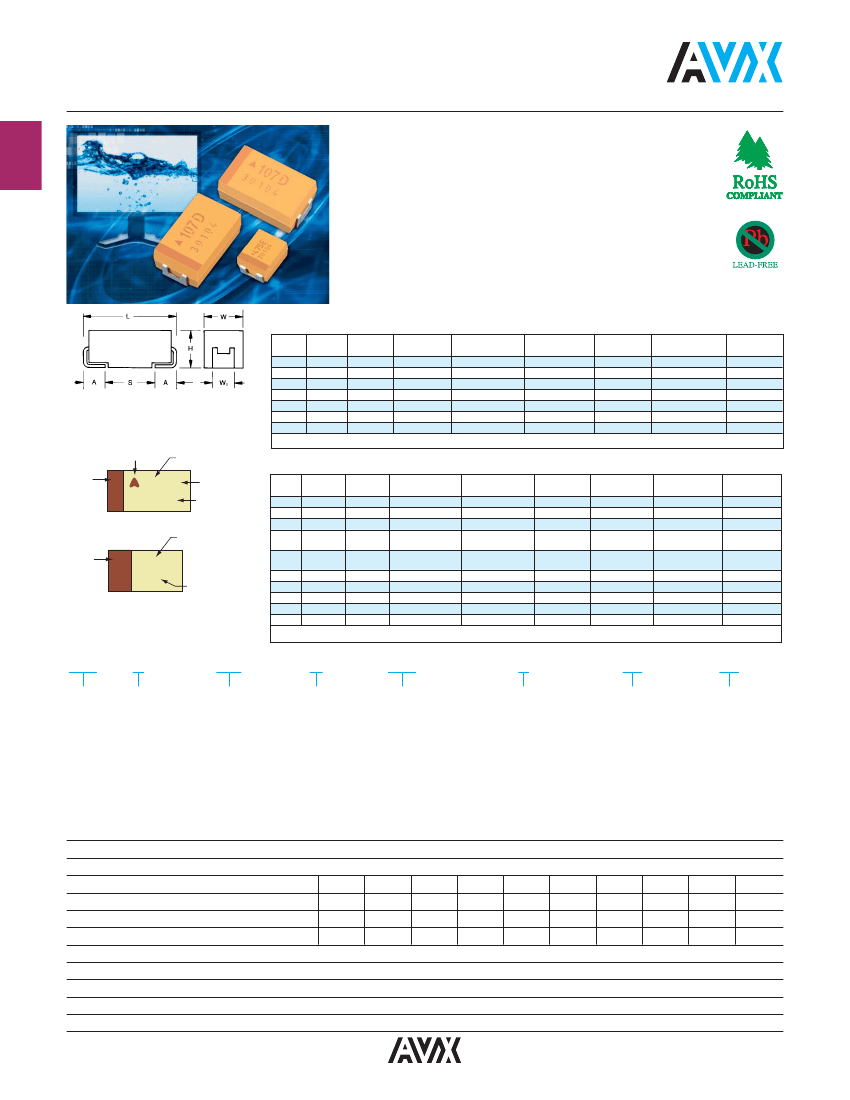

TAJ Series
Standard and Low Profile Tantalum Capacitors
FEATURES
• General purpose SMT chip tantalum series
• 17 case sizes available, standard and low profile
down to 1mm maximum height
• CV range: 0.10 - 2200μF / 2.5 - 50V
• J-lead construction
APPLICATIONS
• General low power DC/DC and LDO
• Entertainment / Infotainment systems
• Height restricted design
LEAD-FREE
COMPATIBLE
COMPONENT
STANDARD CASE DIMENSIONS:
Code
A
B
C
D
E
U
V
EIA
Code
1206
1210
2312
2917
2917
2924
2924
EIA
Metric
3216-18
3528-21
6032-28
7343-31
7343-43
7361-43
7361-38
L±0.20
(0.008)
3.20 (0.126)
3.50 (0.138)
6.00 (0.236)
7.30 (0.287)
7.30 (0.287)
7.30 (0.287)
7.30 (0.287)
W+0.20 (0.008)
-0.10 (0.004)
1.60 (0.063)
2.80 (0.110)
3.20 (0.126)
4.30 (0.169)
4.30 (0.169)
6.10 (0.240)
6.10 (0.240)
millimeters (inches)
W
1
±0.20
(0.008)
1.20 (0.047)
2.20 (0.087)
2.20 (0.087)
2.40 (0.094)
2.40 (0.094)
3.10 (0.120)
3.10 (0.120)
A+0.30 (0.012)
-0.20 (0.008)
0.80 (0.031)
0.80 (0.031)
1.30 (0.051)
1.30 (0.051)
1.30 (0.051)
1.30 (0.051)
1.30 (0.051)
S Min.
1.10 (0.043)
1.40 (0.055)
2.90 (0.114)
4.40 (0.173)
4.40 (0.173)
4.40 (0.173)
4.40 (0.173)
MARKING
A, B, C, D, E, F, H, K, S, T, U, V,
W, X, Y CASE
AVX LOGO
Capacitance Value in pF
227 = 220µF
Rated Voltage Code
A = 10V
ID Code
Polarity
Band
(Anode+)
H+0.20 (0.008)
-0.10 (0.004)
1.60 (0.063)
1.90 (0.075)
2.60 (0.102)
2.90 (0.114)
4.10 (0.162)
4.10 (0.162)
3.55 (0.140)
W
1
dimension applies to the termination width for A dimensional area only.
LOW PROFILE CASE DIMENSIONS:
Code
F
H
K
P
R
EIA
Code
2312
1210
1206
0805
0805
1206
1210
2312
2917
2917
EIA
Metric
6032-20
3528-15
3216-10
2012-15
2012-12
3216-12
3528-12
6032-15
7343-15
7343-20
L±0.20
(0.008)
6.00 (0.236)
3.50 (0.138)
3.20 (0.126)
2.05 (0.081)
2.05 (0.081)
3.20 (0.126)
3.50 (0.138)
6.00 (0.236)
7.30 (0.287)
7.30 (0.287)
W+0.20 (0.008)
-0.10 (0.004)
3.20 (0.126)
2.80 (0.110)
1.60 (0.063)
1.35 (0.053)
1.30 (0.051)
1.60 (0.063)
2.80 (0.110)
3.20 (0.126)
4.30 (0.169)
4.30 (0.169)
H Max.
millimeters (inches)
W
1
±0.20
(0.008)
2.20 (0.087)
2.20 (0.087)
1.20 (0.047)
1.00 ±0.10
(0.039±0.004)
1.00 ±0.10
(0.039±0.004)
1.20 (0.047)
2.20 (0.087)
2.20 (0.087)
2.40 (0.094)
2.40 (0.094)
A+0.30 (0.012)
-0.20 (0.008)
1.30 (0.051)
0.80 (0.031)
0.80 (0.031)
0.50 (0.020)
0.50 (0.020)
0.80 (0.031)
0.80 (0.031)
1.30 (0.051)
1.30 (0.051)
1.30 (0.051)
S Min.
2.90 (0.114)
1.40 (0.055)
1.10 (0.043)
0.85 (0.033)
0.85 (0.033)
1.10 (0.043)
1.40 (0.055)
2.90 (0.114)
4.40 (0.173)
4.40 (0.173)
227 A
XXXXX
P, R CASE
Capacitance Value in pF
106 = 10µF
Polarity
Band
(Anode+)
2.00 (0.079)
1.50 (0.059)
1.00 (0.039)
1.50 (0.059)
1.20 (0.047)
1.20 (0.047)
1.20 (0.047)
1.50 (0.059)
1.50 (0.059)
2.00 (0.079)
106
J
Rated Voltage Code
J = 6.3V
S
T
W
X
Y
HOW TO ORDER
TAJ
Type
W
1
dimension applies to the termination width for A dimensional area only.
C
Case Size
See table
above
106
Capacitance Code
pF code: 1st two
digits represent
significant figures
3rd digit represents
multiplier (number of
zeros to follow)
M
Tolerance
K = ±10%
M = ±20%
035
Rated DC Voltage
002 = 2.5Vdc
004 = 4Vdc
006 = 6.3Vdc
010 = 10Vdc
016 = 16Vdc
020 = 20Vdc
025 = 25Vdc
035 = 35Vdc
050 = 50Vdc
R
Packaging
R = Pure Tin 7" Reel
S = Pure Tin 13" Reel
A = Gold Plating 7" Reel
B = Gold Plating 13" Reel
H = Tin Lead 7" Reel
K = Tin Lead 13" Reel
H, K = Non RoHS
A, B, H, K = please
contact manufacturer
NJ
Specification
Suffix
NJ = Standard
Suffix
—
Additional
characters may be
added for special
requirements
V = Dry pack Option
(selected ratings only)
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Rated Voltage (V
R
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Temperature Range:
Reliability:
Qualification:
Termination Finished:
All technical data relate to an ambient temperature of +25°C
0.10 μF to 2200 μF
±10%; ±20%
2.5
4
6.3
10
16
20
25
35
50
1.7
2.7
4
7
10
13
17
23
33
3.3
5.2
8
13
20
26
32
46
65
2.2
3.4
5
8
13
16
20
28
40
-55°C to +125°C
1% per 1000 hours at 85°C, V
R
with 0.1Ω/V series impedance, 60% confidence level
CECC 30801 - 005 issue 2 EIA 535BAAC for standard case sizes
Sn Plating (standard), Gold and SnPb Plating upon request
For AEC-Q200 availability, please contact AVX
112618
+85°C:
+125°C:
+85°C:
+125°C:
6
TAJ Series
Standard and Low Profile Tantalum Capacitors
STANDARD TANTALUMS CAPACITANCE AND RATED VOLTAGE RANGE
(LETTER DENOTES CASE SIZE)
Capacitance
μF
Code
0.10
104
0.15
154
0.22
224
0.33
334
0.47
474
0.68
684
1.0
105
1.5
155
2.2
225
3.3
335
4.7
475
6.8
685
10
106
15
156
22
226
33
336
47
476
68
686
100
107
150
157
220
227
330
337
470
477
680
687
1000
108
1500
158
2200
228
2.5V (e)
4V (G)
6.3V (J)
Rated voltage DC (V
R
) to 85°C
10V (A)
16V (C)
20V (D)
25V (E)
35V (V)
A
A
A
A
A/B
A/B
A/B
A/B/C
A/B/C
B/C
B/C/D
C/D
C/D/E
C/D
D/E
D/E/V
D/E/V
V
50V (T)
A
A/B
A/B
A/B
A/B/C
A/B/C
A/B/C
B/C/D
B/C/D
C/D
C/D
C/D
D/E/V
D/E/V
V
A
A
A
A/B
B
B/D
D
C/D
C/D/E
D
(M)
/E
D/E/V
(M)
V
(M)
A
A
A
A/B
A/B
A/B
A/B/C
B/C
B/C/D
C/D
C/D/E
D/E
D/E/V
E/V
(M)
A
A
A
A/B
A/B
A/B
A/B/C
A/B/C
A/B/C/D
B/C/D
B/C/D
B
(M)
/C/D
C/D/E
C/D/E
D/E/V
D/E/V
E
(M)
/V
(M)
A
A
A
A/B
A/B
A/B/C
A/B/C
A/B/C
A/B/C/D
B/C/D
B/C/D
B/C/D/E
C/D/E
C/D/E
D/E/V
E/U/V
E
(M)
/V
(M)
A
A
A/B
A/B
A/B
A/B/C
A/B/C
A/B/C
B/C/D
B/C/D
C/D
C/D
C/D/E
D/E/V
D
(M)
/E/V
E
(M)
A
A
A/B
A/B
A/B/C
A/B/C
B/C
B/C/D
B/C/D
C/D
C/D/E
C
(M)
/D/E
D/E/V
E/V
A
A
A
A/B
A/B
A/B/C
A/B/C
B/C
B/C/D
C/D
C/D
C/D/E
D/E
D/E/V
E/V
V
(M)
LOW PROFILE TANTALUMS CAPACITANCE AND RATED VOLTAGE RANGE
(LETTER DENOTES CASE SIZE)
Capacitance
μF
Code
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
104
154
224
334
474
684
105
155
225
335
475
685
106
156
226
336
476
686
107
157
227
337
477
687
108
2.5V (e)
4V (G)
6.3V (J)
Rated voltage DC (V
R
) to 85°C
10V (A)
16V (C)
20V (D)
R/S
R/S
R/S
R/S
R/S
R/S/T
R/S/T
P/R/S/T
P/R/S/T
T
T
T
W
W
W/Y
X/Y
X/Y
Y
25V (E)
R
R
R
R/S
R/S
P/R/S
P/S/T
T
T/W
T/W
W
W
Y
F/Y
Y
Y
35V (V)
R/S
R/S
R/S
R/S
R/S/T
P/S/T
P/S/T
T
T
W
W
Y
X/Y
Y
Y
50V (T)
S
S
P/R/S
P/R
(M)
/S/T
S/T
W
W
W
Y
X/Y
Y
R
R
R/S
R
P/R
K/P/S
P
(M)
/S
T
T/W
T
(M)
/W
W/Y
W
(M)
/Y
F/Y
Y
Y
(M)
R/S
R/S
R/S
R/S
R/S
R/S
R/S
R/S
R/S/T
R/S
R/S/T
R/S/T
R/S/T
R/S/T
P/R/S/T
R/S/T
P/R/S/T
K/P/R
(M)
/S/T
R/S/T
K/P/R/S/T
S/T/W
K/P/R/S/T K/P
(M)
/S/T/W
T/W
K/P
(M)
/S/T/W
T/W
W
T/W
T/W
H/W/Y
T/W
W
W/Y
(M)
/W
T
W/Y
W/X/Y
W/Y
W/X/Y
F/X
(M)
/Y
W/X/Y
F/X/Y
Y
F/X/Y
Y
Y
Y
Y
(M)
R/S
R/S/T
R/S
R/S/T
R/S/T
K/P/S/T
S/T
T/W
T
(M)
/W
W
W/Y
W/X/Y
F/X/Y
F
(M)
/Y
Y
(M)
Released ratings
(M tolerance only)
Note: Voltage ratings are minimum values. AVX reserves the right to supply higher voltage ratings in the same case size, to the same reliability standards.
112618
7
