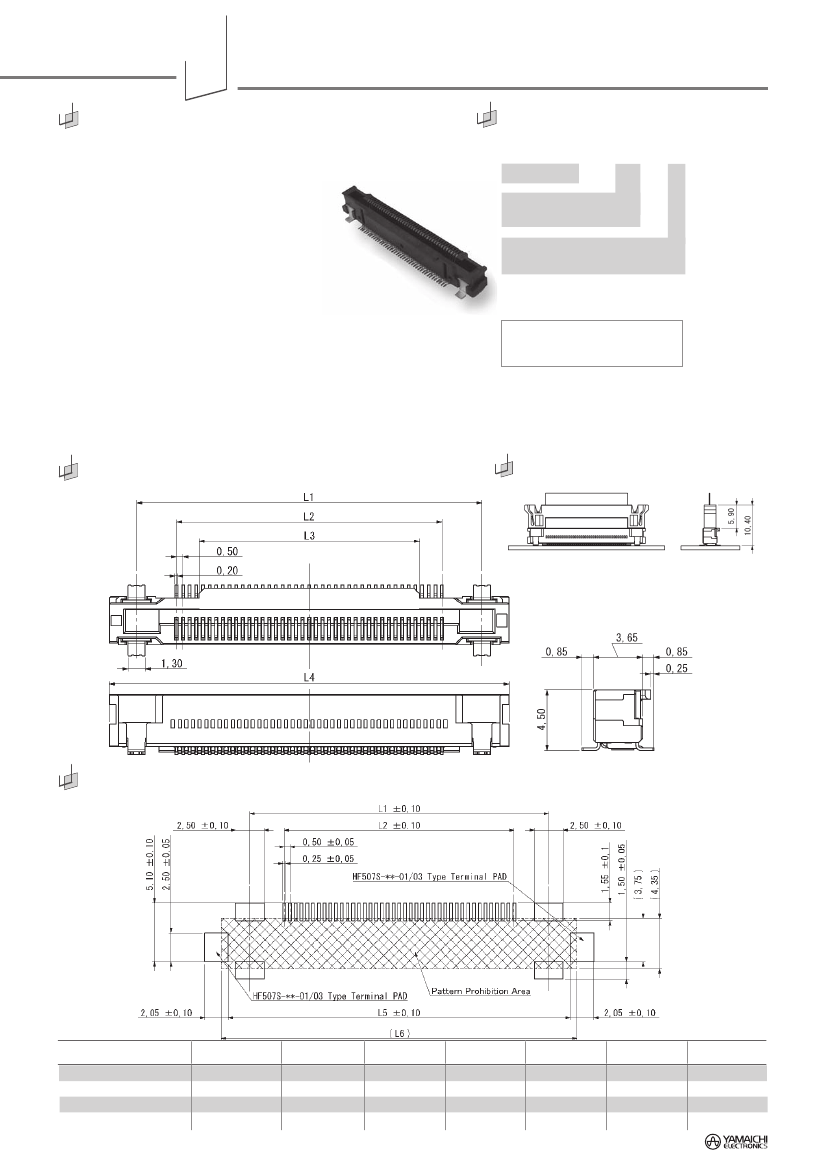

Series HF507S
Non-ZIF 90° Socket Direct Mating Type
Specifications
Insulation Resistance:
Contact Resistance:
Withstanding Voltage:
Voltage Rating:
Current Rating:
Operating Temp. Range:
Inserertion / Extraction:
100MΩ min.
100mΩ max.
125V ACrms for 1 minute
50V ACrms
0.3A
-20°C to +85°C
30 times max.
High Speed
Connectors
Connector Part Number
(Details)
HF507S
Series No.
No. of Contacts
(41 and 51)
Design No.
- ** - 72
Materials and Finish
Housing:
LCP (GF), black
Lock Hold:
SUS t = 0.2mm
Contacts and Terminal: Phosphor Bronze, (t = 0.15mm) Ni-Au plating
YFC
Series No.
- ** - DM - *
Features
■
Suitable for LVDS, HDMI, DVI, PCI express and S-ATA data transmission
■
One push lock funktion for FFC/FPC insertion integrated
one push button to extract FFC
■
Realization of high speed data transmission at Gbps level
■
100Ω Differential impedance
■
High EMI protection due to shielding
■
Tape and Reel (1,200 per reel)
Total Length in mm
Design No.
FFC Mating Direction, A = same side
B = opposite side
Outline Dimensions for 90° Socket
Outline Dimensions FFC
41 pins = 24.00 / 51 pins = 29.00
41 pins = 22.00 / 51 pins = 27.00
41 pins = 20.00 / 51 pins = 25.00
Recommended PCB Layout
Part Number
HF507S-41-72
HF507S-51-72
Pin Count
41
51
L1
26.00
31.00
L2
20.00
25.00
L3
11.70
11.70
L4
4.10
5.10
L5
30.35
35.35
L6
32.85
37.85
L7
30.67
25.67
L8
24.06
29.06
L9
29.75
34.75
L10
30.95
35.95
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
Connectors
i
Non-ZIF Connectors for High Speed Cable
FFC Part Number
(Details)
High Speed
Connectors
Specifications
Insulation Resistance:
Contact Resistance:
Withstanding Voltage:
Voltage Rating:
Current Rating:
Operating Temp. Range:
Characteristic Impedance:
Intra / Inter Skew:
Attenuation:
Bending at 180°:

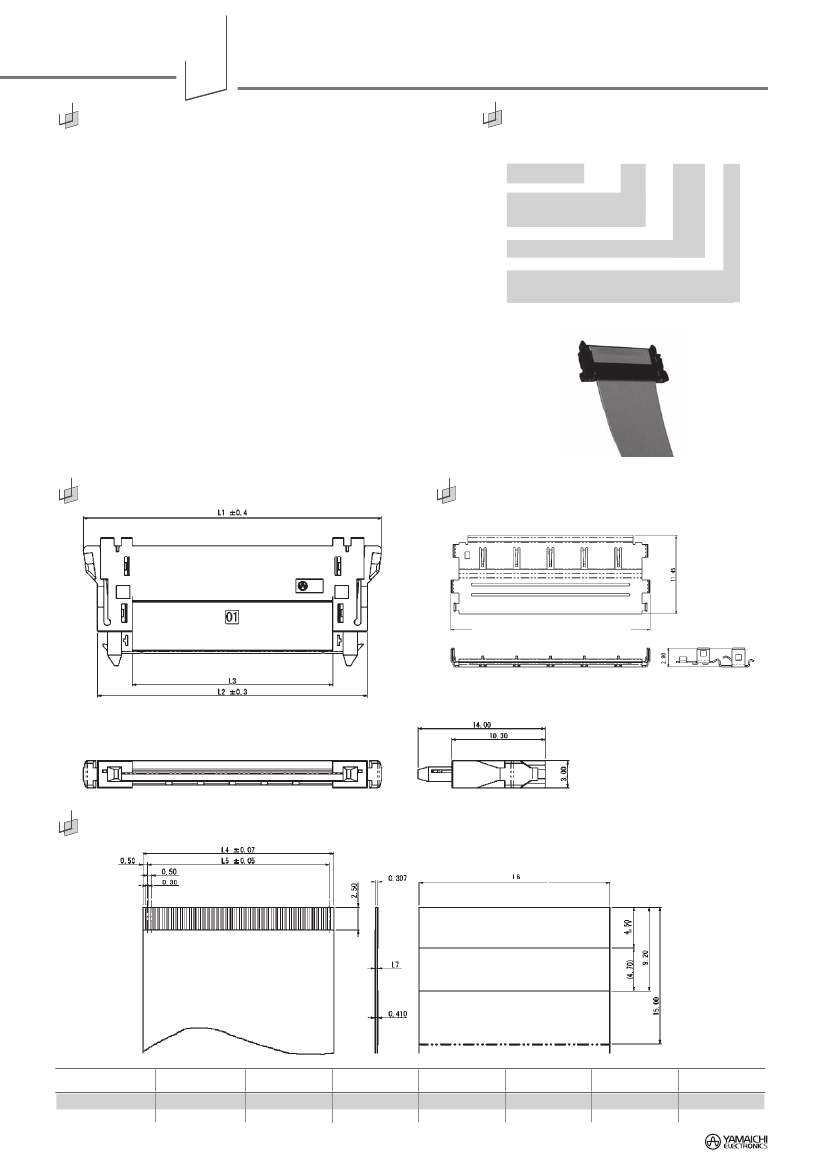

Series YFT
Shielded High Speed FFC (0.5mm Pitch) for HF507S
Part Number
(Details)
100MΩ min. at 500V DC or higher
1.7Ω/m
250V AC for 1 minute
30V AC DC
0.2A or less
-40°C to +80°C
100±10Ω
10 ps/m or less
19db/m at 5GHz (reference only)
20 times or more
YFT
Series No.
No. of Contacts
(41 and 51)
Length in mm
-
** - 250 - *
Materials and Finish
Housing:
Lock Hold:
Contacts:
Terminal:
LCP (GF), black
SUS t = 0.2mm
Phosphor Bronze, (t = 0.15mm) Ni-Au plating
Phosphor Bronze, (t = 0.15mm) Ni-Au plating
A = Adapters on the same side
B = Adapters on reversed side
Features
High speed transmission 3Gbps
Differential impedance 100Ω
One shielding
UL compliant
Outline Dimensions
Outline Shielding Dimensions
41 pins = 24.40
51 pins = 29.40
Outline Cable Dimensions
Part Number
YFT-41-***-*
YFT-51-***-*
Pin Count
41
51
L1
32.85
37.85
L2
29.75
34.75
L3
22.10
27.10
L4
20.00
25.00
L5
21.00
26.00
L6
19.75
24.75
C-6
Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER

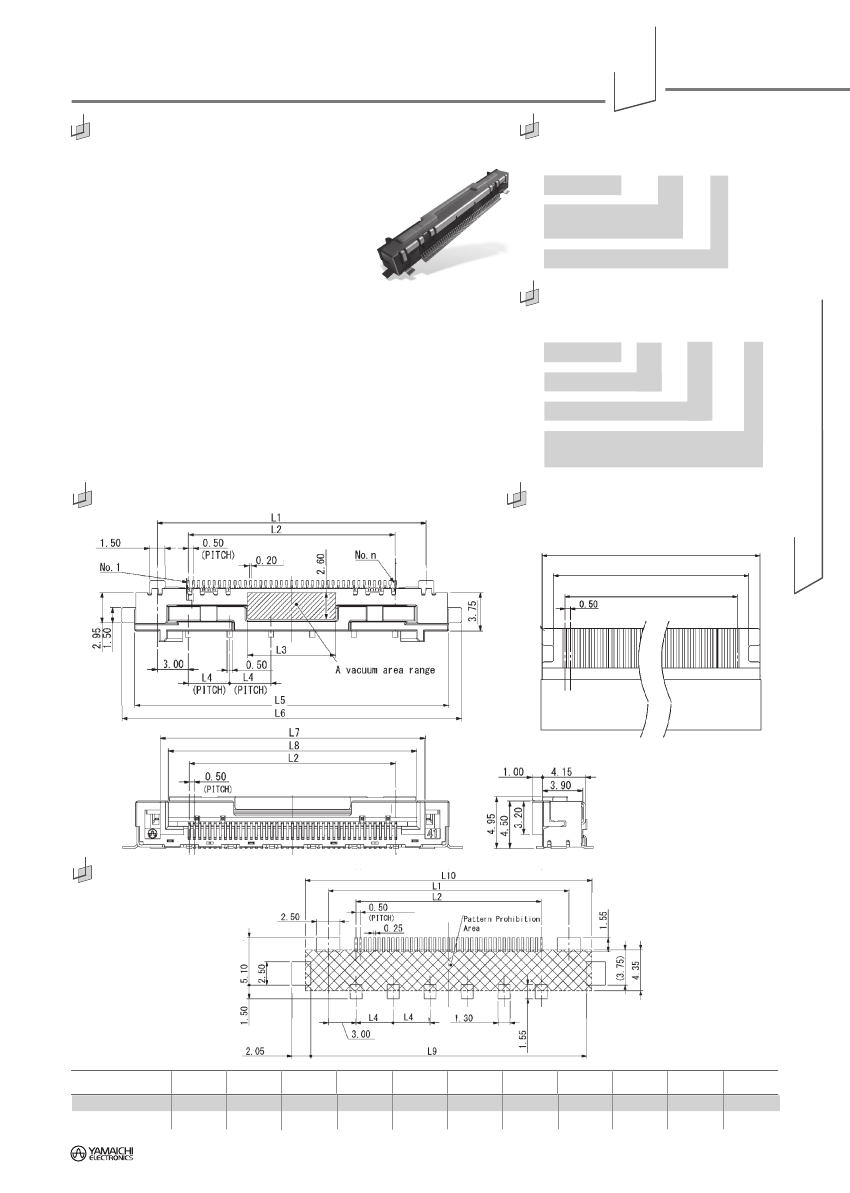

Series HF507S
Non-ZIF 90° Socket for High Speed Applications
Specifications
Insulation Resistance:
Contact Resistance:
Withstanding Voltage:
Voltage Rating:
Current Rating:
Operating Temp. Range:
Differential Impedance:
Inserertion / Extraction:
100MΩ min.
100mΩ max.
125V ACrms for 1 minute
50V ACrms
0.3A
-20°C to +85°C
100
Ω
30 times max.
High Speed
Connectors
Part Number
(Details)
HF507S
Series No.
- 41 - **
No. of Contacts
(21, 31, 41 and 51)
01 = 90° Without Shielding
03 = 90° With Shielding
Materials and Finish
Housing:
Lock Hold:
Contacts:
Terminal:
LCP (GF), black
SUS t = 0.2mm
Phosphor Bronze, (t = 0.15mm) Ni-Au plating
Phosphor Bronze, (t = 0.15mm) Ni-Au plating
Applicable Cable
see page C-5 to C-7
Features
Suitable for LVDS, HDMI, DVI, PCI express and S-ATA data
transmission
Easy operation by side-locking mechanism prevents
cable angularinsertion and guarantees secure locking
Orientation for 90° Socket
Outline Dimensions for 90° Socket
Recommended PCB Layout
Part Number
HF507S-21-0*
HF507S-31-0*
HF507S-41-0*
HF507S-51-0*
Pin Count
21
31
41
51
L1
16.00
21.00
26.00
31.00
L2
10.00
15.00
20.00
25.00
L3
6.60
11.60
16.60
21.60
L4
20.10
25.10
30.10
35.10
L5
16.00
21.00
26.00
31.00
L6
19.75
24.75
29.75
34.75
L7
20.95
25.95
30.95
35.95
Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
C-3
Non-ZIF Connectors for High Speed Cable
High Speed
Connectors
Specifications
Insulation Resistance:
Contact Resistance:
Withstanding Voltage:
Voltage Rating:
Current Rating:
Operating Temp. Range:
Differential Impedance:
Inserertion / Extraction:

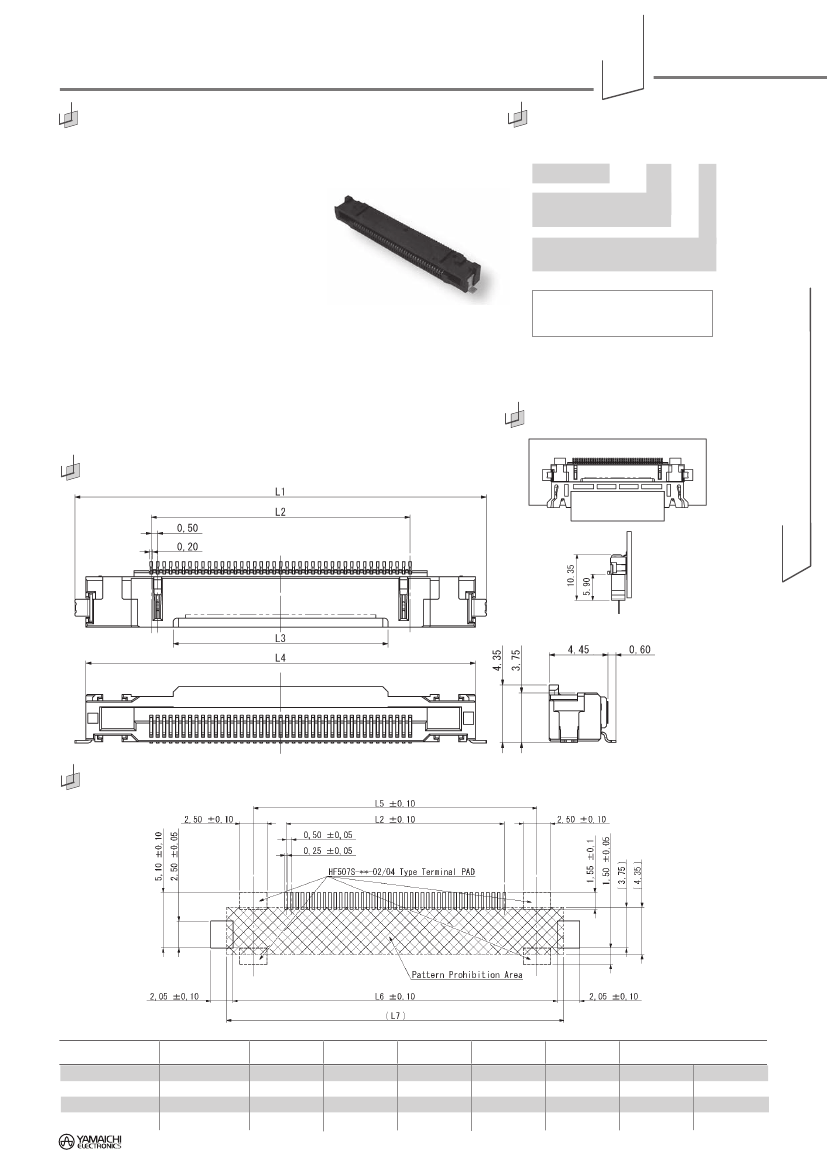

Series HF507S
Non-ZIF 180° Socket for High Speed Applications
Part Number
(Details)
100MΩ min.
100mΩ max.
125V ACrms for 1 minute
50V ACrms
0.3A
-20°C to +85°C
100
Ω
30 times max.
HF507S
Series No.
-
21 - **
No. of Contacts
(21, 31, 41 and 51)
02 = 180° Without Shielding
04 = 180° With Shielding*
*180° with shielding not available
for 21 pin version
Materials and Finish
Housing:
Lock Hold:
Contacts:
Terminal:
LCP (GF), black
SUS t = 0.2mm
Phosphor Bronze, (t = 0.15mm) Ni-Au plating
Phosphor Bronze, (t = 0.15mm) Ni-Au plating
Applicable Cable
see page C-5 to C-7
Features
Suitable for LVDS, HDMI, DVI, PCI express and S-ATA data transmission
Easy operation by side-locking mechanism prevents
cable angularinsertion and guarantees secure locking
Outline Dimensions for 180° Socket
Orientation for 180° Socket
Recommended PCB Layout
Part Number
HF507S-21-0*
HF507S-31-0*
HF507S-41-0*
HF507S-51-0*
Pin Count
21
31
41
51
L1
16.00
21.00
26.00
31.00
L2
10.00
15.00
20.00
25.00
L3
6.60
11.60
16.60
21.60
L4
20.10
25.10
30.10
35.10
L5
19.75
24.75
29.75
34.75
L6
20.95
25.95
30.95
35.95
C-2
Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
