AC3F3FPPVL-AUBULK

Description
Audio/RCA Connector, 6 Pole(s), Solder Terminal
CategoryThe connector    The connector
File Size256KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

AC3F3FPPVL-AUBULK Overview

Audio/RCA Connector, 6 Pole(s), Solder Terminal

AC3F3FPPVL-AUBULK Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Is SamacsysN
Other featuresSTANDARD: UL 94V-0
Configuration1X2 VERTICAL
Connector typeAUDIO/RCA CONNECTOR
DIN complianceNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberAC
Installation typeBOARD AND PANEL
Number of poles6
Number of ports2
OptionsGENERAL PURPOSE
Termination typeSOLDER
Base Number Matches1

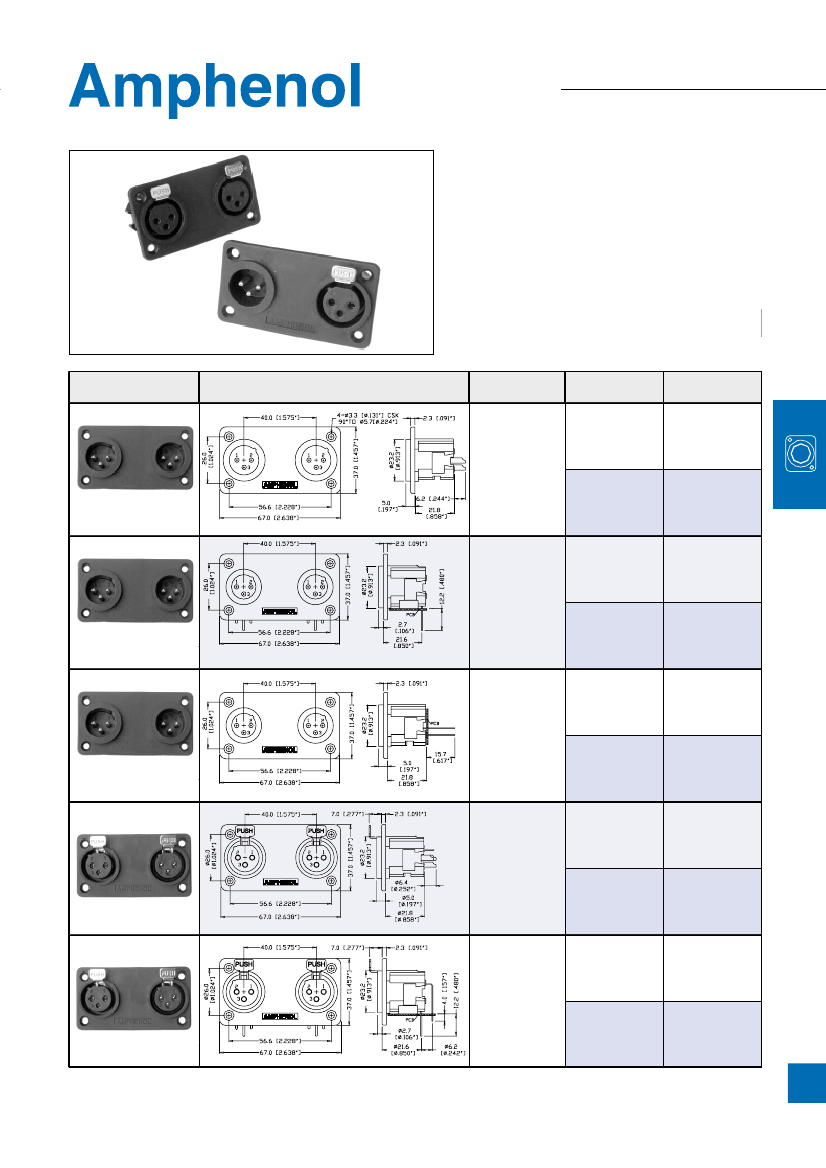

AC SERIES CHASSIS CONNECTORS
DUAL HOUSING THERMOPLASTIC TYPE
Features:
• Thermoplastic Shell.
• Dual Housing.
• Solder Bucket connections.
• Vertical or Horizontal PCB mounting.
• Stamped contacts.
• Leading first mate last break socket contact.
• Positive latch lock system.
• Coloured housings available as specials.
Options:
Solder Buckets or IDC, Vertical or Horizontal PCB, Bulk Pack,
Latching or Non-latching, Gold plated contacts.
Part Number Breakdown: Page 47
PCB Footprints: Page 49
PRODUCT - FIGURE
DRAWING
Dimensions in mm (inches)
Specifications: Page 48
Panel Cutouts: Page 49

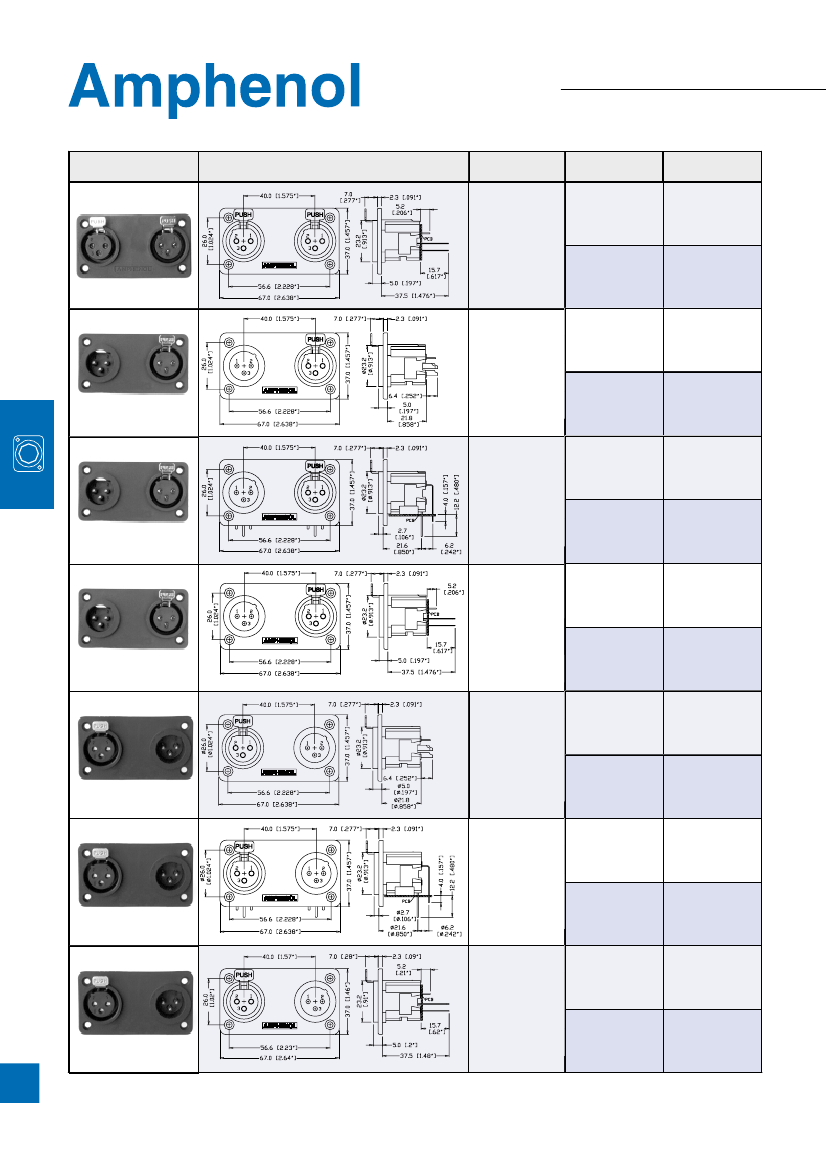

PART NUMBER
AC3M3MPP
DESCRIPTION
XLR 3 pole male +
3 pole male,
Dual Flange,
Solder contacts
VARIATIONS
Latching
Non-Latching
AC3M3MPPL
XLR 3 pole male +
3 pole male,
Dual Flange,
Horizontal PCB
mount
Latching
AC3M3MPPH
Non-Latching
AC3M3MPPHL
XLR 3 pole male +
3 pole male,
Dual Flange,
Vertical PCB
mount
Latching
AC3M3MPPV
Non-Latching
AC3M3MPPVL
XLR 3 pole female
+ 3 pole female,
Dual Flange,
Solder contacts
Latching
AC3F3FPP
Non-Latching
AC3F3FPPL
XLR 3 pole female
+ 3 pole female,
Dual Flange,
Horizontal PCB
mount
Latching
AC3F3FPPH
Non-Latching
AC3F3FPPHL
45
ENTERTAINMENT INTERCONNECT CATALOGUE
- Amphenol Australia Pty Ltd
Telephone 61 3 8796 8888 Fax 61 3 8796 8801
www.amphenol.com.au
