FB100A10-105140 datasheet, PDF

Datasheet> All Categories > The connector> The connector> FB100A10-105140

FB100A10-105140: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerPANCON CONNECTORS; Environmental Compliance

Download Datasheet Parametric View All

FB100A10-105140 Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

FB100A10-105140 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (150) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANCON.

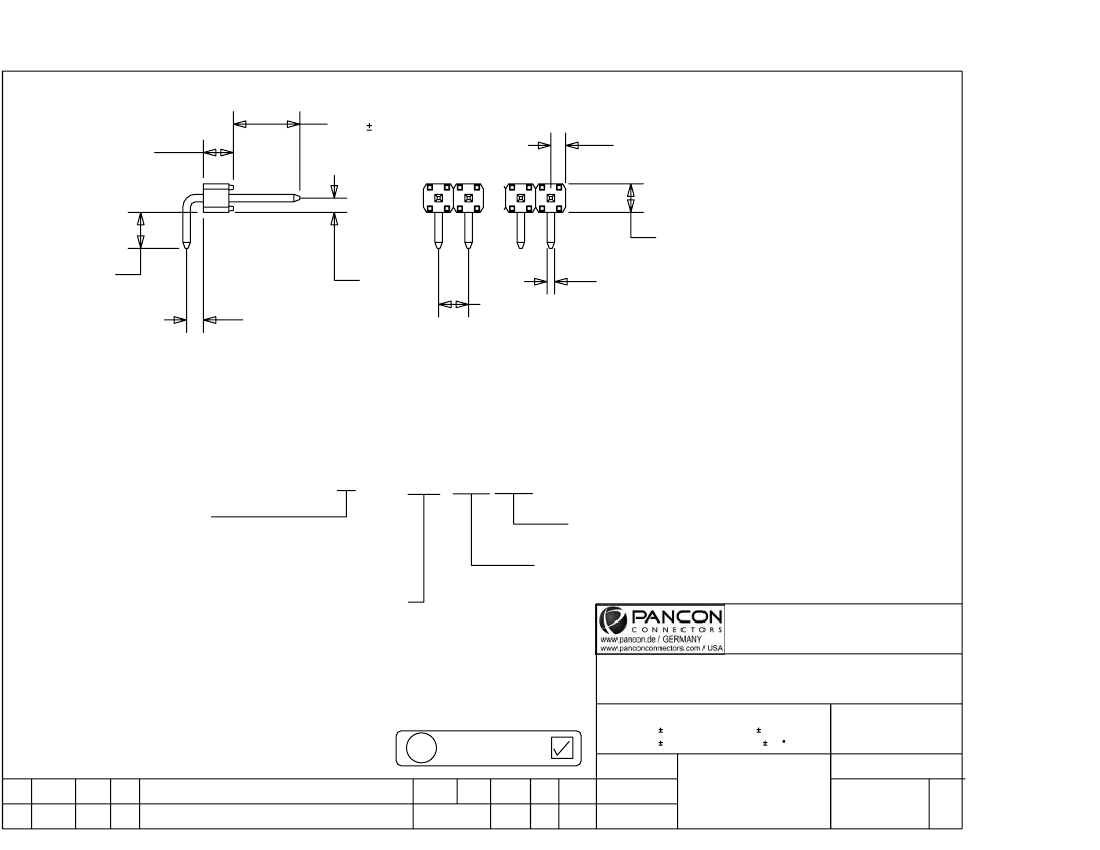

"A"

.100

.008

.050

.095

"B"

.048

.100

.056

.025

NOTES:

1. POST MAT'L: BRASS ALLOY, BRIGHT ACID

TIN OR GOLD OVER NICKEL PLATING

2. WAFER MAT'L: WHITE THERMOPLASTIC, UL 94V0.

3. ALL DIMENSIONS SHOWN IN INCHES.

4. UL RECOGNIZED: E73711.

5. 2-5 CIRCUITS PACKED IN BAGS OF 500.

6-36 CIRCUITS PACKED IN BAGS OF 100.

PART NUMBER FORMULA= Fx100Ayy-aaabbb

PLATING OPTIONS:

T=TIN

B=15m" AU OR

AU FLASH OVER 12m" PDNI

G=10m" GOLD

NO. OF CIRCUITS

2 THRU 36

Bolingbrook, Illinois

DIM. "B" IN INCHES

(.120 - .140)

DIM. "A" IN INCHES #

(.105 - .318)

# LENGTHS A+B MUST TOTAL AT LEAST .230,

BE NO GREATER THAN .460 AND MUST BE

IN MULTIPLES OF .010.

MAS-CON .100 FLAT HEADER

W/CUSTOM RIGHT ANGLE PINS

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE:

UNLESS OTHERWISE SPEC-

IFIED, ALL DIMENSIONS

ARE GIVEN IN INCHES.

THIRD ANGLE PROJECTION.

S C A L E

6/24

/10

SHC

ADDED PDNI PLATING ALTERNATIVE

RoHS

Compliant

(.X)

(.XX)

D R A W N

--- (.XXX)

ANGLES

.02[0.5]

B Y

MAT'L

.005[0.13]

JAT

D A T E

3:1

N O.

12/12/01

C H K'D

SEE

NOTES

D R A W I N G

DWG.

REV DATE

CHK

DESCRIPTION

CN - R

CUST

SUP

TOG

KA-10537

SIZE
