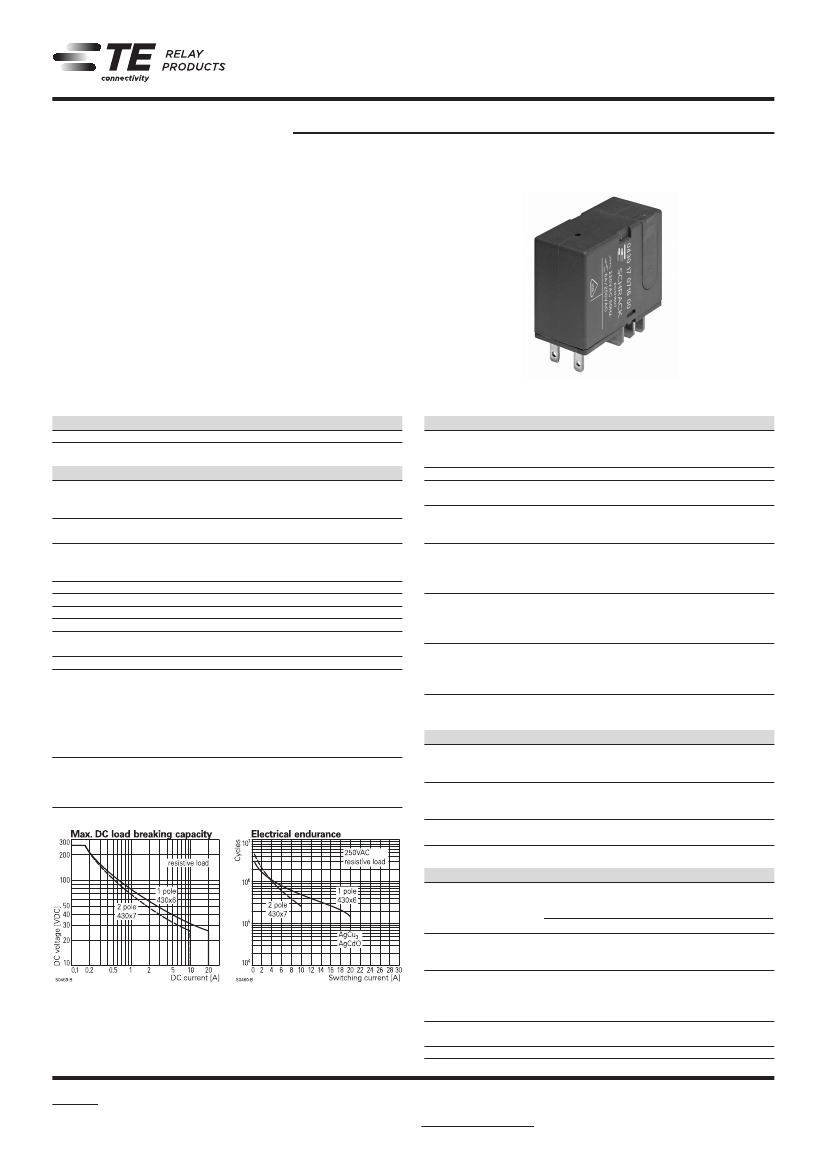

General Purpose Relays
Power Relays
Power Relay 430
n
n
n
n
n
n
SCHRACK
1 pole 16A or 2 pole 10A in form A (NO), form B (NC) and form C
(CO) versions
DC and AC coil
4kV/8mm coil-contact
PCB mounting or quick connect terminals
Mounting brackets or snap mounting
Product in accordance to IEC 60335-1
Typical applications
Motors, electro valves
F0257-B
VZ
Approvals
VDE REG.-Nr. C820, UL E214025
Technical data of approved types on request
Coil Data
Contact Data
Contact arrangement
Rated voltage
Max. switching voltage
Rated current
Limiting making current,
max 4 s, duty factor 10%
25A
25A
Breaking capacity max.
4000VA
2500VA
Contact material
AgCu3, AgCdO
Frequency of operation, with/without load
900/36000h-1
Contact ratings
Type
IEC 61810
0430 .6 .. 03
0430 .6 .. 13 & 11
0430 .7 .. 04 & 14
0430 .7 .. 06 & 16
0430 .7 .. 04
0430 .7 .. 06
1 form A (NO)
1 form B (NC)
1 form C (CO)
250VAC
400VAC
16A
1 pole
2 form A (2 NO)
2 form B (2 NC)
2 form C (2 CO)
250VAC
400VAC
16A
2 pole
Coil voltage range
DC coil
AC coil
Operative range, IEC 61810
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
9
12
7.8
10
24
15.6
11
48
31.2
13
110
71.5
Coil versions, AC coil, 50Hz
Coil
Rated
Operate
code
voltage
voltage
VAC
VAC
03
24
18
05
60
45
06
110
83
07
230
170
Release
voltage
VDC
0.6
1.2
2.4
5.5
Release
voltage
VAC
3.6
9.0
16.0
35.0
6 to 110VDC
6 to 240VAC
2
Coil
resistance
Ω±10%
145
580
2200
13000
Coil
resistance
Ω±10%
200
1250
4500
17500
Rated coil
power
mW
993
993
1047
931
Rated coil
power
VA
1.8
1.8
1.8
1.8
Contact
C (CO)
A (NO)
2 A (2 NO)
2 A (2 NO)
2 A (2 NO)
2 C (2 CO)
Load
16A, 250VAC, cosφ=1, 70°C
10A, 250VAC, cosφ=1, 105°C
10A, 250VAC, cosφ=1, 70°C
10A, 250VAC, cosφ=1, 70°C
6A, 250VAC, cosφ=1, 105°C
6A, 250VAC, cosφ=1, 105°C
>250x10
3
operations
>250x10
3
operations
Cycles
50x10
3
50x10
3
50x10
3
50x10
3
50x10
3
50x10
3
All figures are given for coil without pre-energization, at ambient temperature +23°C, 50Hz.
Other coil voltages on request.
Insulation Data
Mechanical endurance
DC coil
AC coil
Initial dielectric strength
between open contacts
between contact and coil
Clearance/creepage
between contact and coil
between adjacent contacts
Material group of insulation parts
Tracking index of relay base
1000V
rms
4000V
rms
≥8/8mm
≥3/4mm
IIIa
PTI250
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Resistance to heat and fire
according EN60335, par.30
Ambient temperature
-20 to +70°C
Category of environmental protection
IEC 61810
RTI - dust protected
Terminal type
PCB-THT, quick connect
Mounting
PCB, mounting brackets,
snap mounting, DIN rail
Weight
32g
Resistance to soldering heat THT
IEC 60068-2-20
270°C/10s
Packaging unit
50 pcs.
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
Power Relays
Power Relay 430
(Continued)

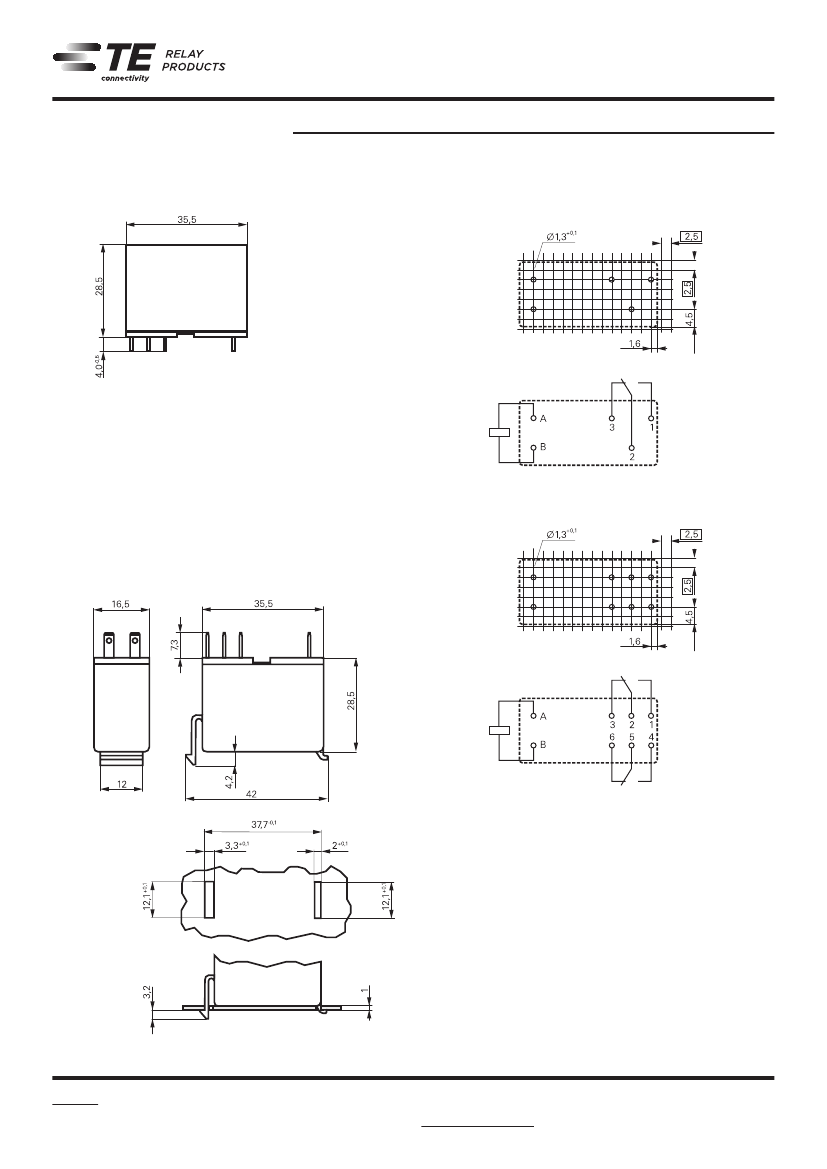

Dimensions
PCB mounting
PCB layout / terminal assignment
Bottom view on solder pins
SCHRACK
PCB version, 1 CO contact
S0448-AA
S0449-CA
S0448-AB
PCB version, 2 CO contacts
Dimensions
Snap mounting
S0448-AC
S0448-AD
S0449-CI
2
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
General Purpose Relays
Power Relays
Power Relay 430
(Continued)
Product code structure
Type
0430
Power relay 430
Mounting
0
PCB version
1
Mounting brackets
Version
6
1 pole
Coil
Coil code: please refer to coil versions table
Contact material
0
AgCu 3
Contact configuration
1
1 form A contact (1 NO)
2
1 form B contacts (1 NC)
3
1 form C contact (1 CO)
Version
00
Standard
Other types on request
SCHRACK
Typical product code
0430
1
6
09
1
1
00
2
5
7
Snap mounting
DIN-rail mounting
2 pole
1
4
5
6
AgCdO
2 form A contacts (2 NO)
2 form B contacts (2 NC)
2 form C contacts (2 CO)
Product code
0430 16 0911 00
0430 16 1011 00
0430 16 1013 00
0430 17 0916 00
0430 17 1016 00
0430 26 0713 00
0430 27 0716 00
Mounting brackets
Mounting
Cont. material
AgCdO
Cont.arrangement
1 form A (1 NO)
1 form C (1 CO)
2 form C (2 CO)
DC coil
Coil
Part number
8-1415430-1
8-1415430-3
8-1415430-5
1415404-1
1415404-4
2-1415404-3
2-1415404-8
Snap mounting
1.0mm plate
1 form C (1 CO)
2 form C (2 CO)
AC coil
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
