1 0 W U l t r a mi ni ature En ca ps ulated Sw itc hi ng P ower S uppl ies
Universal 90-264VAC Input
High Efficiency
ECA10
series
Improved EMI Performance
4242VDC Isolation
Single , Dual and Triple Outputs
UL60950-1, EN60950-1 & IEC60950-1
Model Number
Output Voltage
Output Amps FL (peak)
Ripple/Noise
Efficiency
SINGLE OUTPUT - PCB Mount
ESCA-0100
3.3 VDC
ESCA-0101
5 VDC
ESCA-0122
9 VDC
ESCA-0102
12 VDC
ESCA-0103
15 VDC
ESCA-0118
18 VDC
ESCA-0105
24VDC
SINGLE OUTPUT - Chassis Mount
ESCC-0100
3.3 VDC
ESCC-0101
5 VDC
ESCC-0122
9 VDC
ESCC-0102
12 VDC
ESCC-0103
15VDC
ESCC-0118
18 VDC
ESCC-0105
24VDC
SINGLE OUTPUT - DIN Rail Mount
ESCC-0100/DRL
3.3 VDC
ESCC-0101/DRL
5 VDC
ESCC-0122/DRL
9 VDC
ESCC-0102/DRL
12 VDC
ESCC-0103/DRL
15VDC
ESCC-0118/DRL
18 VDC
ESCC-0105/DRL
24VDC
2.5A (3.3A)
2A (2.6A)
1.1A (1.5A)
0.85A (1.2A)
0.67A (0.9A)
0.55 (0.83A)
0.42A (0.6A)
2.5A (3.3A)
2A (2.6A)
1.1A (1.5A)
0.85A (1.2A)
0.67A (0.9A)
0.55 (0.83A)
0.42A (0.6A)
2.5A (3.3A)
2A (2.6A)
1.1A (1.5A)
0.85A (1.2A)
0.67A (0.9A)
0.55 (0.83A)
0.42A (0.6A)
165mV pk-pk
100mV pk-pk
90mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
165mV pk-pk
100mV pk-pk
90mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
165mV pk-pk
100mV pk-pk
90mV pk-pk
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
62%
72%
72%
75%
76%
77%
78%
62%
72%
72%
75%
76%
77%
78%
62%
72%
72%
75%
76%
77%
78%
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
1 0 W U l t r a mi ni ature En ca ps ulated Sw itc hi ng P ower S uppl ies
Universal 90-264VAC Input
High Efficiency
ECA10
series
Improved EMI Performance
4242VDC Isolation
Single ,Dual and Triple Outputs
UL60950-1, EN60950-1 & IEC60950-1
Model Number
Output Voltage
Output Amps FL (peak)
Ripple/Noise
Efficiency
DUAL OUTPUT - PCB Mount
EDCA-0106
±12 VDC
EDCA-0107
±15 VDC
EDCA-0108
5/12 VDC
DUAL OUTPUT - Chassis Mount
EDCC-0106
±12 VDC
EDCC-0107
±15 VDC
EDCC-0108
5/12 VDC
DUAL OUTPUT - DIN Rail Mount
EDCC-0106/DRL
±12 VDC
EDCC-0107/DRL
±15 VDC
EDCC-0108/DRL
5/12 VDC
TRIPLE OUTPUT - PCB Mount
ETCA-0109
5 ±12 VDC
ETCA-0111
5 ±15 VDC
TRIPLE OUTPUT - Chassis Mount
ETCC-0109
5 ±12 VDC
ETCC-0111
5 ±15 VDC
TRIPLE OUTPUT - DIN Rail Mount
ETCC-0109/DRL
5 ±12 VDC
ETCC-0111/DRL
5 ±15 VDC
±0.42A (±0.6A)
±0.34A (±0.45A)
1/0.42A (1.3/0.6A)
±0.42A (±0.6A)
±0.34A (±0.45A)
1/0.42A (1.3/0.6A)
±0.42A (±0.6A)
±0.34A (±0.45A)
1/0.42A (1.3/0.6A)
±100 mV pk-pk
±100 mV pk-pk
±100 mV pk-pk
±100 mV pk-pk
±100 mV pk-pk
±100 mV pk-pk
±100 mV pk-pk
±100 mV pk-pk
±100 mV pk-pk
73%
74%
75%
73%
74%
75%
73%
74%
75%
1.5 ±0.1 A / 1.8 ±0.13 A
1.4 ±0.1 A / 1.8 ±0.13 A
1.5 ±0.1 A / 1.8 ±0.13 A
1.4 ±0.1 A / 1.8 ±0.13 A
1.5 ±0.1 A / 1.8 ±0.13 A
1.4 ±0.1 A / 1.8 ±0.13 A
50 ±75 mV pk-pk
50 ±75 mV pk-pk
50 ±75 mV pk-pk
50 ±75 mV pk-pk
50 ±75 mV pk-pk
50 ±75 mV pk-pk
70%
70%
70%
70%
70%
70%
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
1 0 W U l t r a mi ni ature En ca ps ulated Sw itc hi ng P ower S uppl ies
INPUT SPECIFICATIONS
Input Voltage Range
Frequency Range
Inrush Current, typ:
90-264 VAC
47-63 Hz
20A@115V, 40A@230V Input
*
ECA10
2.56L” x 1.77W” x 0.83H”
3.77L” x 2.16W” x 1.0H”
3.77L” x 2.16W” x 1.35H”
Rynite, 94V-0 Rated
Encapsulated. Soft Pot
4 oz (112g) / 8.5 oz (238g)
11.5 oz (326g)
series
PHYSICAL SPECIFICATIONS
Size
PCB Mount
Chassis Mount
Din Rail
Case Material
Construction
Weight
PCB / CHA
Din Rail
OUTPUT SPECIFICATIONS
See Selection Chart
Singles/Duals ± 3%,
Triple: 0.5 / ± 0.5% (max)
Line Regulation (Note 8)
Singles 0.1~1%, typ
Duals ± 0.3~1%, typ
Triple: 0.6 / ± 0.2% (max)
Cross Regulation (Note 11)
Duals 2%
Triple NA / ± 0.1%
Preset Accuracy (Note 9)
1%
Temperature Coefficient
±0.03%/°C
Ripple/Noise (Note 1, 2, 10)
See Selection Chart
Over Voltage Protection
Clamp*
Over Temp. Protection
Latching, recover after cooling and
power is restored*
Short Circuit Protection (Note 3) Indefinite*
Hold Up Time
30 mS, typ (Nom. Input, 100% load)
Voltage and Current
Load Regulation (Note7)
ENVIRONMENTAL SPECIFICATIONS
Oper. Temperature (Note 5)
Storage Temperature
Relative Humidity
EMC / EMI
MTBF
0 to +50°C (See Derate)
-25 to +71°C
*
0 to + 95%, non-cond
*
FCC/A, VDE 0871/A , CISPRB
(Mil Std 217, 25°C)
180,000 Hrs
NOTES
1. All measurements should be made directly at the terminals of the
power supply.
2. Ripple and Noise depend upon output voltage as specified par par-
ticular model.
3. Short Circuit Protection is self-recovering when overcurrent condition
is removed.
4. Isolation for up to 1minute duration.
5. Specified for free-air convection cooling.
6. Minimum load is NOT required for proper operation. However, auxil-
iary outputs should be reduced as a function of primary output minimum
load or load regulation will be higher.
7. Load regulation measured from 20% to FL.
8. Line regulation measured from 90VAC 264VAC.
9. Preset accuracy measured at nominal load, 120 VAC input.
10. O/P noise measured directly at pins/terminals at nom. load, 0.1uF
bypass, pk-pk @20MHz bandwidth.
11. Cross Reg-Triples: Measured at nom. load with the 5V output varied
between 60% and 100% of nim. load.
12. 100% Production Tested.
GENERAL SPECIFICATIONS
Isolation (Note 4)*
4242VDC Input-Output
3535VDC I/P-Ground
1414VDC O/P-Ground
See Selection Chart
100Khz, (fixed, typical)
UL60950-1, EN60950-1
EN55022
Efficiency
Switching Frequency
Safety
EMC
All specifications are typical at nominal input, full load, and 25°C unless other-
wise noted
*
These are stress ratings. Exposure of the devices to any of these conditions
may adversely affect long term reliability. Proper operation under conditions
other than the standard operating conditions is neither warranteed nor implied.
Astrodyne products are not authorized or warranteed for use
as critical components in life support systems, equipment used
in hazardous environments, nuclear controls systems, or other
mission-critical applications.
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
1 0 W U l t r a mi ni ature En ca ps ulated Sw itc hi ng P ower S uppl ies

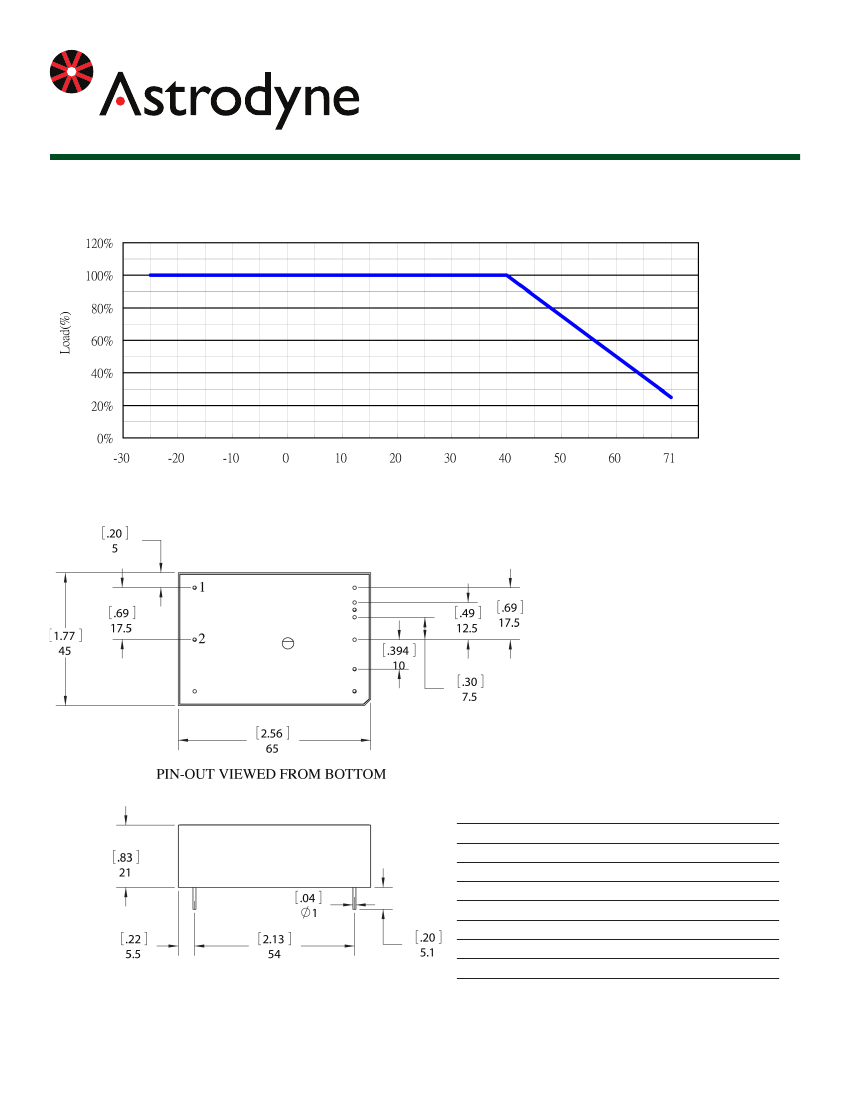

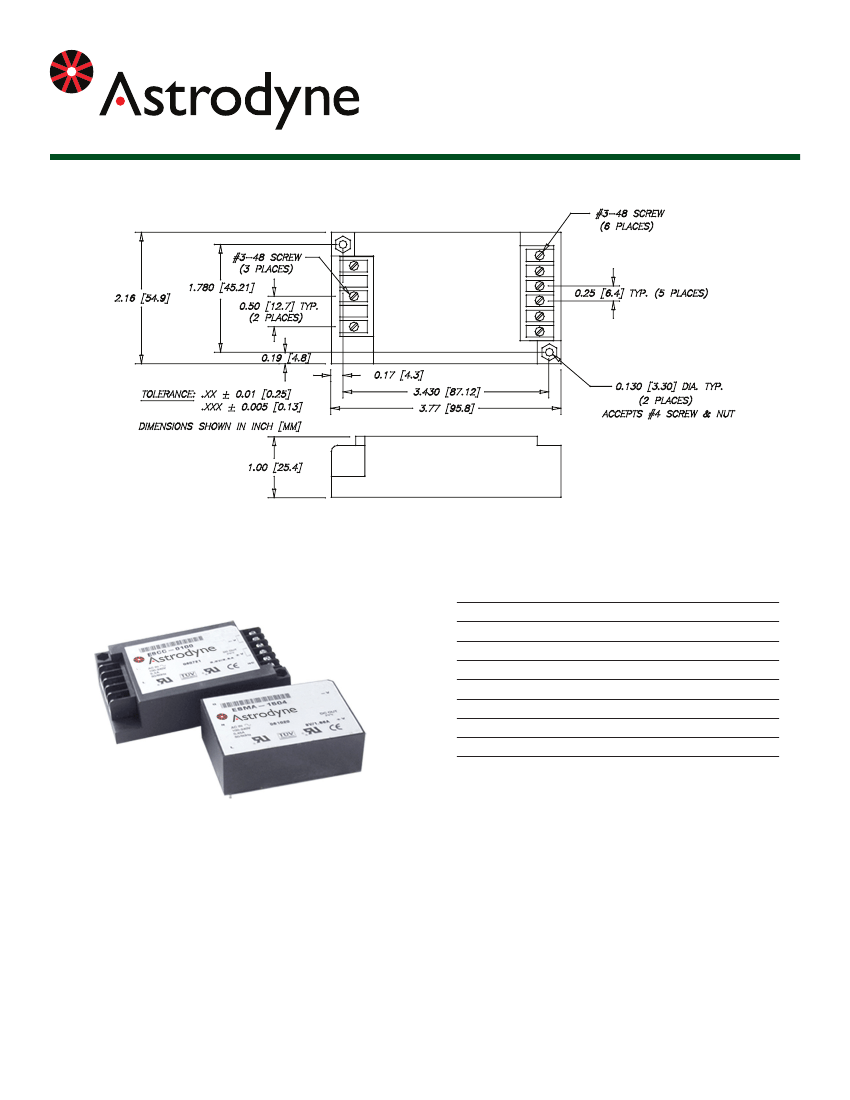

MECHANICAL DIMENSIONS - CHASSIS MOUNT
ECA10
series
4
1
2
3
5
6
7
8
9
Model
Type / Pin#
Single
ACN
N/C
ACL
N/C
-Vout
-Vout
+Vout
+Vout
N/C
Dual
ACN
N/C
ACL
N/C
-Vout
Com
Com
+Vout
N/C
Dual (0108) Triple
ACN
N/C
ACL
N/C
Com
Com
+5V
+12V
N/C
ACN
N/C
ACL
N/C
+5VRTN
+5Vout
-Vout
Com
+Vout
MECHANICAL DIMENSIONS - DIN RAIL
1
2
3
4
5
6
7
8
9
DIN Rail mounting kit available for Chassis-mount modules, specify part #
M-DRL-01. Kit includes mounting plate, DIN Rail cliip and assembly hardware.
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
