1206FA1ATR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 1206FA1ATR

1206FA1ATR: DescriptionElectric Fuse, Fast Blow, 1A, 63VDC, 50A (IR), Surface Mount,; CategoryCircuit protection Circuit protection; File Size81KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric View All

1206FA1ATR Overview

Electric Fuse, Fast Blow, 1A, 63VDC, 50A (IR), Surface Mount,

1206FA1ATR Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	compliant
Is Samacsys	N
Other features	LOW PROFILE, PRE ARCING TIME: OPEN WITHIN 5 SEC AT 200% RATED CURRENT, CHIP
Fusing characteristics	FAST
body width	1.6 mm
body height	0.711 mm
Body length or diameter	3.2 mm
Circuit protection type	ELECTRIC FUSE
Installation features	SURFACE MOUNT
method of packing	TR, 7 INCH
physical size	3.2mm x 1.6mm x 0.711mm
Rated breaking capacity	50 A
Rated current	1 A
Rated voltage (DC)	63 V
Guideline	CSA; UL
surface mount	YES
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

Chip

™

Fuses

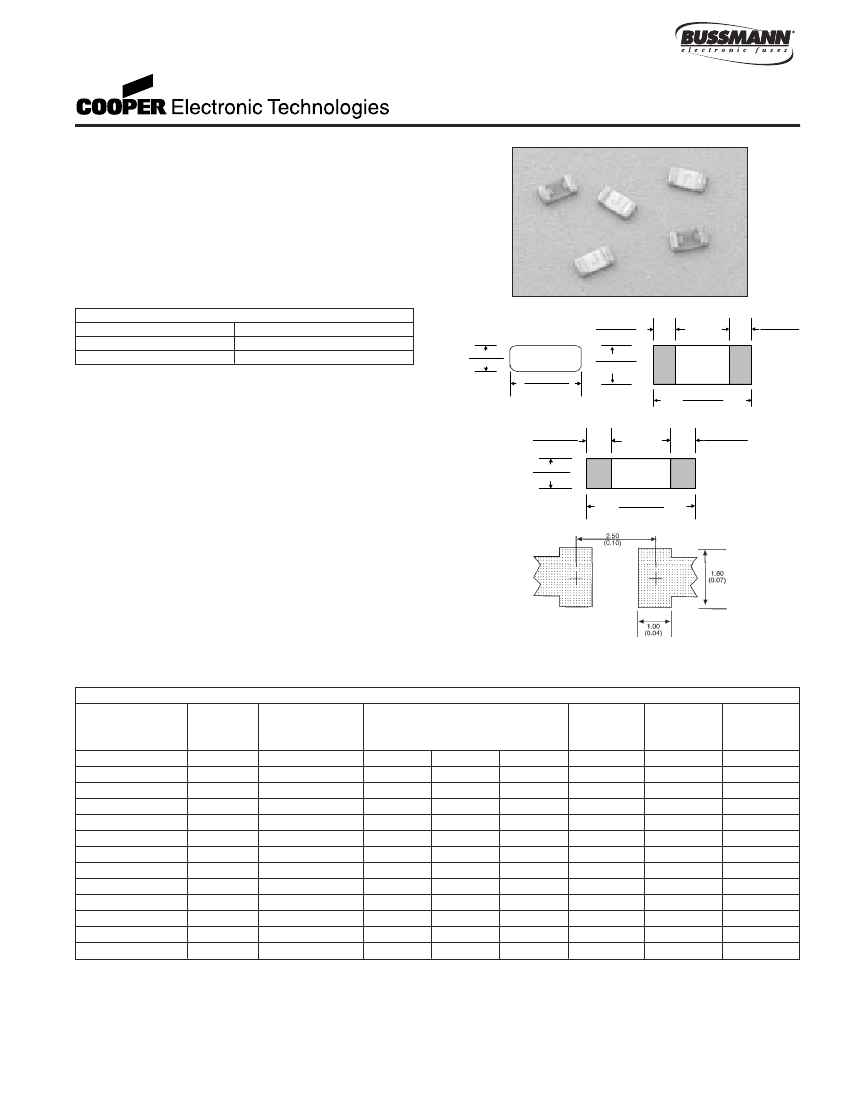

1206FA Series, Fast Acting

Description

• Surface mount fuse, fast acting

• Compatible with reflow and wave solder

• Excellent environmental integrity

• One time positive disconnect

• Low profile 1206 / 3216 design

• Alpha marked and orientated facing up in the carrier

• Solder-free design provides excellent on-off and

temperature cycling

• Heat and shock tolerant

ELECTRICAL CHARACTERISTICS

% of Amp Rating

Opening Time

100%

4 Hours Minimum

200%

5 Seconds Maximum

Dimensions

0.711 max

(0.028)

⁄

(inches)

0.50

.25

(0.020

.010)

0.50

.25

(0.020

.010)

Drawing Not to Scale

Approvals

• UL Recognition Guide & File numbers: JDYX2,

E19180 (250mA - 3A)

• CSA Certification Record: LR 53787-102C &

Class No. 1422 30

Environmental Data

• Thermal Shock: MIL-STD-202, Method 107, Test

Condition B (-65°C to 125°C)

• Vibration: MIL-STD-202, Method 204, Test Condition C

(55 to 2000 Hz, 10G)

• Moisture Resistance: MIL-STD-202, Method 106,

10 day cycle

• Solderability: ANSI/J-STD-002, Test B

Ordering

• Specify product code and packaging code

Soldering Method

• Wave Solder: 260°C, 10 sec max.

• Infrared Reflow: 260°C, 30 sec max.

Voltage

Rating

63V

48V

32V

24V

Interrupting

Rating at

Rated Voltage*

50A

35A

1.60

.20

(0.063

.008)

1.60

.20

(0.063

.008)

Top View

3.20

.20

(0.126

.008)

End View

0.50

.25

(0.020

.010)

0.711 max.

(0.028)

0.50

.25

(0.020

.010)

3.20

.20

(0.126

.008)

Side View

Land Pattern

SPECIFICATIONS

Product Code

1206FA250mA

1206FA375mA

1206FA500mA

1206FA750mA

1206FA1A

1206FA1.25A

1206FA1.5A

1206FA2A

1206FA2.5A

1206FA3A

1206FA4A

1206FA5A

1206FA7A

DC Cold

Resistance** (ohms)

min.

typ.

max.

TBD

0.075

0.713

1.35

0.045

0.059

0.072

0.035

0.044

0.052

TBD

Typical

Melting

t†

TBD

Typical

Voltage

Drop‡

TBD

Alpha

Code

Marking‡‡

* DC Interrupting Rating (Measured at designated voltage, time constant of less than 50 microseconds, battery source)

** DC Cold Resistance (Measured at

≤10%

of rated current)

† Typical Melting I

t (Measured with a battery bank at rated DC voltage, 10x-rated current, time constant of calibrated circuit less than 50 microseconds)

‡ Typical Voltage Drop (Measured at rated current after temperature stabilizes)

‡‡ Alpha code to be marked on the top (white) side of the fuse body for all ratings.

It is recommended that fuses be mounted ceramic (white) side facing up.

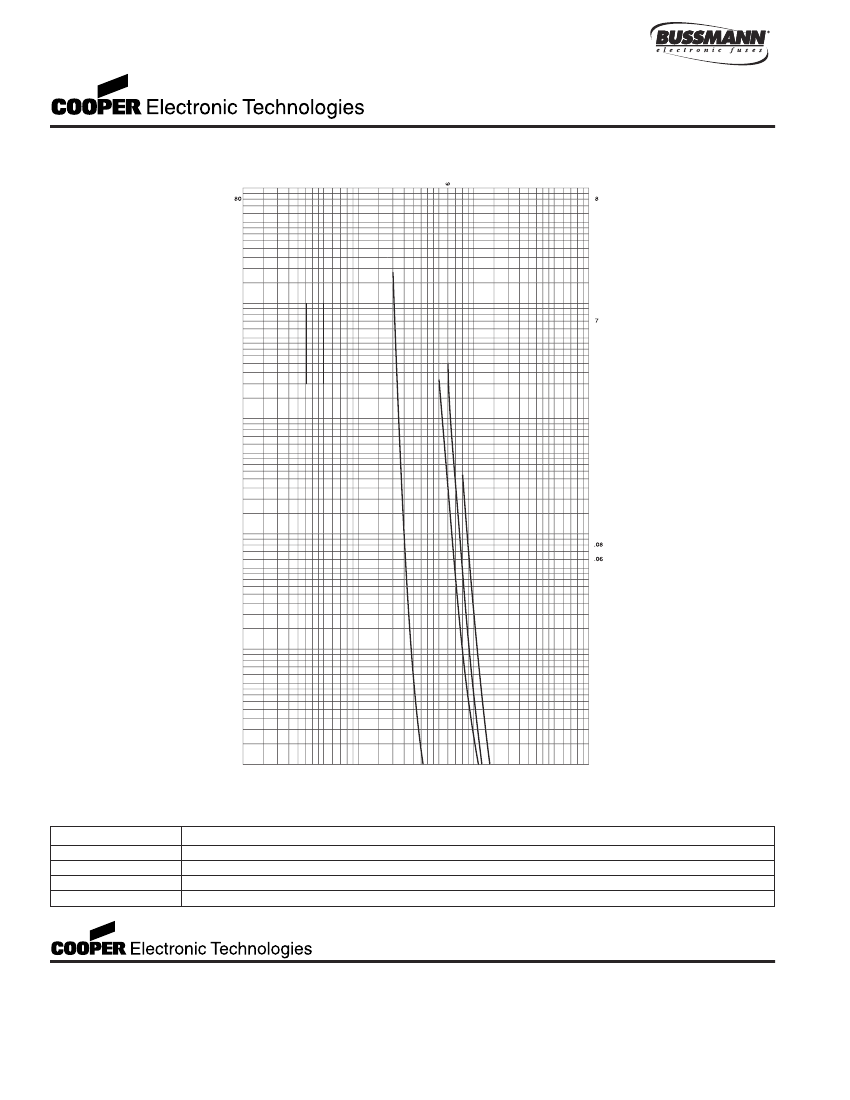

Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended, with further derating required at

elevated ambient temperatures.
