5-1376386-1

Description
5.0 POWER KEY CONNECTOR 4P (2R
CategoryThe connector    The connector
File Size3MB,98 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric View All

5-1376386-1 Online Shopping

Suppliers Part Number Price MOQ In stock
5-1376386-1 - - View Buy Now

5-1376386-1 Overview

5.0 POWER KEY CONNECTOR 4P (2R

5-1376386-1 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it Rohs certified?conform to
MakerHarwin
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time12 weeks
Is SamacsysN
Board mount optionsPEG
body width0.52 inch
subject depth0.555 inch
body length0.457 inch
Connector typeRECTANGULAR POWER CONNECTOR
Contact arrangementS0P4
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Dielectric withstand voltage2200VAC V
Durability25 Cycles
IEC complianceNO
maximum insertion force9.7856 N
Insulation resistance500000000 Ω
Insulator colorNATURAL
insulator materialNYLON
JESD-609 codee3
MIL complianceNO
Mixed contactsYES
Installation option 1FRICTION RAMP
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature105 °C
Minimum operating temperature-30 °C
OptionsGENERAL PURPOSE
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Termination typeSOLDER KINKED LEADS
Total number of contacts4
Evacuation force-minimum value1.4734 N
Base Number Matches1
Soft Shell
Pin and Socket Connectors
AMP

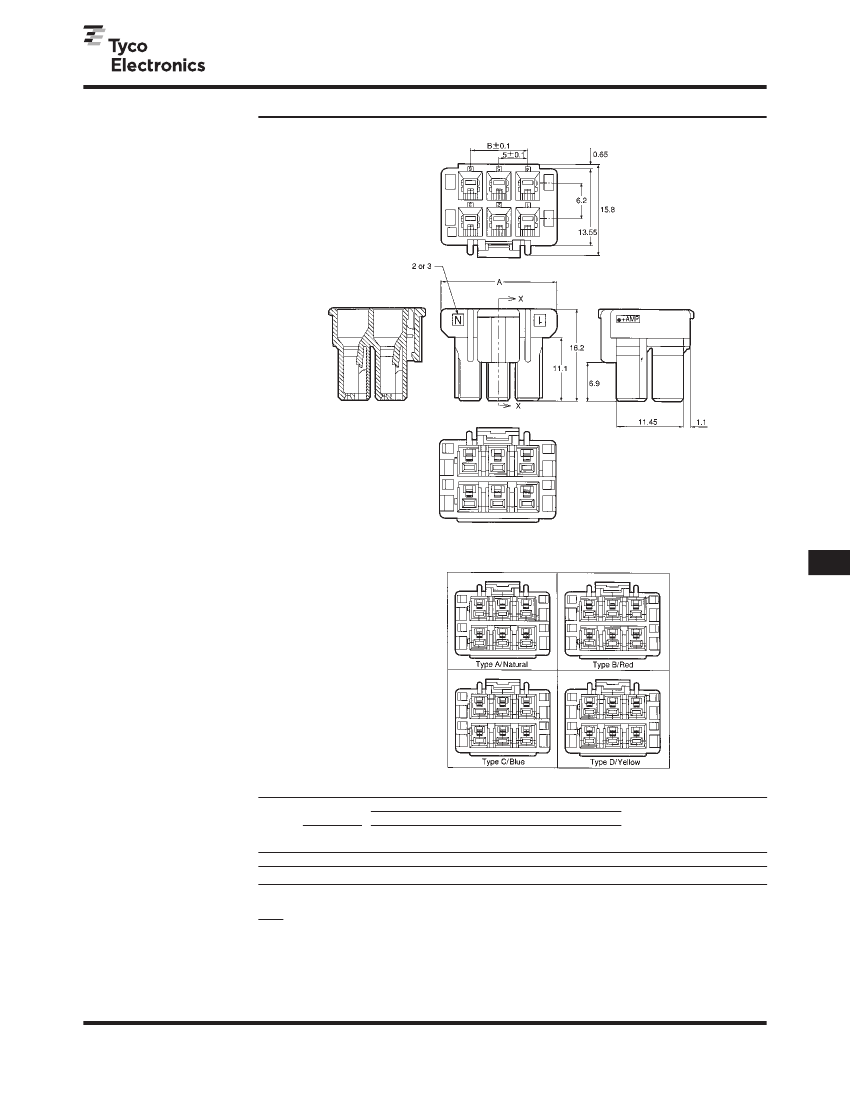

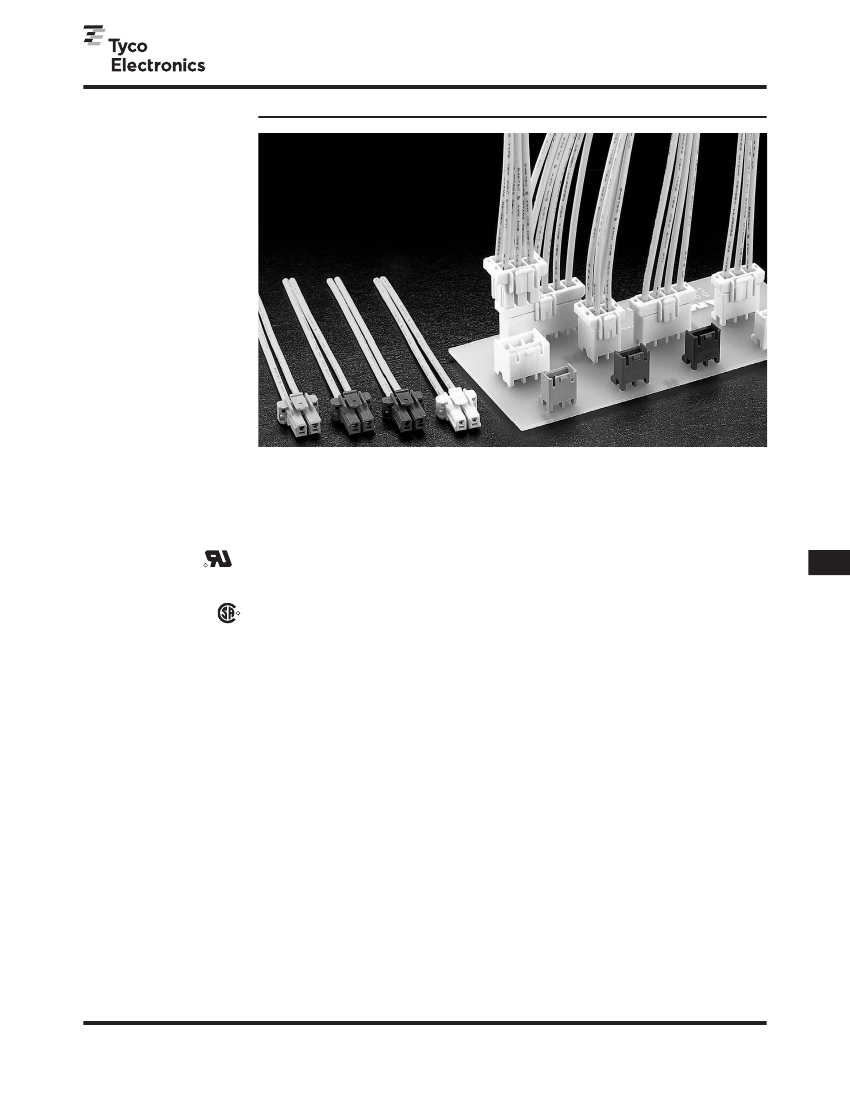

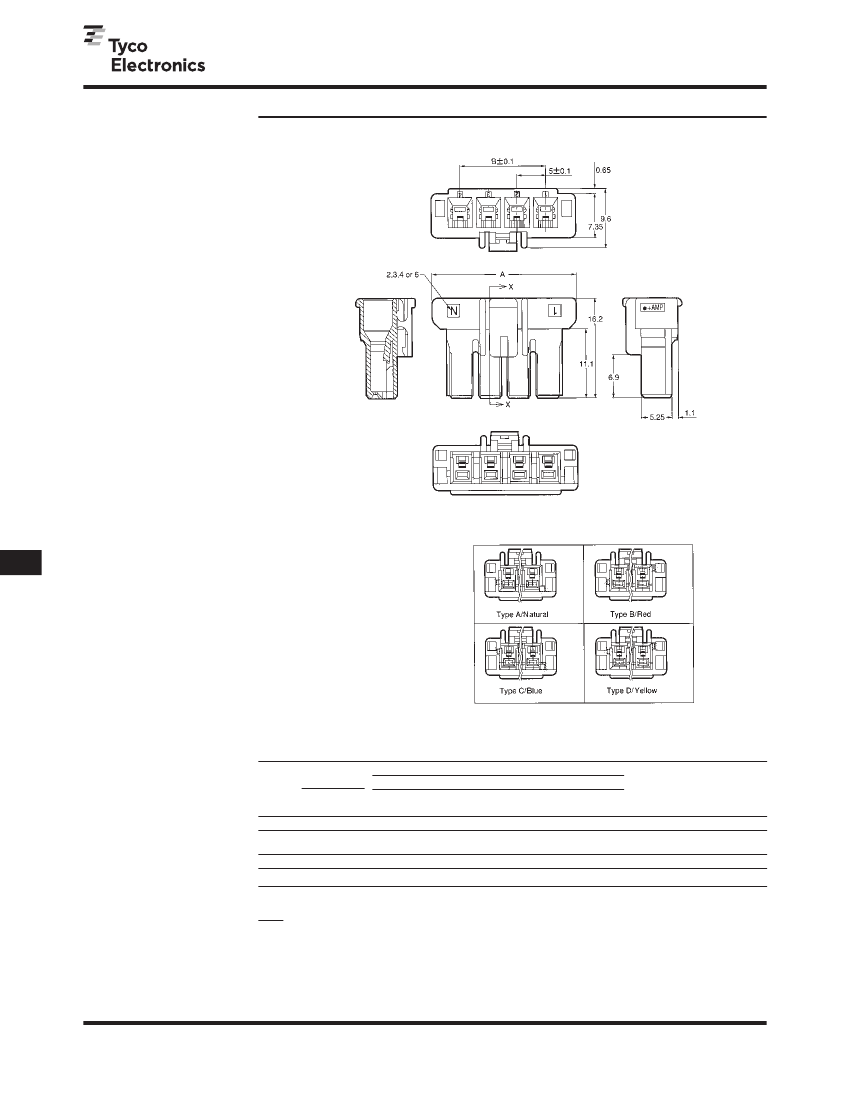

5.0 mm Power Key Connectors (5.0 PKC) (Wire-to-Board)
Product Facts
I
Compact design with
19.4 mm mated height
Power circuit connector with
5.0 mm contact centerline
Wire-to-board connectors
consisting of plug housings
for wires and PCB header
assemblies
With a clear clicking sound,
contact insertions can be
made easier. The double
lock plate provides for
complete loading of contacts
Locking levers are
surrounded by walls, which
protect levers and prevent
tangling with wires
Connector is designed to
release bubbles created
by the process of potting
(PC board coating)
Housing lances also help
prevent tangling of wired
contacts
Recognized under the
Component Program
of Underwriters
Laboratories Inc.,
File No. E28476
I
I
I
I
I
Standard Density
I
I
5.0 mm Power Key
Connectors are for power
circuits of home appliances,
especially targeting gas
appliances. The connector
features four kinds of keying
per housing.
Only color-coding of hous-
ings limited the efficiency
of blind mating where you
could not see connectors.
However, the new keying
mechanism not only
improves assembly
efficiency but also helps
prevent mismating.
Part numbers involved
can be reduced so that
purchasing and stock
level control can be
made simpler.
Performance Characteristics
Voltage Rating—300
Current Rating—10A
max.
2
Operating Temperature—
-30°C ~ +105˚C
Applicable Wire—24-16
AWG
Applicable PC Board Thickness—
1.6 mm
VAC
1
Technical Documents
Product Specification
108-5699
Application Specification
114-5292
R
5.0 mm Power Key Connectors
.197
[5.00]
Centerline
I
Certified by Canadian
Standards Association,
File No. LR7189
R
1 Excludes header tyne round
space. Usable for 150 VAC
applications when the round
dimensions are 3 mm or less.
2 Specified values vary according to
the number of contacts and the
wire used. The 10 A maximum
value applies to 16 AWG wire
used with 2 contacts.
135
Catalog 82181
Revised 4-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
