687320124422: Descriptionffc & fpc connectors WR-fpc 0.5mm smt zif vert typea 20pin; CategoryThe connector; File Size1MB，4 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

687320124422 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	687320124422	-	-	View	Buy Now

687320124422 Overview

ffc & fpc connectors WR-fpc 0.5mm smt zif vert typea 20pin

687320124422 Parametric

Parameter Name	Attribute value
Manufacture	Wurth Electronics
Product Category	FFC & FPC Connectors
RoHS	Yes
Pitch	0.5 mm
Number of Positions	20
Mounting Angle	Vertical
Housing Material	Liquid Crystal Polymer (LCP)
Contact Material	Phosphor Bronze
Contact Plating	Ti
Voltage Rating	50 V
Current Rating	500 mA
Actuation Type	ZIF
Contact Locati	Side Contac
Flammability Rating	UL 94 V-0
Insulation Resistance	100 MOhms
Packaging	Reel
Temperature Range	- 25 C to + 85 C

Preview

Download Datasheet

View All

MATERIAL:

HOUSING MATERIAL: LCP

COLOR: IVORY

ACTUATOR MATERIAL: LCP

COLOR: BLACK

CONTACT MATERIAL: PHOSPOR BRONZE

CONTACT PLATING: 100µ TIN OVER 50µ NI

QUALITY CLASS: 25 MATING CYCLES*

ENVIRONNEMENTAL:

OPERATING TEMPERATURE: -25°C UP TO 85°C

FLAMABILITY RATING: UL94-V0

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL:

CURRENT RATING: 0.5A

WORKING VOLTAGE: 50V

INSULATION RESISTANCE: >100MOHM

DIELECTRIC WITHSTANDING VOLT.: 250VAC/MN

CONTACT RESISTANCE: 20mOHM MAX

STANDARD

CERTIFIED: E323964 / MODEL NUMBER 687

FOLLOWED BY 1, FOLLOWED BY 04 THRU 50, FOLLOWED

BY 140 OR 145, FOLLOWED BY NUMERIC DIGITS

SOLDERING:

REFLOW PROCESS ONLY

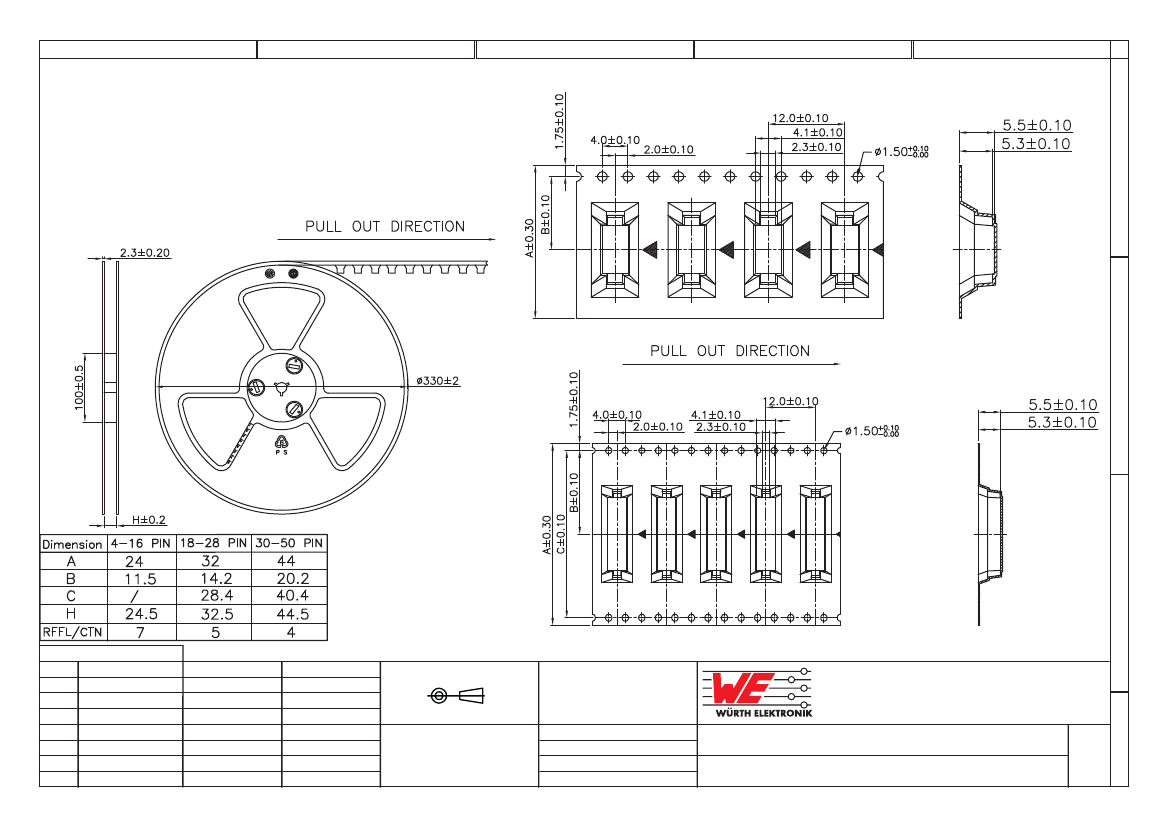

PACKAGING

TAPE & REEL WITH CAP

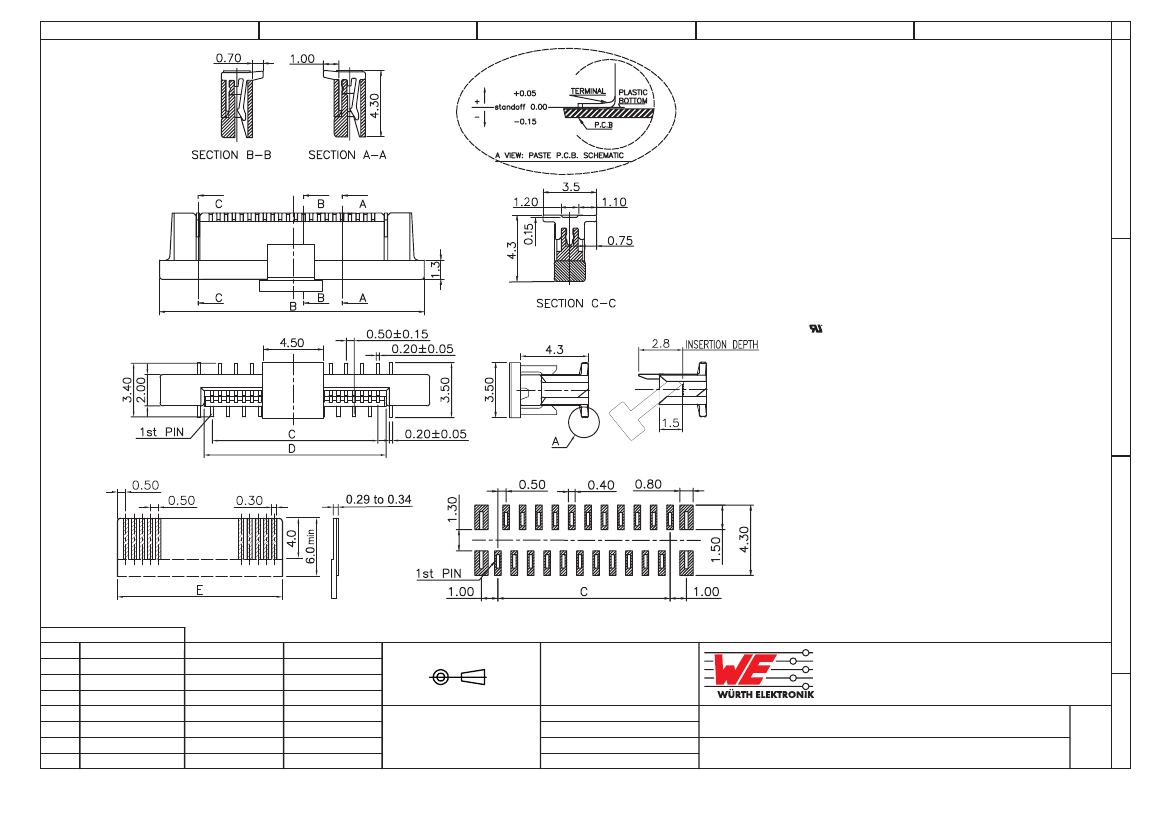

DIMENSION:

B =(0.50 x NB PINS) + 6.40

C =0.50 x (NB PINS - 1)

D =0.50 x (NB PINS + 1) + 0.10

E =D - 0.10

APPLICABLE FFC LAYOUT

RoHS Compliant

TYPE A RECOMMENDED PCB LAYOUT - COMPONENT VIEW

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

APPROVAL: RJ

UNIT: MM

SCALE:

SHEET: 1/3

DRAW: PEARL

DESCRIPTION: 0.5MM ZIF FPC VERTICAL CONTACT A TYPE -

TAPE & REEL PACKAGING WITH CAP

WERI PART NO: 6873 xx 124422

SIZE

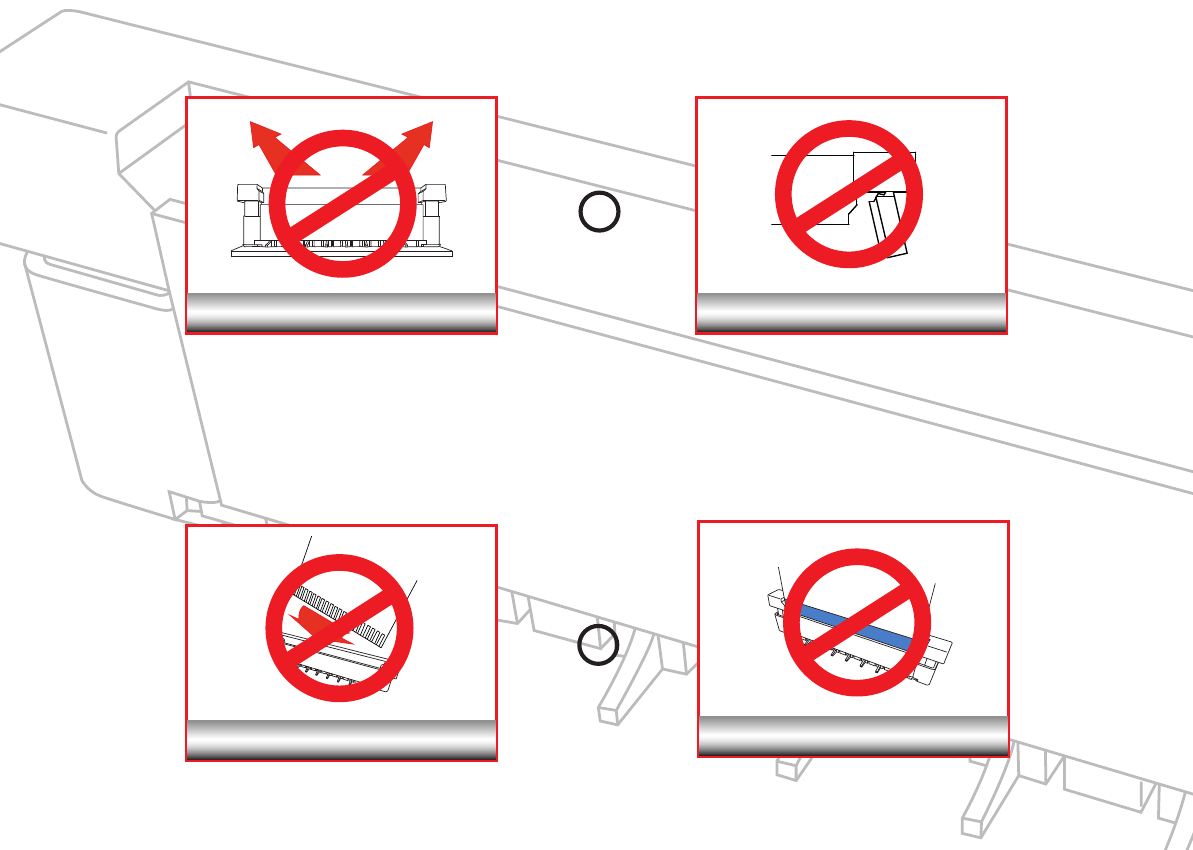

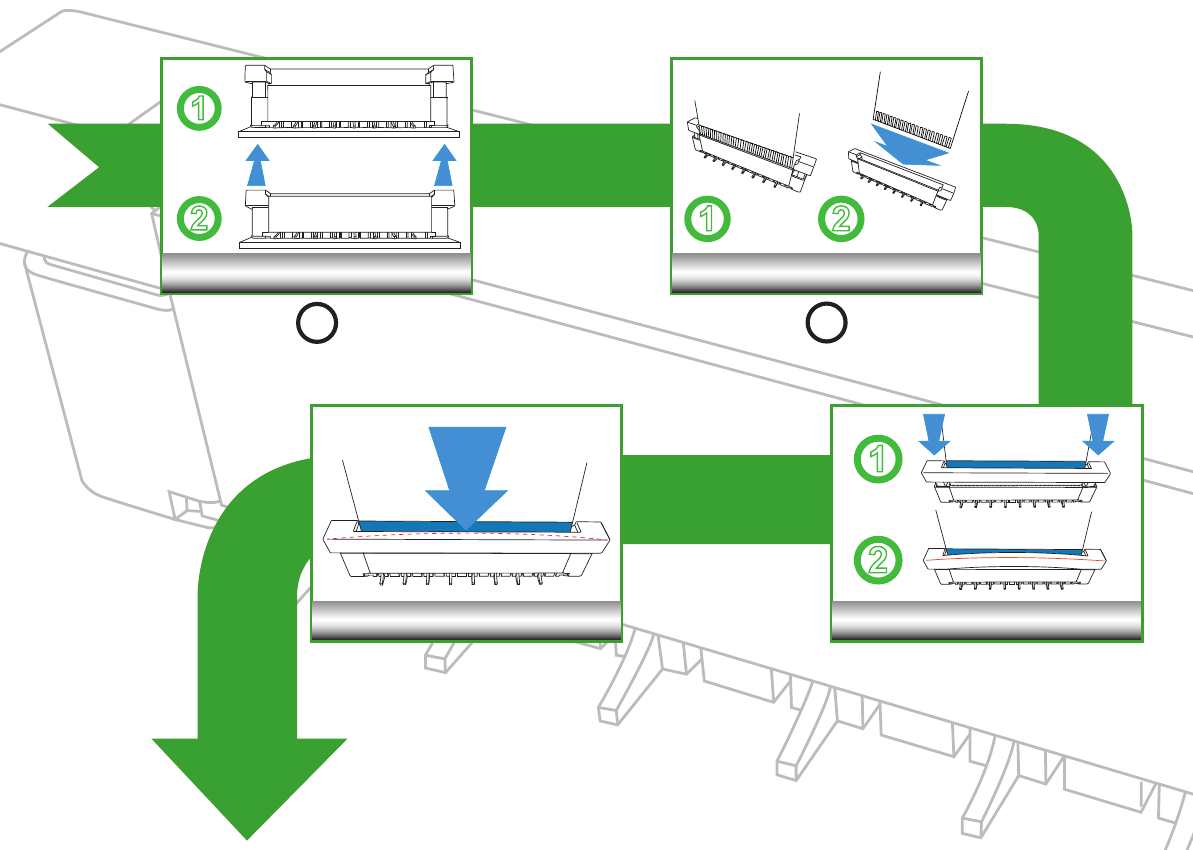

*NOTE: theoretical value related to the Tin plating; however, due to the sensitive actuator, we recommend not to make more than 1 or 2 cycles in order to maintain acceptable mechanical & electrical conditions

REV

13-DEC-13

18-SEP-12

DATE

TPK UPDATE

MC NOTE

FILE
