HS16P-2(71) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HS16P-2(71)

HS16P-2(71): DescriptionCircular Connector, 2 Contact(s), Copper Alloy, Female, Solder Terminal, Plug; CategoryThe connector The connector; File Size1MB，6 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric View All

HS16P-2(71) Overview

Circular Connector, 2 Contact(s), Copper Alloy, Female, Solder Terminal, Plug

HS16P-2(71) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hirose
Reach Compliance Code	unknown
Is Samacsys	N
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HS
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	COPPER ALLOY
Housing size	16
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

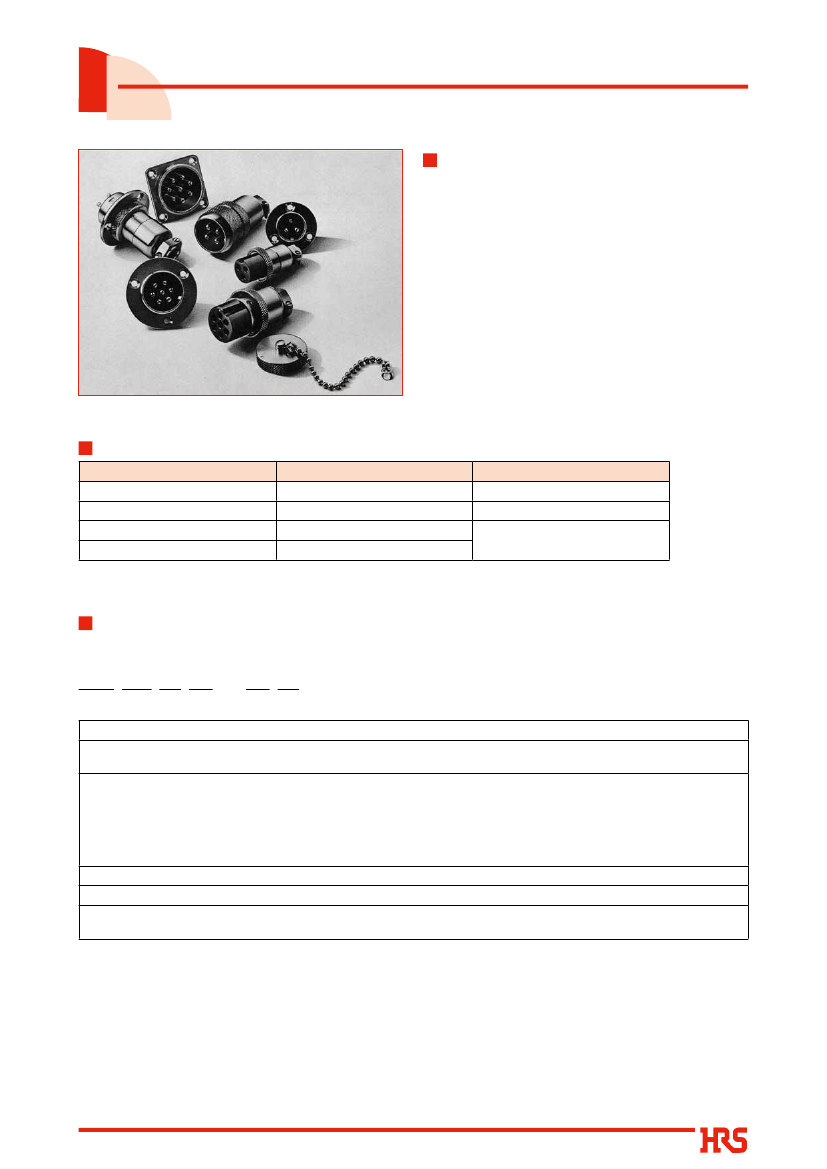

Metal Shell Circular Connectors

HS Series

Introduction

·The HS series is generally called “metal connector”,

and is the most widely used standard multi-pin

circular connector.

·Being sturdy and simple in construction, the HS

connectors are stable mechanically and electrically

and are employed by NTT and set manufacturers

as standard parts.

Material

Part

Shell

Insulator

Male contacts

Female contacts

Material

Copper compound metal

Synthetic resin

Brass

Brass or phosphor bronze

Finish

Nickel plated

-----------------

Nickel plated

Ordering information

HS 21 P A - 2 A

qModel

name: HS stands for HIROSE STANDARD.

wShell

size: The shell size is expressed as the outside diameter of the plug fitting section (insulator)

with seven types: 12, 14, 16, 21, 25, 28 and 35.

eShell

type: The shell is classified into the following types.

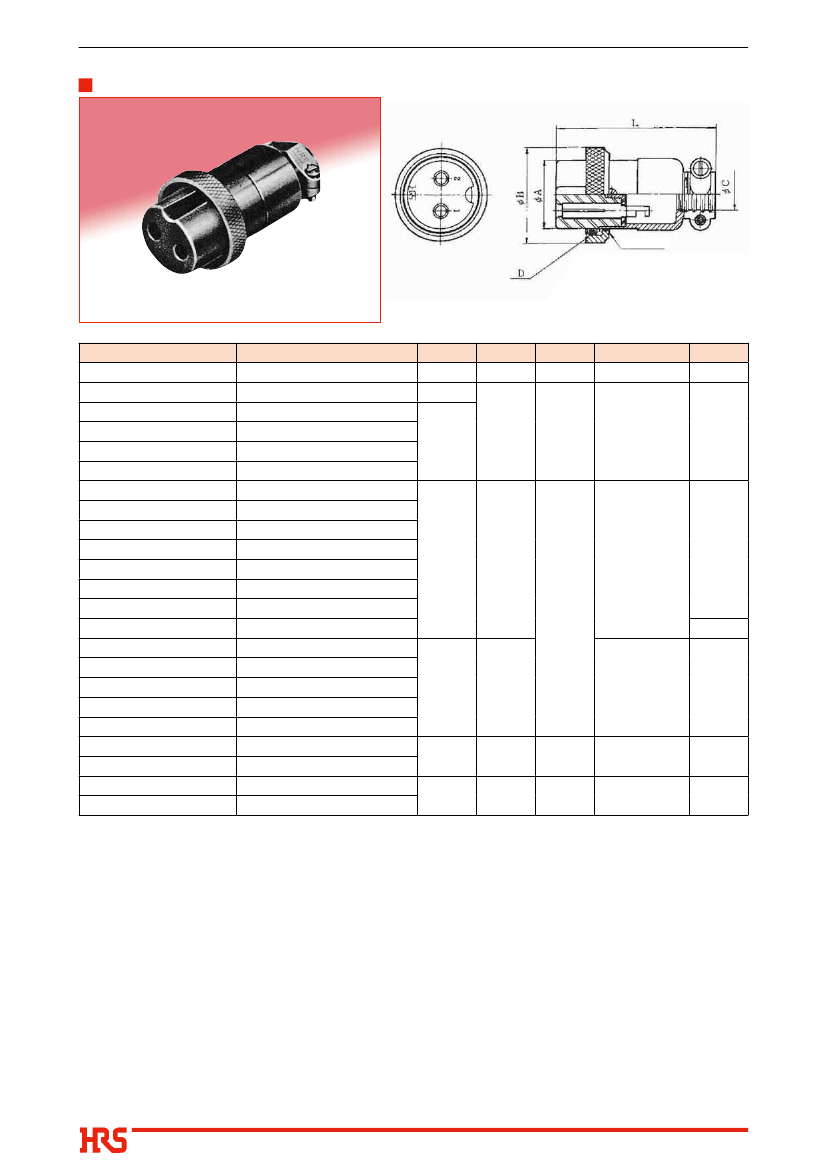

P : Plug

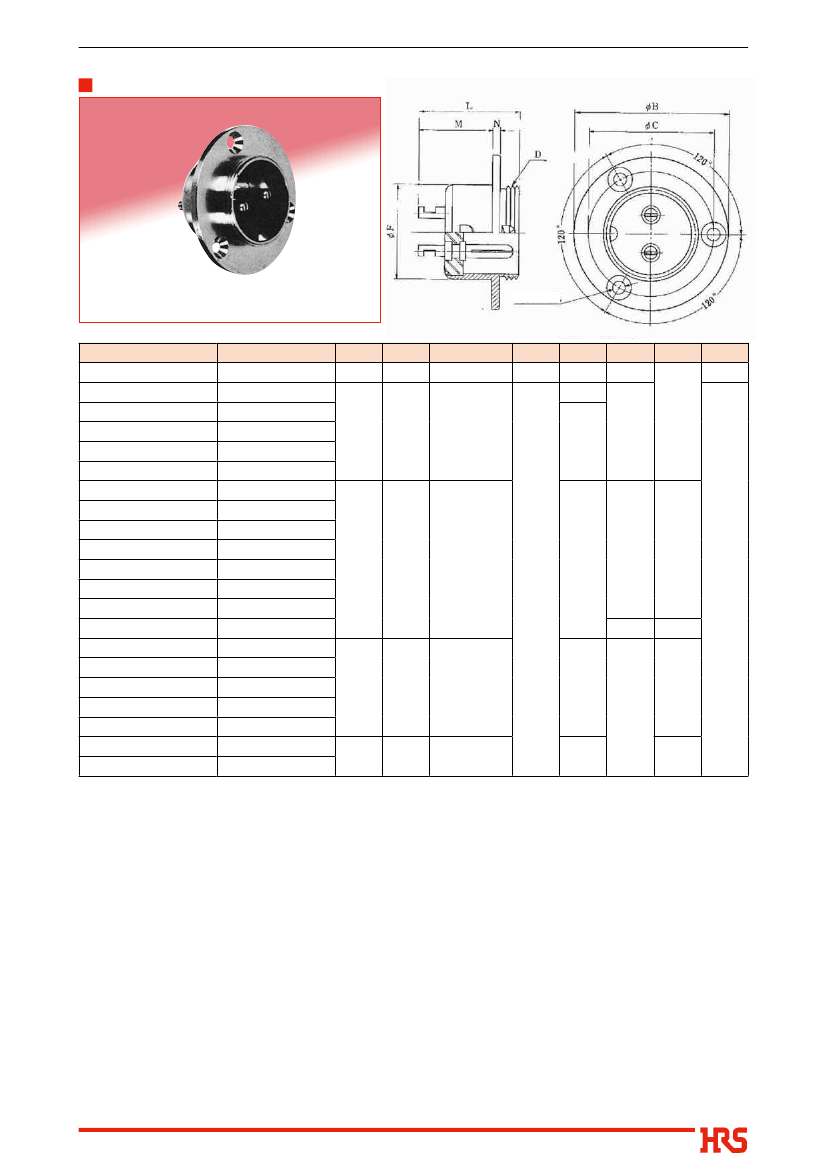

R : Receptacle

J : Jack

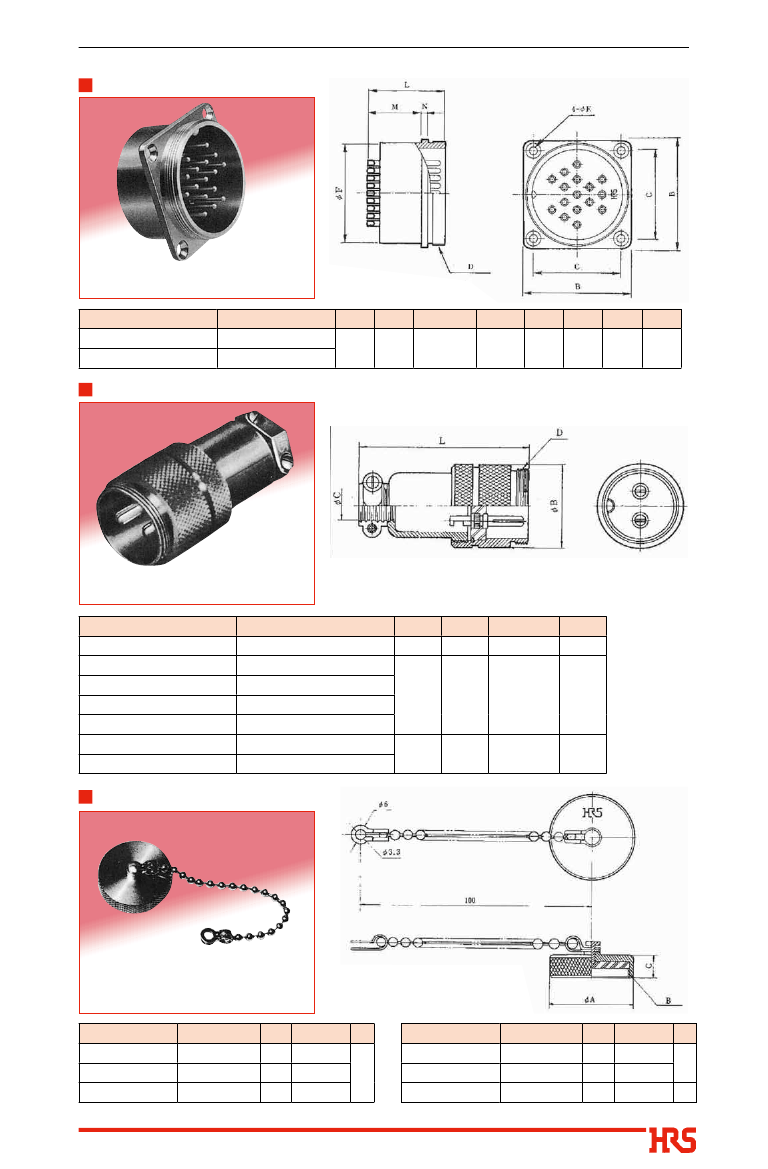

RC : Receptacle cap

rShell

model change mark: Each time the shell undergoes a model change, it is marked as A, B or C.

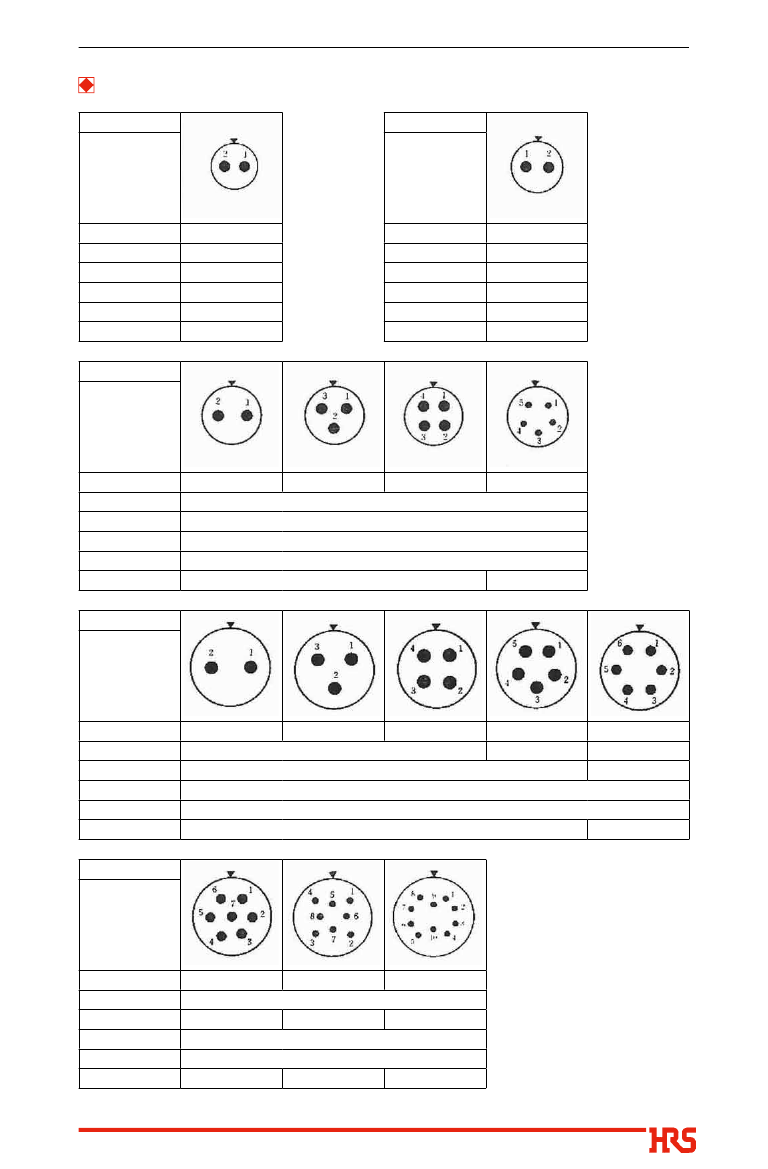

tNumber

of contacts

y‌

ontact arrangement change mark: When the contact fitting section or contact arrangement undergoes a change,

‌

it is marked as A, B, C....after the number of contacts.

2014.12w
