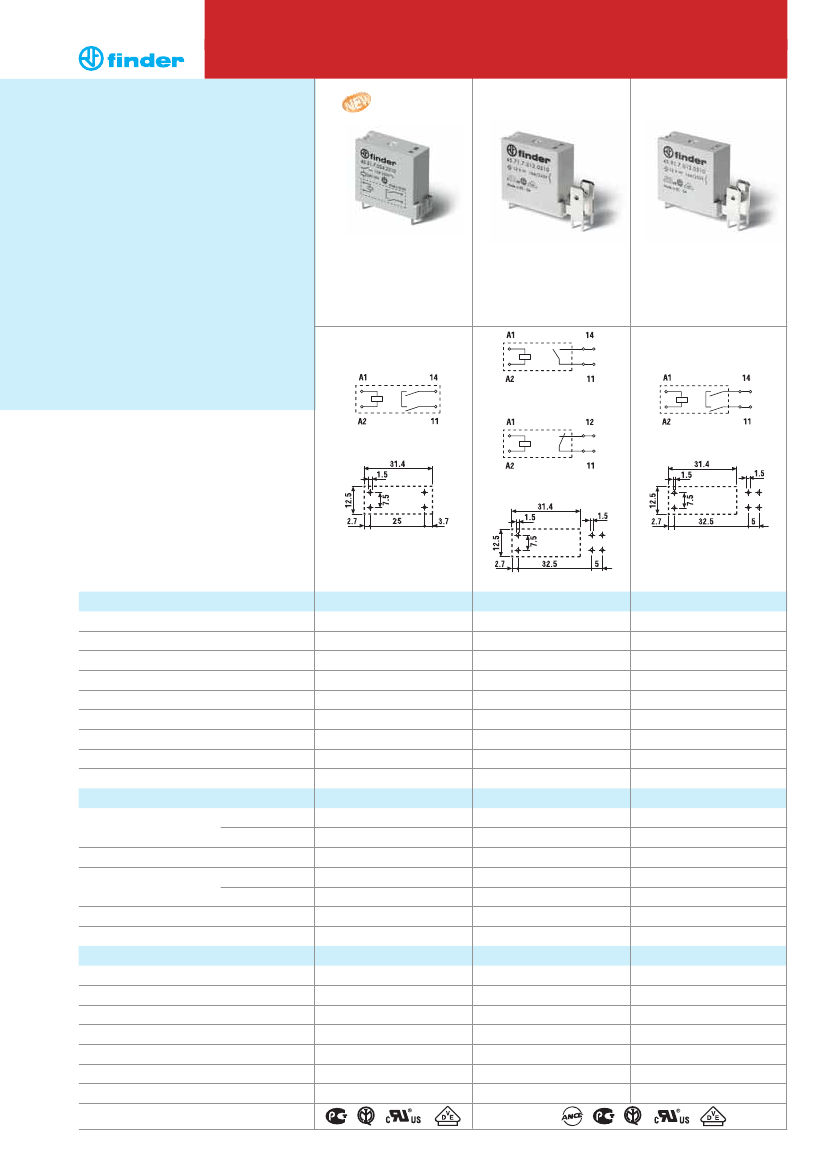

45 Series - Miniature PCB relays 16 A
Features
Relay for +105 °C ambient use
PCB mount - direct for coil and contact terminals
- 45.31, 1 Pole normally open
(≥ 3 mm contact gap)
Relays for +125 °C ambient use
PCB mount - Faston 250 contact connections
- 45.71, 1 Pole normally open or normally closed
- 45.91, 1 Pole normally open
(≥ 3 mm contact gap)
Contact gap
≥
3 mm according to
EN 60730-1 (45.31 and 45.91 type)
•
Sensitive DC coil - 360 mW
•
Cadmium Free option available
•
Reinforced insulation between coil and
contacts according to EN 60335-1
(VDE 0700), with safe separation and 8 mm
clearance and creepage distance
•
6 kV (1.2/50 µs) isolation, coil-contacts
•
Flux proof: RT II standard, (RT III option)
•
45.31
45.71
45.91
NO (SPST-NO),
≥
3 mm gap
•
Max ambient temperature
+105°C
•
PCB mounting
•
1
NO or 1 NC
(SPST-NO or SPST-NC)
•
Max ambient temperature
+125°C
•
PCB mounting + Faston 250
•
1
•
1
NO (SPST-NO),
≥
3 mm gap
•
Max ambient temperature
+125°C
•
PCB mounting + Faston 250
45.71...0310
(1 NO) / (SPST-NO)
45.31...0310
(1 NO / SPST-NO)
45.71...0410
(1 NC) / (SPST-NC)
45.91...0310
(1 NO / SPST-NO)
For outline drawing see page 3
F
OR
UL
RATINGS SEE
:
“General technical information” page
V
Contact specification
Contact configuration
Rated current/Maximum peak current
Rated load AC1
Rated load AC15 (230 V AC)
Single phase motor rating (230 V AC)
Breaking capacity DC1: 30/110/220 V
Minimum switching load
Standard contact material
Coil specification
Nominal voltage (U
N
)
Rated power AC/DC
Operating range
Holding voltage
Must drop-out voltage
Technical data
Mechanical life AC/DC
Electrical life at rated load AC1
Operate/release time
IV-2012, www.findernet.com
Copper side view
1NO (SPST-NO)
≥
3 mm gap
A
VA
VA
kW
A
16/30
250/400
4,000
750
0.55
16/4/1
500 (10/5)
AgNi
Copper side view
Copper side view
1NO or 1NC (SPST-NO or SPST-NC) 1NO (SPST-NO)
≥
3 mm gap
16/30
250/400
4,000
750
0.55
16/0.3/0.13
500 (10/5)
AgCdO
—
6 - 12 - 24 - 48 - 60
—/0.36
—
(0.7…1.2)U
N
—/0.4 U
N
—/0.1 U
N
—/10 · 10
6
100 · 10
3
10/2
6 (8 mm)
1,000
–40…+125
RT II
16/30
250/400
4,000
750
0.55
16/4/1
500 (10/5)
AgNi
—
6 - 12 - 24 - 48 - 60
—/0.36
—
(0.7…1.2)U
N
—/0.4 U
N
—/0.1 U
N
—/10 · 10
6
30 · 10
3
12/2
6 (8 mm)
2,500
–40…+125
RT II
Rated voltage/Maximum switching voltage V AC
mW (V/mA)
V AC (50/60 Hz)
V DC
VA (50 Hz)/W
AC
DC
AC/DC
AC/DC
cycles
cycles
ms
—
6 - 12 - 24 - 48 - 60
—/0.36
—
(0.7…1.2)U
N
—/0.4 U
N
—/0.1 U
N
—/10 · 10
6
30 · 10
3
12/2
6 (8 mm)
2,500
–40…+105
RT II
Insulation between coil and contacts (1.2/50 µs) kV
Dielectric strength between open contacts V AC
Ambient temperature range
Environmental protection
Approvals
(according to type)
°C
1
45 Series - Miniature PCB relays 16 A
Ordering information
Example: 45 series for PCB relay + Faston 250, 1 NO (SPST-NO), 12 V DC coil.
A
B
C
D
4 5
.
7
Series
1
.
7
.
0 1 2
.
0
A:
Contact material
0 = Standard AgCdO
for 45.71,
Standard AgNi
for 45.31 and
45.91
1 = AgNi
2 = AgCdO
3
1
0
D:
Special versions
0 = Flux proof (RT II)
1 = Wash tight (RT III) 45.71 and 45.91 only
C:
Options
1 = None
Type
3 = PCB mount,
≥
3 mm contact gap
7 = PCB + Faston 250 mount
9 = PCB + Faston 250 mount,
≥
3 mm contact gap
No. of poles
1 = 1 pole, 16 A
Coil version
7 = Sensitive DC
Coil voltage
See coil specifications
B:
Contact circuit
3 = NO (SPST)
4 = NC (SPST) 45.71 only
Selecting features and options: only combinations in the same row are possible.
Type
45.31
45.71
45.91
Coil version A
sensitive DC 0 - 2
sensitive DC 0 - 1
sensitive DC 0 - 2
B
3
3-4
3
C
1
1
1
D
0
0-1
0-1
Technical data
Insulation according to EN 61810-1
45.71
Nominal voltage of supply system
Rated insulation voltage
Pollution degree
Insulation between coil and contact set
Type of insulation
Overvoltage category
Rated impulse voltage
Dielectric strength
Insulation between open contacts
Type of disconnection
Overvoltage category
Rated impulse voltage
Dielectric strength
Conducted disturbance immunity
Burst (5...50)ns, 5 kHz, on A1 - A2
Surge (1.2/50 µs) on A1 - A2 (differential mode)
Other data
Bounce time: NO/NC
Vibration resistance (10…150)Hz: NO/NC
Shock resistance
Power lost to the environment
without contact current
with rated current
Recommended distance between relays mounted on PCB
ms
g
g
W
W
mm
3/3
20/10
20
0.4
1.8
≥
5
IV-2012, www.findernet.com
45.31 / 45.91
230/400
250
3
Reinforced (8 mm)
III
6
4,000
Full-disconnection
III
4
2,500/4
level 4 (4 kV)
level 3 (2 kV)
45.31 / 45.91
2/—
20/—
400
2
V AC
V AC
230/400
250
3
Reinforced (8 mm)
III
400
2
kV (1.2/50 µs)
V AC
6
4,000
Micro-disconnection
—
kV (1.2/50 µs)
V AC/kV (1.2/50 µs)
—
1,000/1.5
EN 61000-4-4
EN 61000-4-5
45.71
2
45 Series - Miniature PCB relays 16 A
Contact specification

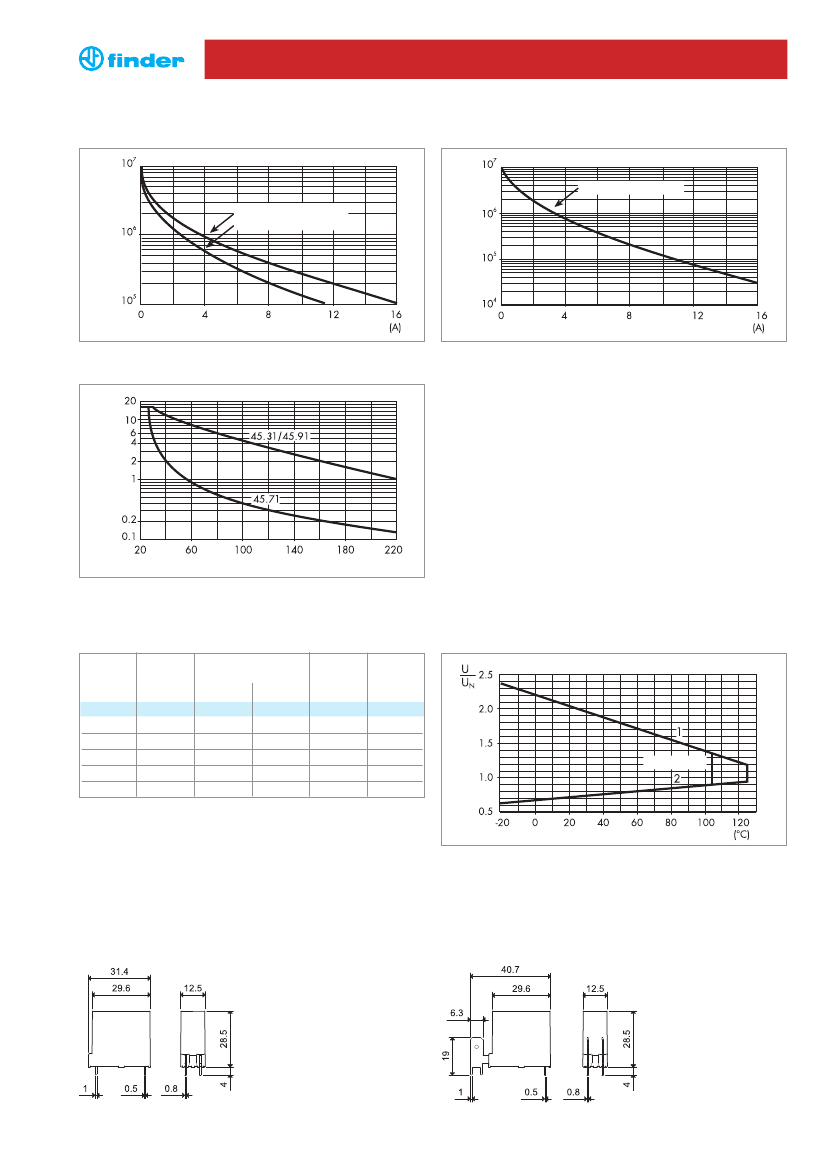

F 45 - Electrical life (AC) v contact current
Type 45.71
F 45 - Electrical life (AC) v contact current
Type 45.31 / 45.91
Resistive load - cosϕ = 1
Resistive load - cosϕ = 1
Inductive load - cosϕ = 0.4
Cycles
H 45 - Maximum DC1 breaking capacity
•
When switching a resistive load (DC1) having voltage and current
values under the curve, an electrical life of
≥
100·10
3
cycles (45.71) and
≥
30·10
3
cycles (45.31, 45.91) can be expected.
•
In the case of DC13 loads, the connection of a diode in parallel with
the load will permit a similar electrical life as for a DC1 load.
Note: the release time for the load will be increased.
DC breaking current (A)
DC voltage (V)
Coil specifications
DC coil data - 0.36 W sensitive
Nominal
voltage
U
N
V
6
12
24
48
60
Coil
code
Operating range
U
min
V
4.2
8.4
16.8
33.6
42
U
max
V
7.2
14.4
28.8
57.6
72
Resistance Rated coil
consumption
R
I
at U
N
Ω
mA
100
60
400
30
1,600
15
6,400
7.5
10,000
6
R 45 - DC coil operating range v ambient temperature
7.006
7.012
7.024
7.048
7.060
Cycles
limit for 45.31
1
- Max. permitted coil voltage.
2
- Min. pick-up voltage with coil at ambient temperature.
Outline drawings
Type 45.31
Type 45.71 / 91
IV-2012, www.findernet.com
3
