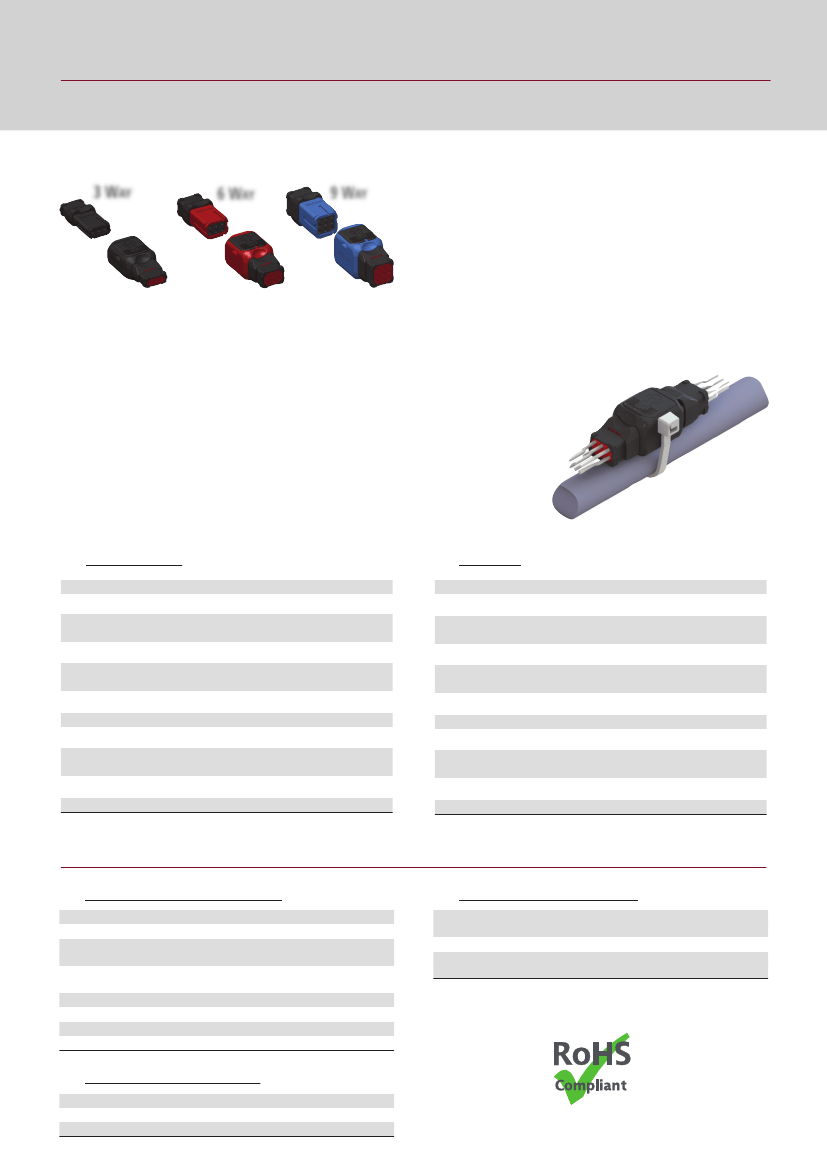

Introduction
369
3 W
AY
6 W
AY
9 W
AY
The Deutsch 369® series has been developed to provide a
range of high reliability, lightweight, compact and
cost-efficient connectors suited to aerospace and other
harsh environment applications. The product is particularly
suited to civil aerospace cabin systems applications and is
based on the successful Deutsch ARINC 809/EN4165 single
module connector. The 369 is designed for applications
where fewer contacts are needed in each connector and
shielding is unnecessary. There are three standard contact
layouts available in the Deutsch 369 series; 3, 6 and 9 way.

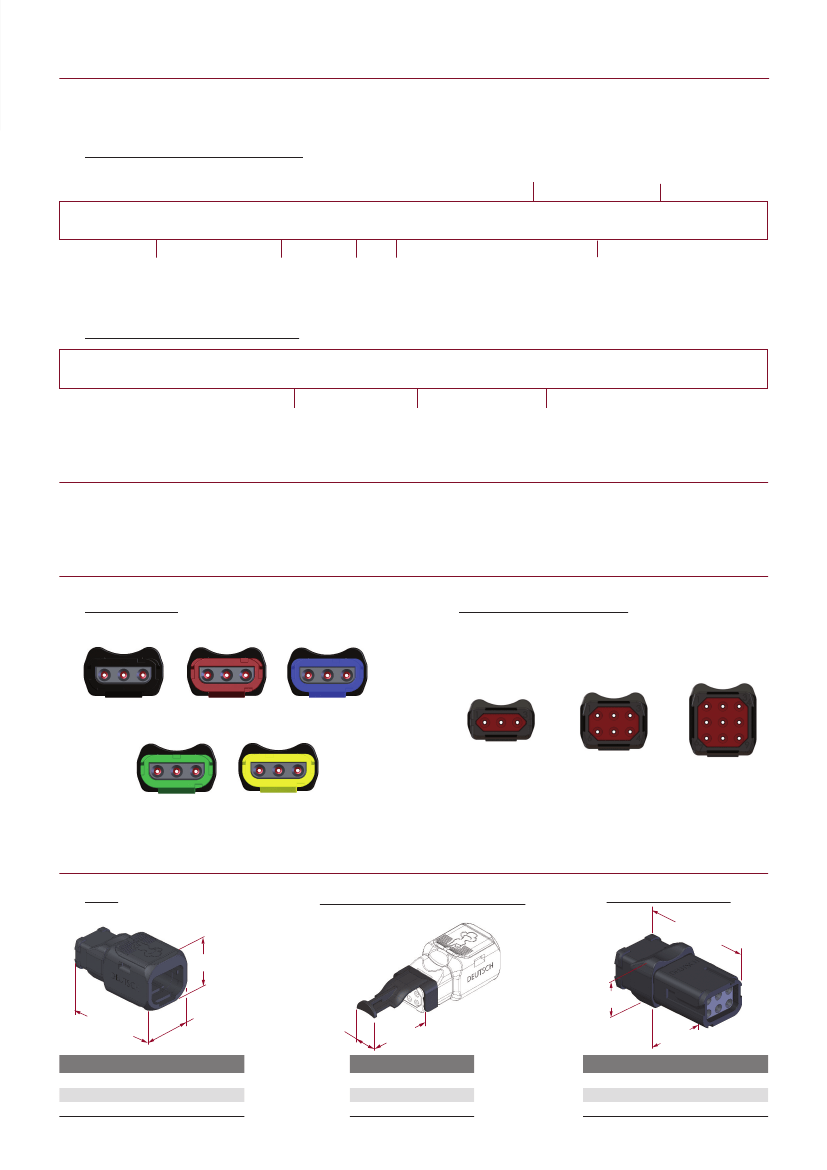

Installation and maintenance of cabling is simple, quick
and error-proof with a range of individually colour-coded
keying options. Furthermore, each mated half of the
connector can be configured with either male or female
contacts, doubling the keying configurations available and
electrically protecting contacts on the powered-side of
your system.
Aerospace standard AS39029 contacts can be easily
extracted and reinserted from the rear of the connector
with standard tooling. The 369 is particularly suitable for
blind-mating or low visibility conditions with the
scoop-proof interface preventing damage to contacts.
The connectors are fully sealed for use in areas with high
levels of moisture and are manufactured from high
performance composite materials which conform to the low
smoke, toxicity and flammability requirements of the
aerospace industry.
The 369 series is complimented by
a range of accessories including
easy-fit backshells.
I
•
•
•
•
•
•
•
•
•
•
•
Key features
3, 6 and 9 way configurations
Based on proven ARINC 809 / EN4165
Aerospace grade composite materials
Robust design
Fully sealed cable and mating interface
Mounting of inline with cable-tie
Button latching mechanism
colour-coded keyed shells
Scoop-proof interface
Military standard AS39029 contacts
Latch security feature
I
•
•
•
•
•
•
•
•
•
•
•
Benefits
Suitable for broad range of applications
High reliability in aerospace environment
Extremely compact and lightweight with low smoke,
toxicity and flammability
Excellent temperature, vibration and fluids resistance
Suitable for areas where high moisture levels are
present
Simple quick mounting
Quick positive and audible locking
Quick and accurate installation of cabling
Prevents damage to contacts in blind-mating
conditions
Standard termination tooling and wire
Cable-tie prevents inadvertent un-mating
Technical characteristics
I
Mechanical characteristics
: -55°C to +175°C
(-67°F to +347°F)
: I.A.W EN2591-317
: 12.1kPa (1.75psi)
[≈15km/(50000ft) altitude] / IP67
: EN2591-403, Method B, Level E,
8h/axis
: I.A.W. FAR 25.853, Appendix F
: I.A.W. FAR 25.853, Appendix F
: 500 mating cycles
: EN2591-402, Method A, severity 100
I
Electrical characteristics
: 1000V RMS mated after altitude
immersion, <2mA leakage
: 5 Amps (size 22)
: >1GΩ @ 500V DC after altitude
immersion
Operating temperature
Fluid resistance
Sealing
Vibration
Smoke & Toxicity
Flammability
Durability
Shock
Withstanding voltage, DWV
Operating current
Insulation resistance
I
Material characteristics
Shells, Insulators and backshells : High performance thermoplastic
Contacts
: Copper alloy, gold plated
Seals
: Fluorosilicone rubber
