Part Number

Search

51730-159

Description
Board Connector, 28 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size169KB,4 Pages
ManufacturerJDS Uniphase Corporation ( VIAVI )
Websitehttp://www.jdsu.com/index.html
Download Datasheet Parametric View All

51730-159 Overview

Board Connector, 28 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

51730-159 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresTERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width0.574 inch
subject depth0.93 inch
body length2.25 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS24P4
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Manufacturer's serial number51730
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts28
UL Flammability Code94V-0
Evacuation force-minimum value.1668 N
Base Number Matches1

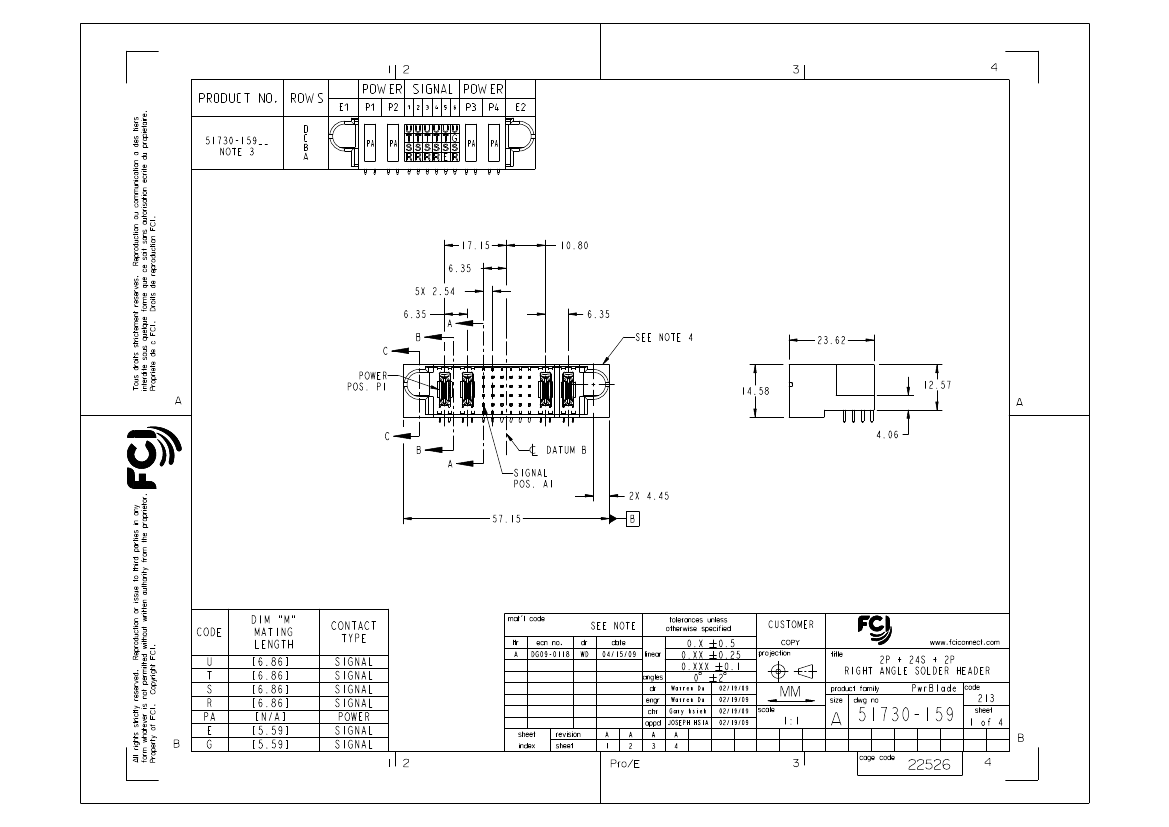

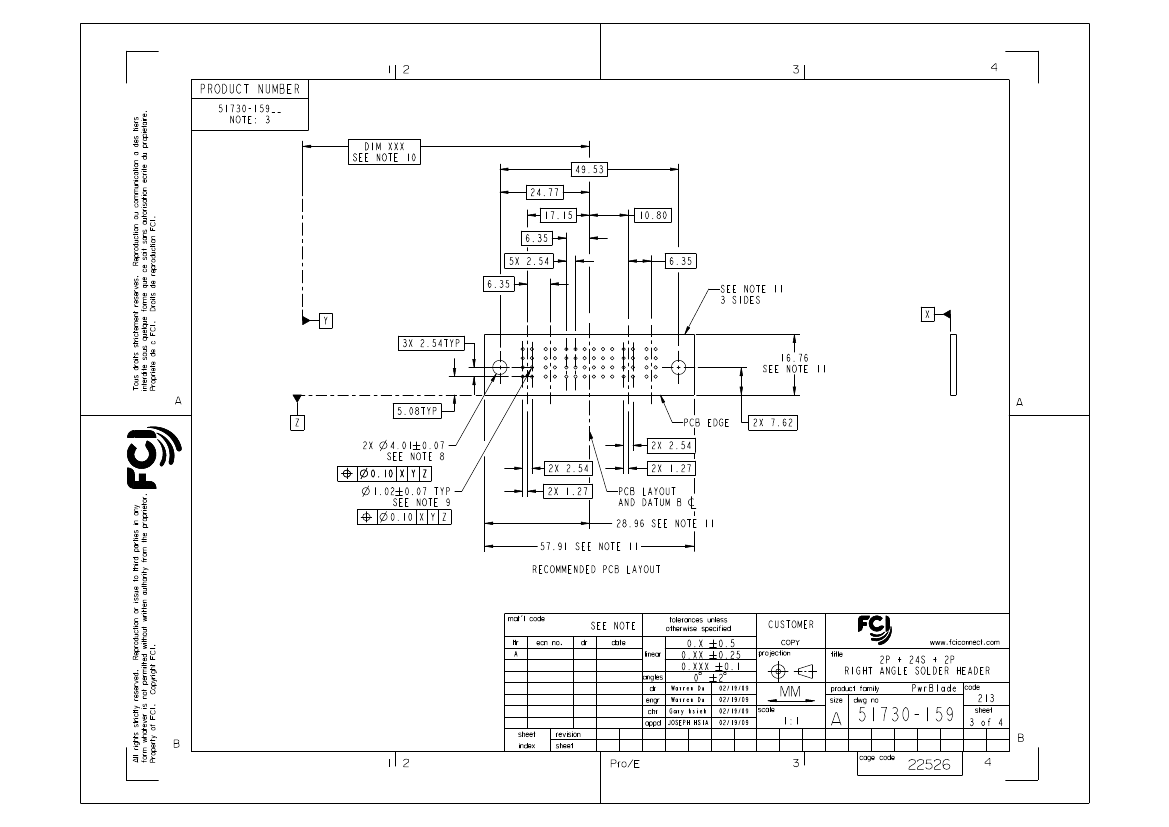

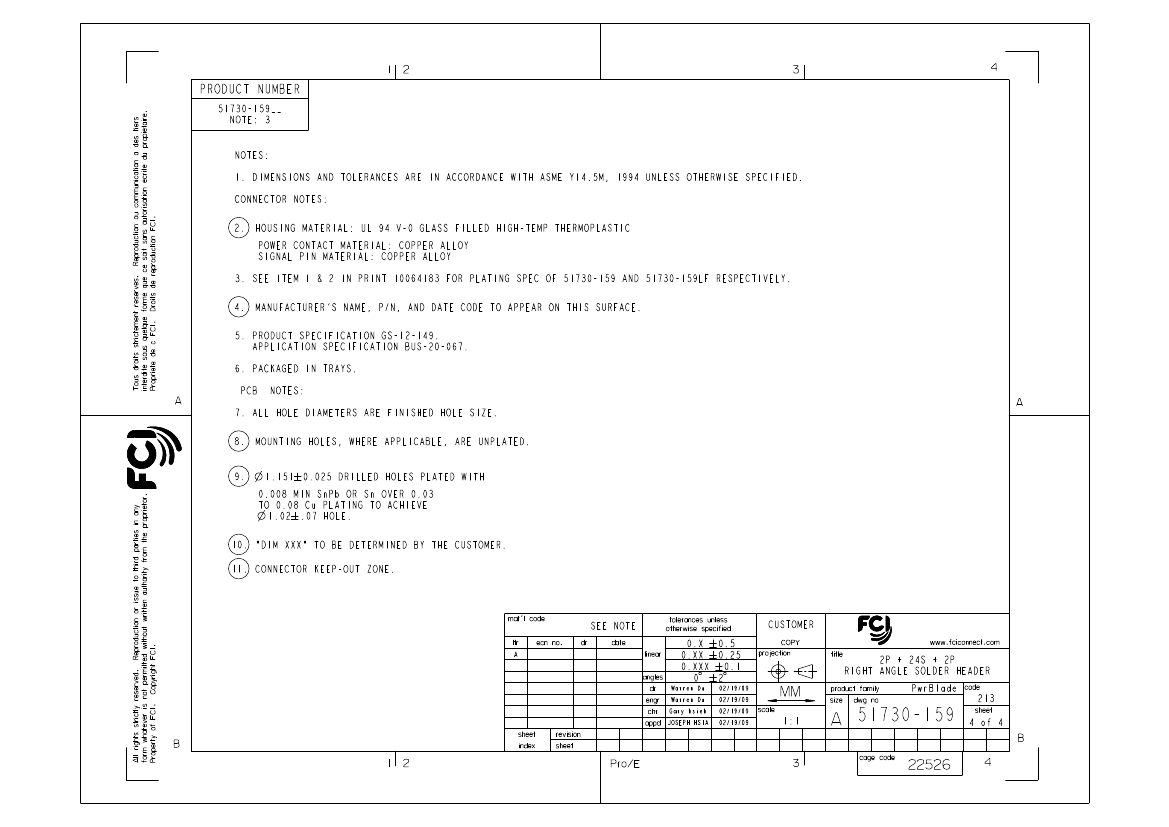

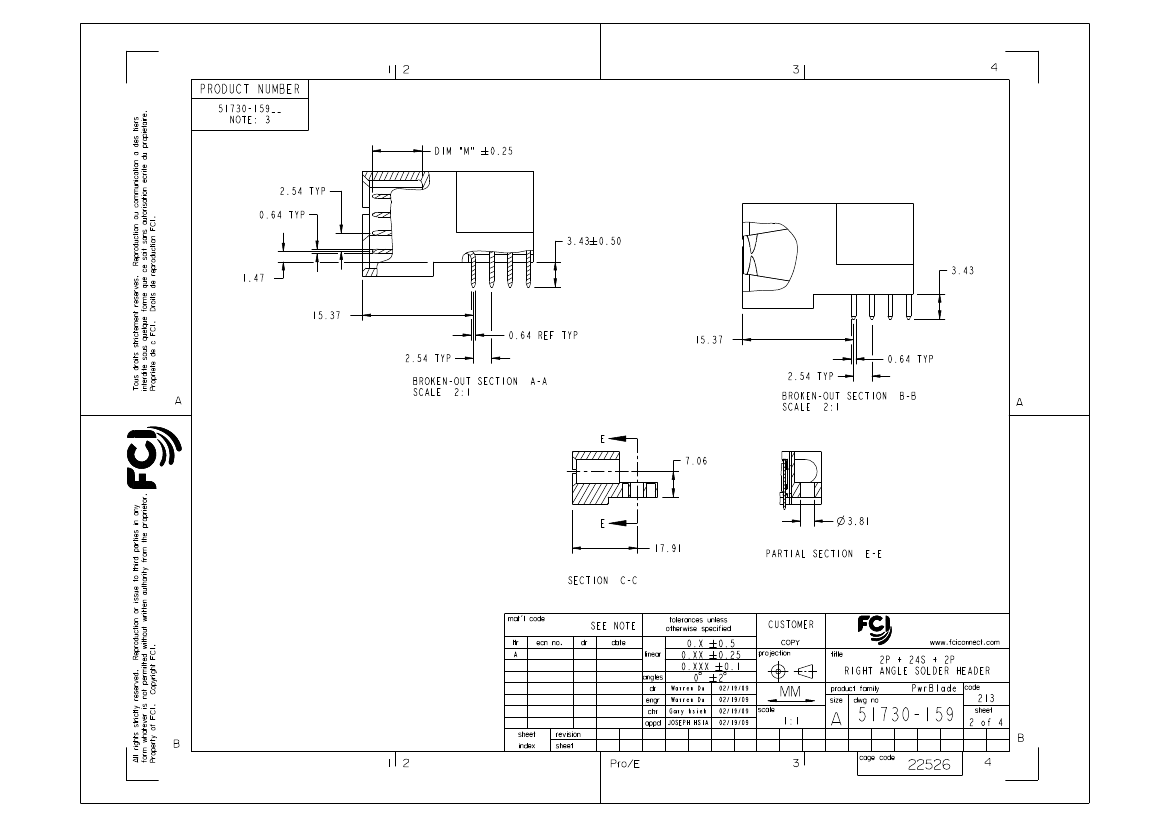

PDM: Rev:A
STATUS:
Released
Printed: Dec 20, 2010
.
