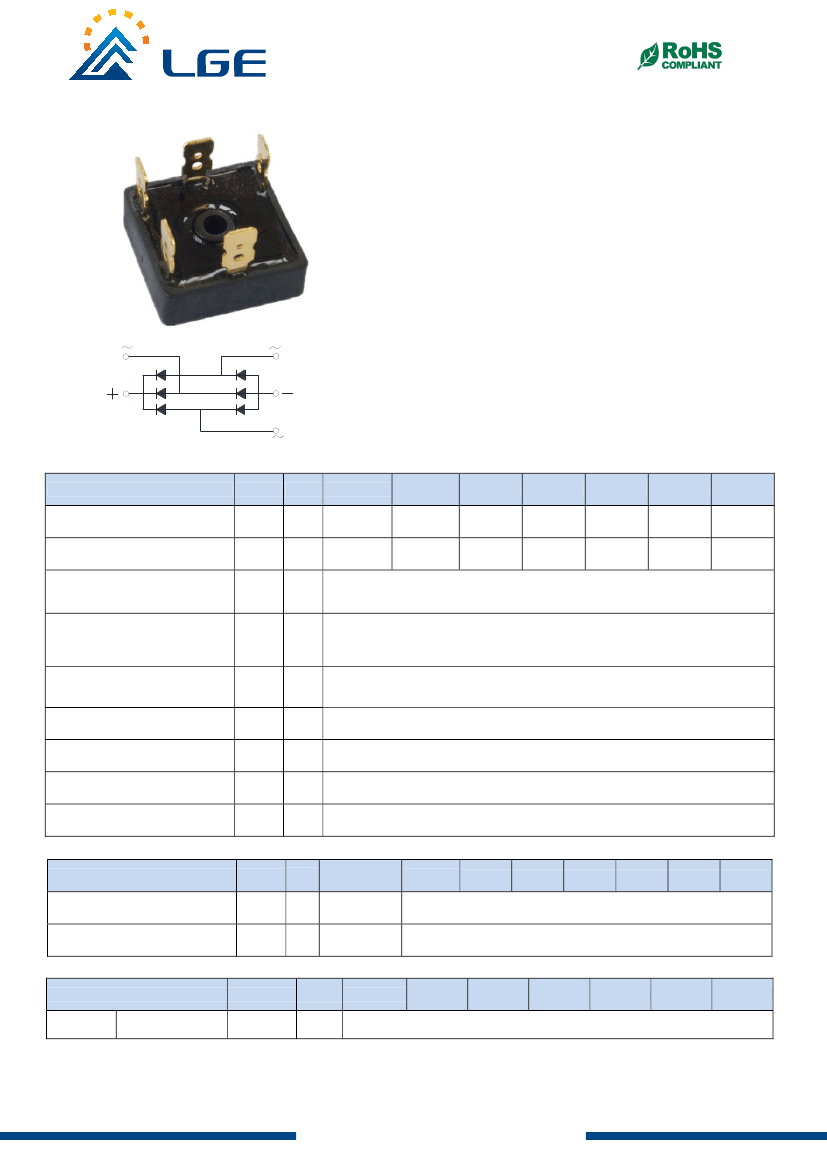

MT1504 THRU MT1516

Three Phase Bridge Rectifiers

‐

Features

● UL recognition, file #E230084

● Glass passivated chip

● High surge current capability

● Low thermal resistance

● Solder dip 275 °C max. 7 s, per JESD 22-B106

Typical Applications

General purpose use in AC/DC bridge full wave

rectification for power supply, home appliances, office

equipment, industrial automation applications.

Mechanical Data

●

Package:

Molding compound meets UL 94 V-0

flammability rating, RoHS-compliant

●

Terminals:

Tin plated leads, solderable

per J-STD-002 and JESD22-B102

■

Maximum Ratings

(Ta=25℃ Unless otherwise specified)

PARAMETER

Device marking code

Repetitive Peak Reverse Voltage

Average Rectified Output Current

@60Hz sine wave, R-load, With

heatsink, Tc=55℃

Surge(Non-repetitive)Forward

Current

@60Hz Half- sine Wave, 1 cycle,

Ta=25℃

Current Squared Time

@1ms≤t≤8.3ms Tj=25℃, Rating of

per diode

Storage Temperature

Junction Temperature

Dielectric Strength, Terminals to

case, AC 1 minute

Mounting Torque

VRRM

SYMBOL UNIT

MT1504

400

MT1506

600

MT1508

800

MT1510

1000

MT1512

1200

MT1514

1400

MT1516

1600

IFSM

180

Tstg

Vdis

TOR

℃

kg·cm

134.5

-55~+150

2.5

■

Electrical Characteristics

(Ta=25℃ Unless otherwise specified)

PARAMETER

Maximum instantaneous forward

voltage drop per diode

Maximum DC reverse current at

rated DC blocking voltage per diode

SYMBOL UNIT

VFM

IRRM

TEST

CONDITIONS

IFM=7.5A

MT1504

MT1506

MT1508

MT1510 MT1512 MT1514

1.2

MT1516

μA VRM=VRRM

■

Thermal Characteristics

(Ta=25℃ Unless otherwise specified)

PARAMETER

Thermal

Resistance

Between junction and

case, With heatsink

SYMBOL

J-C

UNIT

℃/W

MT1504

MT1506

MT1508

MT1510

3.2

MT1512

MT1514

MT1516

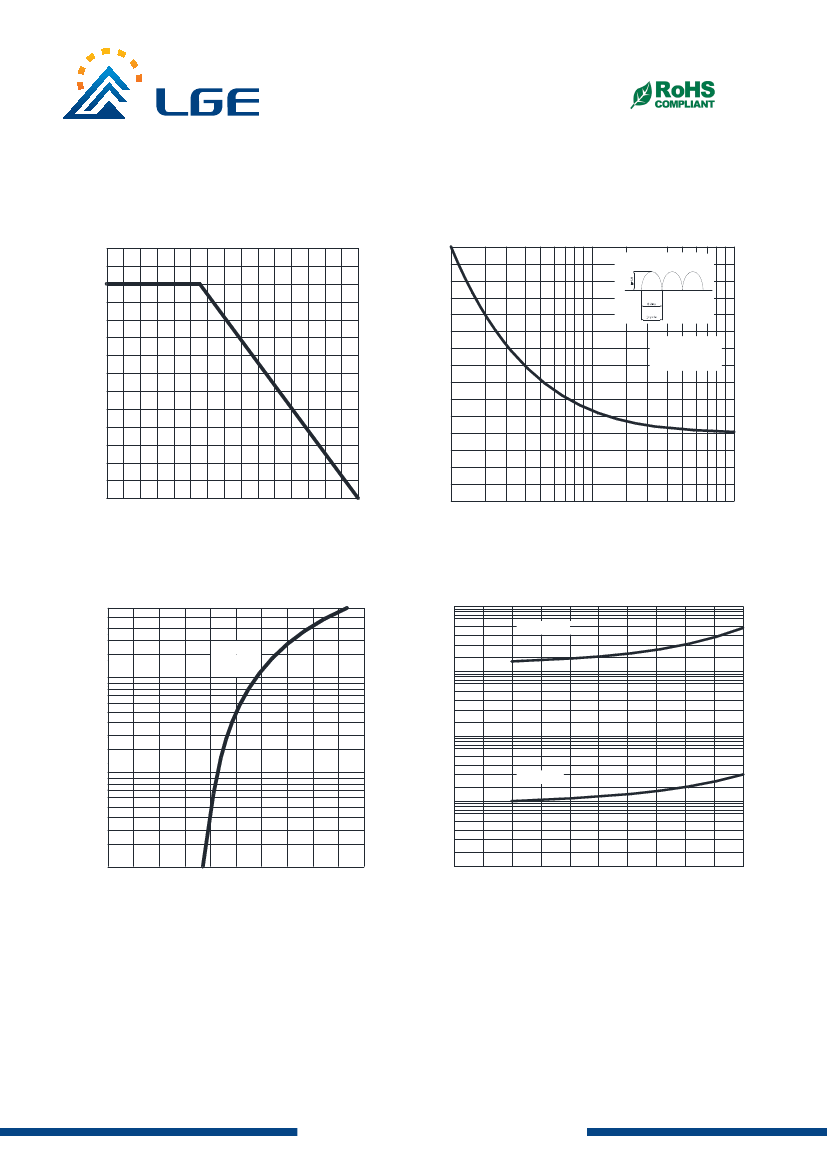

Revision:20170701-P1

www.lgesem i

mail:lge@lgesemi.com
