5-147383-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-147383-7

5-147383-7: Description70 50/50 HDR SMT.390 W/HD VC; CategoryThe connector The connector; File Size259KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-147383-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-147383-7	-	-	View	Buy Now

5-147383-7 Overview

70 50/50 HDR SMT.390 W/HD VC

5-147383-7 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2093833854
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	142 weeks 5 days
Samacsys Description	70 50/50 HDR SMT.390 W/HD VC
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-10 19:58:25
YTEOL	9.15
Other features	AMPMODU
body width	0.225 inch
subject depth	0.367 inch
body length	1.872 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	16 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	200 Cycles
Electromagnetic interference shielding	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.7792 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Power Connector Ratings	.5A
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.6228 mm
Panel mounting	NO
Plating thickness	30u inch
polarization key	POLARIZED
Rated current (signal)	0.5 A
Guideline	CSA, LR, U
reliability	COMMERCIAL
Terminal length	0.03 inch
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	70
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N

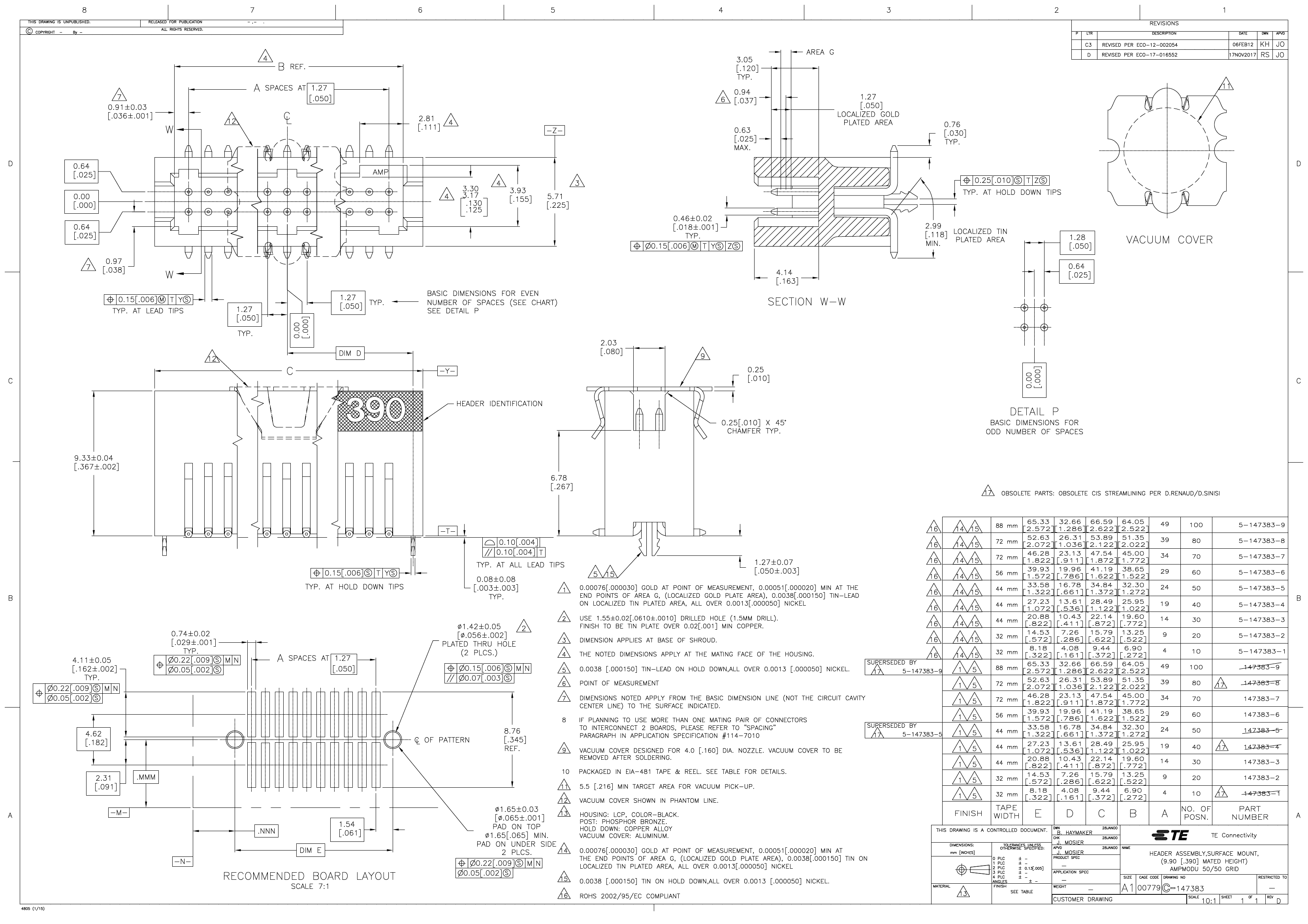

Preview
