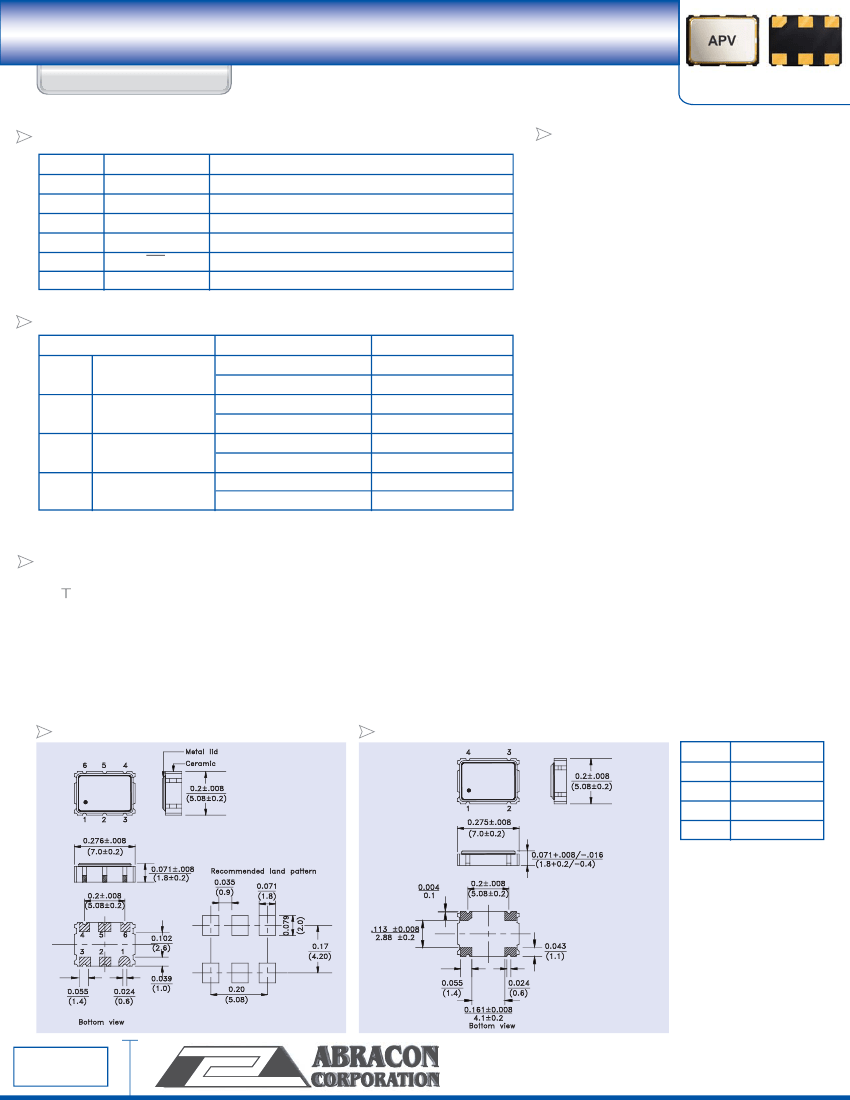

CERAMIC SMD CRYSTAL CLOCK OSCILLATOR
APV SERIES
: PRELIMINARY
• Sub 1pS ( 12kHz - 20MHz )
5.0 x 7.0 x 1.8mm
FEATURES:
• Low Power ( 2.5, 3.3V )
• Low Jitter
• CMOS, PECL or LVDS Output
APPLICATIONS:
• SONET, Fiber Channel, SERDES
HDTV, OBSAI, CPRI, PCI Express, 1394
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
PARAMETERS
Frequency Range
Operating Temperature
Storage Temperature
Overall Frequency Stability
Supply Voltage (Vdd)
Phase Jitter RMS
(12KHz-20MHz)
Period Jitter (peak to peak)
Tri-State Function
38 MHz to 640 MHz
0°C to + 70°C (see options)
-55°C to +125°C
± 50 ppm max. (see options)
2.25V to 3.63V (2.5V to 3.3V ± 10%)
0.5pS Typ, 1pS Max
20pS typ., 30pS max up to 320 MHz; 50pS typ., 70pS max 321MHz to 640MHz
For CMOS and LVDS
= "1" (VIH ³ 0.7* Vdd) or open: Oscillation;
"0" (VIL < 0.3* Vdd): No oscillation/Hi Z
For PECL See TriState Pin Operation table P Option Standard PECL OE
"0" (VIL < 0.3* Vdd): or Open: Oscillation; "1" (VIH ³ 0.7* Vdd): No oscillation/Hi Z
P Option
= "1" (VIH ³ 0.7* Vdd) or open: Oscillation;
"0" (VIL < 0.3* Vdd): No oscillation/Hi Z
65mA max (for 38MHz<Fo<320MHz), 90mA max (320MHz<Fo<640MHz)
45% min, 50% typical, 55% max.
V
DD
-1.025V min, V
DD
-0.880V max.
V
DD
-1.810V min, V
DD
-1.620V max.
1.5ns max, 0.6nSec typical
1.5ns max, 0.6nSec typical
30mA max (38MHz<Fo<320MHz)
45% min, 50% typ, 55% max,
(0.3V ~ 3.0V w/15 pF load) 0.7nS Typ.; (20%-80% w/50Ω Load) 0.3nS Typ.
PECL
Supply Current (I
DD
)
Symmetry (Duty Cycle)
Output Logic High
Output Logic Low
Rise time
Fall time
CMOS
Supply Current
Symmetry (Duty Cycle)
Rise/ Fall Time
LVDS
45mA max(for 38MHz<Fo<320MHz), 70mA max (320MHz<Fo<640MHz)
Supply Current (I
DD
)
Output Clock Duty Cycle @ 1.25V
45% min, 50% typical, 55% max
Output Differential Voltage (V
OD
)
247mV min, 355mV typical, 454mV max
VDD Magnitude Change (∆V
OD
)
-50mV min, 50mV max
Output High Voltage
V
OH
= 1.6V max, 1.4V typical
Output Low Voltage
V
OL
= 0.9V min, 1.1V typical
Offset Voltage [R
L
= 100Ω]
V
OS
= 1.125V min, 1.2V typical, 1.375V max
Offset Magnitude Voltage[RL = 100Ω]
∆V
OS
= 0mV min, 3mV typical, 25mV max
Power-off Leakage (I
OXD
) [Vout=VDD or GND, VDD=0V]
±10µA max, ±1µA typical
Differential Clock Rise Time (t
r
) [R
L
=100Ω, CL=10pF]
0.7ns typical, 1.0ns max, 0.2nS min
Differential Clock Fall Time (t
f
) [R
L
=100Ω, CL=10pF]
0.7ns typical, 1.0ns max, 0.2nS min
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
rev3.1-8/06
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
CERAMIC SMD CRYSTAL CLOCK OSCILLATOR
APV SERIES
PIN ASSIGNMENTS:
PIN #
1
2
3
4
5
6
NAME
Tri-state
NC
GND
Q
Q
V
DD
DESCRIPTION
Tri-state
No Connect
Ground
PECL, LVDS
Complimentary PECL, LVDS
VDD Connection
: PRELIMINARY
MARKING:
- TUH
5.0 x 7.0 x 1.8mm
| | | | | | | | | | | | | | |
- APV ZYX
Frequency
T=First “ten” digit of frequency,
U=First “unit” of frequency,
H=First “tenth” digit of freq,
Ex: 100 for 10.0MHz;
143 for 14.31818 MHz)
(Z: Month, A to L;
Y: Year, 5 for 2005;
X: Traceability Code)
TRI-STATE PIN OPERATION:
OUTPUT TYPE OPTION
P
P1
V
C
PECL
PECL1
LVDS
CMOS
PIN 1 LOGIC LEVEL*
0 (Default)
1
1
0
0
1 (Default)
0
1 (Default)
OUTPUT STATE
Enabled
Tri-state
Enabled
Tri-state
Tri-state
Enabled
Tri-state
Enabled
*Connect to VDD from logic level "1", connect to ground for logic level "0".
OPTIONS AND PART IDENTIFICATION (Left blank if standard):
APVX - Frequency - Temperature - Frequency Stability - Output - Packaging
Vdd options:
Blank
(3.3Vdc±10%V)
1
(2.5Vdc±10%V)
Temperature:
E
for -20°C to +70°C
L
for -40°C to +85°C
Stability options:
R
for ± 25 ppm max
S
for ± 20 ppm max
Packaging option:
T
for Tape and Reel
(1,000pcs/reel)
Output options:
P
= PECL
P1
= PECL1
V
= LVDS
C
= CMOS
PECL & LVDS DRAWING:
CMOS DRAWING:
PIN #
1
2
3
4
NAME
Tri-state
GND/Case
Output
Vdd
Dimensions: inch (mm)
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
rev3.1-8/06
Dimensions: inch (mm)
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
