LB1939T-MPB-E

Description
Motor Driver, Constant Voltage/Current, H-Bridge, 2-Channel, TSSOP20 4.4x6.5 / TSSOP20 (225 mil), 70-FNFLD
CategoryOther integrated circuit (IC)    The signal circuit
File Size232KB,7 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Download Datasheet Parametric View All

LB1939T-MPB-E Online Shopping

Suppliers Part Number Price MOQ In stock
LB1939T-MPB-E - - View Buy Now

LB1939T-MPB-E Overview

Motor Driver, Constant Voltage/Current, H-Bridge, 2-Channel, TSSOP20 4.4x6.5 / TSSOP20 (225 mil), 70-FNFLD

LB1939T-MPB-E Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
MakerKEMET
package instructionTSSOP, TSSOP20,.25
Contacts20
Manufacturer packaging code948AX
Reach Compliance Codecompliant
Factory Lead Time1 week
JESD-30 codeR-PDSO-G20
JESD-609 codee6
Humidity sensitivity level3
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Encapsulate equivalent codeTSSOP20,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply3,5 V
Certification statusNot Qualified
Maximum supply current (Isup)7 mA
surface mountYES
technologyBIPOLAR
Temperature levelOTHER
Terminal surfaceTin/Bismuth (Sn/Bi)
Terminal formGULL WING
Terminal pitch0.635 mm
Terminal locationDUAL

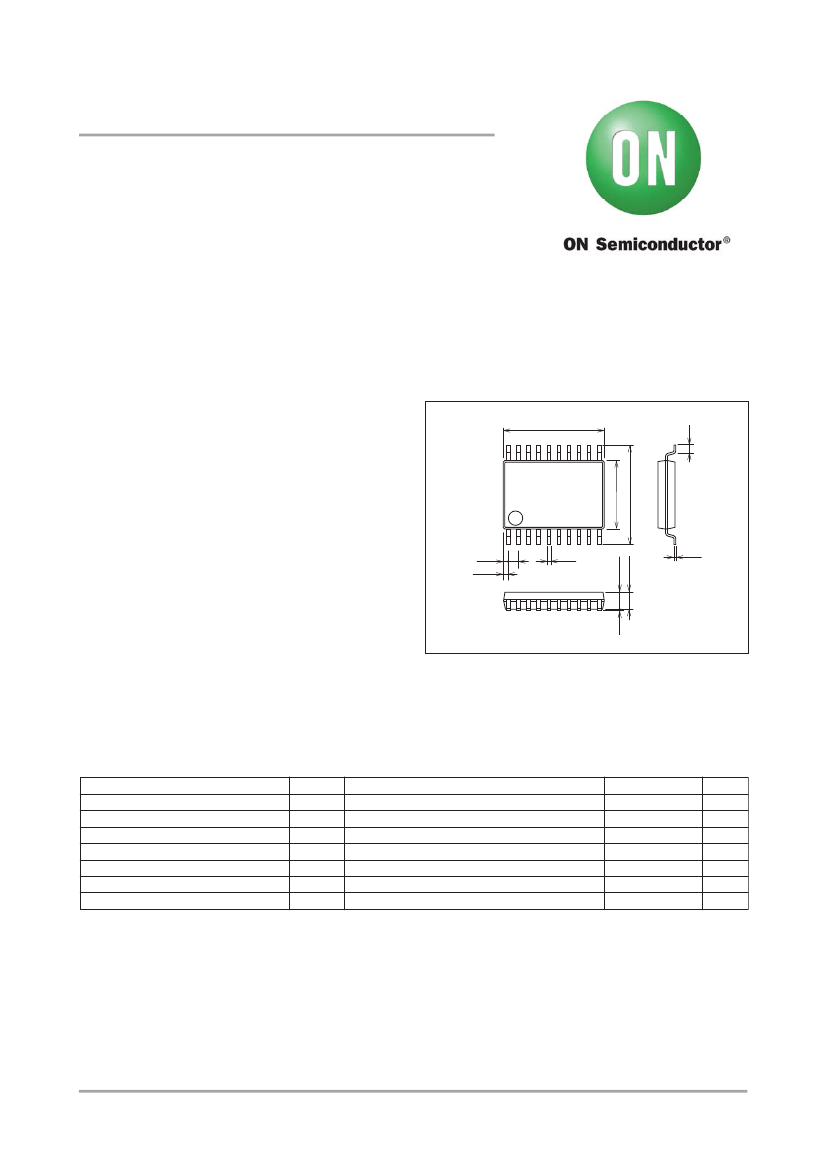

LB1939T
2 Channel H Bridge Constant
Voltage/Constant Current Driver
www.onsemi.com

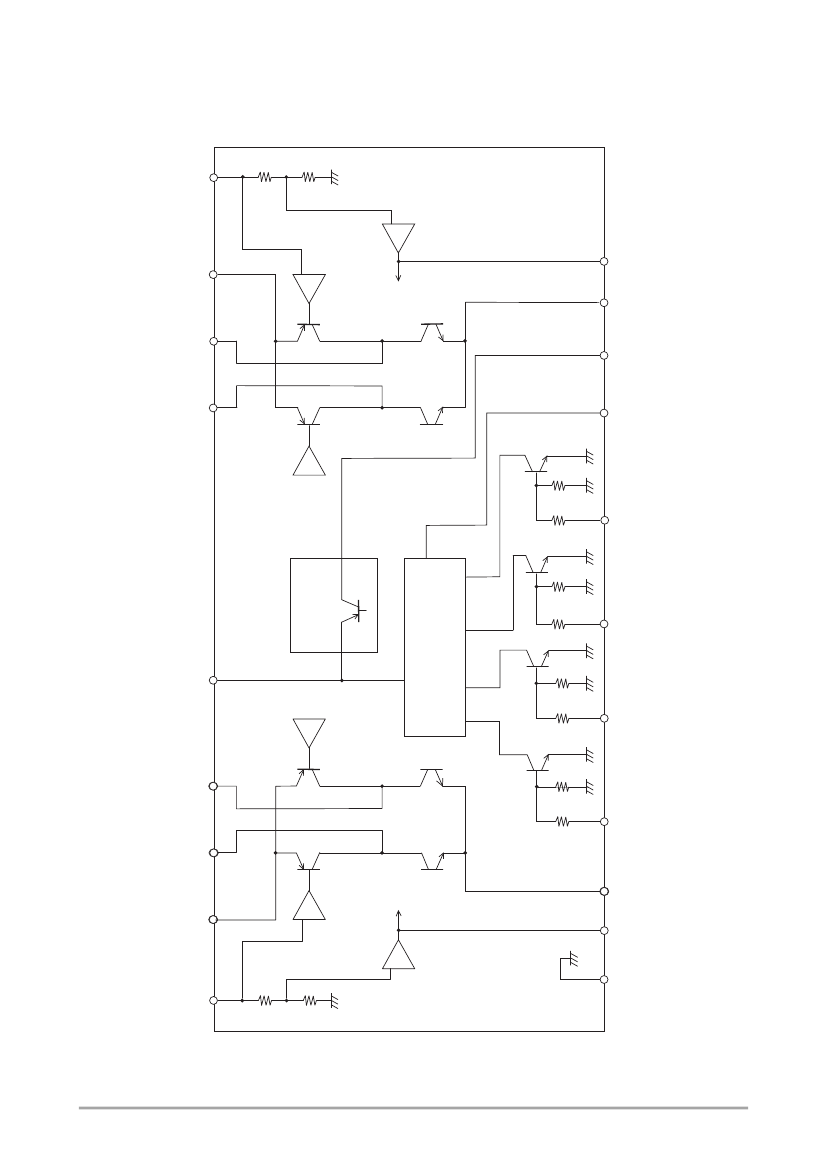

Overview
The LB1939T is a two-phase excitation bipolar stepping
motor driver that features low voltage operation, a low
saturation voltage, and low power consumption. It
supports constant voltage and constant current drive, can
control two iris motors, and is optimal for shutter, iris, and
AF drive in 3 V battery operated still digital cameras and
other battery operated equipment.
Package Dimensions
unit: mm
3246-TSSOP20
[LB1939T]
20
11
0.5
4.4
6.4
0.08
(1.0)
1.2max
0.15
6.5
Features
• Low-voltage drive
— Dual power supply operation: VS = 1.6 to 7.5 V,
V
DD
= 1.9 to 6.5 V
— Single power supply operation: VS = V
DD
= 1.9 to
7.5 V
• Low saturation voltage output: Vosat = 0.3 V at I
O
=
200 mA
• Supports constant voltage and constant current drive
• Built-in reference voltage circuit (Vref = 0.9 V)
• Miniature, thin form package (Thickness t = 1.1 mm)
0.65
(0.33)
1
0.22
10
TSSOP20
Specifications
Absolute Maximum Ratings
at Ta = 25°C
Parameter
Maximum supply voltage
Applied output voltage
Maximum output current: OUT1, 2, 3, and 4
Applied input voltage
Allowable power dissipation
Operating temperature
Storage temperature
3
Symbol
V
Bmax
V
OUT
I
Omax
V
IN
Pdmax
Topr
Tstg
VS1, VS2, V
DD
OUT1, 2, 3, 4
t
10 ms
ENA, IN, VC
Conditions
Ratings
–0.3 to +10.5
–0.3 to +10.5
400
10.5
0.8
–20 to +85
–55 to +150
Unit
V
V
mA
V
W
°C
°C
When mounted on a printed circuit board*
Note: Circuit board: 114.3
76.1
1.6 mm glass epoxy board
©
Semiconductor Components Industries, LLC, 2013
December 2013 - Rev. 0
1
Publication Order Number :
LB1939T/D
