8D0-13F26SN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 8D0-13F26SN

8D0-13F26SN: Descriptioncircular mil spec connector SQ flange, size 13 26s, SS nickel; CategoryThe connector; File Size1MB，11 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

8D0-13F26SN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8D0-13F26SN	-	-	View	Buy Now

8D0-13F26SN Overview

circular mil spec connector SQ flange, size 13 26s, SS nickel

8D0-13F26SN Parametric

Parameter Name	Attribute value
Manufacture	Souriau
Product Category	Circular MIL Spec Connec
MIL Type	MIL-DTL-38999 III
Shell Size	13
Shell Style	Flange Mou
Contact Gende	Socket (Female)
Number of Positions	8
Insert Arrangeme	13-26
Contact Material	Copper Alloy
Contact Plating	Gold
Mounting Style	Cable
Termination Style	Crim
Current Rating	5 A, 23 A
Mounting Angle	Straigh
Shell Material	Aluminum
Shell Plating	Nickel

Preview

Download Datasheet

View All

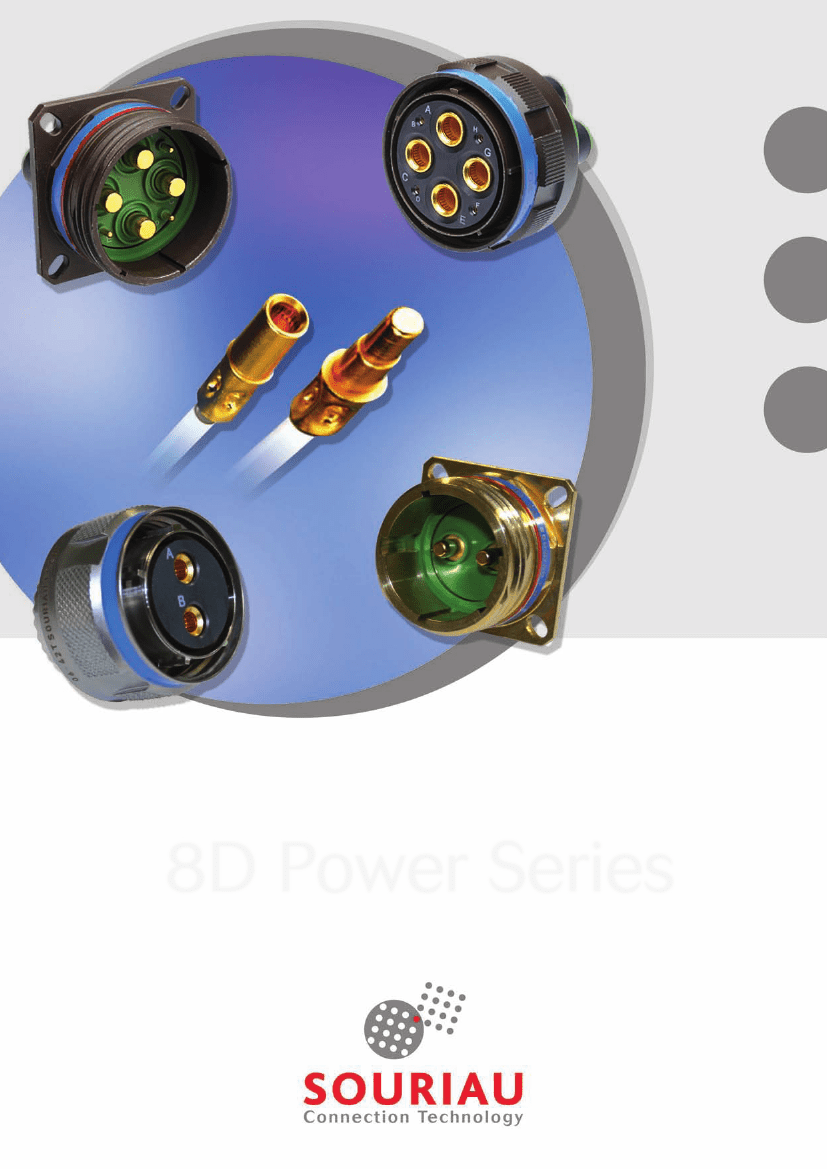

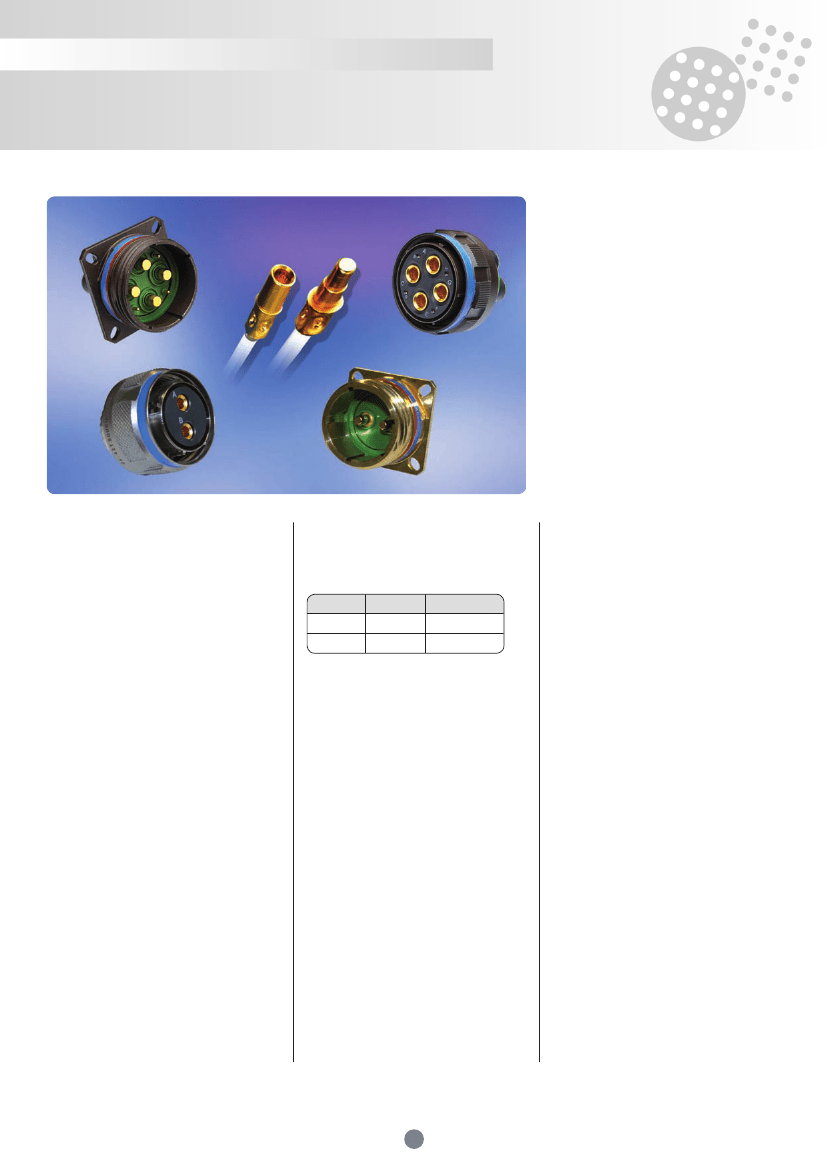

8D Power Series

8D Power Series

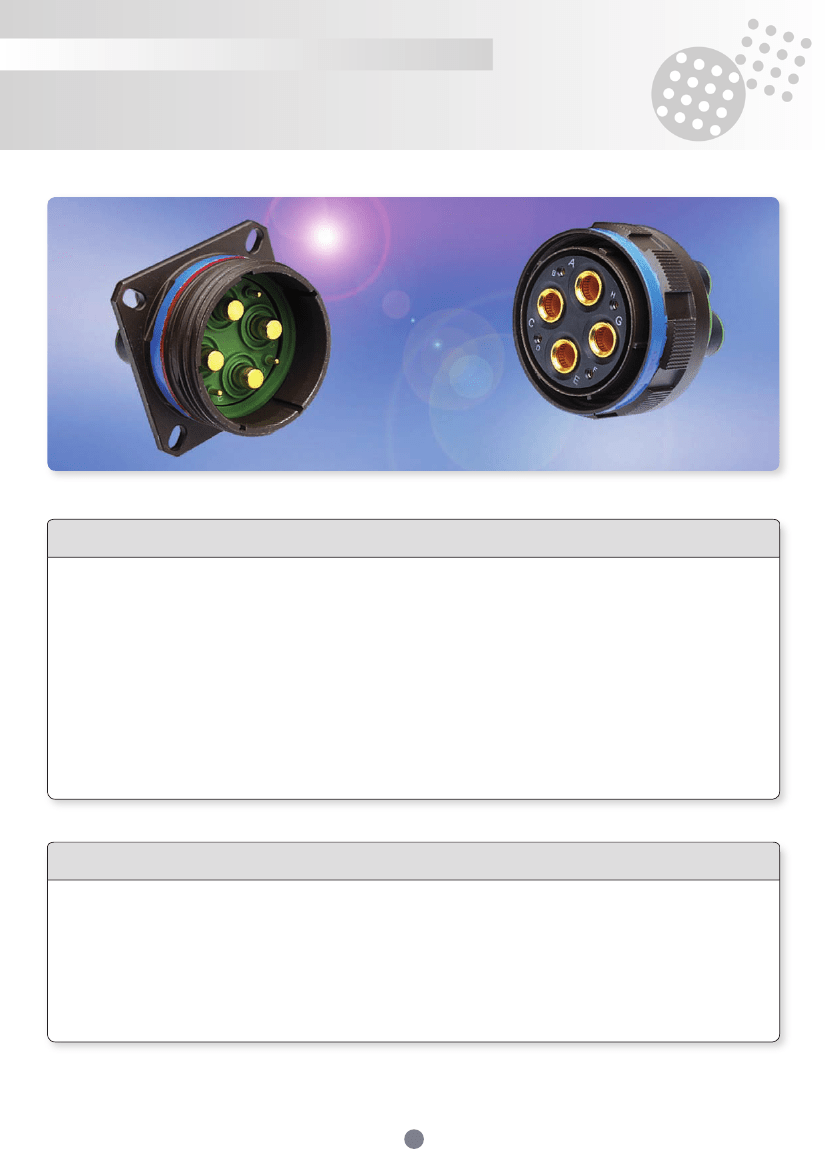

Presentation

8D power series is a range extension of standard aeromil product line to adress high power supply in harsh

environment for civil and military aeronautics market.

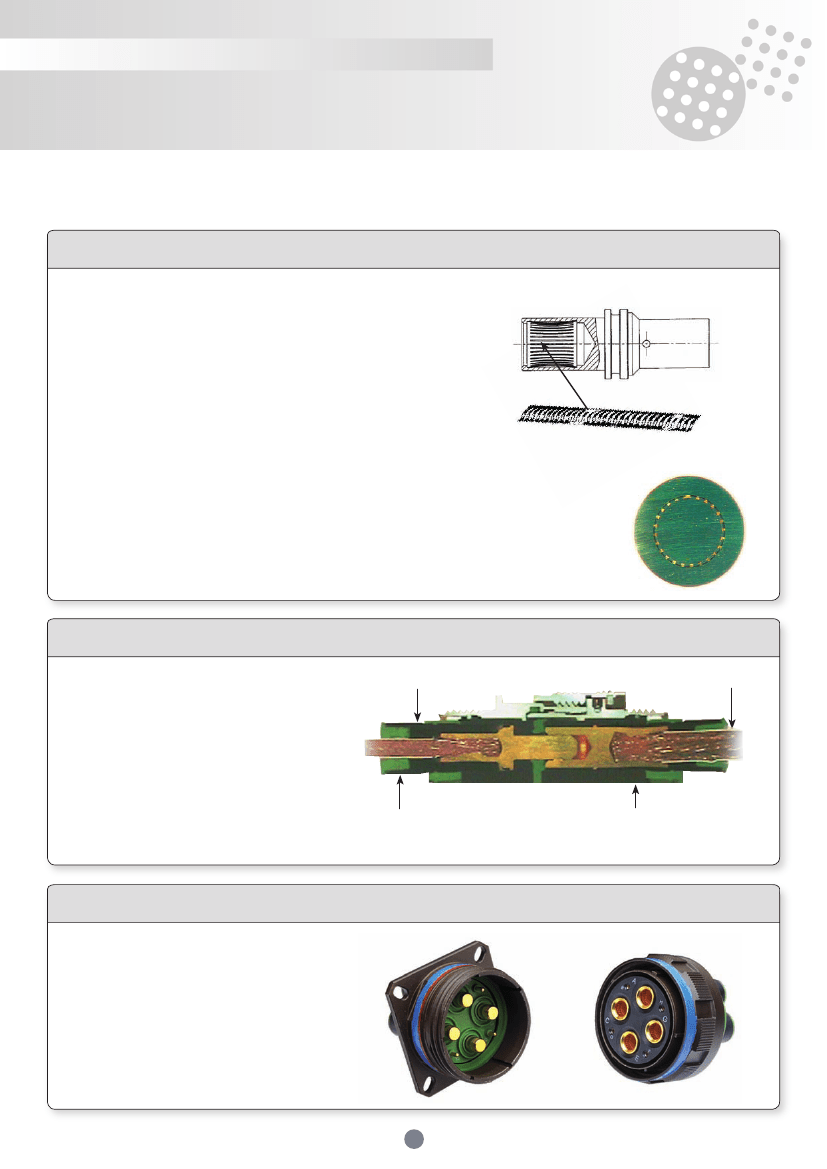

Thanks to its unique contact design (socket with a braid) these products can be used wherever very high power

supply is required in environment where vibration and temperature are high.

Typical applications can be motor of electro hydraulic or electro mechanical actuators (located on Aircraft wings

and tail or in the thrust reverser actuation sytem).

8D range features 6 different layouts in 4 shell sizes (composite or aluminum) with contacts from size 8 to size

4 enabling current rating up to 80 Amps.

Contents

• Company profile .....................................................................................................................................................................

• Presentation .............................................................................................................................................................................

• Technical features and benefits .........................................................................................................................................

• Ordering information ............................................................................................................................................................

• Layouts ......................................................................................................................................................................................

• Dimensions ..............................................................................................................................................................................

• Contacts and sealing boot ..................................................................................................................................................

• Tooling .......................................................................................................................................................................................
