74HC590D,112 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74HC590D,112

74HC590D,112: Description74HC590 - 8-bit binary counter with output register; 3-state SOP 16-Pin; Categorylogic logic; File Size799KB，20 Pages; ManufacturerKnowles; Websitehttp://www.knowles.com; Environmental Compliance

Download Datasheet Parametric View All

74HC590D,112 Overview

74HC590 - 8-bit binary counter with output register; 3-state SOP 16-Pin

74HC590D,112 Parametric

Parameter Name	Attribute value
Brand Name	Nexperia
Is it Rohs certified?	conform to
Maker	Knowles
Parts packaging code	SOP
package instruction	3.90 MM WIDTH, PLASTIC, MS-012, SOT-109-1, SOP-16
Contacts	16
Manufacturer packaging code	SOT109-1
Reach Compliance Code	compliant
Samacsys Description	74HC590 - 8-bit binary counter with output register; 3-state@en-us
Other features	TCO OUTPUT;REGISTERED OUTPUTS
Counting direction	UP
series	HC/UH
JESD-30 code	R-PDSO-G16
JESD-609 code	e4
length	9.9 mm
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	ASYNCHRONOUS
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	230 ns
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Trigger type	POSITIVE EDGE
width	3.9 mm
minfmax	26 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

74HC590

8-bit binary counter with output register; 3-state

Rev. 3 — 24 February 2016

Product data sheet

1. General description

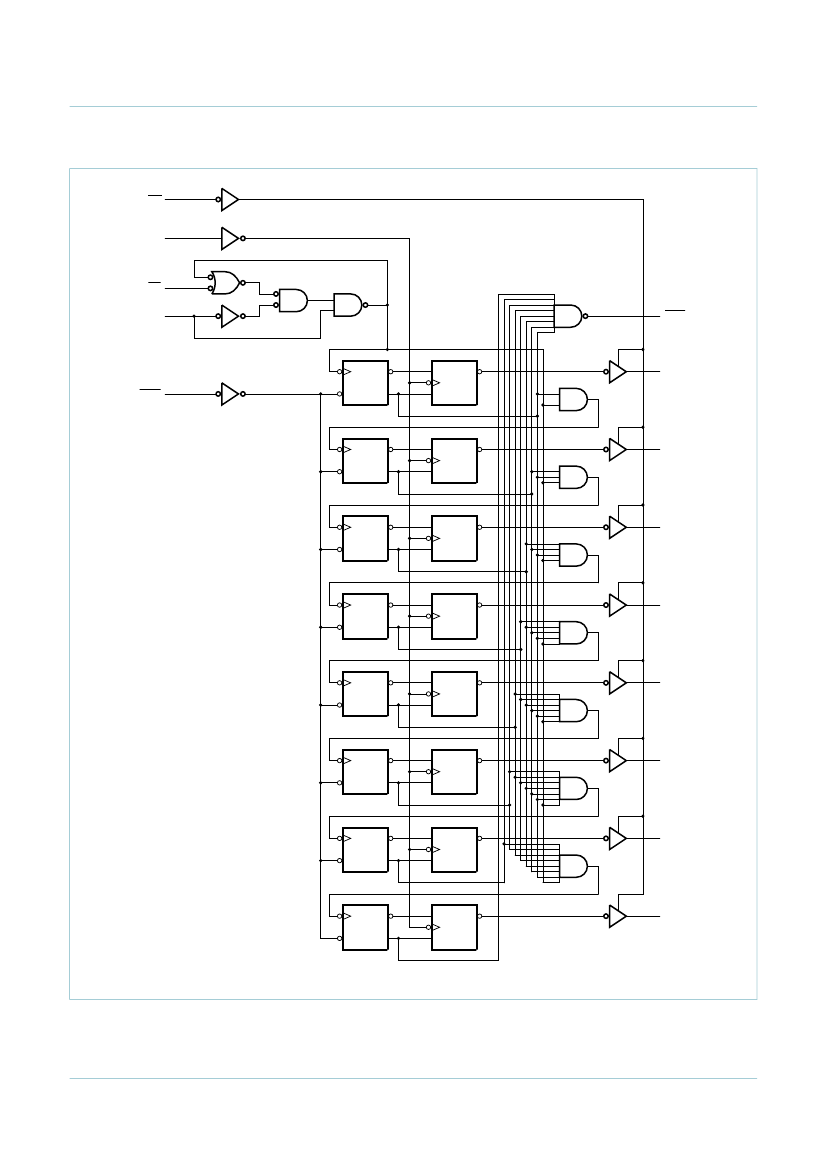

The 74HC590 is an 8-bit binary counter with a storage register and 3-state outputs. The

storage register has parallel (Q0 to Q7) outputs. The binary counter features master reset

counter (MRC) and count enable (CE) inputs. The counter and storage register have

separate positive edge triggered clock (CPC and CPR) inputs. If both clocks are

connected together, the counter state is always one count ahead of the register. Internal

circuitry prevents clocking from the clock enable. A ripple carry output (RCO) is provided

for cascading. Cascading is accomplished by connecting RCO of the first stage to CE of

the second stage. Cascading for larger count chains can be accomplished by connecting

RCO of each stage to the counter clock (CPC) input of the following stage. Inputs include

clamp diodes. This enables the use of current limiting resistors to interface inputs to

voltages in excess of V

2. Features and benefits



Counter and register have independent clock inputs

Counter has master reset

Complies with JEDEC standard no. 7A

Multiple package options

Input levels:



For 74HC590: CMOS level



ESD protection:



HBM JESD22-A114F exceeds 2000 V



MM JESD22-A115-A exceeds 200 V



CDM JESD22-C101C exceeds 2000 V



Specified from

40 C

to +85

C

and from

40 C

to +125

C

3. Ordering information

Table 1.

Ordering information

Temperature range Name

74HC590D

74HC590PW

74HC590BQ

40 C

to +125

C

40 C

to +125

C

40 C

to +125

C

SO16

TSSOP16

Description

plastic thin shrink small outline package; 16 leads; body

width 4.4 mm

Version

SOT403-1

SOT763-1

Type number Package

plastic small outline package; 16 leads; body width 3.9 mm SOT109-1

DHVQFN16 plastic dual in-line compatible thermal enhanced very thin

quad flat package; no leads; 16 terminals; body

2.5



3.5



0.85 mm
